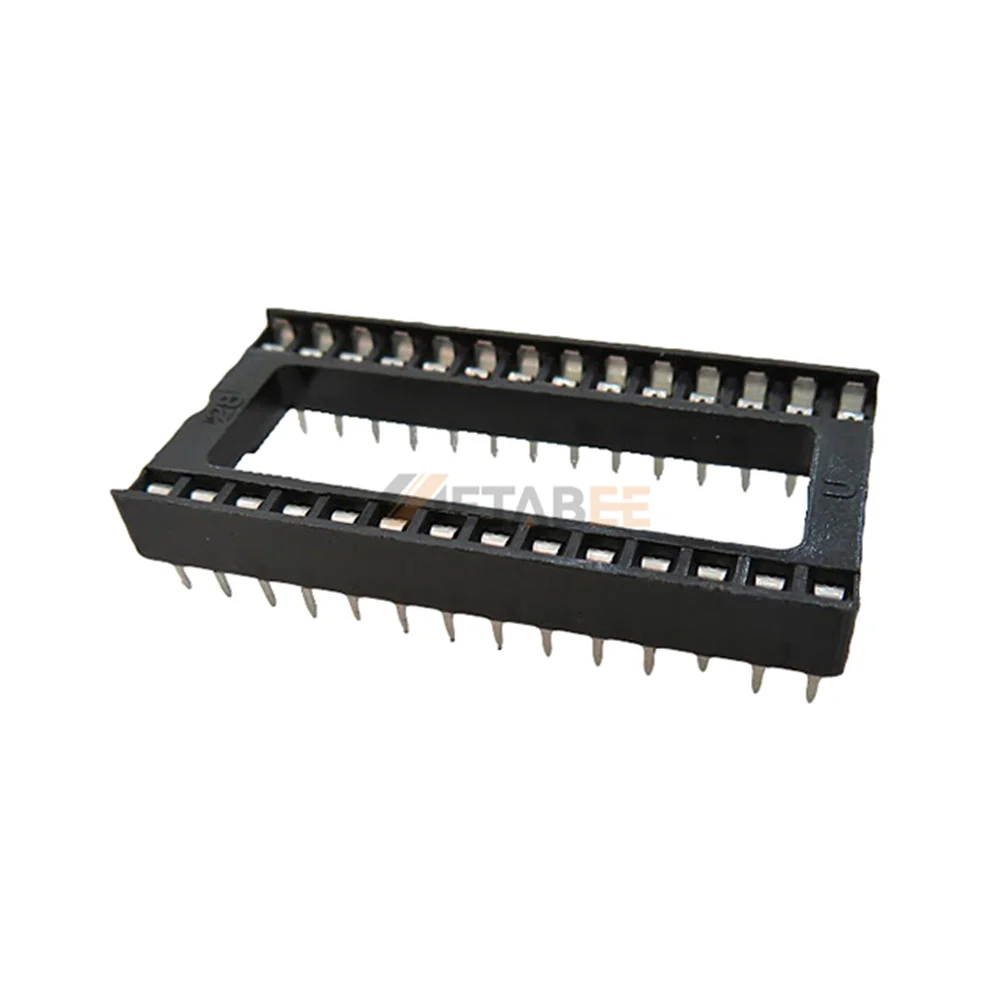

This 28 pin DIP IC socket is an expanded carrier designed for wide-body integrated circuits on networking boards. It features 15.24mm row spacing to accommodate large 0.600 inch DIP packages used in power management and memory modules. Stamped Phosphor Bronze contacts with a tin finish ensure consistent electrical mating and high signal integrity for 1A circuits. The housing is molded from glass-filled PBT to survive industrial wave soldering without warping. Engineers utilize this modular interface to facilitate easy chip updates while protecting sensitive silicon from thermal damage during the initial assembly process.
Key Features
- Wide Row Spacing: Fits standard 15.24mm (0.600 inch) wide-body ICs.
- Stamped Contacts: Ensures reliable electrical mating and low resistance.
- UL 94V-0 PBT: Delivers high flame resistance and thermal stability.
- THT Termination: Provides stable mechanical anchoring to the PCB.
Main Specifications:
General Information:
| Product No.: | ICS-628-T | |
| Product Type: | DIP Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 28 | |
| Contact Type: | Dual-Wipe Stamped | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | 0.600″ (15.24mm) |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Tin over Nickel underplate overall |
Electrical:
| Current rating: | 1 Amp max | |
| Operating voltage: | 250 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 5000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
DIP IC Socket Structure
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
