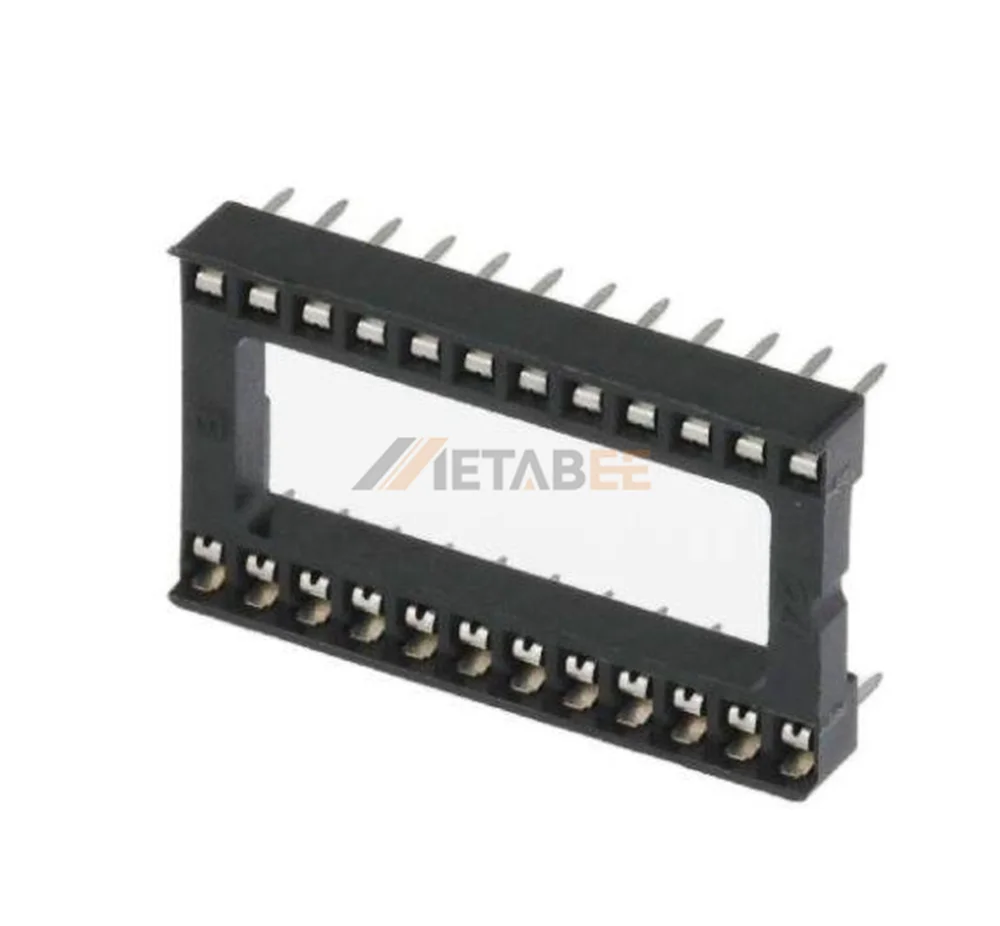

This wide 24 pin DIP IC socket provides an expanded mounting platform for larger integrated circuits on networking boards. It features a specific 15.24mm row spacing designed to accommodate wide-body DIP packages often used in power management and memory modules. Stamped Phosphor Bronze contacts with a Tin-over-Nickel finish ensure consistent electrical mating and signal integrity for 1A circuits. The glass-filled PBT housing meets UL 94V-0 standards to survive intense industrial wave soldering without warping. Technicians utilize this wide-format carrier to facilitate easy chip replacement and firmware updates in complex systems. It effectively protects sensitive silicon from thermal stress during the initial assembly process.
Key Features
- Wide Row Spacing: Fits standard 15.24mm (0.600 inch) wide-body ICs.
- Stamped Contacts: Ensures reliable electrical mating and low resistance.
- UL 94V-0 PBT: Delivers high flame resistance and thermal stability.
- THT Termination: Provides stable mechanical anchoring to the board.
Main Specifications:
General Information:
| Product No.: | ICS-624-T | |
| Product Type: | DIP Sockets | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 24 | |
| Contact Type: | Dual-Wipe Stamped | |
| Mounting Type: | Through Hole | |
| Pitch – Mating: | 0.100″ (2.54mm) | |
| Row Spacing: | 0.600″ (15.24mm) |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced, rated UL 94V-0 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Tin over Nickel underplate overall |
Electrical:
| Current rating: | 1 Amp max | |
| Operating voltage: | 250 VAC max | |
| Contact resistance: | 20 mohms max | |
| Insulation resistance: | 5000 Mohms min @ 500 VDC | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Environmental：
| Operating Temperature: | -55°C to +105°C | |
| Compliance: | Lead Free & RoHS Compliant |
DIP IC Socket Structure
Applications:
- Swappable Audio Op-Amps
- BIOS & Firmware Socketing
- IC Programming & Testing Fixtures
- Hardware R&D & Prototyping
- On-Site Industrial Maintenance
