Introduction:

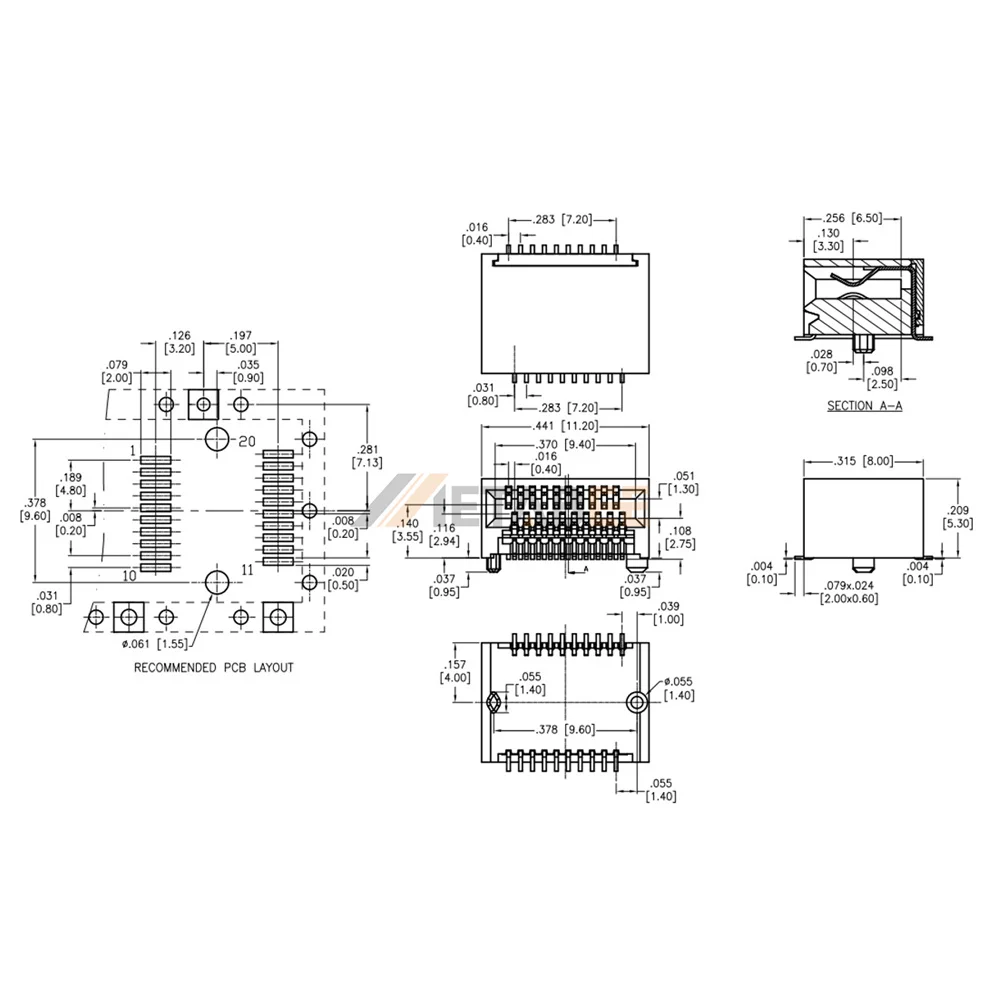

This 20-pin SFP module host connector mounts directly onto system PCBs to provide the internal 20-circuit mating interface for standard pluggable transceivers. It is designed to operate inside external SFC series shielding cages, which provide mechanical alignment and EMI shielding around the port. The copper alloy contacts feature a gold flash finish over a nickel underplate, protecting mating surfaces against oxidation while maintaining low contact resistance. Molded from high-temperature UL 94V-0 thermoplastic, the insulating housing resists warping during SMT reflow soldering. Surface-mount leads deliver uniform coplanarity for reliable solder joint inspection on host pads. Supporting an extended temperature range from -55°C to +85°C, this cost-effective receptacle suits optical transceivers, network interface cards, and edge Ethernet switches.
Key Features
-
Gold Flash over Nickel: Protects contact surfaces against oxidation cost-effectively.
-
SMT PCB-Surface Mount: Delivers coplanar leads for automated reflow assembly.
-
Standard SFF-20 Footprint: Operates inside SFC series multi-port shielding cages.
-
Extended Temperature Rating: Performs reliably across -55°C to +85°C environments.
-
UL 94V-0 Housing: Resists high reflow temperatures without thermal warping.
Main Specifications:
General Information:
| Product No.: | SFF-20-SG-A | |
| Product Type: | SFP Connectors & Receptacles | |
| Pluggable Form Factor: | SFP | |
| Port Configuration: | 1 Port (20-Pin) | |
| PCB Mounting Style: | SMT | |
| Included Lightpipe : | None | |
| Included Heat Sink: | None | |
| Packaging Method: | Tray | |
| Mating Components: | SFC-1 / SFC-2 / SFC-4 / SFC-6 | |
| EMI Shielding Type: | N/A (Shielded by Cage) |
Materials and Plating:
| EMI Shielding Material: | N/A | |
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Connector Insert Material: | N/A | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -55°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |

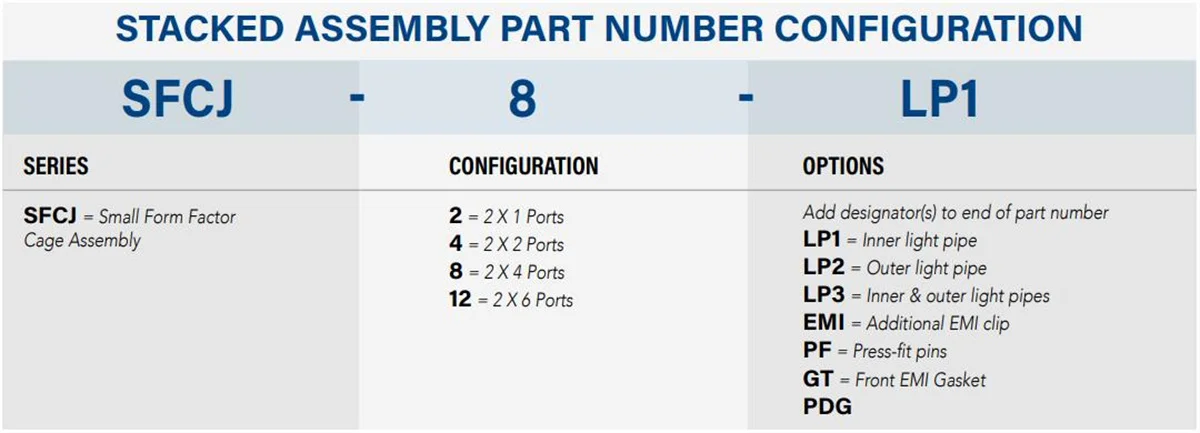

Single Row Cage Part Number Configuration
Applications:
- Switch
- Router
- Server & Storage
- Fibre Channel and Gigabit Ethernet
- Networking & Telecommunication
