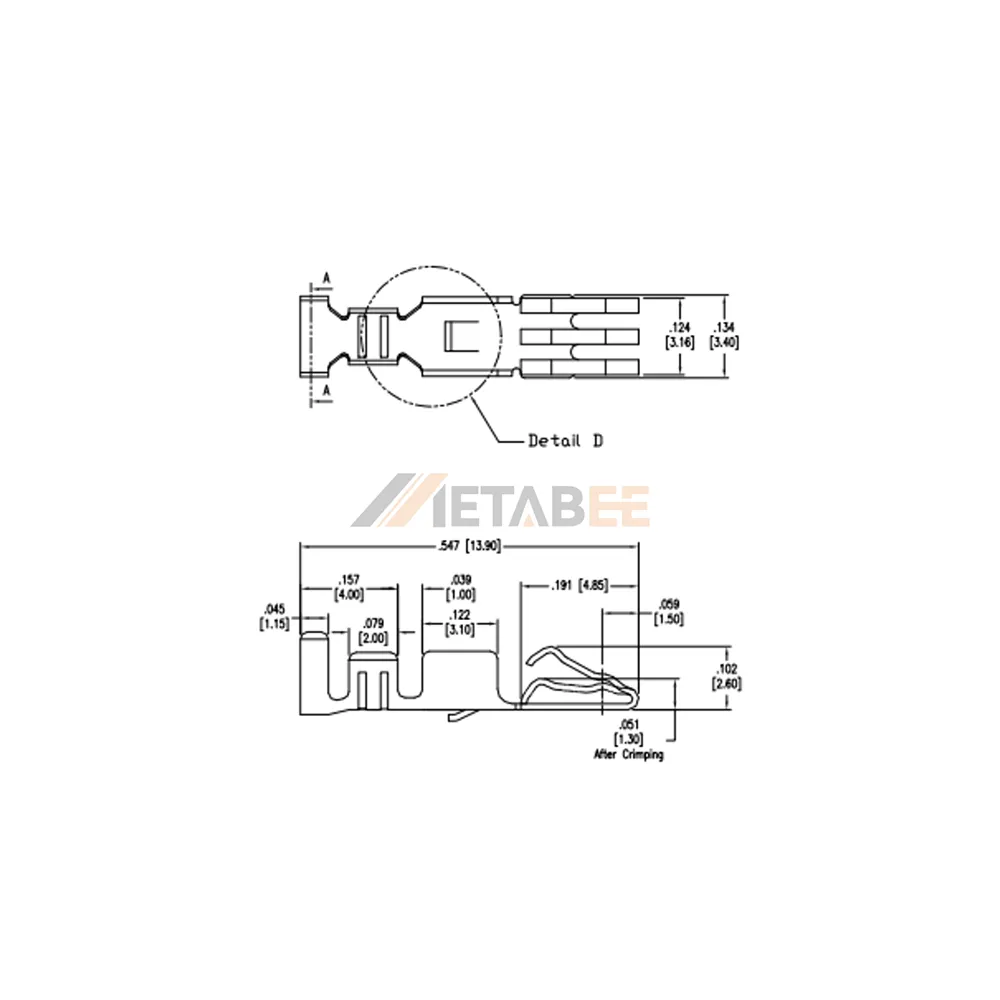

SATA 15 Pin Power Receptacle Crimp Terminal for Cable, Gold Plated
Introduction:
This sata 15 pin power receptacle crimp terminal for cable, gold plated is engineered for dependable cable-side power connections. it features a single port, 15 pin female interface and crimp termination for secure wire attachment. gold plating enhances conductivity and resists corrosion, supporting stable power delivery in sata drive assemblies.
electrically, it is rated at 1.5a with contact resistance of 30 mohms max, insulation resistance of 1,000 mohms min, and dielectric withstanding voltage of 500 vac. the housing meets ul94v-0 flammability and operates from -55°c to 85°c, ensuring reliability in demanding environments.
Key Features
- Sata 15 pin female single port
- Crimp terminal for cable assembly
- Gold plated contacts
- 1.5a current rating
- Ul94v-0, -55°c to 85°c operating temperature
Main Specifications:
General Information:
| Product No.: | SATA-CTA-SG-R | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 15 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Straight | |
| Mounting Method: | Cable type | |
| Mounting Feature: | N/A | |
| Polarization: | No Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
