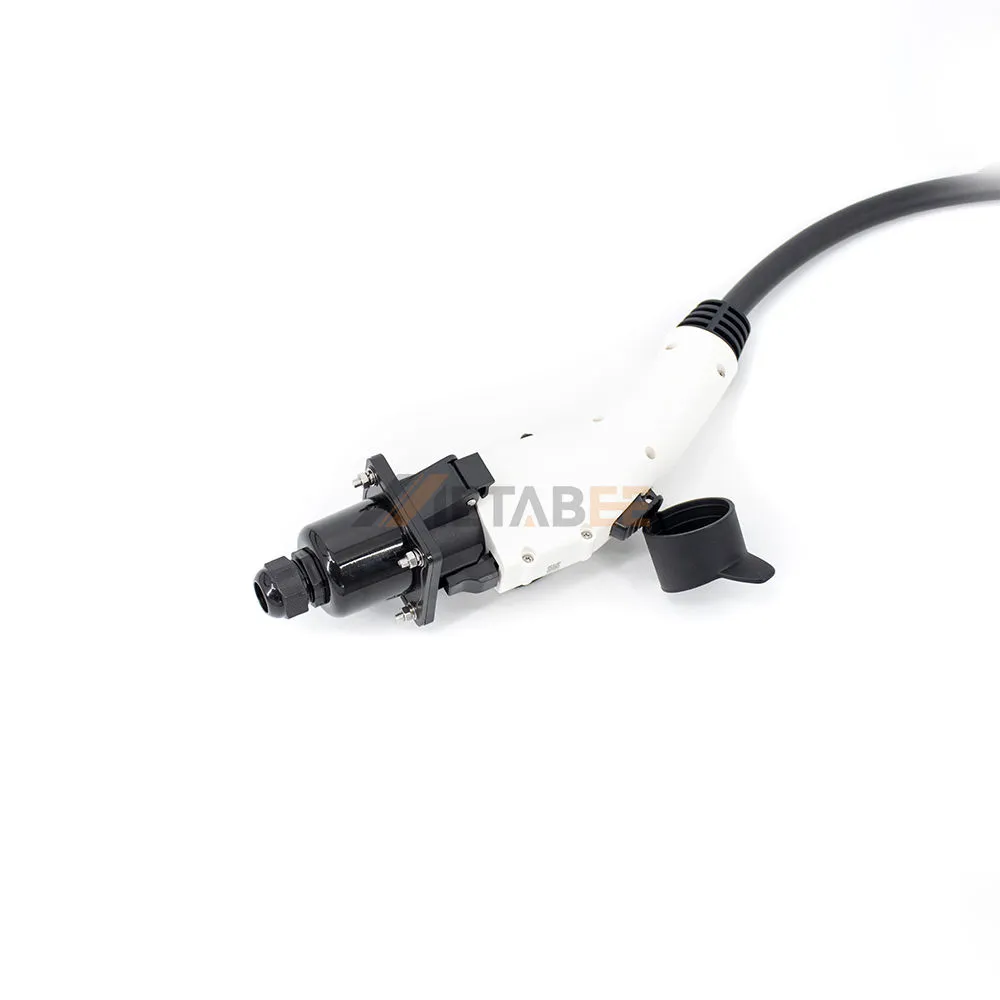

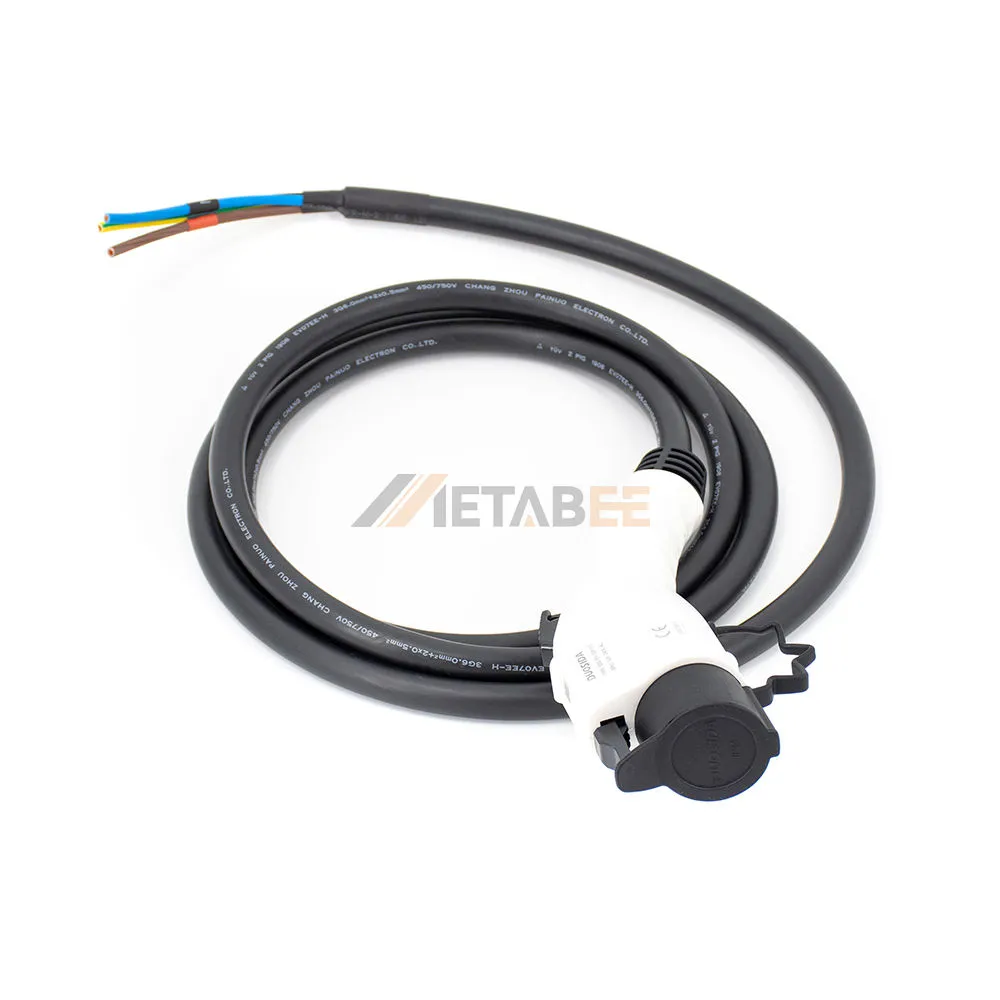

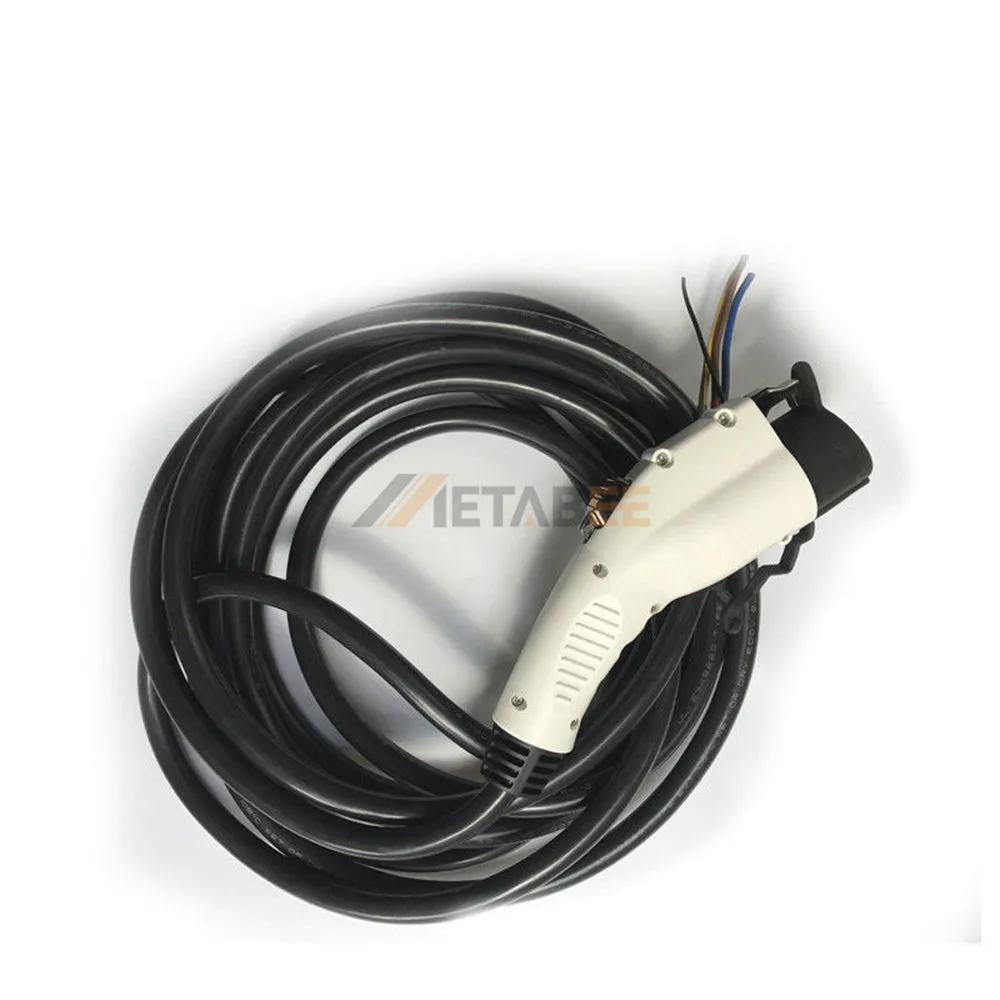

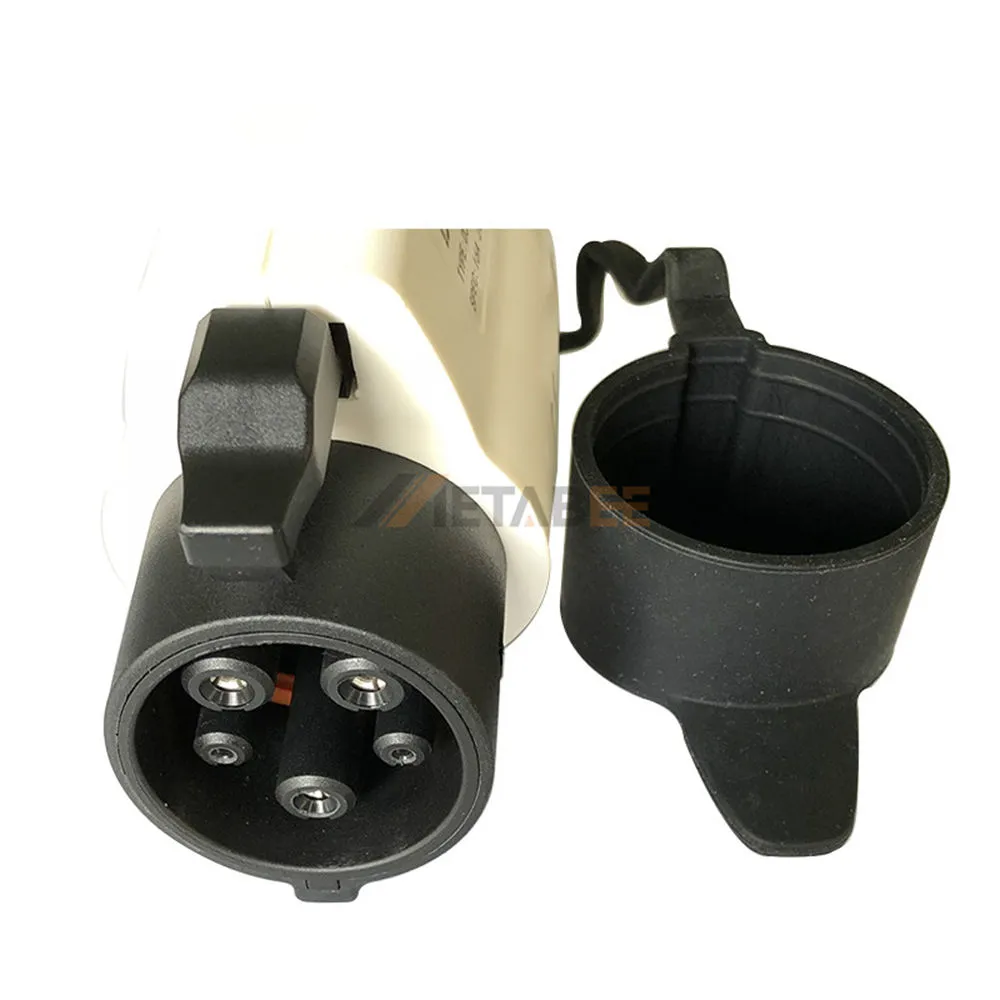

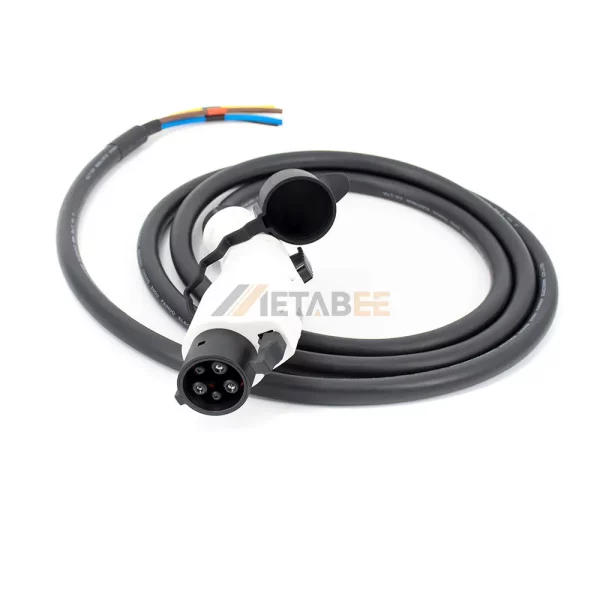

SAE Type 1 AC EV Charging Cable, Plug, Single Phase, 16A, 240V
Introduction
Power up your electric vehicle efficiently with our SAE Type 1 AC EV Charging Cable. This single-phase AC plug cable meets the stringent SAE J1772 standard, ensuring a secure and reliable connection for home or public charging.
Crafted with a durable thermoplastic housing and silver-plated copper alloy contacts, this cable guarantees long-lasting performance. It handles 240V and 16A, delivering up to 3.8kW of charging power. With an IP65 protection rating, UL94V-0 flame retardancy, and an operating temperature range of -30°C to 50°C, it provides exceptional safety and consistent performance in various conditions.
Key Features:
- Connector Type: SAE Type 1 AC Plug
- Charging Standard: SAE J1772 Compliant
- Power Rating: Single-Phase 240V, 16A, 3.8kW Max
- Durability: IP65 Rated Protection
- Safety: UL94V-0 Flame Retardant
- Temperature Range: -30°C to 50°C Operation
Main Specifications:
General Information:
| Part No.: | V5-YC-EV16P-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 240V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 3.8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this SAE Type 1 AC EV Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
