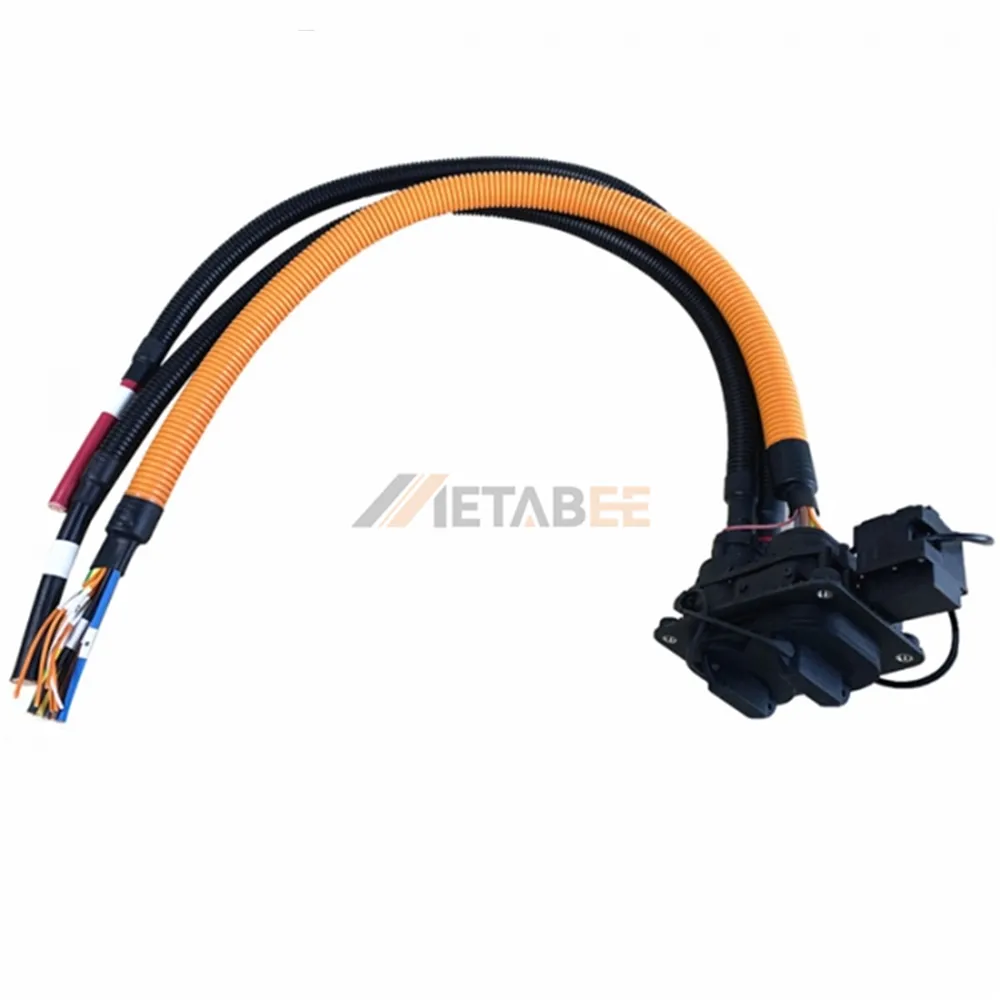

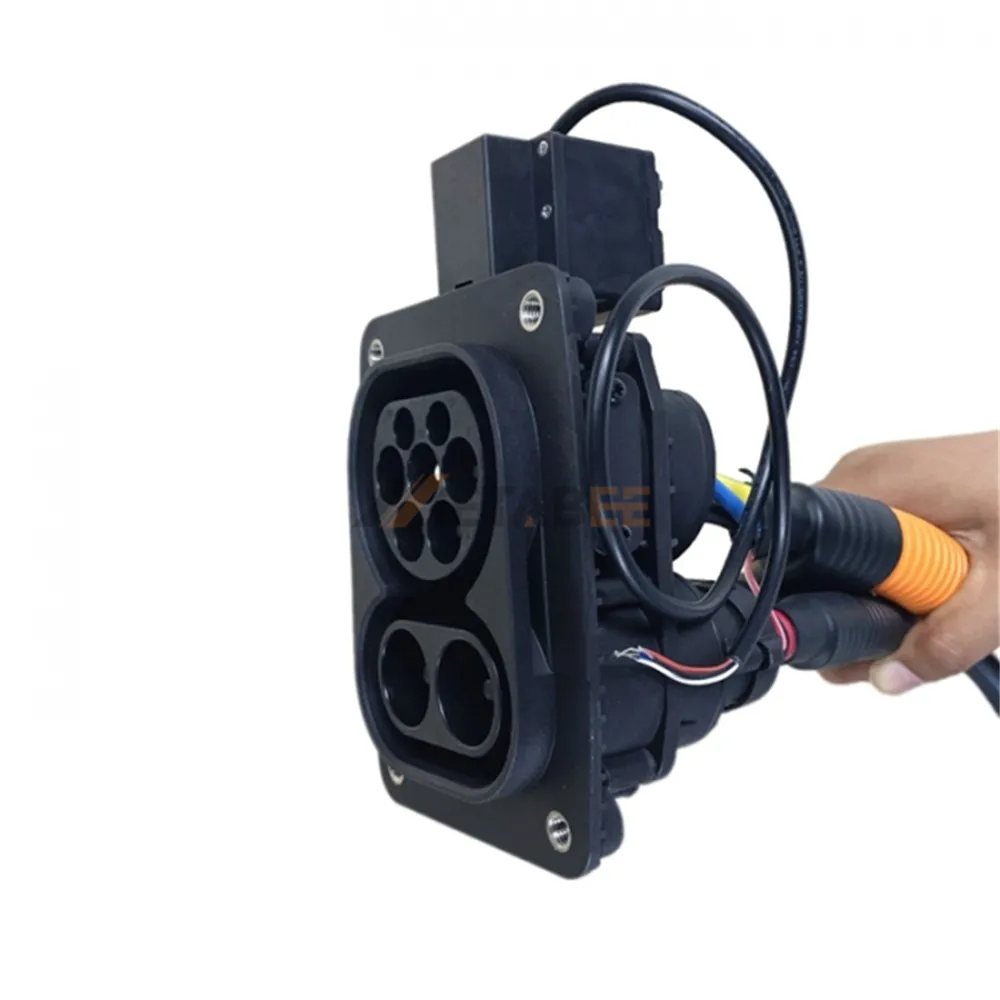

CCS COMBO2 DC Charging Cable, EV Socket, 150A, 1000V
Introduction
The CCS COMBO2 DC charging cable is a high-performance solution engineered for rapid electric vehicle charging. Designed to meet strict IEC 62196-2 standards, this robust component supports a rated voltage of 1000V and a current of 150A, delivering a massive 127kW of power. Its architecture ensures efficient energy transfer for modern high-capacity EV batteries, making it an essential component for high-speed charging infrastructure.
Durability and safety are paramount in its construction. The unit features a high-grade thermoplastic housing paired with silver-plated copper alloy contacts, optimizing conductivity while minimizing heat generation. With an IP65 protection rating and UL94V-0 flame-retardant material, this socket operates reliably in harsh environments. Whether facing extreme cold at -30°C or intense heat at 50°C, it maintains peak performance and structural integrity.
Key Features:
- High Power Capacity: Rated for 150A and 1000V, supporting up to 127kW output.
- Standardized Compliance: Fully compatible with IEC 62196-2 charging protocols.
- Premium Conductivity: Silver-plated copper alloy contacts reduce resistance and heat.
- Extreme Weatherproofing: IP65 rating ensures protection against dust and water ingress.
- Superior Safety: UL94V-0 flame-retardant thermoplastic housing for maximum security.
- Thermal Resilience: Reliable operational stability between -30°C and 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC3m-EV150S-0.5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 150A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 127kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this CCS COMBO2 DC Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
