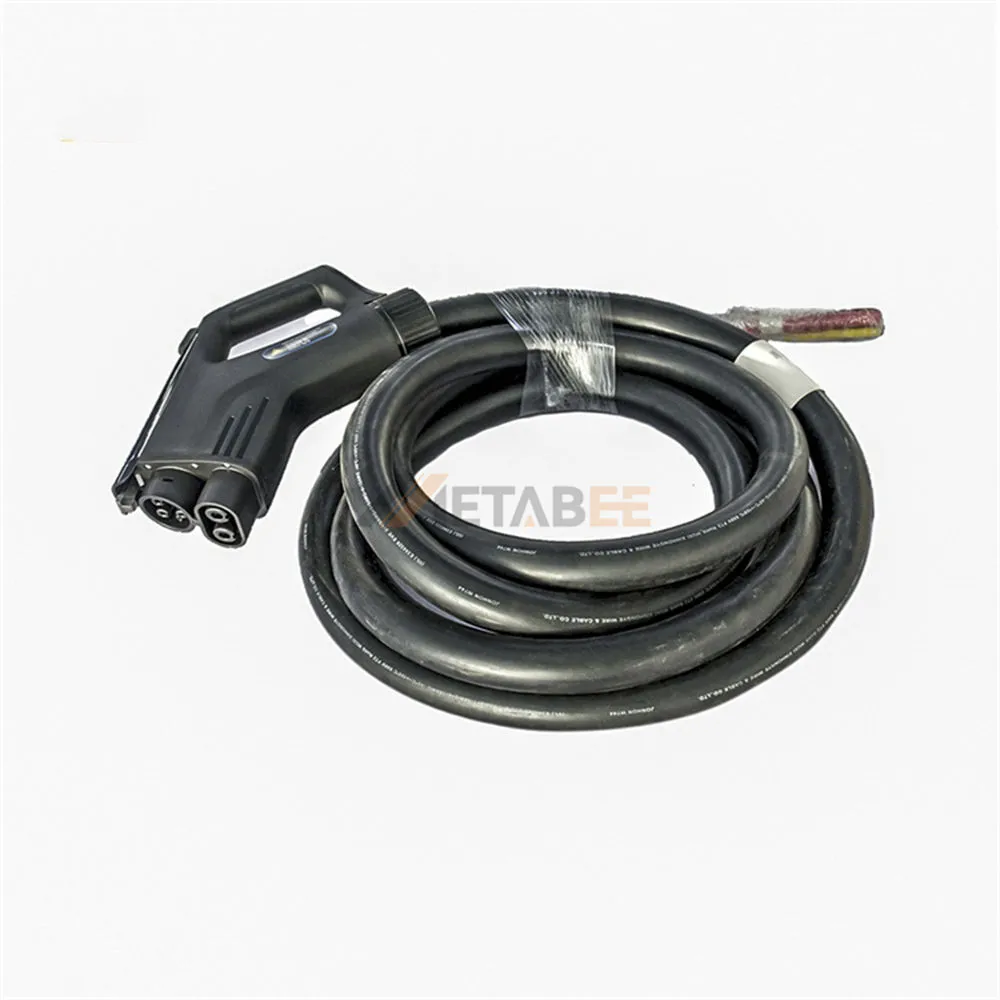

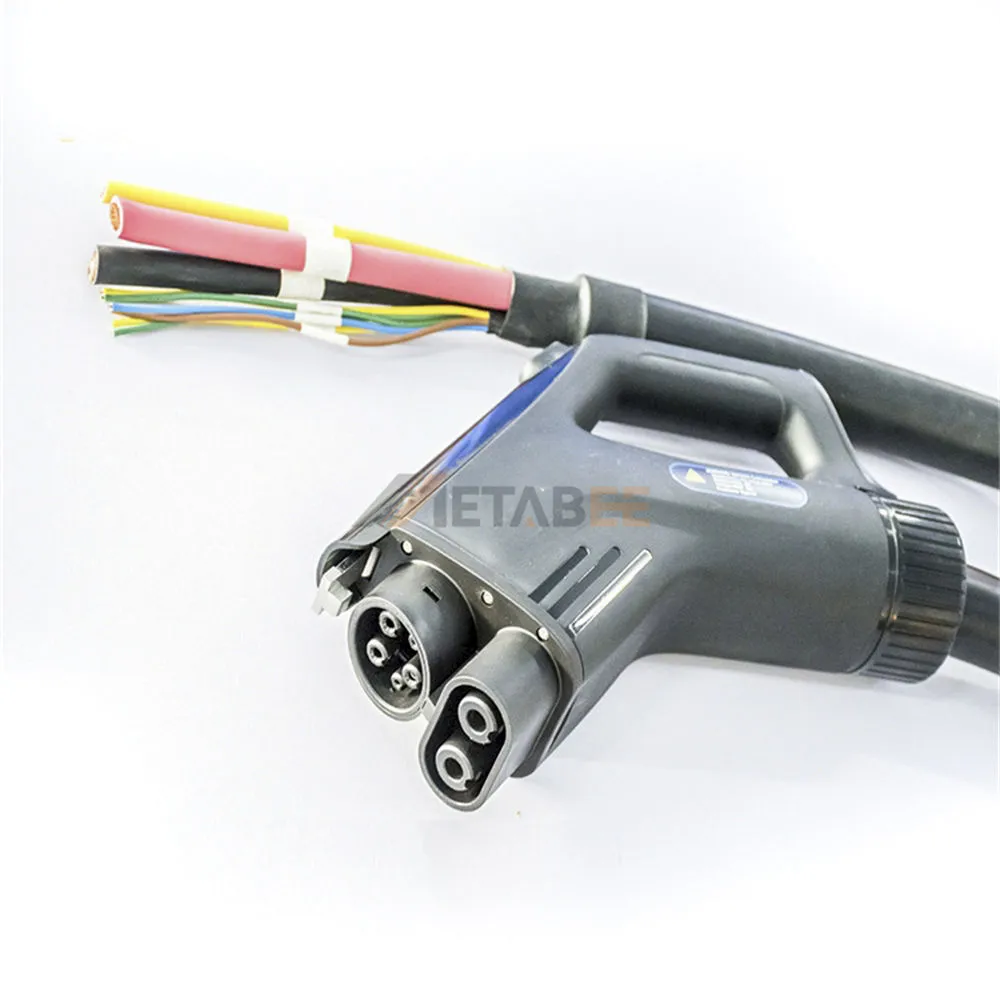

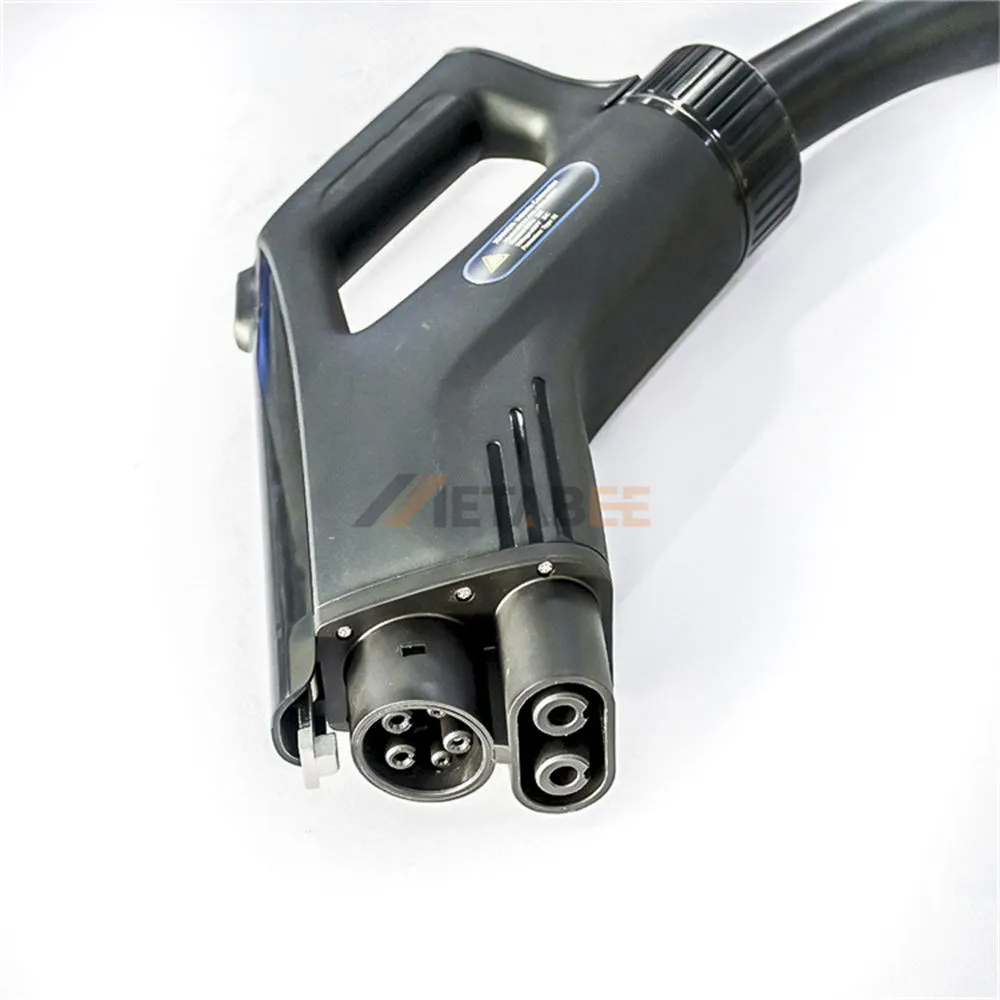

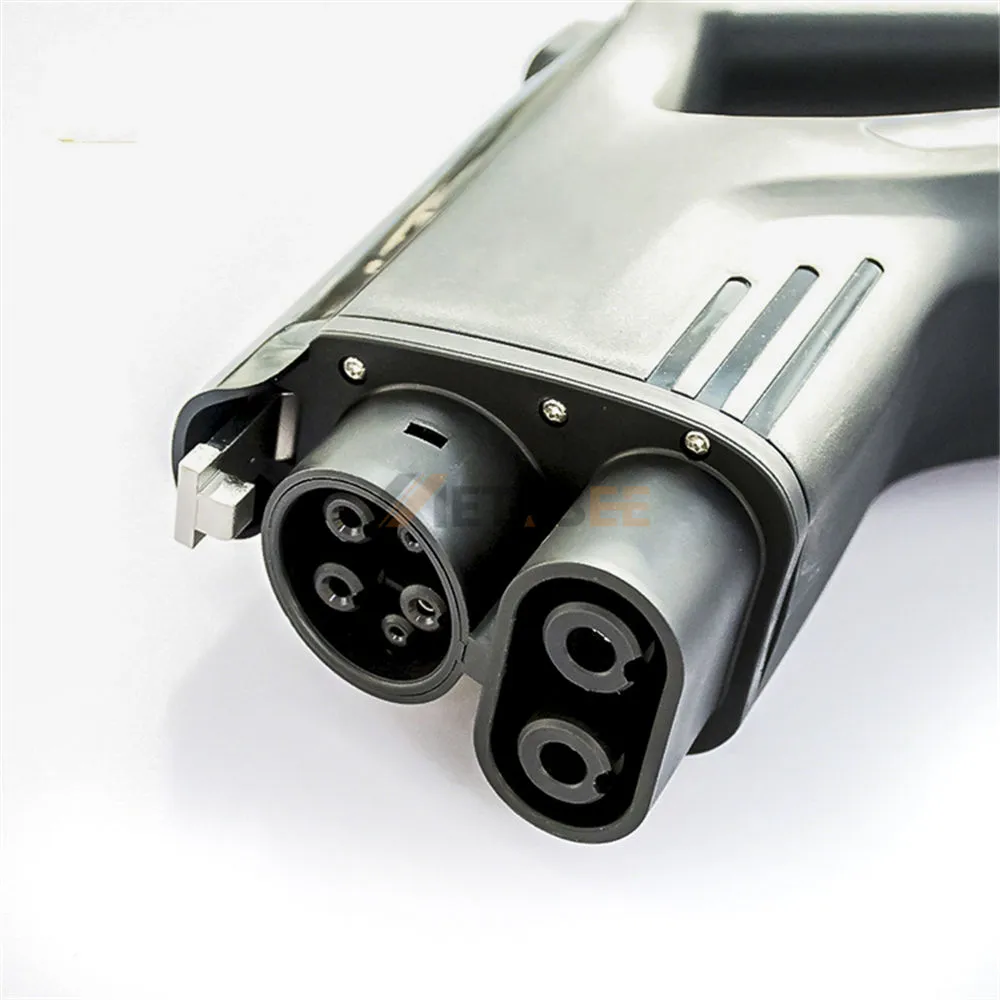

CCS COMBO1 DC Charging Cable, EV Plug, Single Phase, 125A, 600V
Introduction
Experience efficient and reliable DC fast charging with the CCS COMBO1 DC Charging Cable. Designed for optimal performance, this EV plug adheres to the SAE J1772 charging standard, ensuring compatibility with a wide range of electric vehicles. Its robust construction features a thermoplastic connector housing and silver-plated copper alloy contacts, guaranteeing durability and superior conductivity for your charging needs.
Engineered for safety and power, this cable boasts a high-rated voltage of 600V and a substantial 125A rated current, delivering a maximum charging power of 90kW. With an IP65 protection rating, it’s resistant to dust and water, while the UL94V-0 flame retardant grade provides enhanced safety. It operates effectively in temperatures ranging from -30°C to 50°C, making it a reliable solution for various environments.
Key Features:
- CCS COMBO1 DC Charging: Fast and efficient direct current charging.
- SAE J1772 Standard: Wide compatibility with EV models.
- High Power Output: Up to 90kW charging power.
- Durable Construction: Thermoplastic housing, silver-plated copper contacts.
- Robust Protection: IP65 water and dust resistance.
- Wide Temperature Range: Operates from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC3J-EV125P-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 600V | |
| Rated Current: | 125A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 90kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this CCS COMBO1 DC Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
