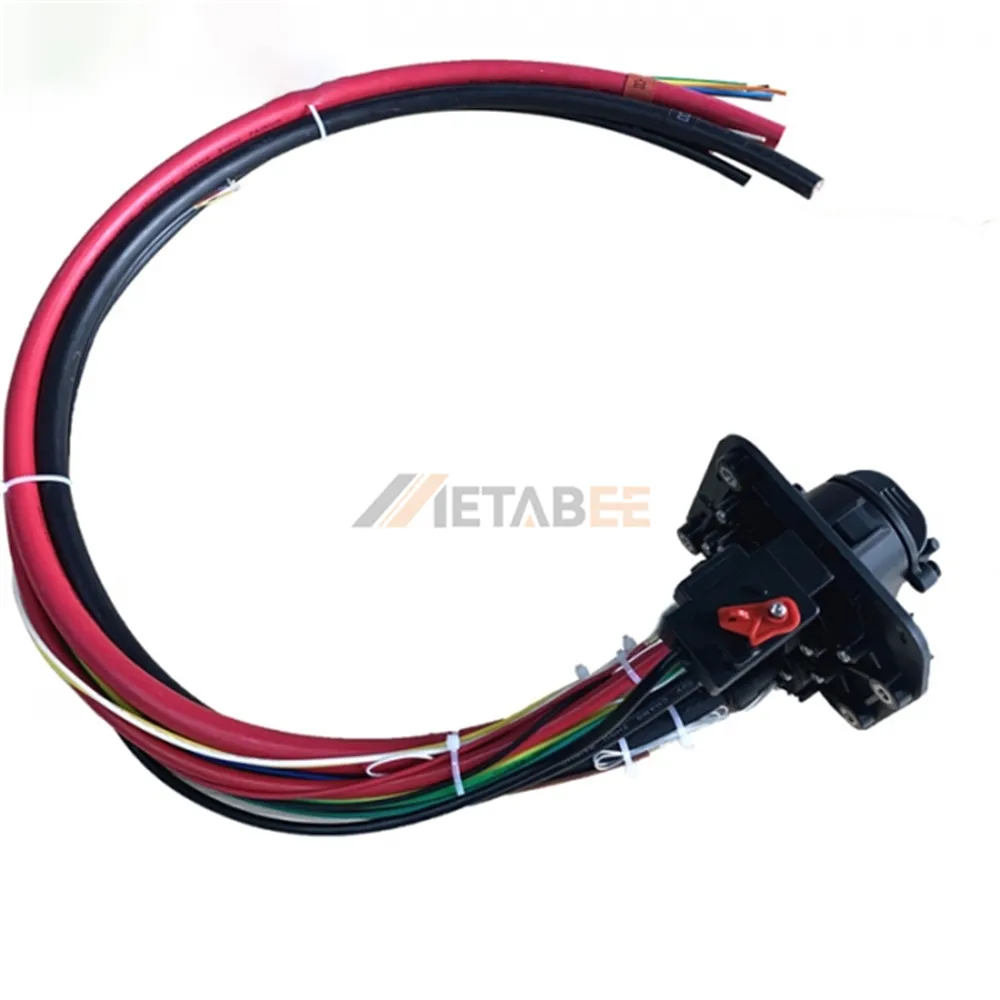

CCS COMBO1 DC Charging Cable, EV Socket, Single Phase, 150A, 1000V
Introduction
Experience rapid and reliable electric vehicle charging with our CCS Combo 1 DC Charging Cable. Designed for seamless integration with SAE J1772 standard vehicles, this EV socket ensures efficient power delivery. Crafted from durable thermoplastic for the housing and featuring silver-plated copper alloy contacts, it guarantees superior conductivity and longevity, supporting single-phase AC charging.
This robust cable boasts a 1000V rated voltage and 150A rated current, delivering a maximum charging power of 127kW. With an IP65 protection rating and UL94V-0 flame retardant grade, it’s built to withstand challenging environments, operating flawlessly from -30°C to 50°C.
Key Features:
- CCS Combo 1 & SAE J1772 Compatible: Broad EV compatibility.
- High Power Output: 1000V, 150A, up to 127kW DC charging.
- Durable Construction: Thermoplastic housing, silver-plated copper alloy contacts.
- All-Weather Performance: IP65 rated for dust and water resistance.
- Enhanced Safety: UL94V-0 flame retardant for optimal protection.
- Wide Temperature Range: Operates reliably from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC3J-EV150S-0.5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 150A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 127kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this CCS COMBO1 DC Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
