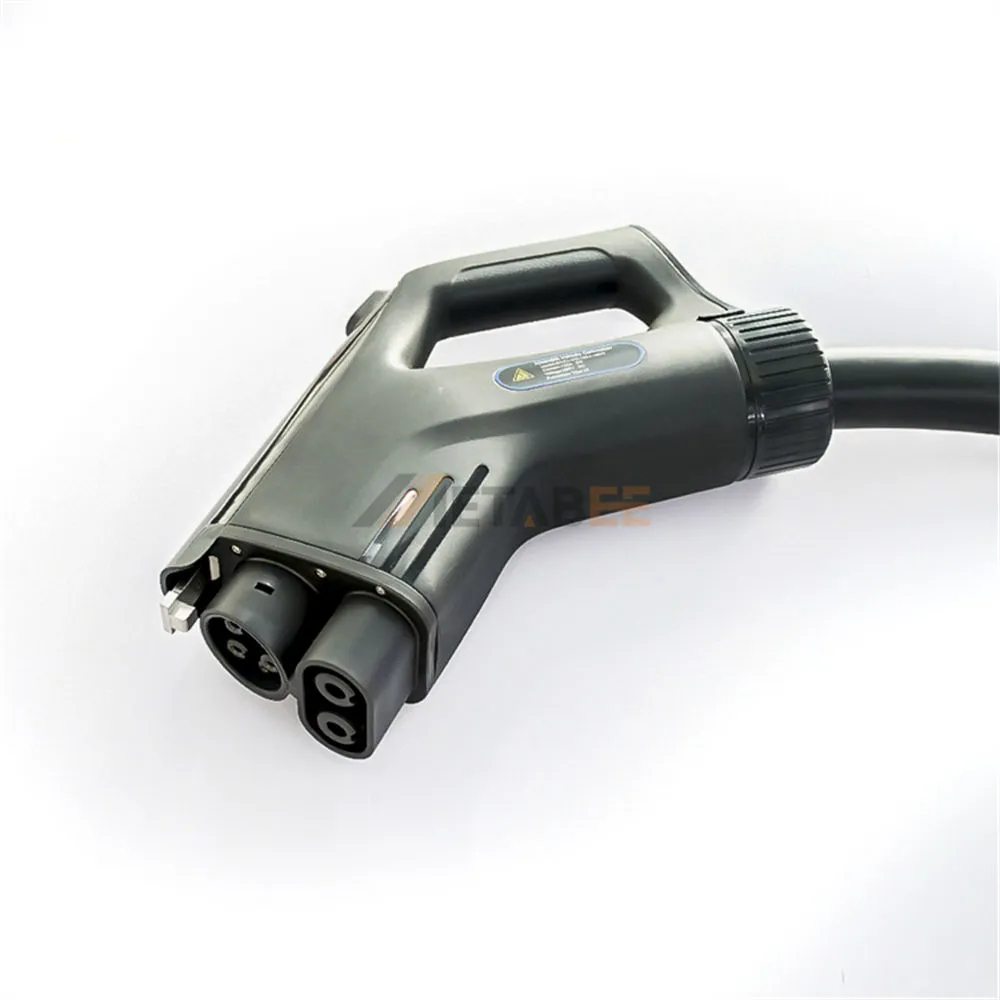

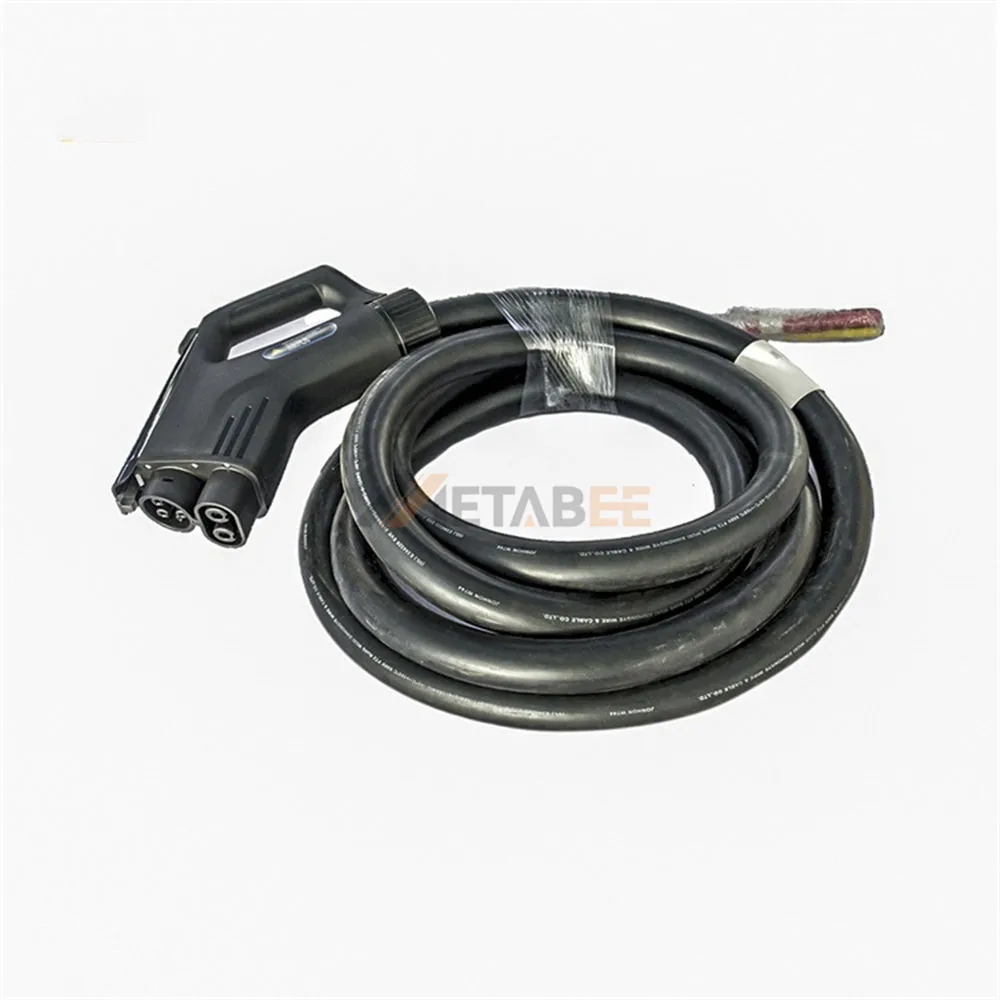

CCS COMBO1 DC EV Charging Cable, Plug, Single Phase, 150A, 600V
Introduction
Elevate your EV charging experience with the CCS COMBO1 DC EV Charging Cable. Engineered for rapid direct current charging, this plug adheres to the SAE J1772 standard, ensuring broad compatibility with electric vehicles. Its robust design features a thermoplastic connector housing and silver-plated copper alloy contacts, guaranteeing excellent conductivity and long-lasting durability for frequent use.
This high-performance cable is rated for 600V and 150A, delivering a maximum charging power of 90kW. It boasts an IP65 protection rating for superior resistance to dust and water, alongside a UL94V-0 flame retardant grade for enhanced safety. Dependable across diverse climates, it operates flawlessly in temperatures ranging from -30°C to 50°C.
Key Features:
- CCS COMBO1 DC Charging: Designed for efficient DC fast charging.
- SAE J1772 Standard: Ensures wide compatibility with EVs.
- High Power Delivery: Provides up to 90kW charging power.
- Robust Construction: Thermoplastic housing with silver-plated copper contacts.
- Durable Protection: IP65 rated for dust and water resistance.
- Extreme Temperature Range: Operates from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC3J-EV150P-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 600V | |
| Rated Current: | 150A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 90kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this CCS COMBO1 DC EV Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
