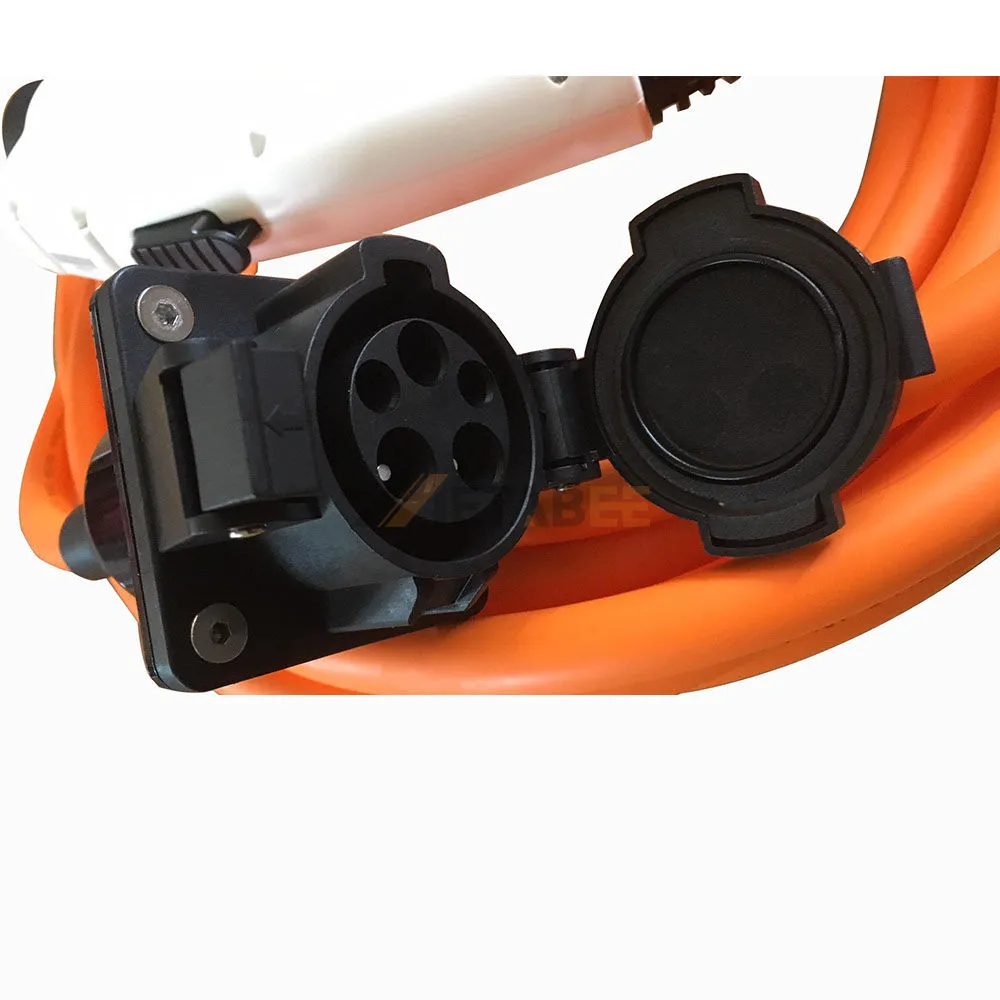

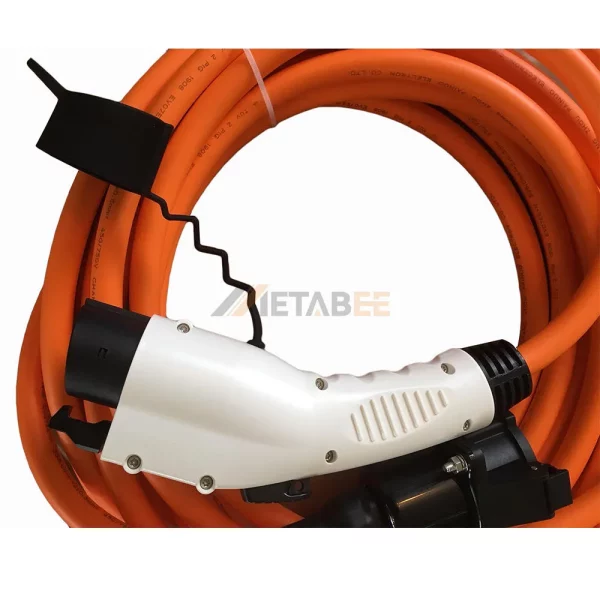

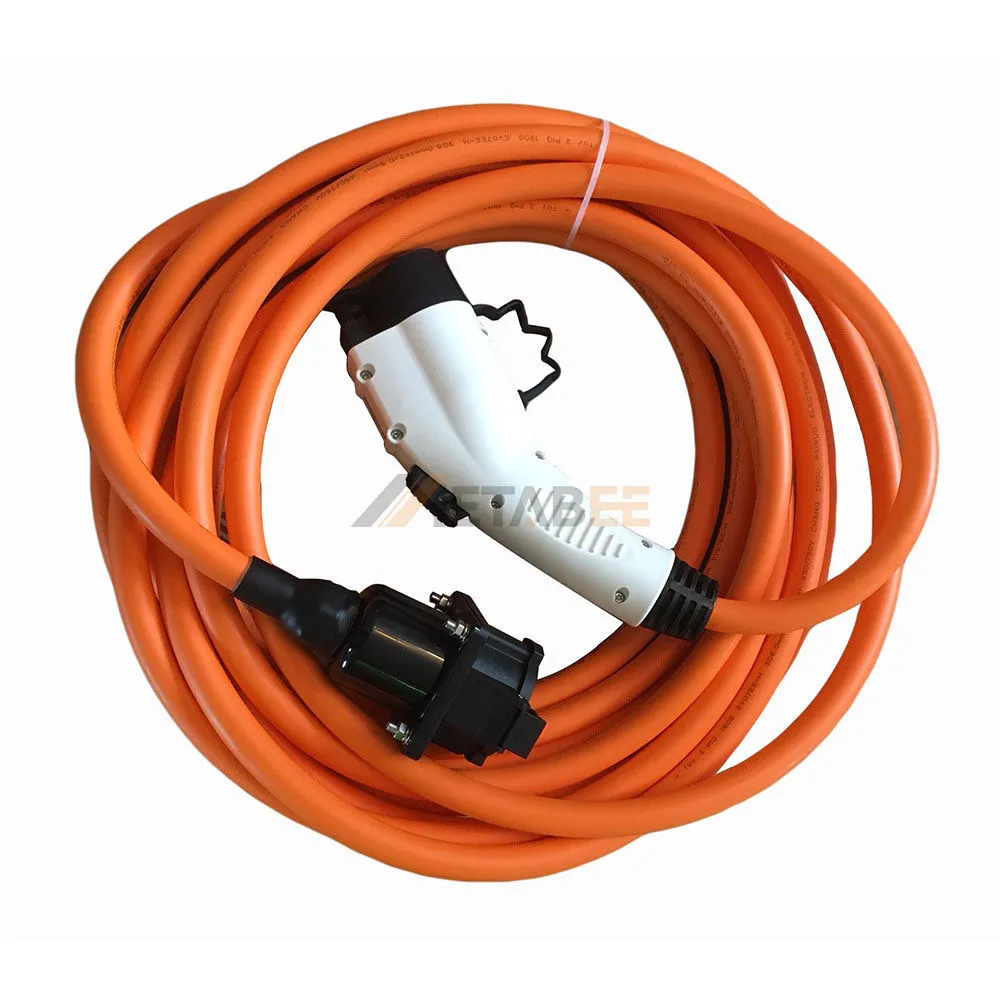

SAE Type 1 AC Charging Cable, EV Plug, Single Phase, 32A, 240V
Introduction
Elevate your EV charging experience with our high-performance SAE Type 1 AC Charging Cable. Designed for seamless compatibility with the SAE J1772 standard, this single-phase EV plug delivers reliable and efficient power to your electric vehicle. Built for durability, it features a robust Thermoplastic connector housing and Silver-Plated Copper Alloy contacts, ensuring a secure and long-lasting connection in various conditions.
This cable boasts an impressive 240V rated voltage and 32A rated current, providing a maximum charging power of 7.7kW. With an IP65 protection rating, it offers excellent resistance against dust and water, while the UL94V-0 flame retardant rating enhances safety. It operates flawlessly across a wide temperature range, from -30°C to 50°C, making it suitable for diverse environments.
Key Features:
- SAE J1772 Standard: Universal compatibility for Type 1 EVs.
- 7.7kW Fast Charging: Efficient single-phase 32A, 240V power delivery.
- Durable Construction: Thermoplastic housing and silver-plated contacts.
- IP65 Protection: Excellent water and dust resistance.
- UL94V-0 Safety Rated: High flame retardancy for peace of mind.
- Wide Temperature Range: Reliable operation from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-EV32P-32S-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 240V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 7.7kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this SAE Type 1 AC Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
