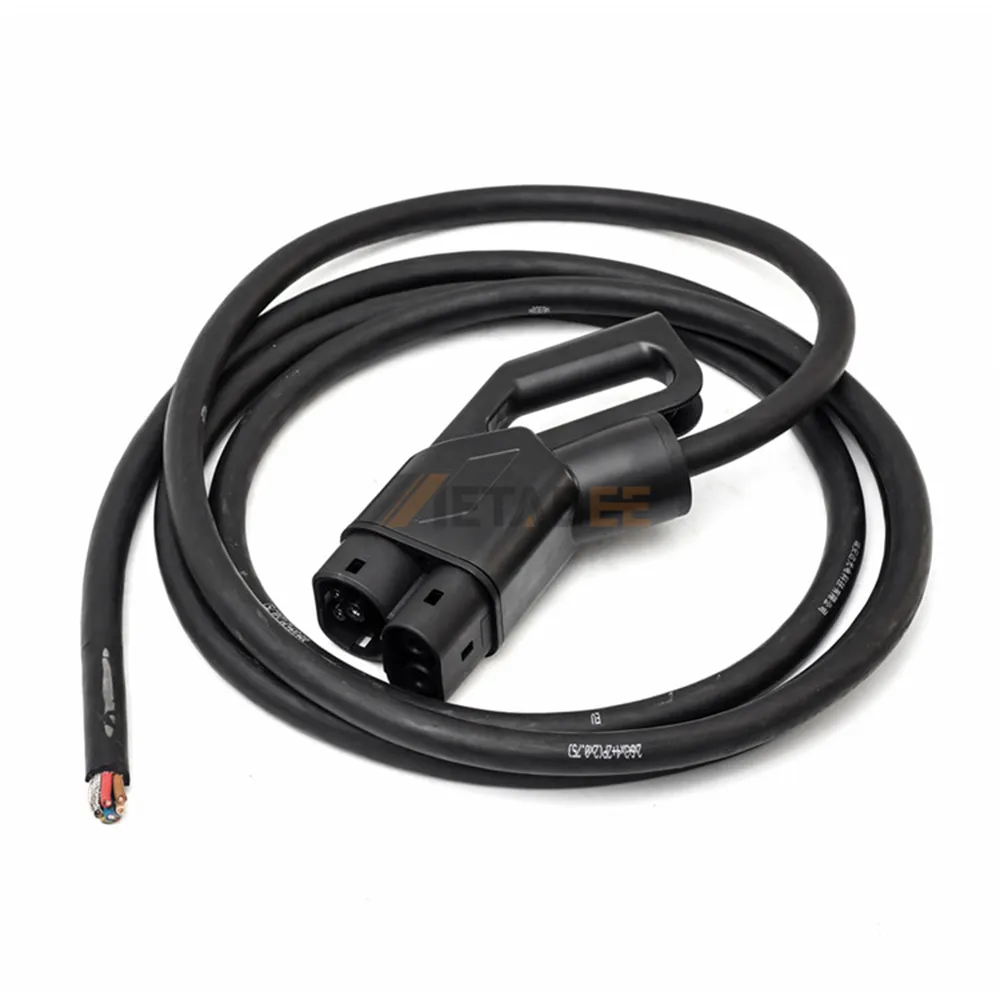

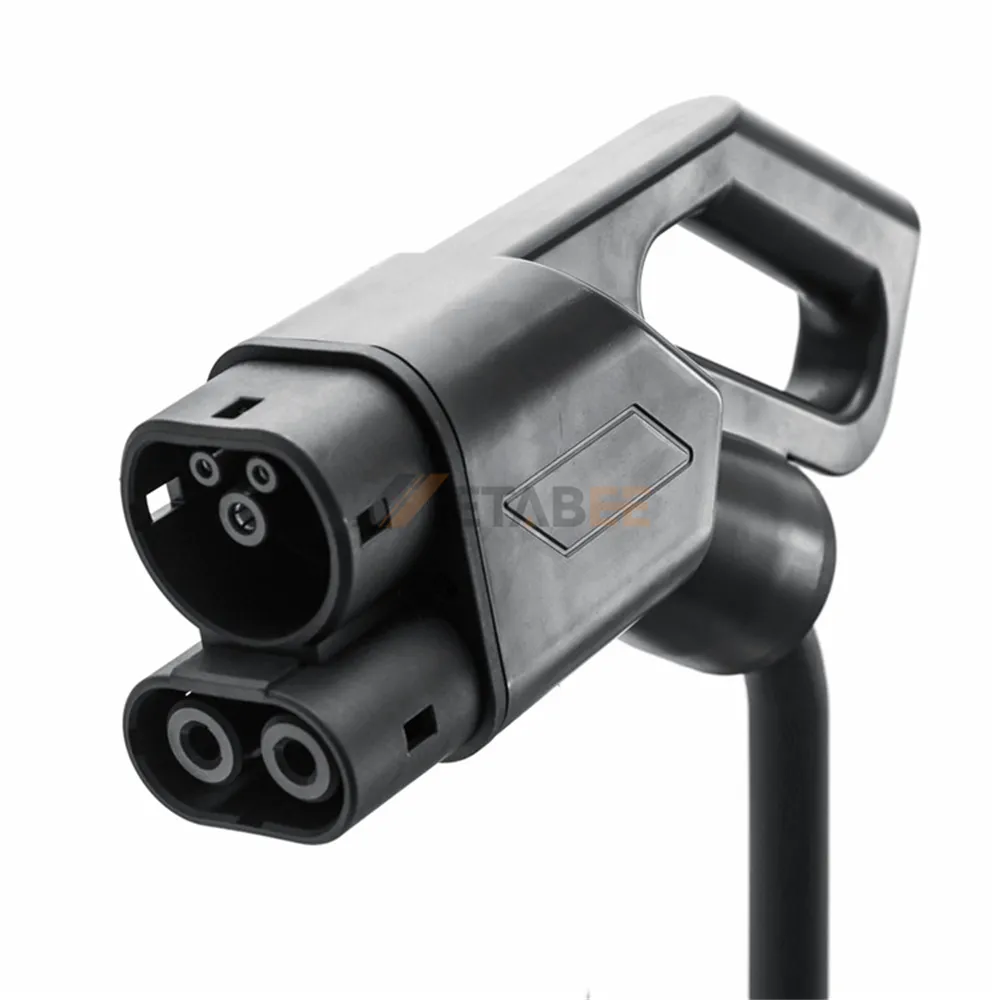

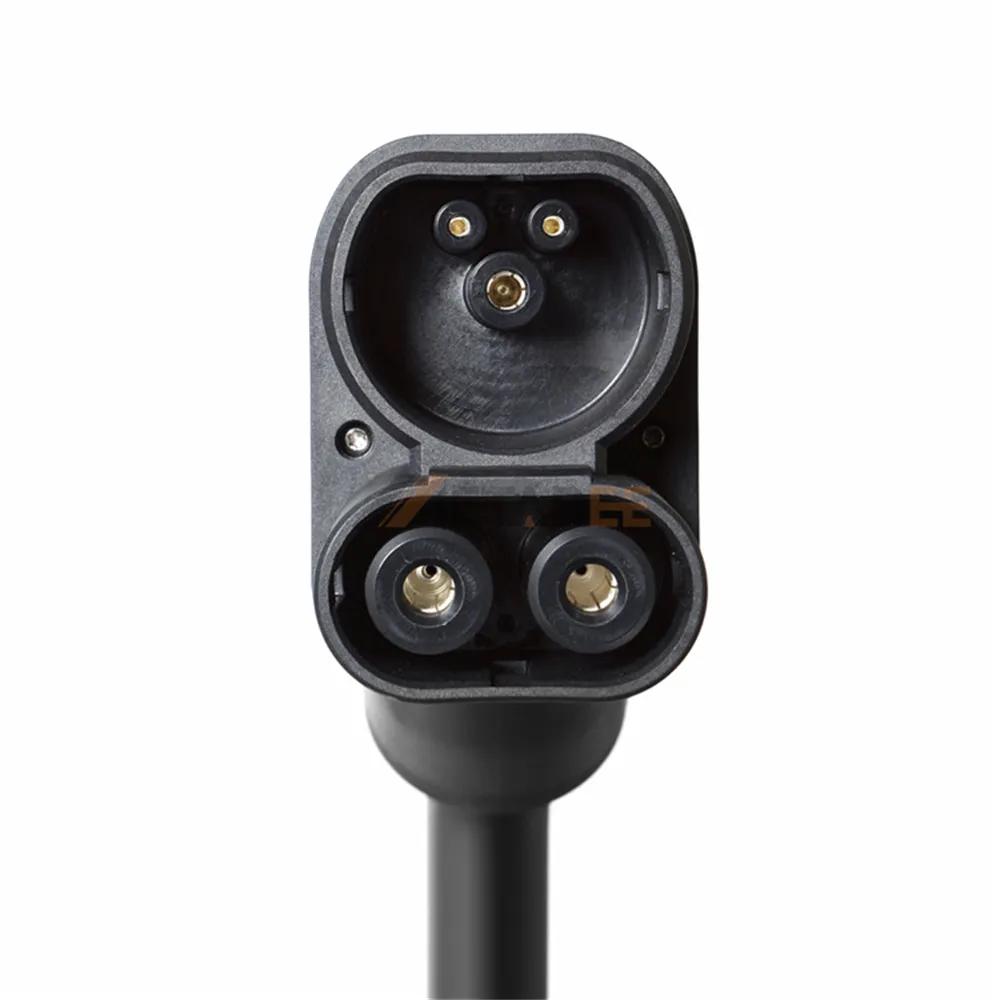

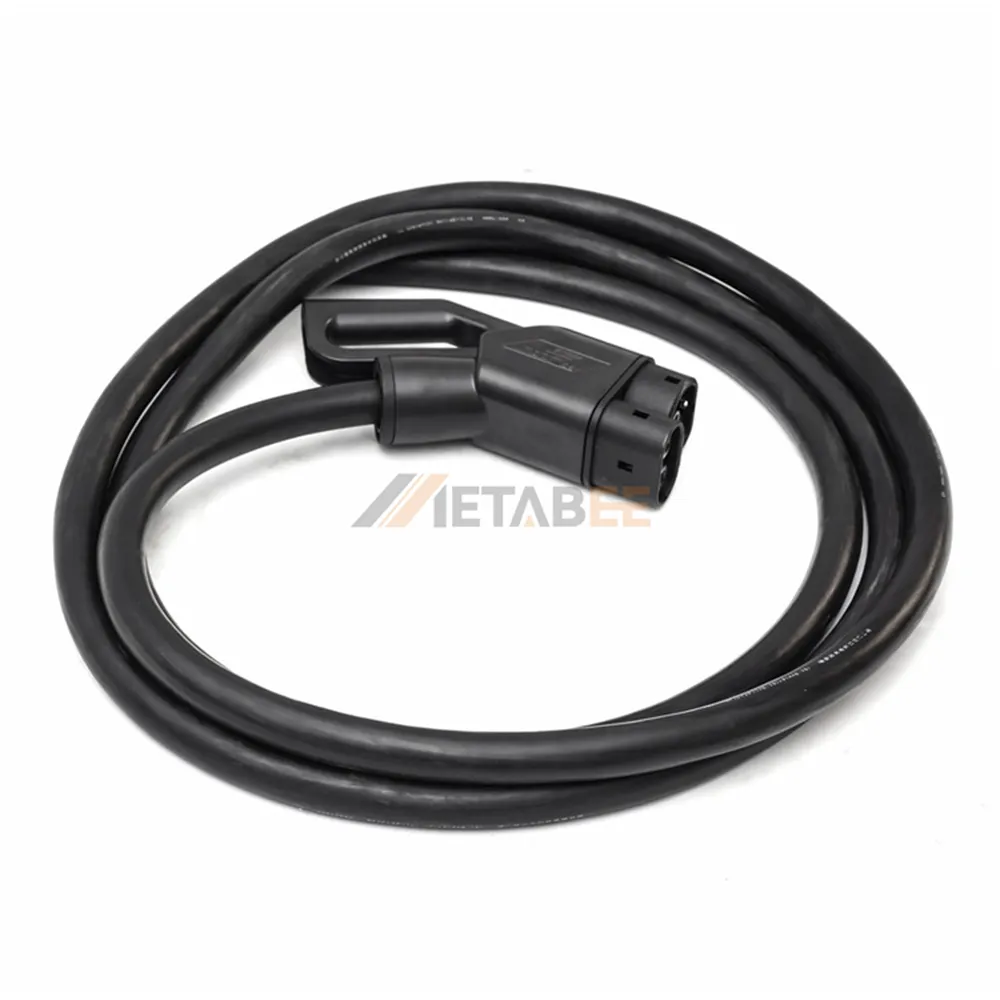

CCS COMBO2 DC EV Charging Cable, Plug, 150A, 1000V
Introduction
The CCS COMBO2 DC EV Charging Cable, Plug, 150A, 1000V is designed to meet IEC 62196-2 requirements for high-power EV charging applications. Engineered for single-phase charging systems, it supports a rated voltage of up to 1000V and a current of 150A, delivering charging power up to 127 kW with stable and efficient performance.
The connector features a durable thermoplastic housing and silver-plated copper alloy contacts, ensuring excellent electrical conductivity, reduced heat generation, and long-term reliability. The socket-type connector is optimized for secure mating and consistent power transfer.
With IP65 protection and UL94 V-0 flame retardancy, the cable is suitable for demanding environments. Its wide operating temperature range from -30 °C to +50 °C ensures dependable operation across diverse climates.
Key Features:
- IEC 62196-2 compliant CCS Combo 2 interface
- Rated 1000V / 150A, up to 127 kW
- Single-phase charging configuration
- Silver-plated copper alloy contacts
- IP65 protection, UL94 V-0 flame rating
- Operating temperature: -30 °C to +50 °C
Main Specifications:
General Information:
| Part No.: | YC-IEC3m-EV150P-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 150A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 127kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this CCS COMBO2 DC EV Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
