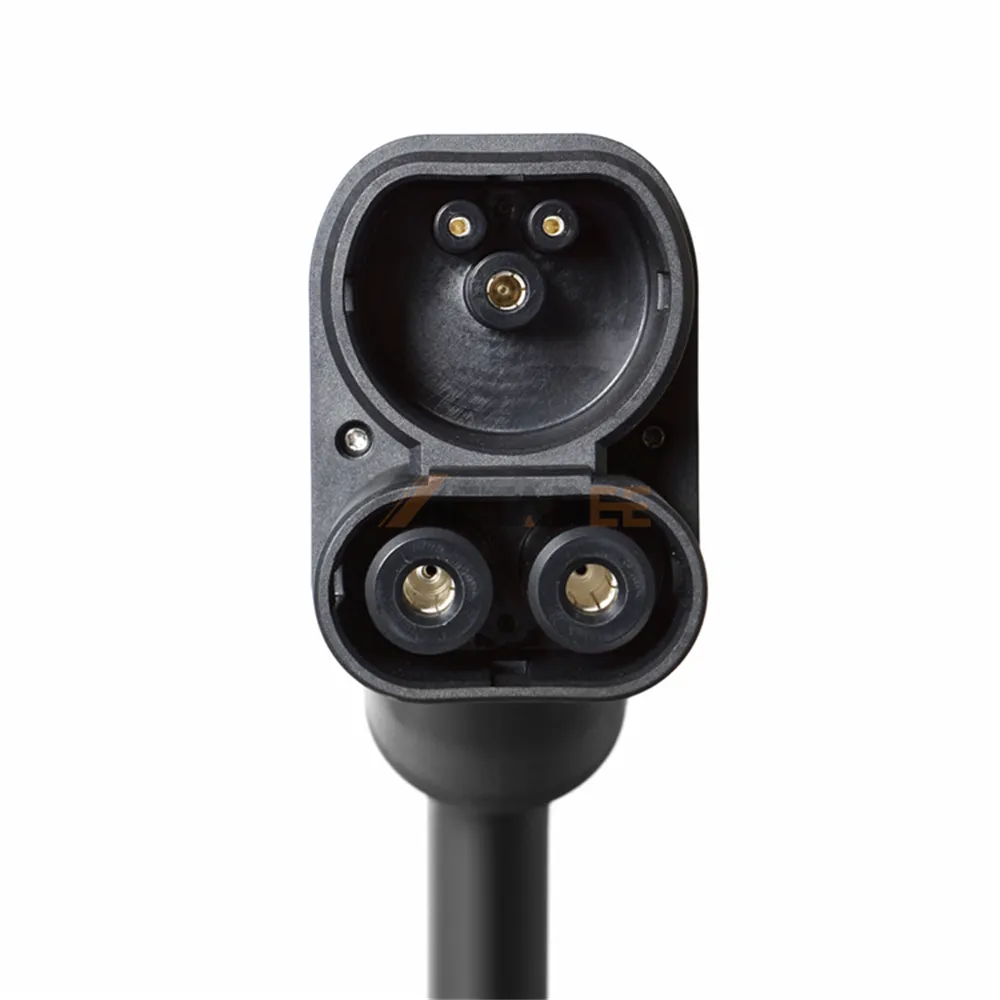

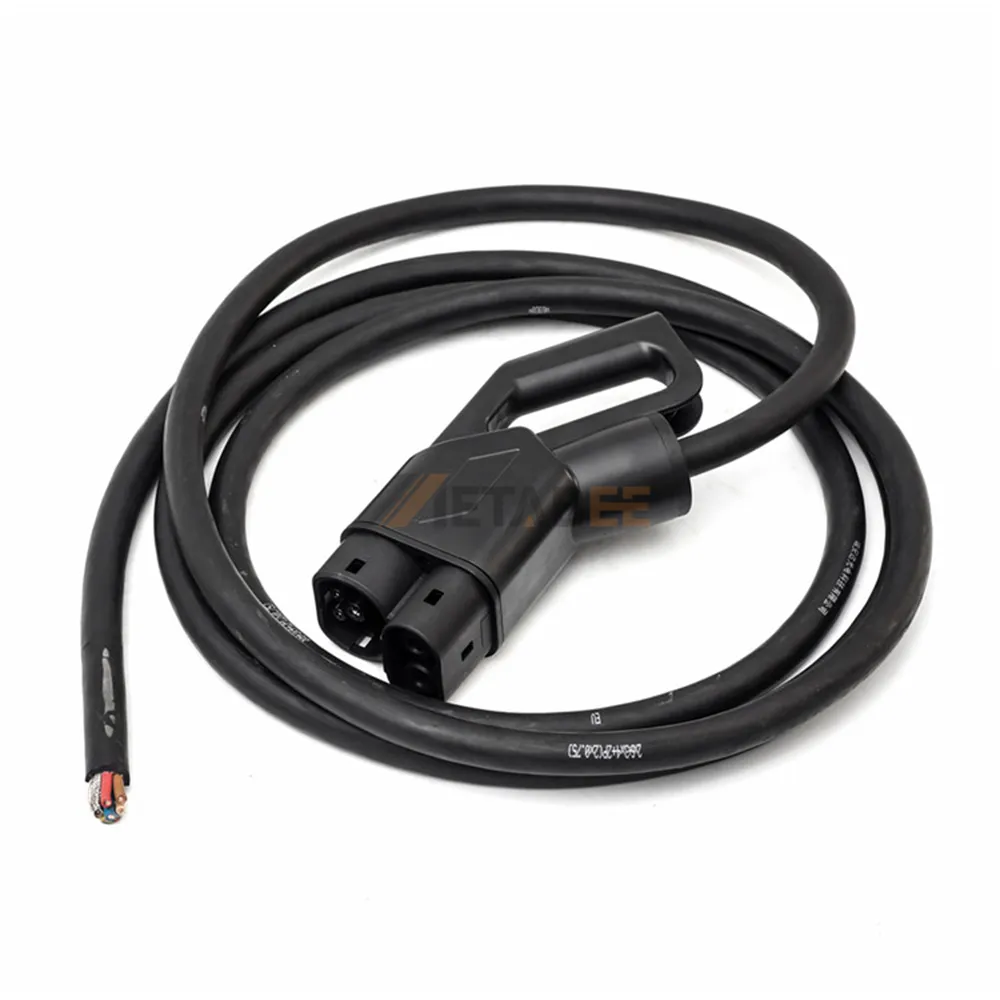

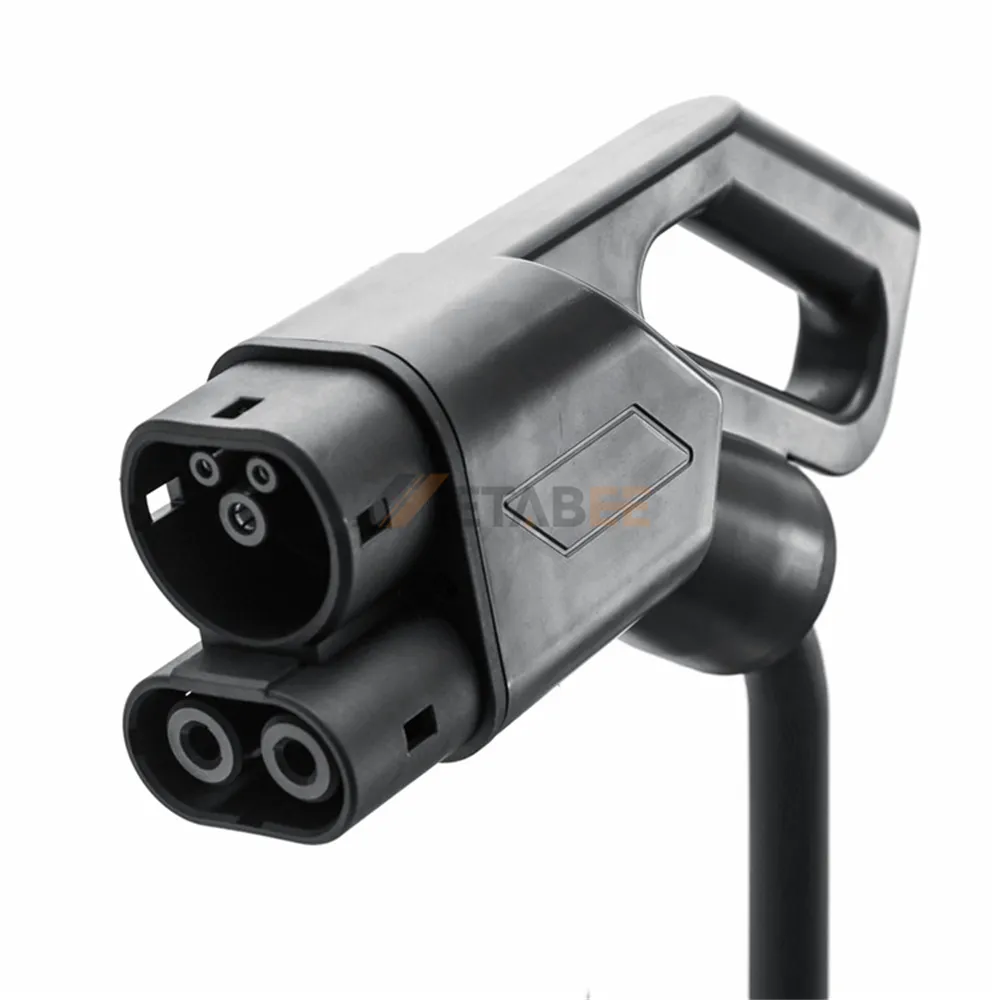

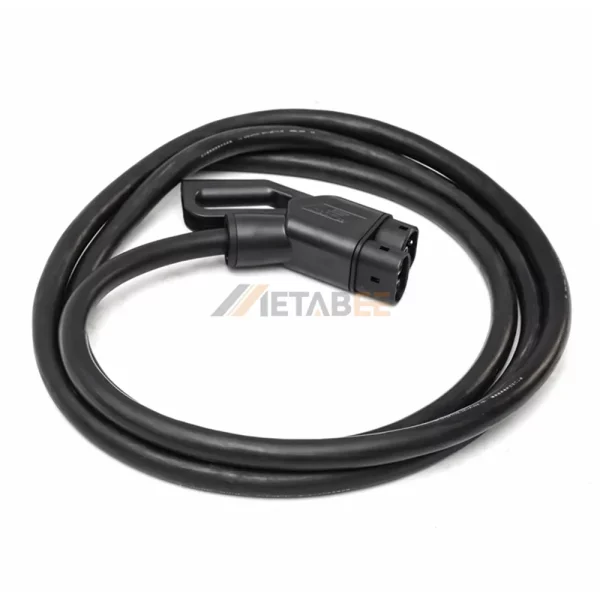

CCS COMBO2 DC Charging Cable for EV, Plug, 125A, 1000V
Introduction
Upgrade your electric vehicle charging with our CCS Combo 2 DC Charging Cable. Designed to the IEC 62196-2 standard, this robust plug offers powerful and efficient DC charging for your EV. Constructed with a durable thermoplastic housing and silver-plated copper alloy contacts, it ensures superior conductivity and long-lasting reliability, while also supporting single-phase AC charging.
This high-performance cable is rated for 1000V and 125A, delivering an impressive maximum charging power of 127kW. Built for endurance, it features an IP65 protection rating against dust and water and a UL94V-0 flame retardant grade, operating dependably across temperatures from -30°C to 50°C.
Key Features:
- CCS Combo 2 & IEC 62196-2: Wide compatibility for electric vehicles.
- High-Power DC Charging: 1000V, 125A, with up to 127kW output.
- Premium Materials: Thermoplastic housing, silver-plated copper alloy contacts.
- All-Weather Resilience: IP65 rated for dust and water resistance.
- Advanced Safety: UL94V-0 flame retardant for enhanced protection.
- Broad Temperature Range: Operates effectively from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC3m-EV125P-5C5 | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 125A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 127kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this CCS COMBO2 DC Charging Cable for EV:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
