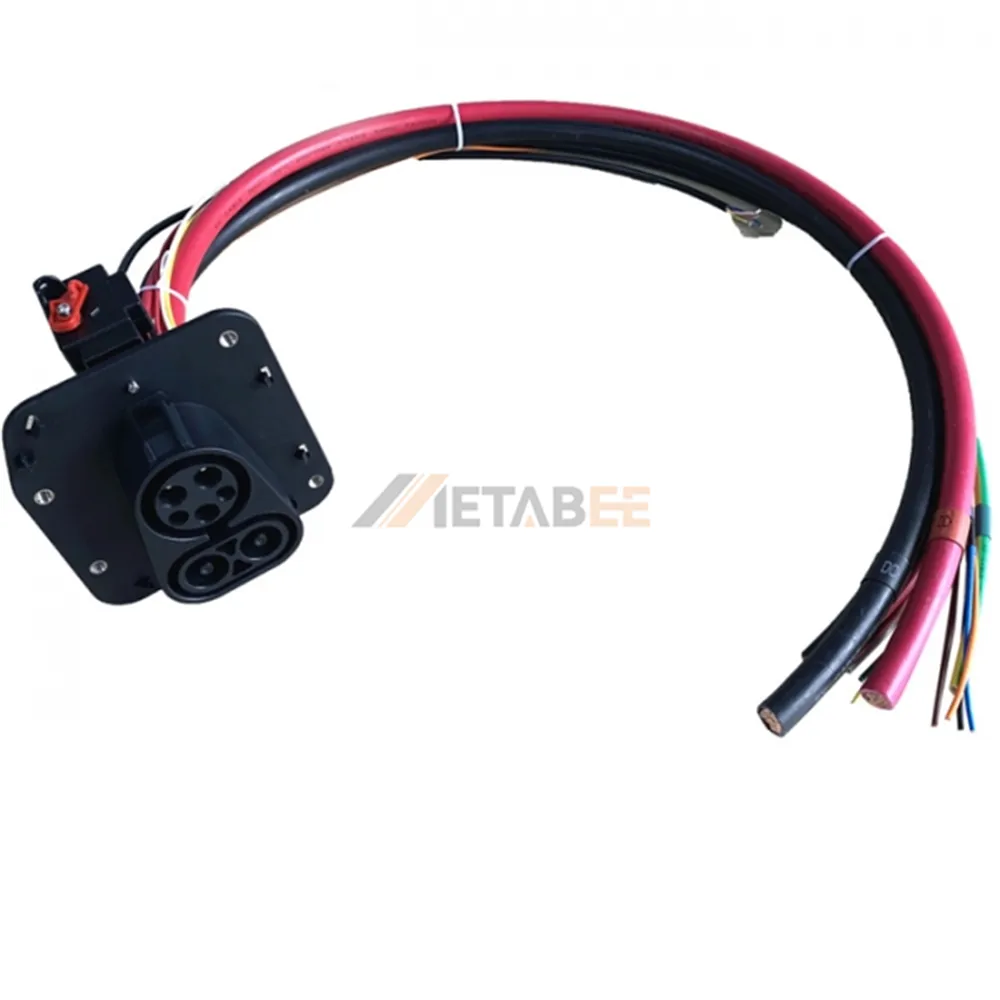

CCS COMBO1 DC EV Charging Cable, Socket, Single Phase, 125A, 1000V
Introduction
Introducing the high-performance CCS COMBO1 DC EV Charging Cable, designed for superior fast charging. This socket-type cable complies with the SAE J1772 standard, ensuring broad compatibility with electric vehicles. Its robust construction features a thermoplastic outer shell and silver-plated copper alloy contacts, guaranteeing exceptional durability and optimal conductivity for reliable power transfer.
Engineered for demanding applications, this cable offers an impressive 1000V rated voltage and 125A rated current, achieving a maximum charging power of 127kW. Safety is paramount with an IP65 protection rating against dust and water, and a UL94V-0 flame retardant grade. It operates flawlessly across a wide temperature range of -30°C to 50°C, making it suitable for various environments.
Key Features:
- CCS COMBO1 DC Charging: Optimized for rapid DC fast charging.
- SAE J1772 Standard: Ensures broad EV compatibility.
- High Voltage & Power: 1000V rated, delivering up to 127kW.
- Premium Materials: Thermoplastic housing, silver-plated copper contacts.
- IP65 Protection: Resistant to dust and water ingress.
- Wide Operating Temperature: -30°C to 50°C functionality.
Main Specifications:
General Information:
| Part No.: | YC-IEC3J-EV125S-0.5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 125A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 127kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this CCS COMBO1 DC EV Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
