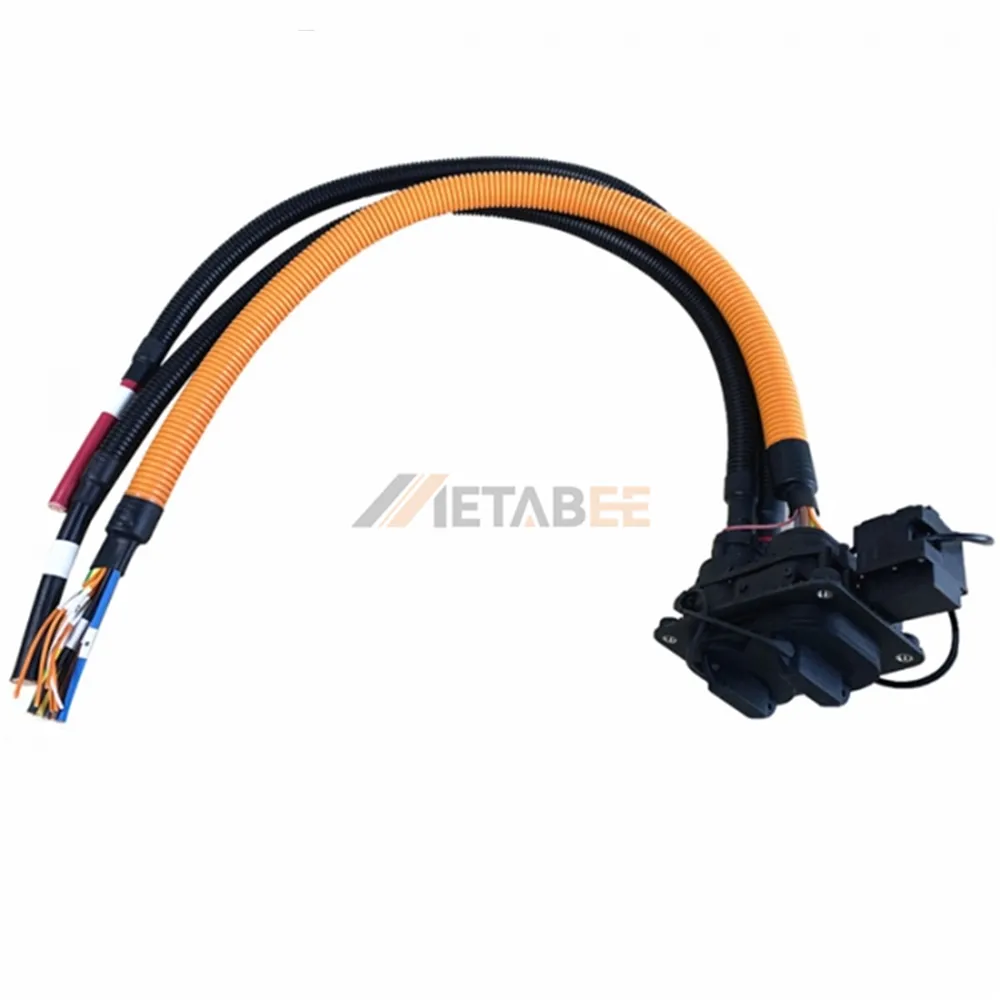

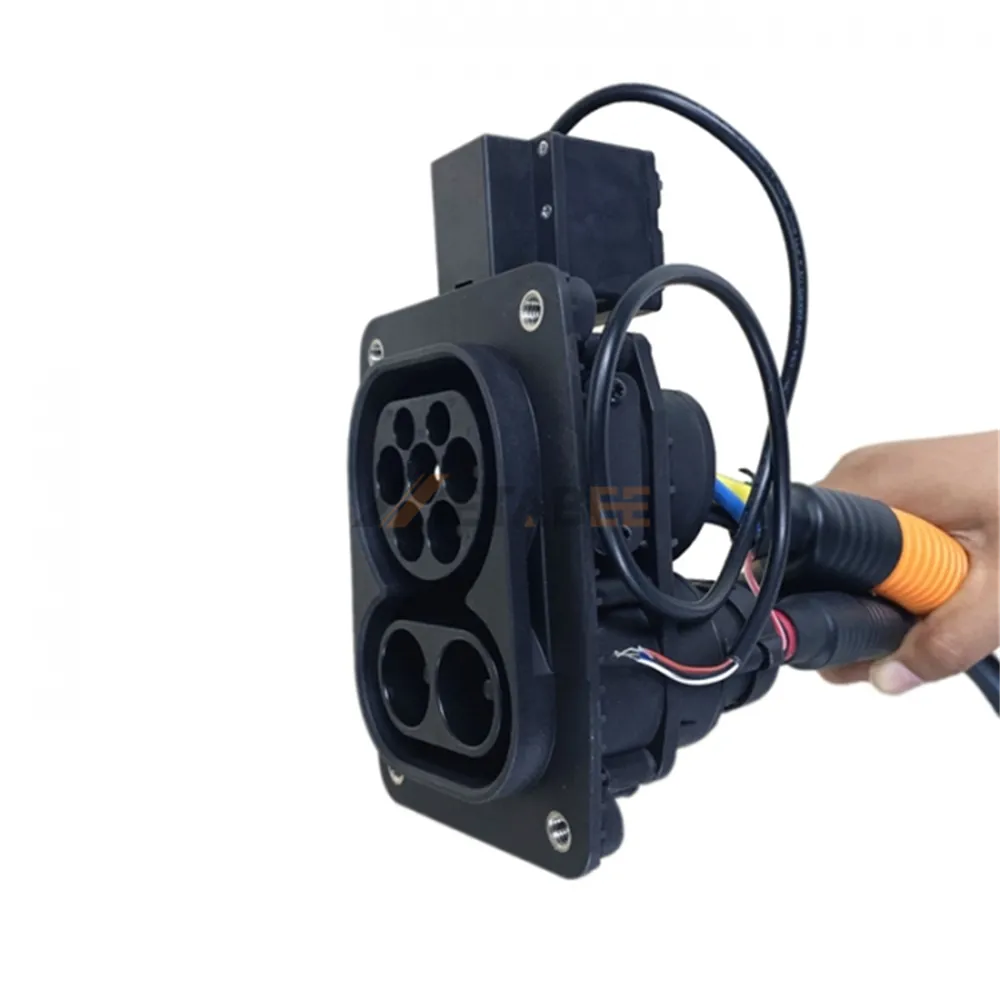

CCS COMBO2 DC Cable, EV Charging Socket, 125A, 1000V
Introduction
This high-performance CCS2 EV charging cable is engineered for rapid and reliable power delivery. Compliant with the IEC 62196-2 standard, it supports single-phase charging with a robust 125A current and 1000V rated voltage, capable of delivering up to 127kW of power for efficient energy transfer. Built for durability and safety, the socket features a high-grade thermoplastic shell and silver-plated copper alloy contacts to ensure superior conductivity and minimal heat buildup. With an IP65 protection rating and UL94V-0 flame retardancy, it provides stable operation in extreme conditions ranging from -30°C to 50°C, making it ideal for both residential and commercial charging infrastructures.
Key Features:
- High Power Output: Supports 125A and 1000V for efficient fast charging.
- IEC 62196-2 Compliant: Meets global safety and compatibility standards.
- Premium Conductivity: Silver-plated contacts minimize resistance and heat.
- Weatherproof Design: IP65 rating ensures durable outdoor performance.
- Enhanced Safety: UL94V-0 flame-retardant shell protects against fire risks.
- Extreme Resilience: Operates reliably in temperatures from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC3m-EV125S-0.5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | DC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 1000V | |
| Rated Current: | 125A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 127kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this CCS COMBO2 DC Charging Cable for EV:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
