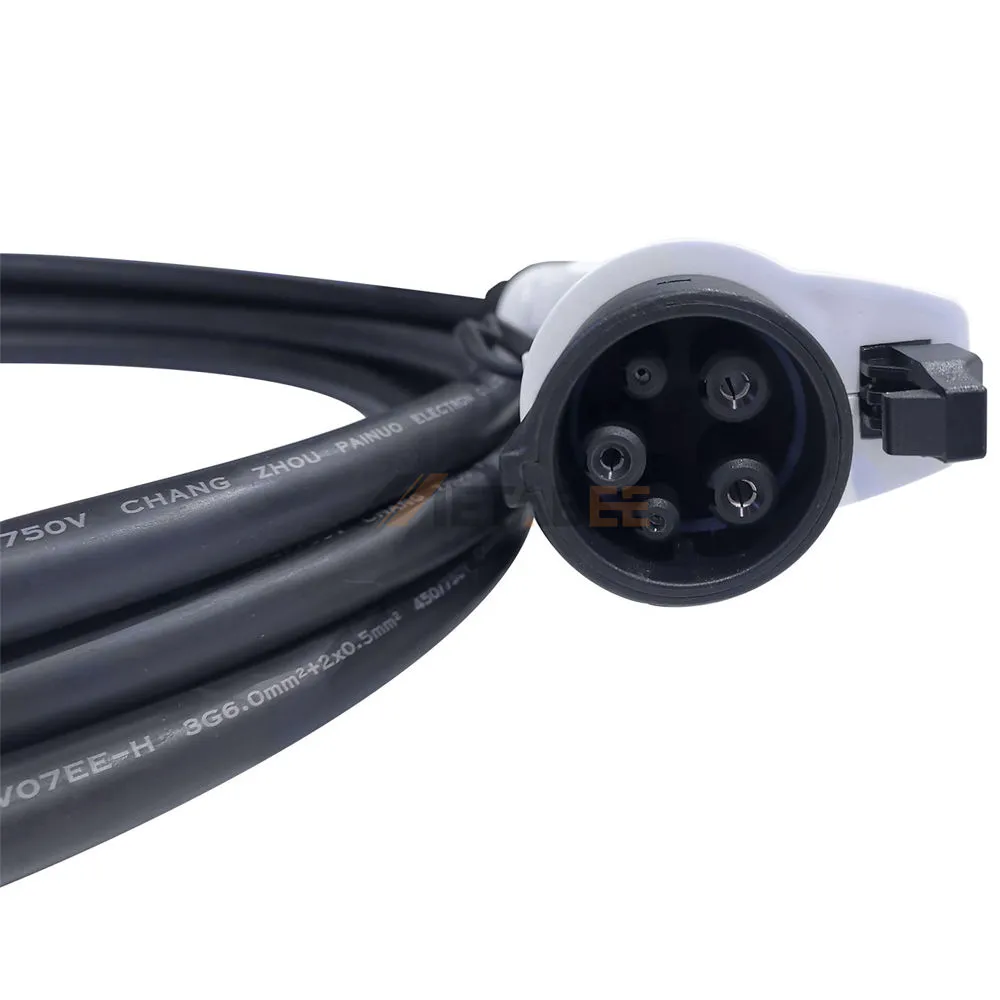

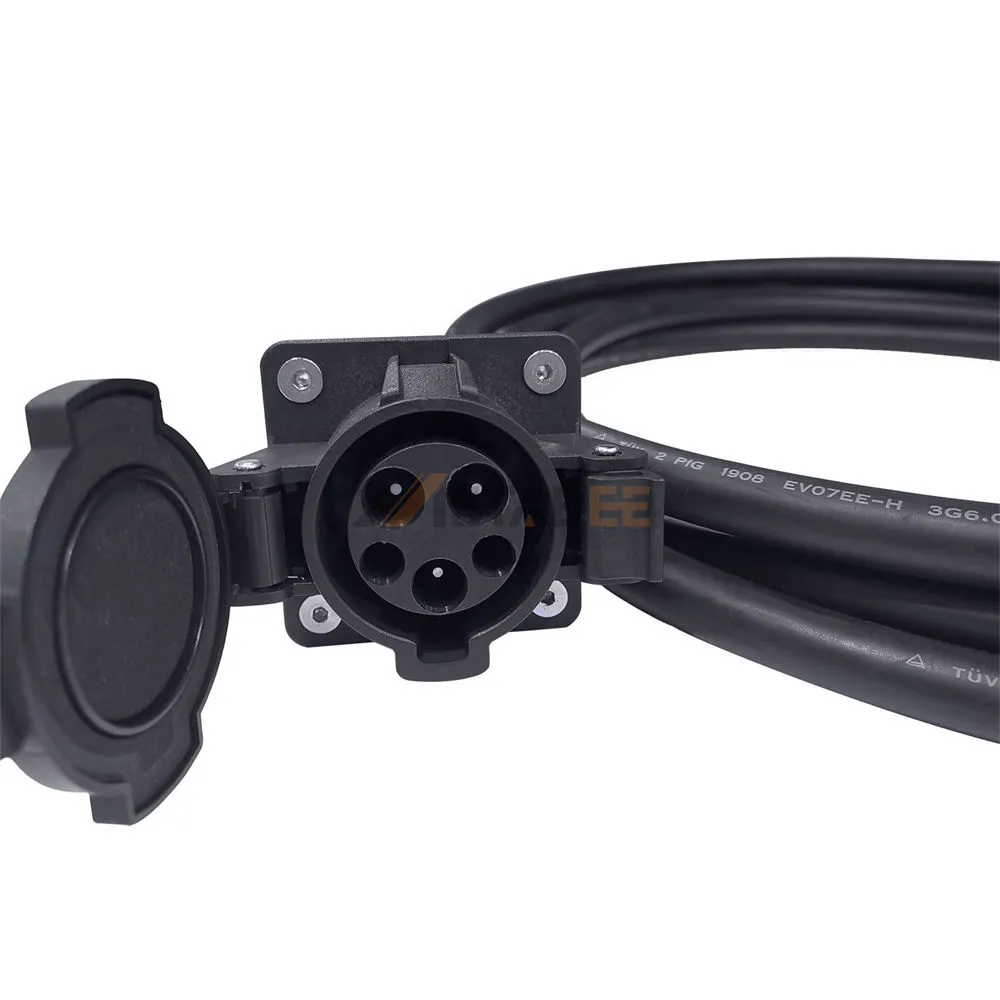

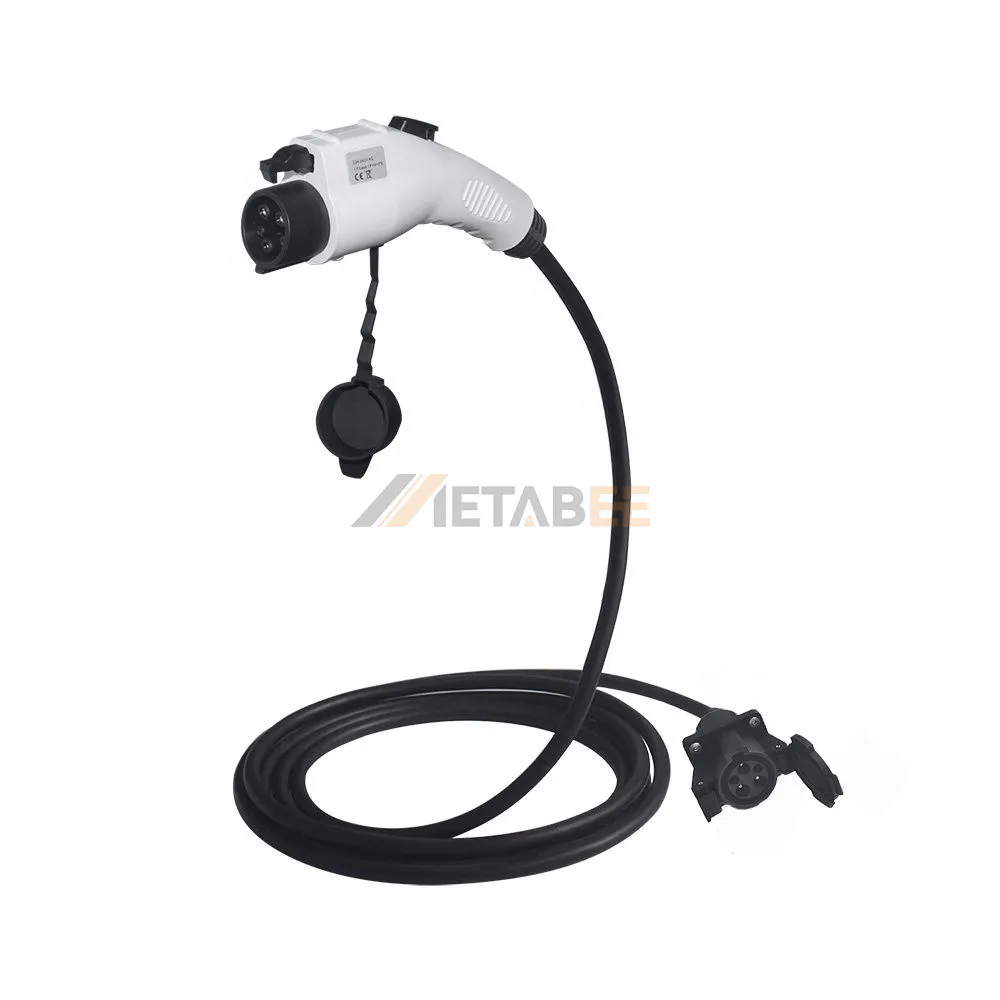

SAE Type 1 AC EV Cable, Charging Plug, Single Phase, 16A, 240V
Introduction
The SAE Type 1 AC EV Charging Cable is engineered for reliable single-phase AC charging in residential and commercial applications. Fully compliant with the SAE J1772 standard, this charging plug delivers stable power transfer at 240V and 16A, supporting a maximum charging output of 3.8kW for efficient daily EV charging.
Designed for durability and safety, the connector features a high-strength thermoplastic housing combined with silver-plated copper alloy contacts to ensure low resistance, excellent conductivity, and long service life. With an IP65 protection rating and UL94 V-0 flame-retardant performance, the cable operates safely in demanding environments from -30°C to 50°C.
Key Features:
- SAE J1772 Type 1 AC charging standard
- Single-phase charging, 240V / 16A
- Max charging power up to 3.8kW
- Silver-plated copper alloy contacts
- IP65 waterproof and dustproof protection
- UL94 V-0 flame-retardant, wide temperature range
Main Specifications:
General Information:
| Part No.: | YC-EV16P-16S-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 240V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 3.8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this SAE Type 1 AC EV Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
