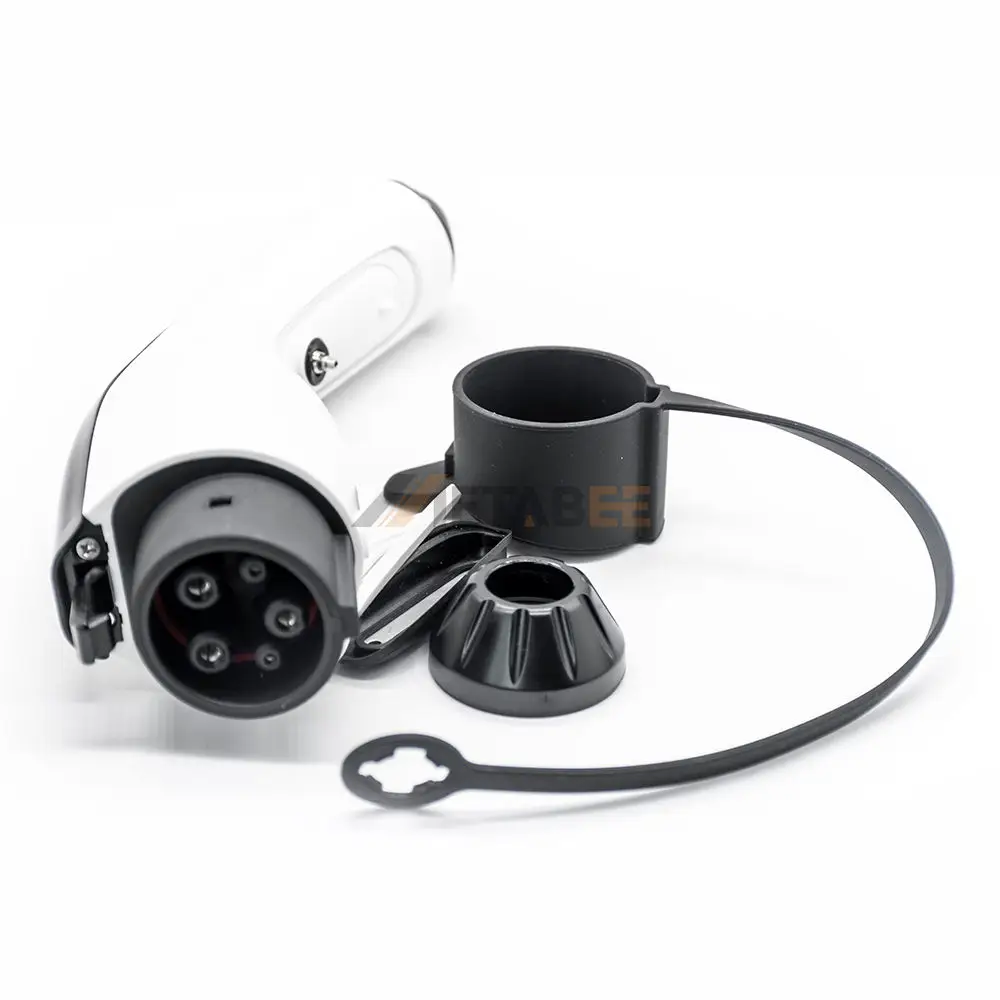

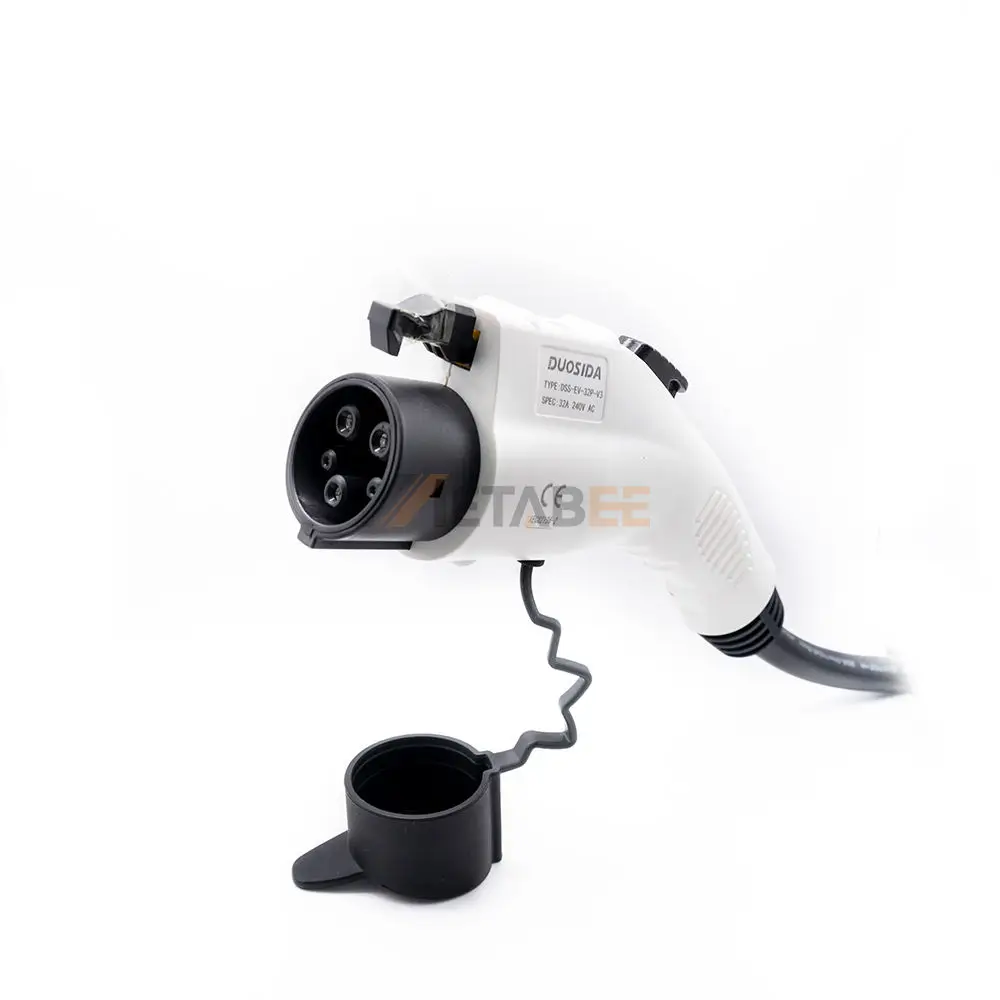

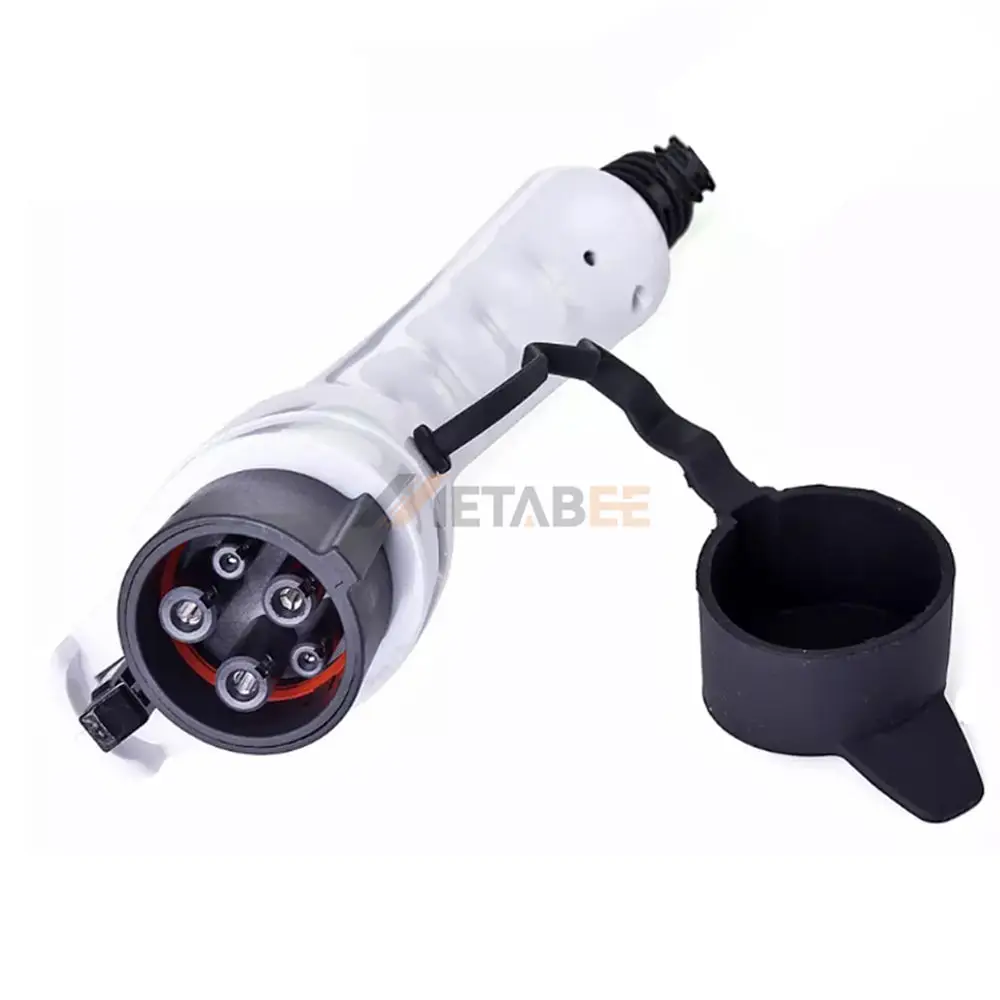

SAE J1772 AC EV Charging Plug, Single Phase, 240V, 50A
Introduction
Achieve the pinnacle of Level 2 charging with our professional-grade SAE J1772 AC charging plug. Engineered for maximum power delivery, this connector provides an immense 12kW charging capacity on a single-phase, 240V/50A circuit. It is the ultimate solution for EV enthusiasts and fleet operators who require the fastest possible charging speeds, ensuring a secure and highly efficient connection to any vehicle compliant with the SAE J1772 standard.
Constructed for unrivaled durability and safety, the plug features a heavy-duty thermoplastic housing and high-conductivity, silver-plated copper alloy contacts that minimize heat buildup and maximize power transfer. With a superior IP65 rating for complete protection against water and dust, and the highest UL94V-0 flame-retardant classification, this plug is built for extreme conditions. It maintains peak performance in temperatures ranging from -30°C to 50°C, offering unmatched reliability.
Key Features:
- 12kW Maximum Power: Delivers elite 240V/50A charging for the fastest speeds.
- SAE J1772 Compliant: Universal compatibility with all North American market EVs.
- Extreme Durability: IP65-rated for robust protection against dust and moisture.
- Peak Safety: UL94V-0 flame-retardant for the highest level of fire protection.
- Pro-Grade Conductivity: Silver-plated copper contacts for superior efficiency.
- All-Climate Reliability: Operates flawlessly in temperatures from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | V3-YC-EV50P | |
| Product Series: | SAE Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 240V | |
| Rated Current: | 50A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 12kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
SAE J1772 Standard:
SAE J1772 Standard AC Charging Type:
SAE J1772 Charging Connector Drawing:
Applications of this SAE J1772 AC EV Charging Plug:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
