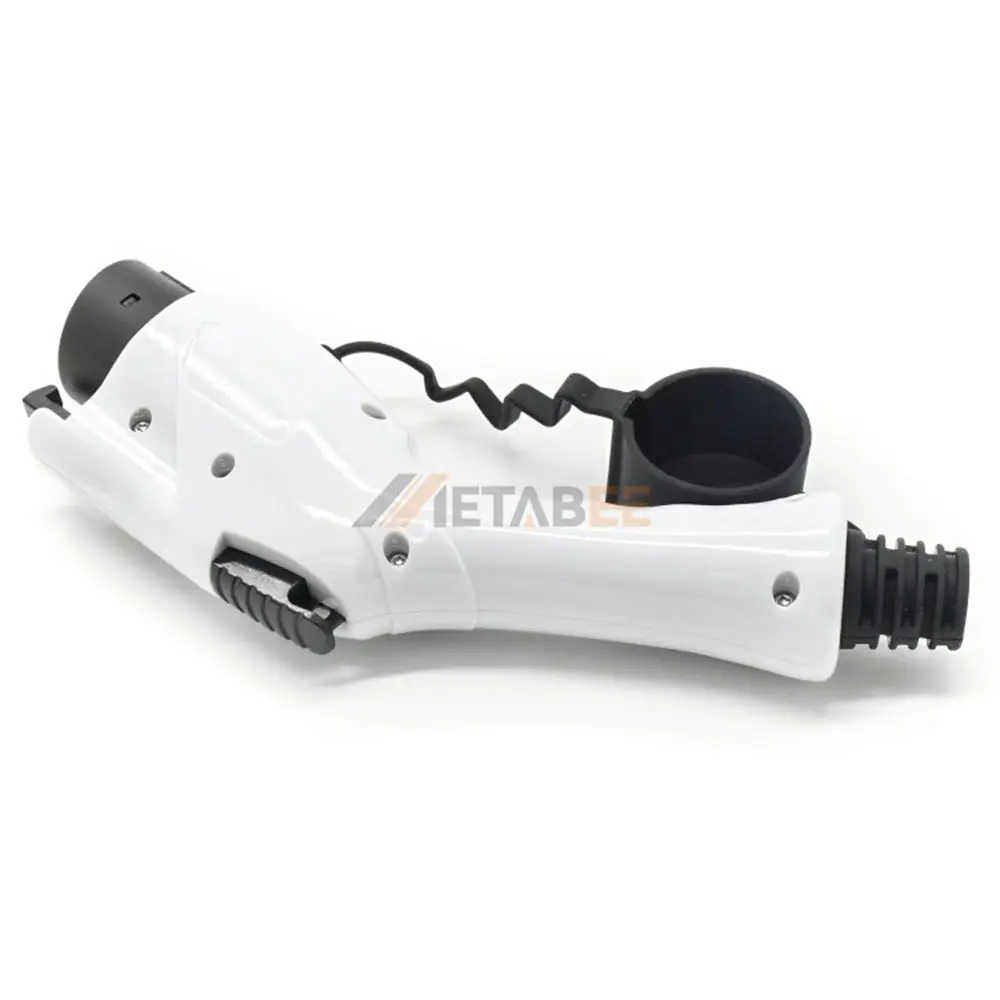

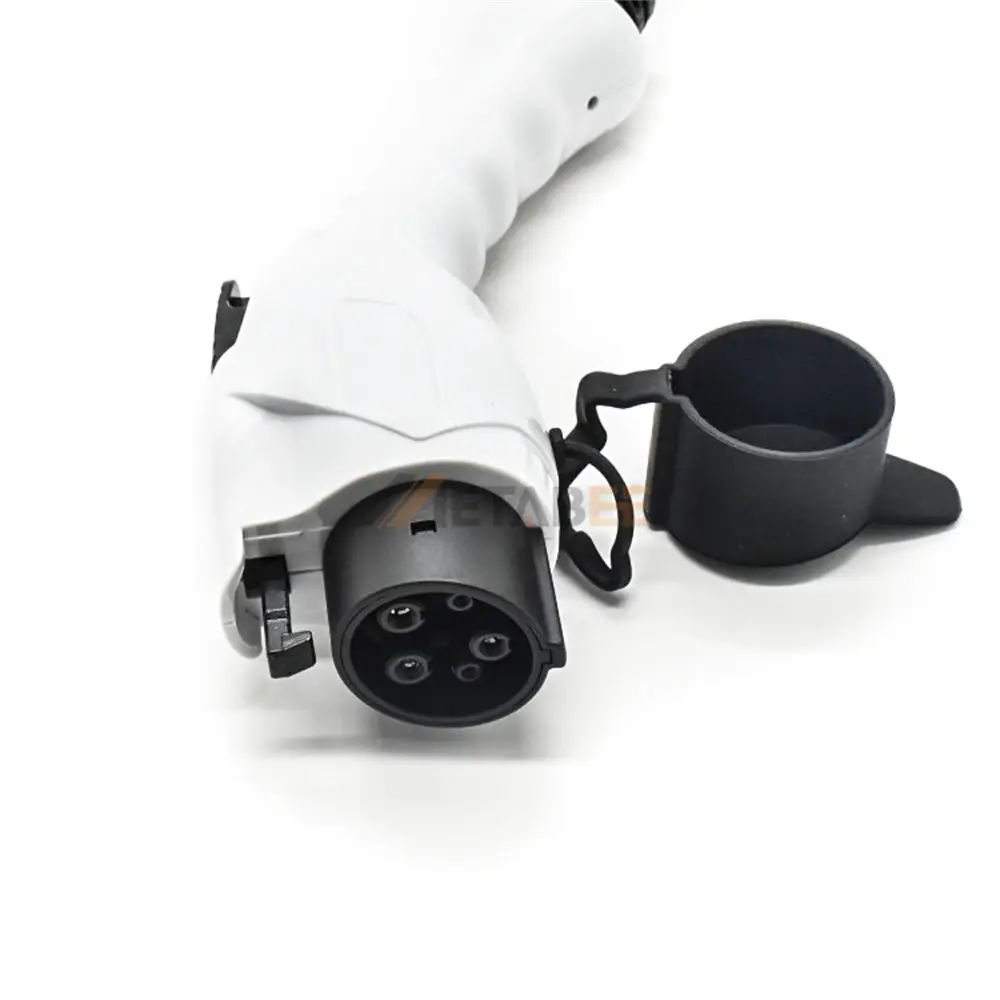

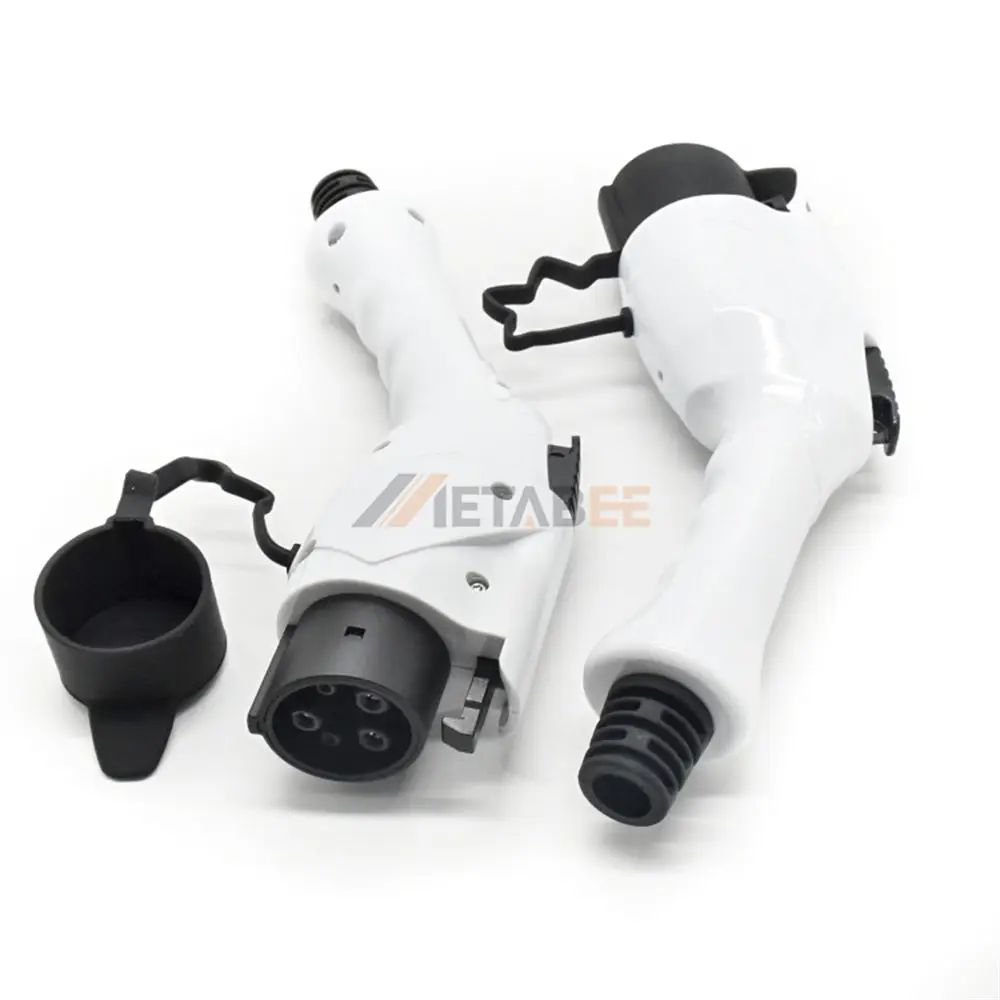

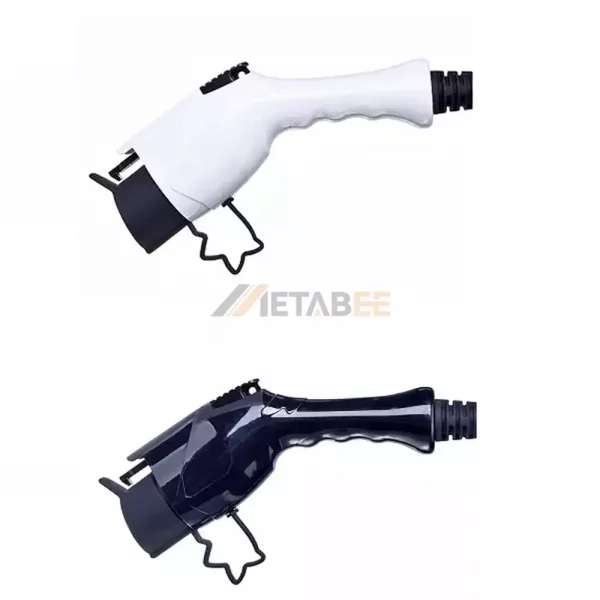

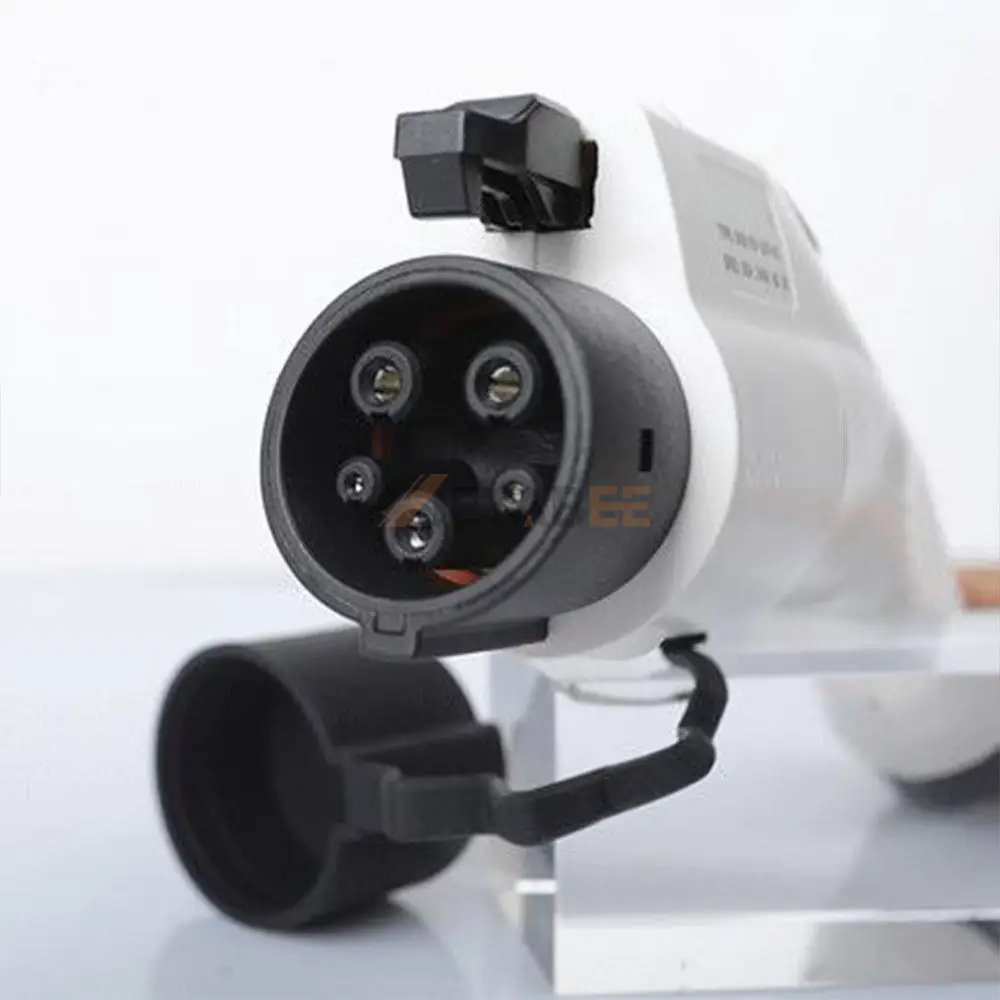

SAE J1772 AC Electric Vehicle Charger, Plug, Single Phase, 240V, 16A
Introduction
Power your electric vehicle with our dependable SAE J1772 AC charger plug, the North American standard for Level 2 charging. Engineered for single-phase systems, this connector delivers a consistent 3.8kW of power at 240V and 16A, providing a reliable and efficient charge every time. It is the ideal solution for home charging stations and replacement needs, ensuring a secure connection and compatibility with all vehicles using the J1772 standard.
Built for safety and longevity, this charger plug features a rugged thermoplastic housing and silver-plated copper alloy contacts for superior conductivity and corrosion resistance. Its IP65 rating ensures it is fully protected from dust and water, making it suitable for both indoor and outdoor use. With a UL94V-0 flame retardant classification and a wide operating temperature range of -30°C to 50°C, this plug is designed for maximum safety and performance in any climate.
Key Features:
- SAE J1772 Standard: Compatible with all North American market electric vehicles.
- Level 2 Charging: Delivers 3.8kW of power for efficient home charging.
- All-Weather Use: IP65-rated for complete protection against dust and water.
- Superior Safety: UL94V-0 flame-retardant materials for enhanced security.
- Durable Construction: Robust thermoplastic body and silver-plated copper contacts.
- Wide Temperature Range: Operates reliably from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | V3-YC-EV16P | |
| Product Series: | SAE Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 240V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 3.8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
SAE J1772 Standard:
SAE J1772 Standard AC Charging Type:
SAE J1772 Charging Connector Drawing:
Applications of this SAE J1772 AC Electric Vehicle Charger :
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
