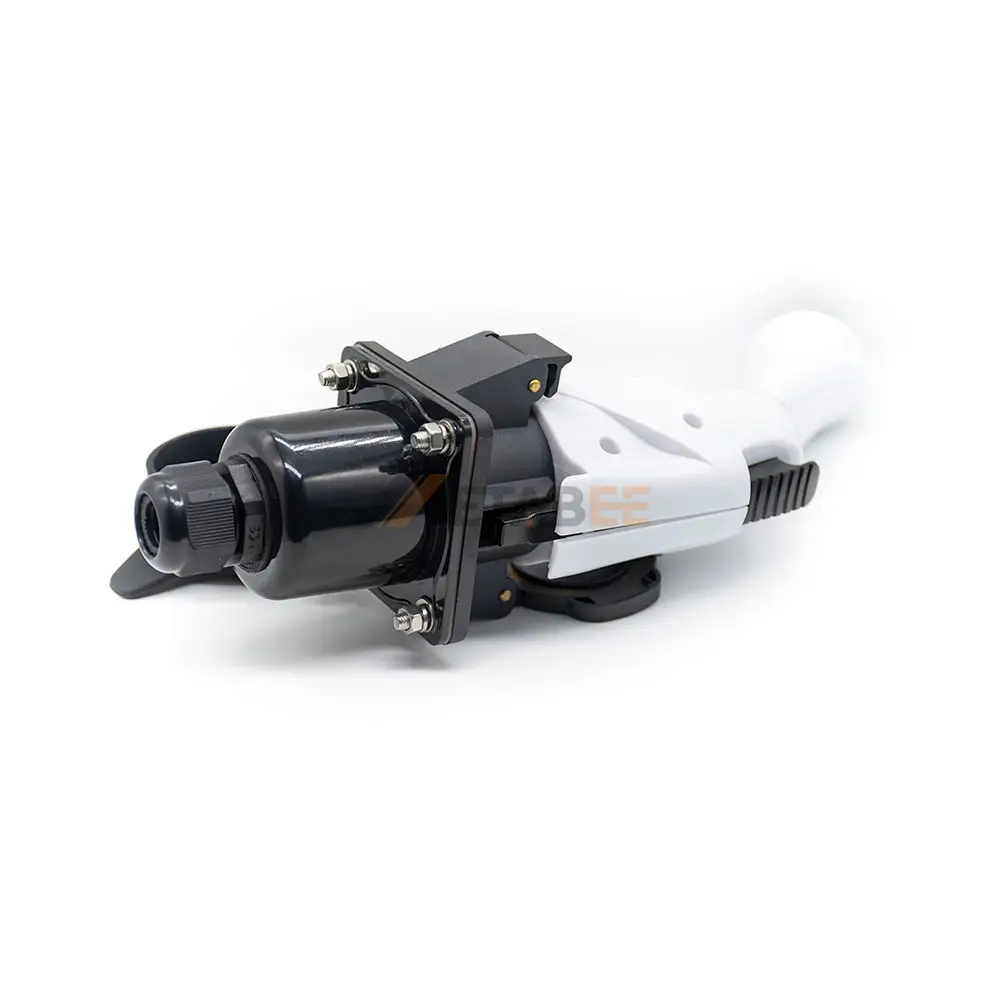

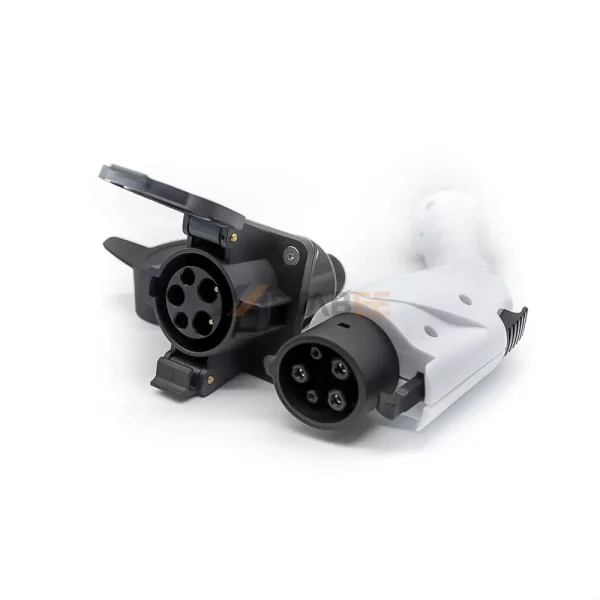

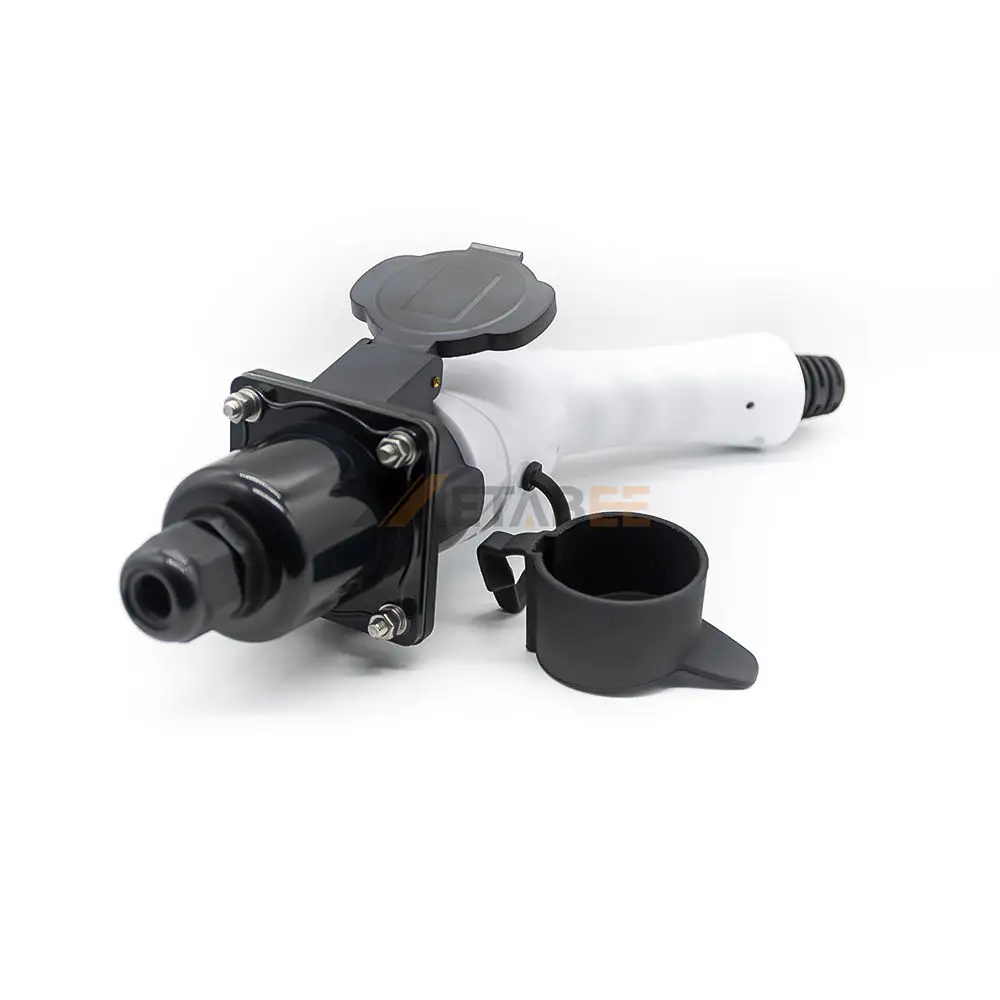

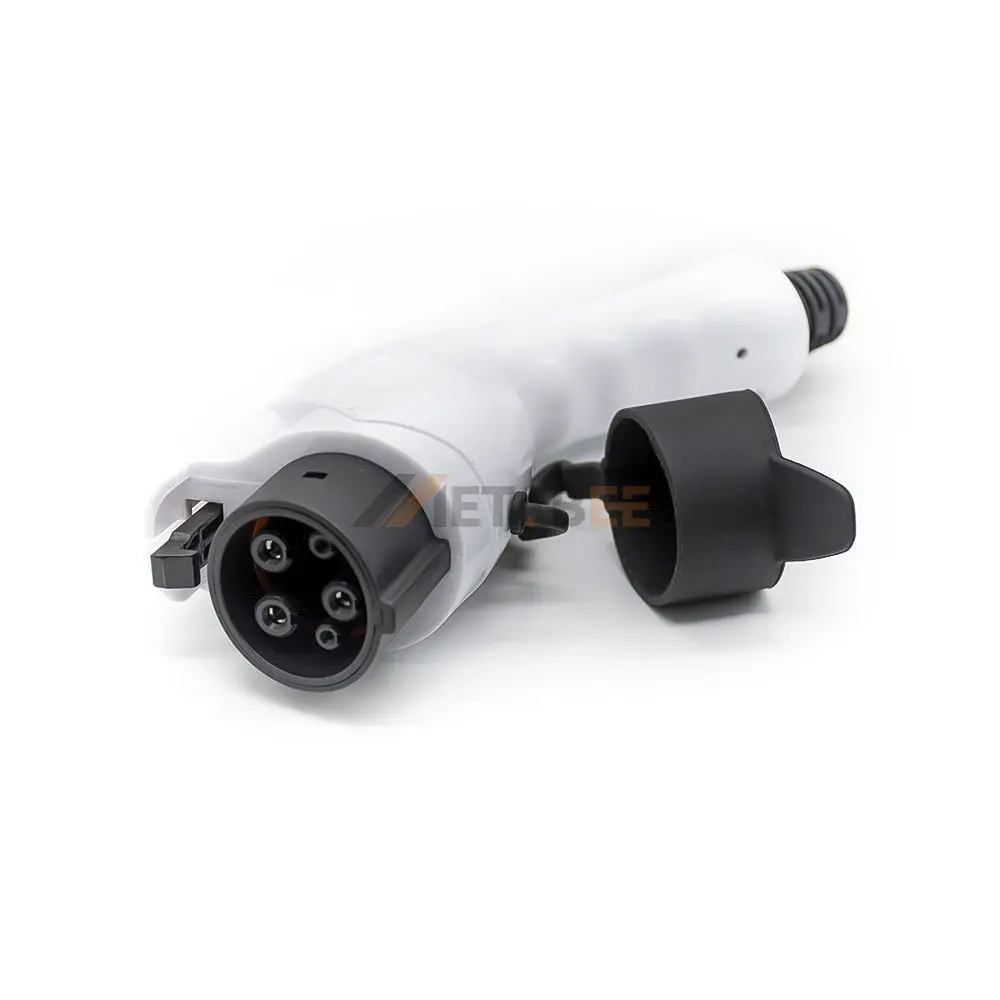

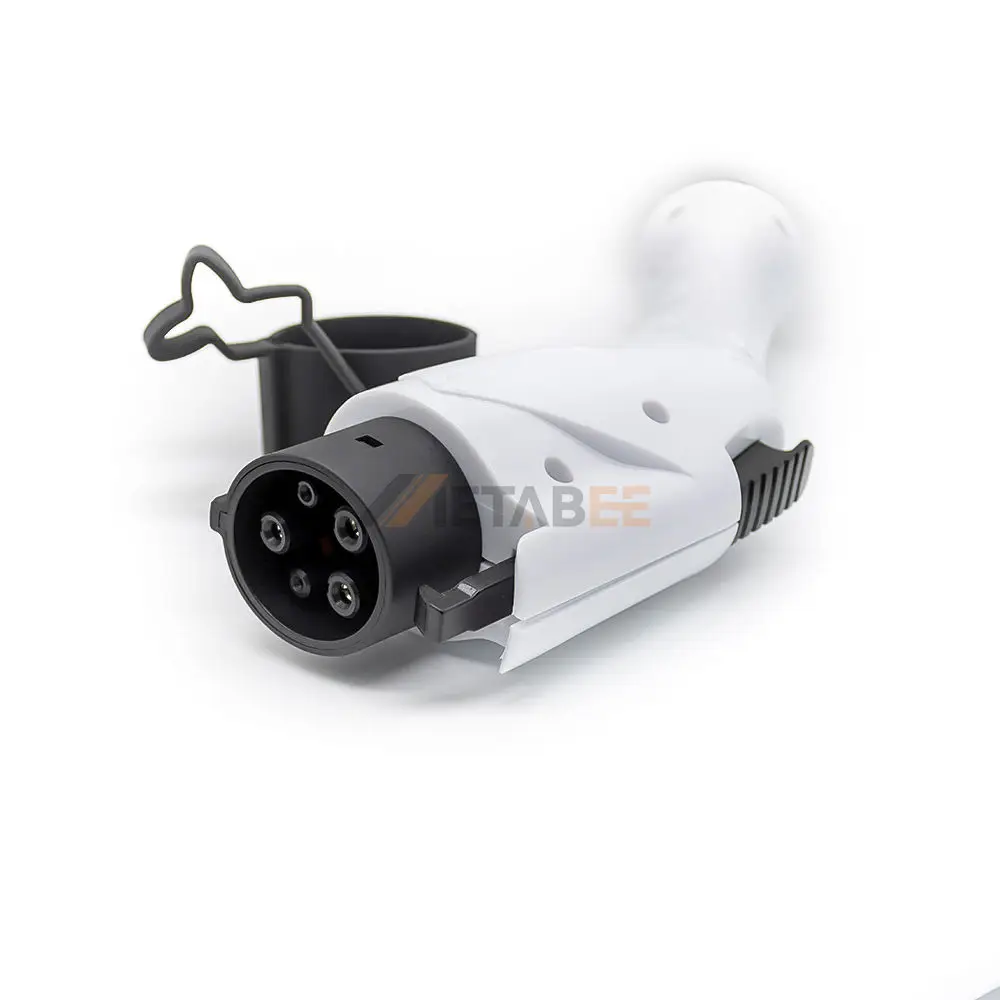

SAE J1772 AC Charger for Electric Vehicle, Plug, Single Phase, 240V, 32A
Introduction
Upgrade your charging setup with our high-power SAE J1772 AC charger plug, engineered for faster Level 2 charging. This robust connector delivers up to 7.7kW of power on a single-phase 240V, 32A circuit, significantly reducing the time it takes to charge your electric vehicle. Compliant with the SAE J1772 standard, it ensures a secure and reliable connection for all compatible North American EVs, making it a perfect choice for performance-oriented home charging systems.
Designed for maximum durability and safety, this charger plug is constructed with a rugged thermoplastic shell and features silver-plated copper alloy contacts to ensure optimal conductivity and prevent corrosion. Its IP65 weatherproof rating provides complete protection against dust and moisture, while the UL94V-0 flame-retardant classification offers critical fire safety. Built to perform in any environment, it operates reliably in temperatures from -30°C to 50°C.
Key Features:
- 7.7kW High-Speed Charging: Delivers powerful 240V/32A performance for rapid charging.
- SAE J1772 Standard: Guarantees compatibility with all North American market EVs.
- All-Weather Durability: IP65-rated for superior protection against dust and water.
- Certified Safety: UL94V-0 flame-retardant materials for ultimate peace of mind.
- Enhanced Conductivity: Silver-plated copper contacts ensure efficient power transfer.
- Robust Construction: Durable thermoplastic housing for long-term, reliable service.
Main Specifications:
General Information:
| Part No.: | V3-YC-EV32P | |
| Product Series: | SAE Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 240V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 7.7kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
SAE J1772 Standard:
SAE J1772 Standard AC Charging Type:
SAE J1772 Charging Connector Drawing:
Applications of this SAE J1772 AC Charger for Electric Vehicle:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
