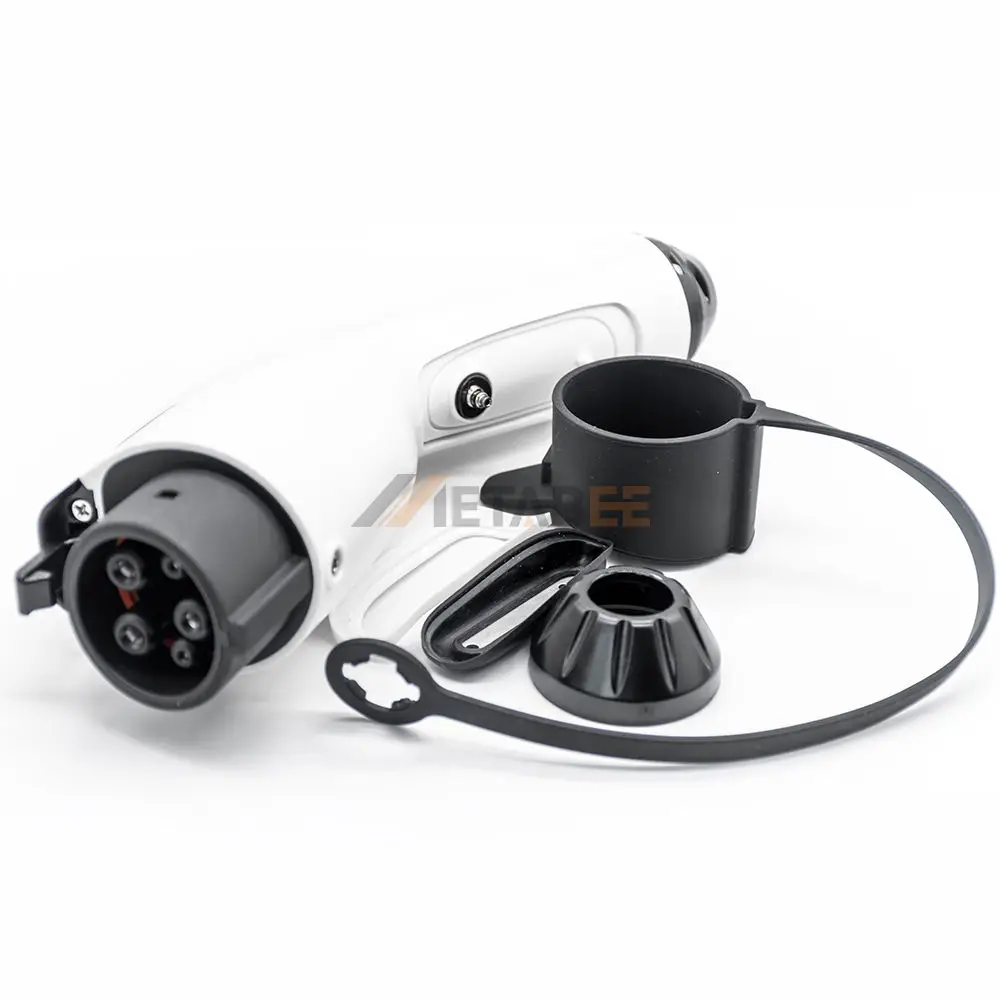

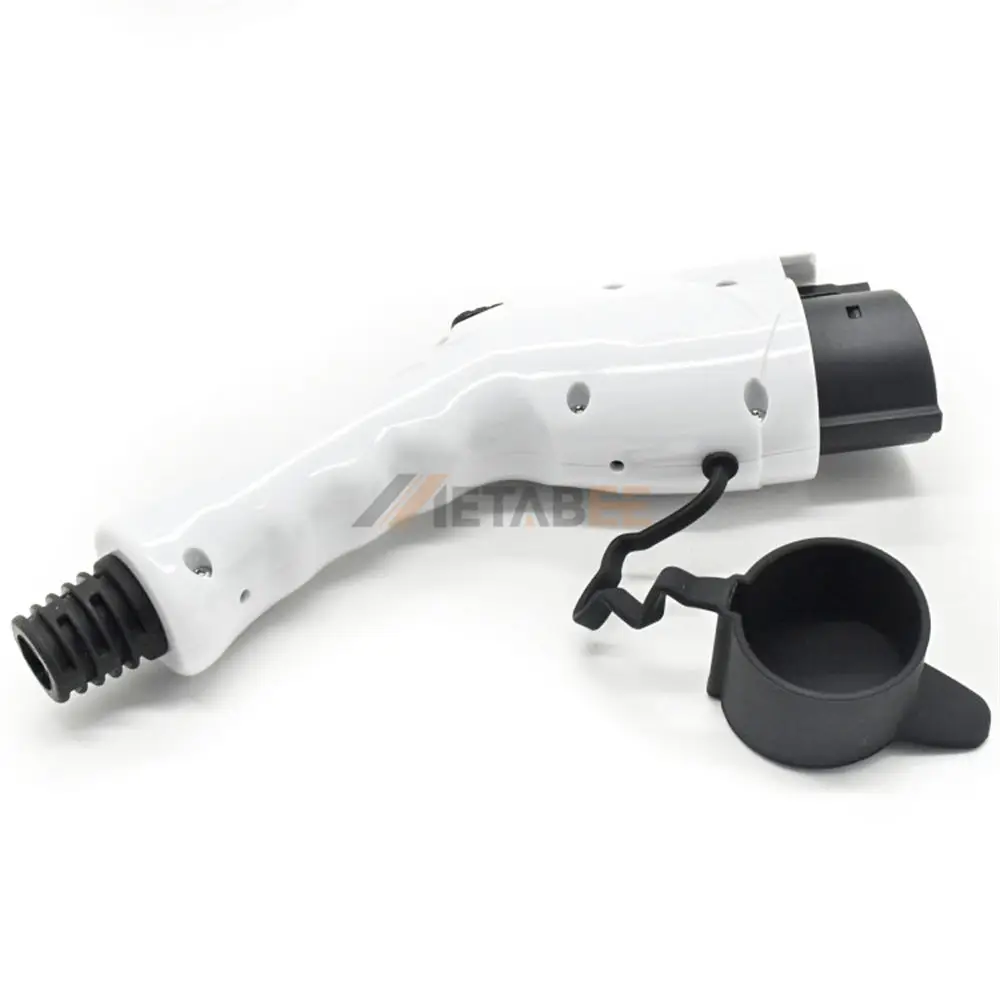

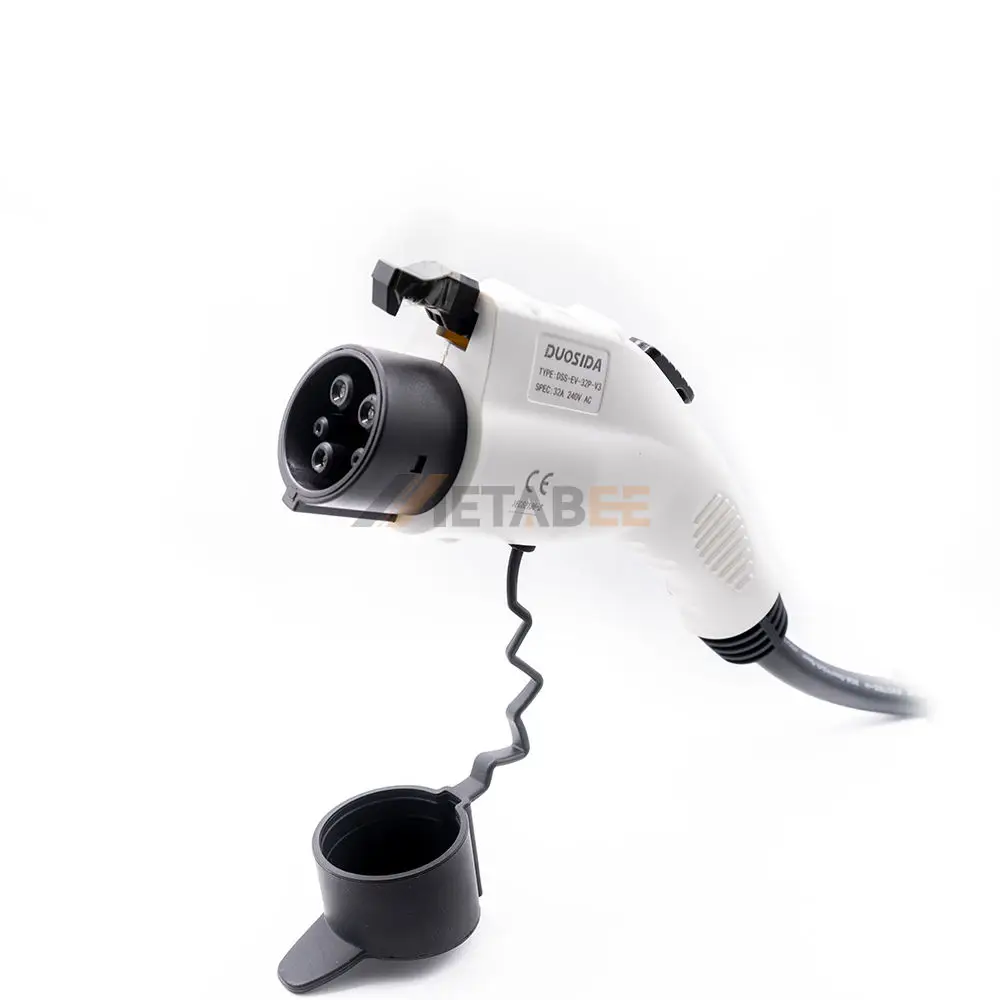

SAE J1772 AC Charging Plug for EV, Single Phase, 240V, 40A
Introduction
Maximize your charging speed with our high-current SAE J1772 AC charging plug, designed for powerful Level 2 performance. This connector delivers an impressive 9.6kW of power on a single-phase, 240V/40A circuit, making it the definitive choice for EV owners who demand the fastest possible home charging. Fully compliant with the SAE J1772 standard, it ensures a secure and efficient connection to all compatible North American electric vehicles.
Engineered for superior safety and long-term durability, the plug features a robust thermoplastic housing and silver-plated copper alloy contacts for maximum conductivity and corrosion resistance. It is built to withstand the elements with an IP65 weatherproof rating and offers critical fire safety with a UL94V-0 flame-retardant classification. This high-performance plug operates flawlessly in a wide temperature range from -30°C to 50°C, guaranteeing reliable charging in any season.
Key Features:
- 9.6kW Max Power: Delivers high-speed 240V/40A charging to reduce wait times.
- SAE J1772 Compliant: Universal compatibility with all North American EVs.
- Rugged Durability: IP65-rated for complete protection against dust and water.
- Uncompromised Safety: UL94V-0 flame-retardant materials for maximum security.
- Superior Conductivity: Silver-plated copper contacts for efficient, low-heat power transfer.
- All-Climate Performance: Operates reliably in extreme temperatures from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | V3-YC-EV40P | |
| Product Series: | SAE Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 240V | |
| Rated Current: | 40A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 9.6kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
SAE J1772 Standard:
SAE J1772 Standard AC Charging Type:
SAE J1772 Charging Connector Drawing:
Applications of this SAE J1772 AC Charging Plug for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
