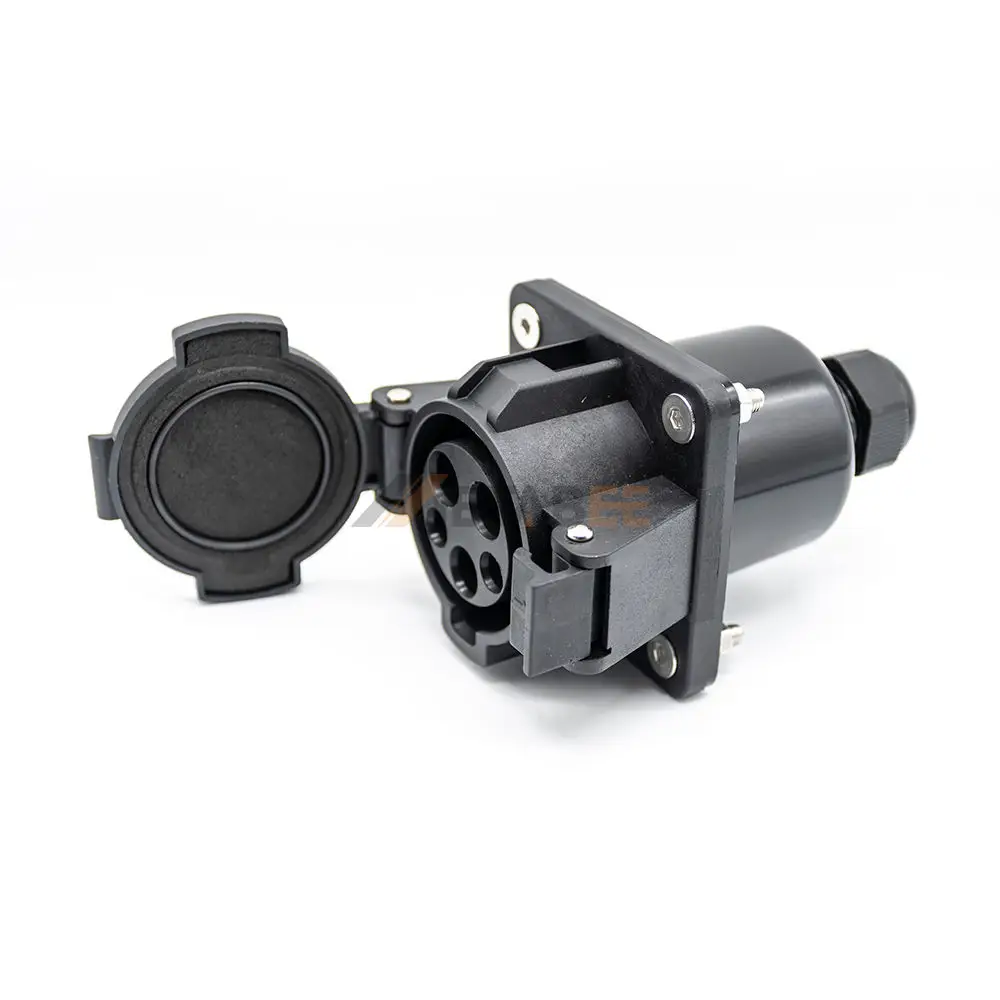

SAE J1772 AC Charger for EV, Socket, Single Phase, 240V, 16A
Introduction
The SAE J1772 AC Charger for EV is designed for reliable single-phase AC charging in residential and light commercial electric vehicle applications. Fully compliant with the SAE J1772 standard, this connector ensures wide compatibility with North American EVs and charging systems. With a rated voltage of 240V and rated current of 16A, it delivers a maximum charging power of 3.8 kW, providing stable and efficient daily charging.
The connector features a durable thermoplastic housing combined with silver-plated copper alloy contacts, ensuring low contact resistance, high electrical conductivity, and long-term durability. This construction minimizes heat buildup and supports consistent performance under repeated charging cycles.
Engineered for safety and environmental protection, the charger offers an IP65 protection rating and UL94 V-0 flame-retardant performance, making it suitable for indoor and outdoor use. It operates reliably in temperatures ranging from -30°C to +50°C, meeting the demands of diverse installation environments.
Key Features:
- SAE J1772 compliant AC EV charging connector
- Single-phase AC charging, 240V / 16A, up to 3.8 kW
- Silver-plated copper alloy contacts for high conductivity
- Robust thermoplastic housing with UL94 V-0 rating
- IP65 protection for indoor and outdoor applications
- Operating temperature range: -30°C to +50°C
Main Specifications:
General Information:
| Part No.: | V3-YC-G-EV16S | |
| Product Series: | SAE Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 240V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 3.8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |

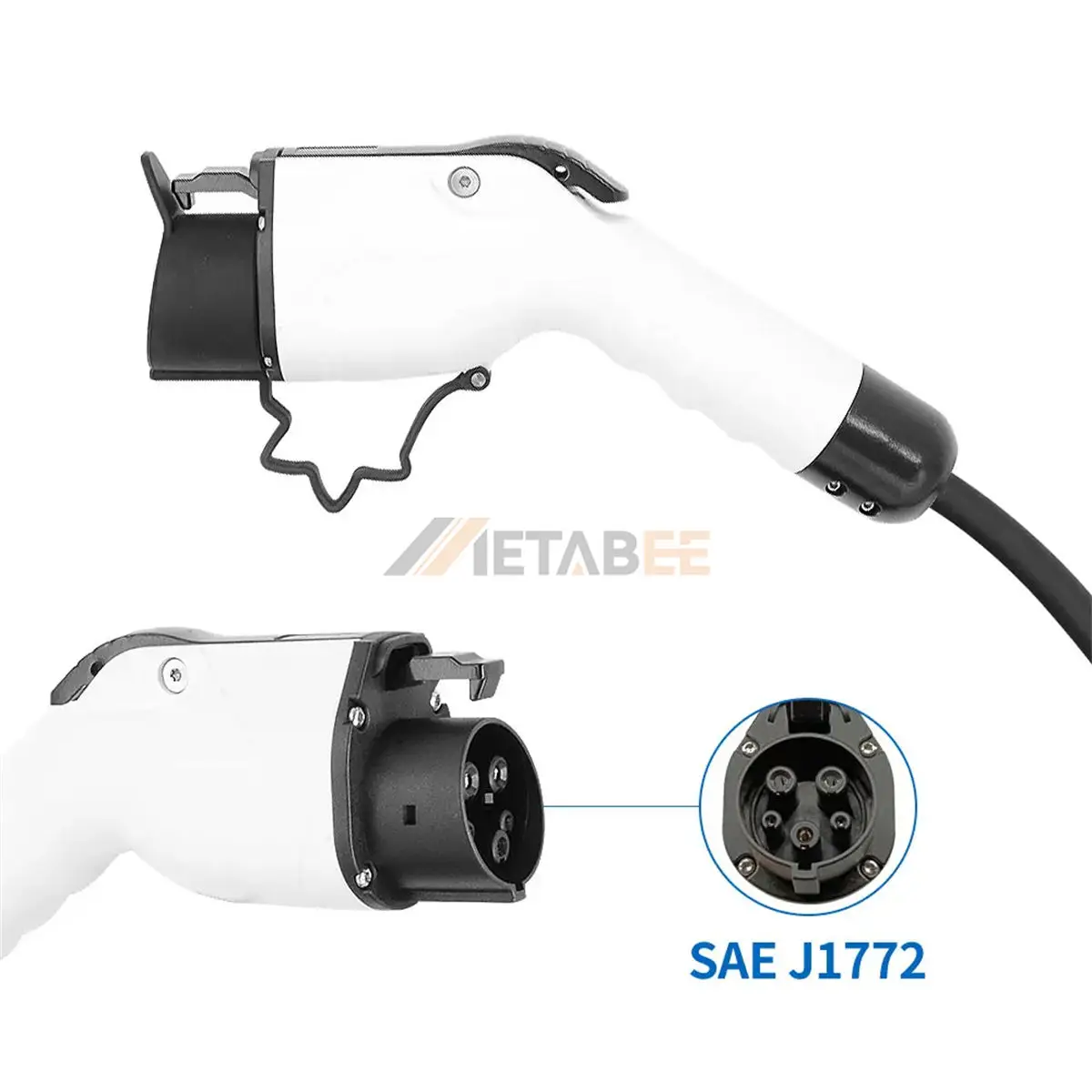

SAE J1772 Standard:

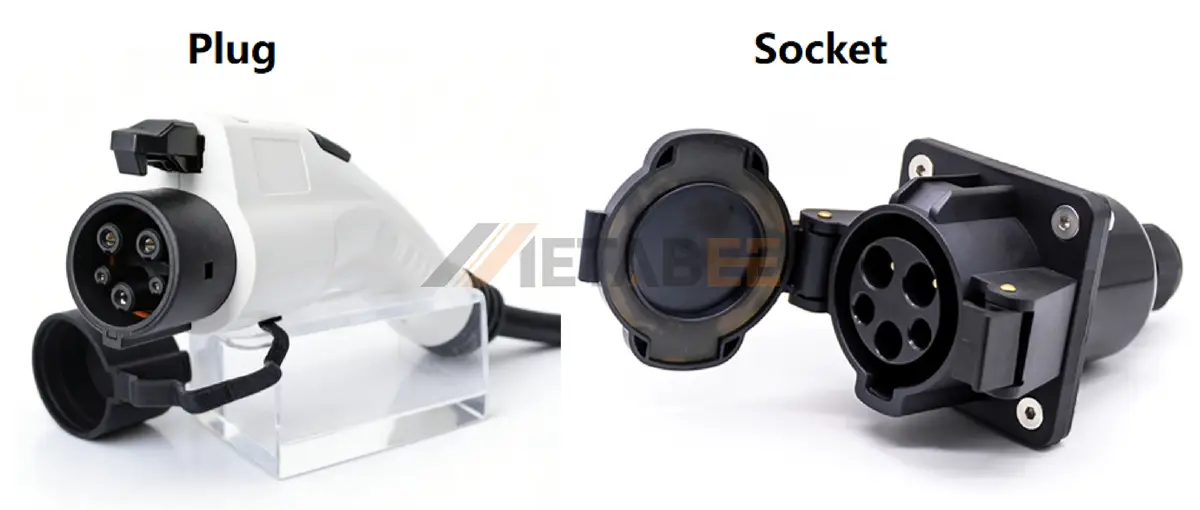

SAE J1772 Standard AC Charging Type:

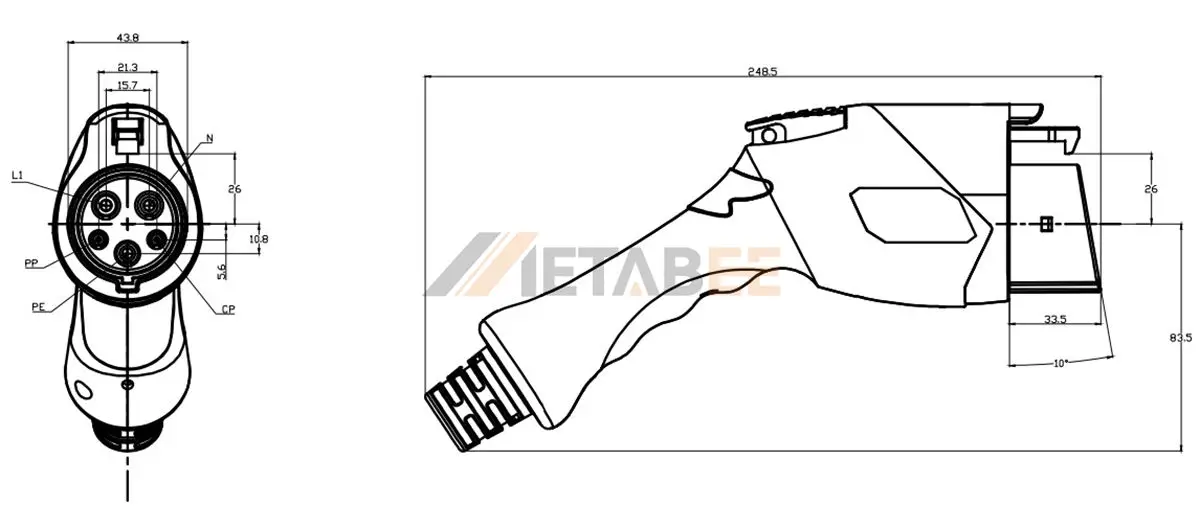

SAE J1772 Charging Connector Drawing:
Applications of this SAE J1772 AC Charger for EV :
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
