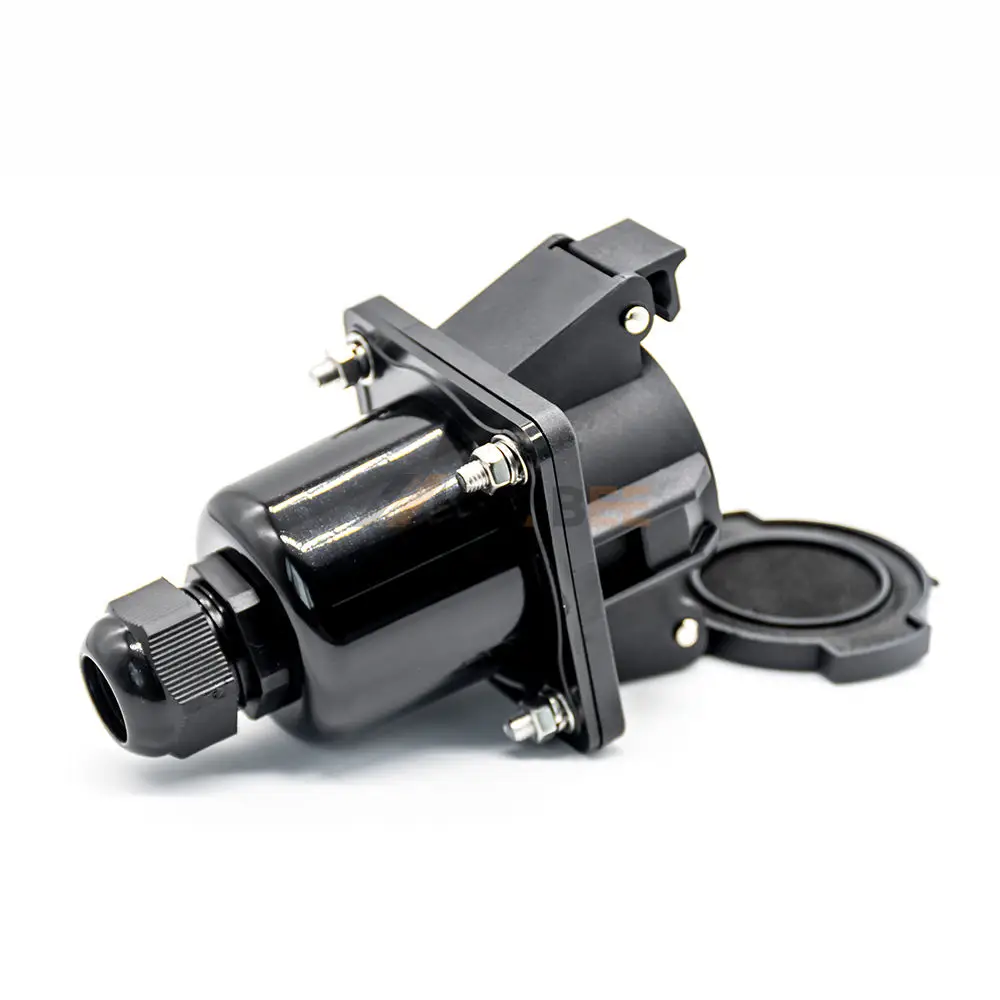

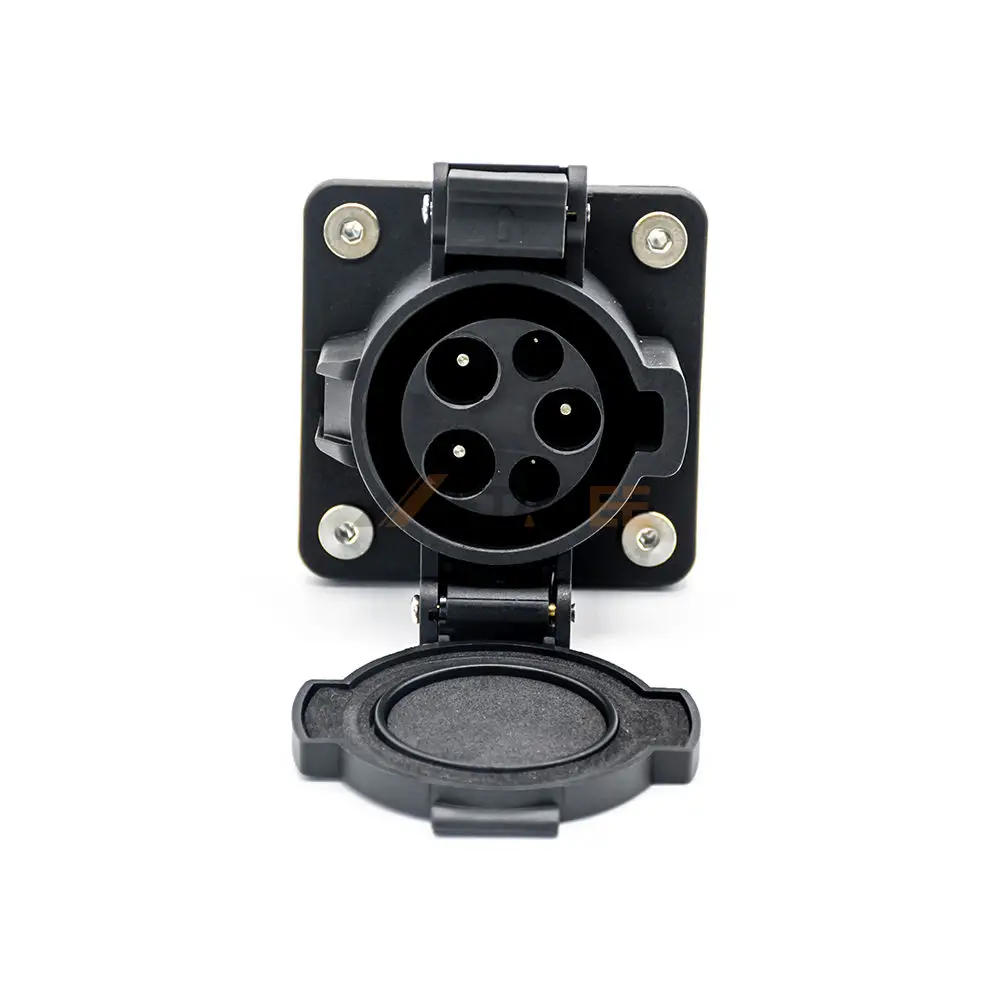

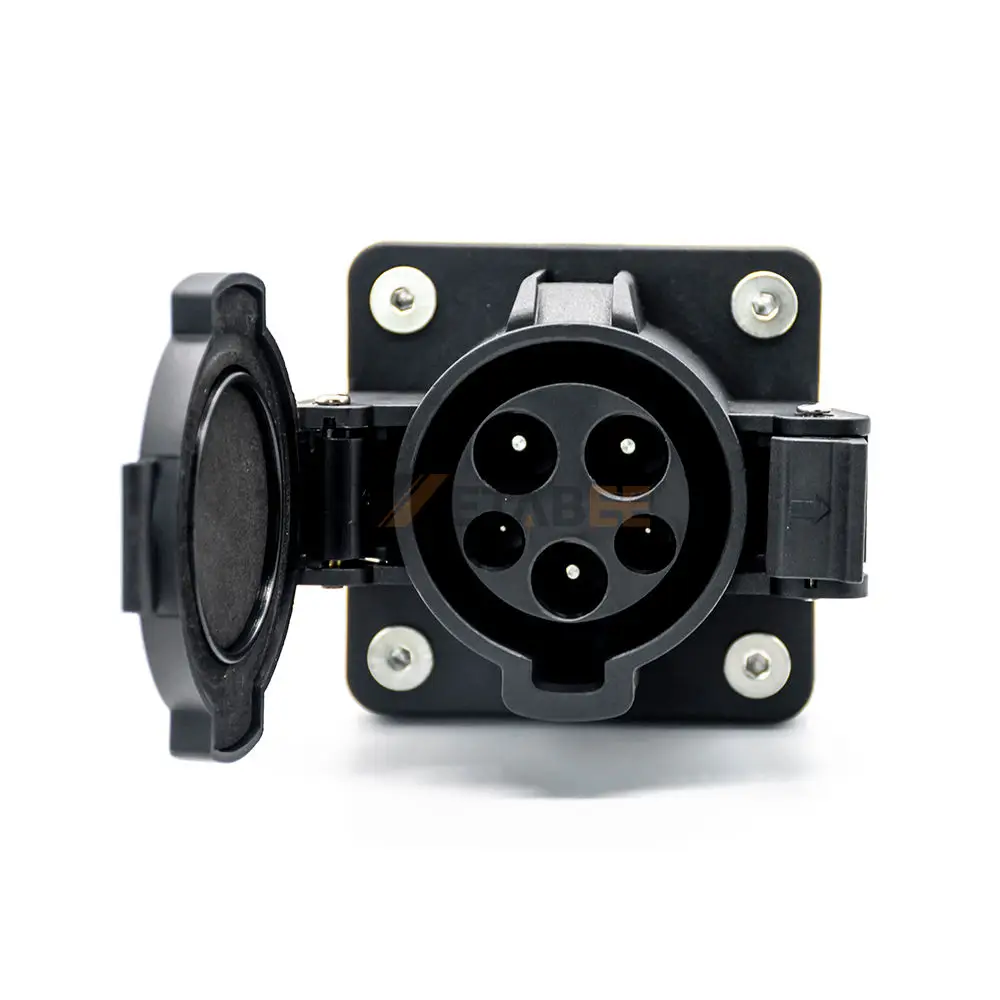

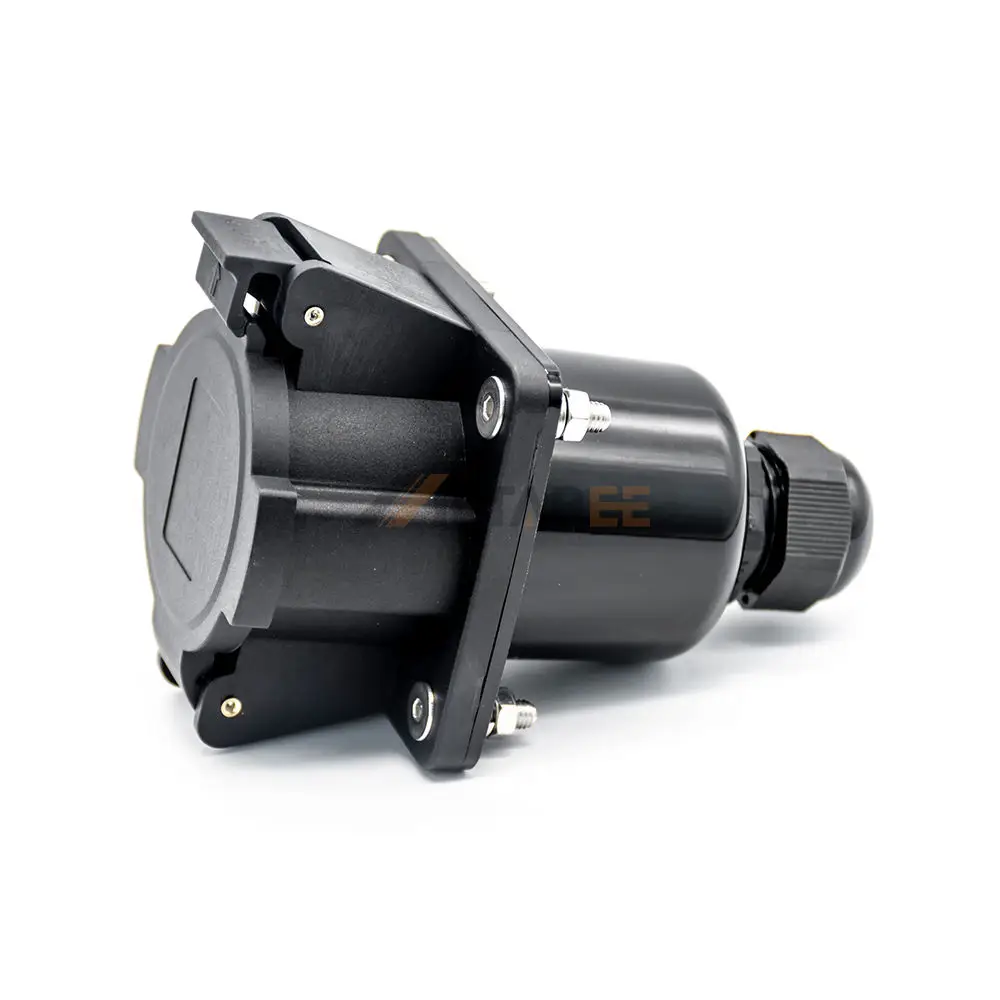

SAE J1772 AC EV Charger, Socket, Single Phase, 240V, 40A
Introduction
The SAE J1772 AC EV Charger Socket is designed for high-power single-phase AC charging in residential and commercial electric vehicle charging systems. Fully compliant with the SAE J1772 standard, it ensures wide compatibility with North American EVs and charging infrastructure. With a rated voltage of 240V and rated current of 40A, this connector supports a maximum charging power of 9.6 kW, enabling faster charging and reduced downtime.
Constructed with a robust thermoplastic housing, the connector provides excellent mechanical strength and electrical insulation. The silver-plated copper alloy contacts deliver low contact resistance and high conductivity, minimizing heat buildup during continuous high-current operation and ensuring long-term reliability.
Engineered for demanding environments, the charger socket features an IP65 protection rating and UL94 V-0 flame-retardant performance, making it suitable for both indoor and outdoor installations. It operates reliably across a wide temperature range from -30°C to +50°C, meeting the requirements of modern EV charging applications.
Key Features:
- SAE J1772 compliant AC EV charging socket
- Single-phase AC charging, 240V / 40A, up to 9.6 kW
- Silver-plated copper alloy contacts for high conductivity
- Durable thermoplastic housing with UL94 V-0 rating
- IP65 protection for indoor and outdoor use
- Operating temperature range: -30°C to +50°C
Main Specifications:
General Information:
| Part No.: | V3-YC-G-EV40S | |
| Product Series: | SAE Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 240V | |
| Rated Current: | 40A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 9.6kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
SAE J1772 Standard:
SAE J1772 Standard AC Charging Type:
SAE J1772 Charging Connector Drawing:
Applications of this SAE J1772 AC EV Charger:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
