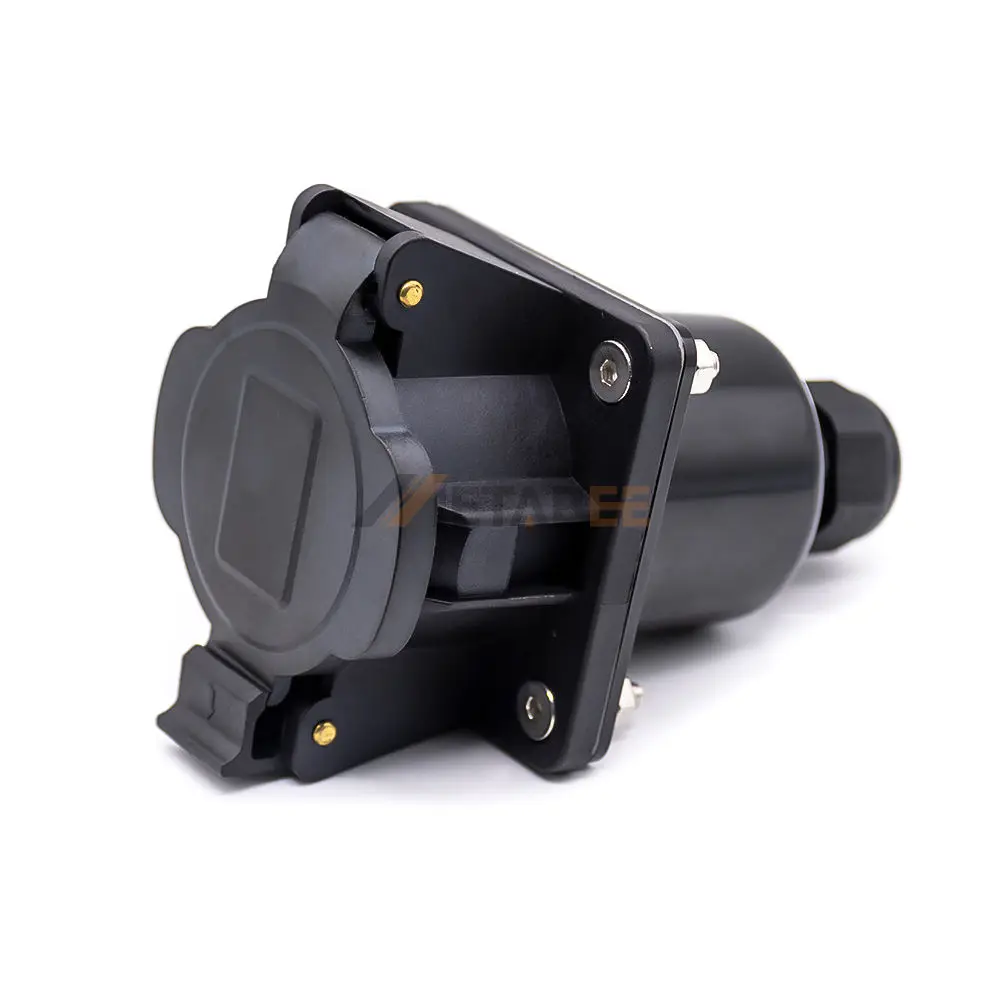

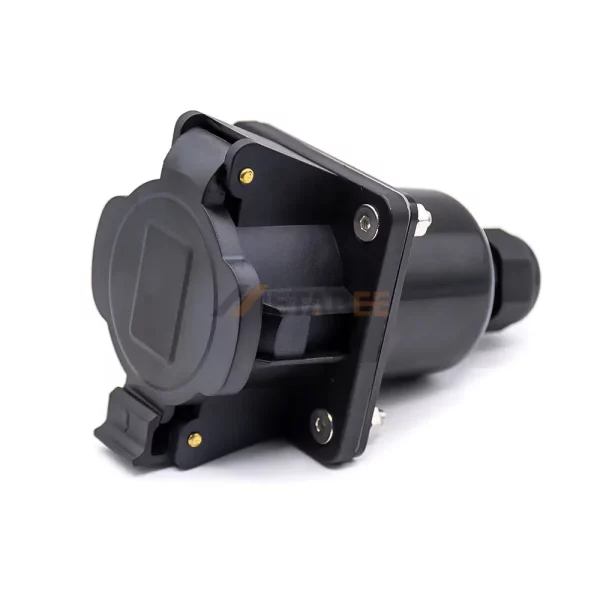

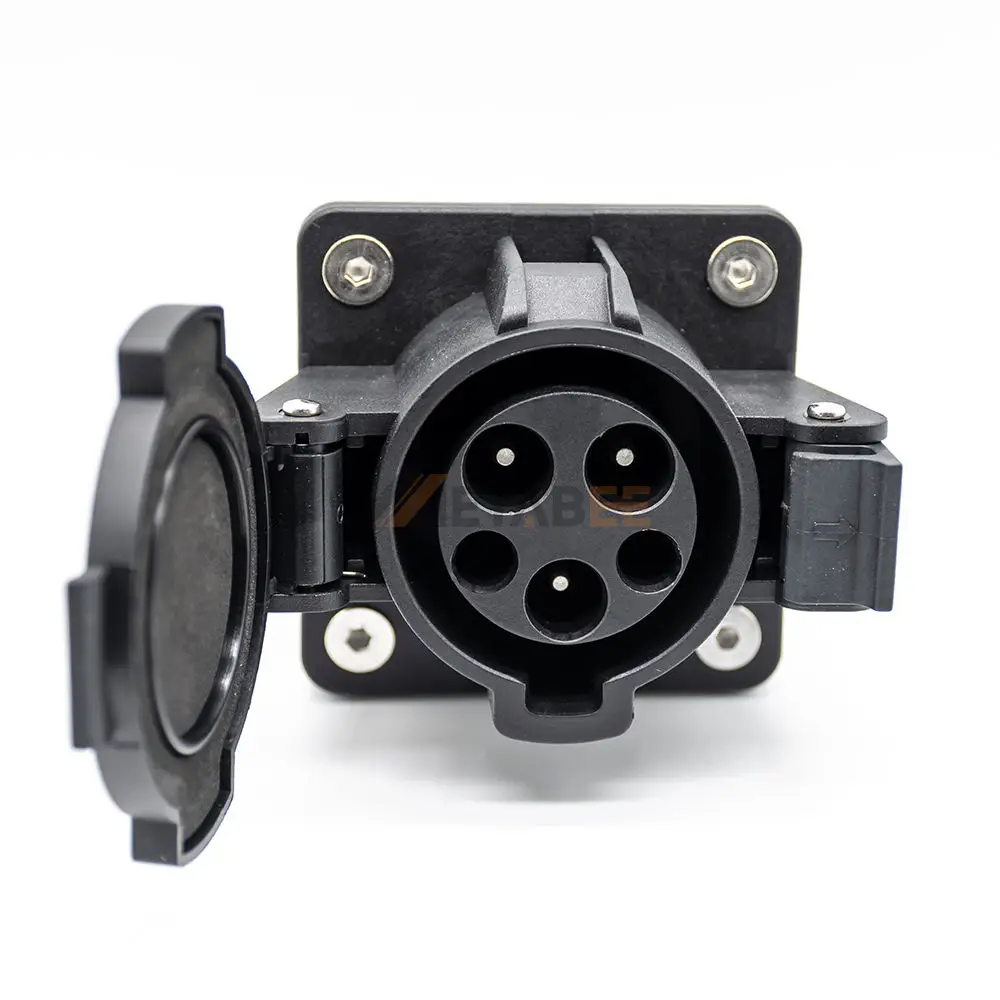

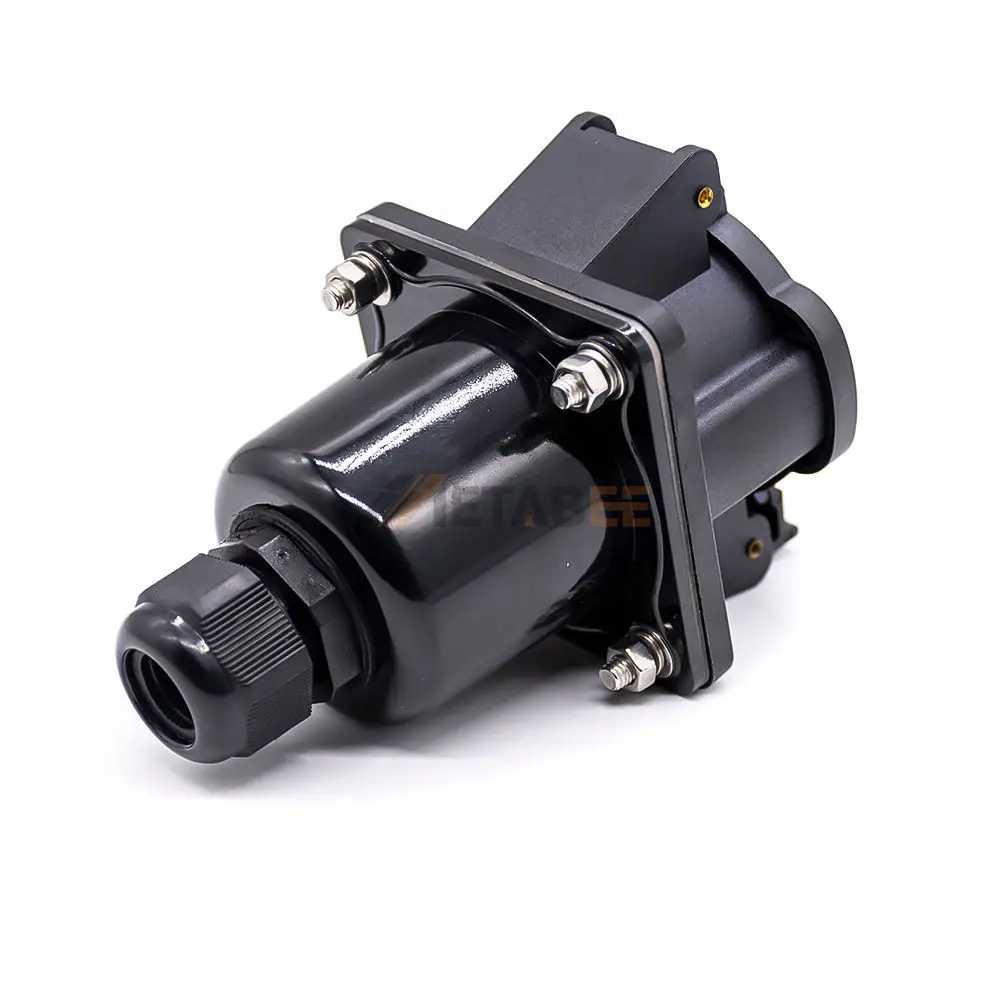

SAE J1772 AC Charging Socket for EV, Single Phase, 240V, 32A
Introduction
The SAE J1772 AC Charging Socket for EV is engineered for high-efficiency single-phase AC charging in residential and commercial electric vehicle charging systems. Fully compliant with the SAE J1772 standard, it ensures broad compatibility with North American EVs and charging stations. Rated at 240V and 32A, this connector supports a maximum charging power of 7.7 kW, enabling faster charging compared to standard 16A solutions.
Built for durability and electrical performance, the connector features a rugged thermoplastic housing and silver-plated copper alloy contacts. This combination delivers excellent insulation, low contact resistance, and superior conductivity, reducing heat generation during continuous high-current operation and extending service life.
Designed for demanding environments, the charging socket is certified to IP65 for dust and water resistance and meets UL94 V-0 flame-retardant requirements. It operates reliably across a wide temperature range from -30°C to +50°C, making it suitable for both indoor and outdoor installations.
Key Features:
- SAE J1772 compliant AC EV charging socket
- Single-phase AC charging, 240V / 32A, up to 7.7 kW
- Silver-plated copper alloy contacts for low resistance
- Durable thermoplastic housing with UL94 V-0 rating
- IP65 protection for indoor and outdoor use
- Operating temperature range: -30°C to +50°C
Main Specifications:
General Information:
| Part No.: | V3-YC-G-EV32S | |
| Product Series: | SAE Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 240V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 7.7kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
SAE J1772 Standard:
SAE J1772 Standard AC Charging Type:
SAE J1772 Charging Connector Drawing:
Applications of this SAE J1772 AC Charging Socket for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
