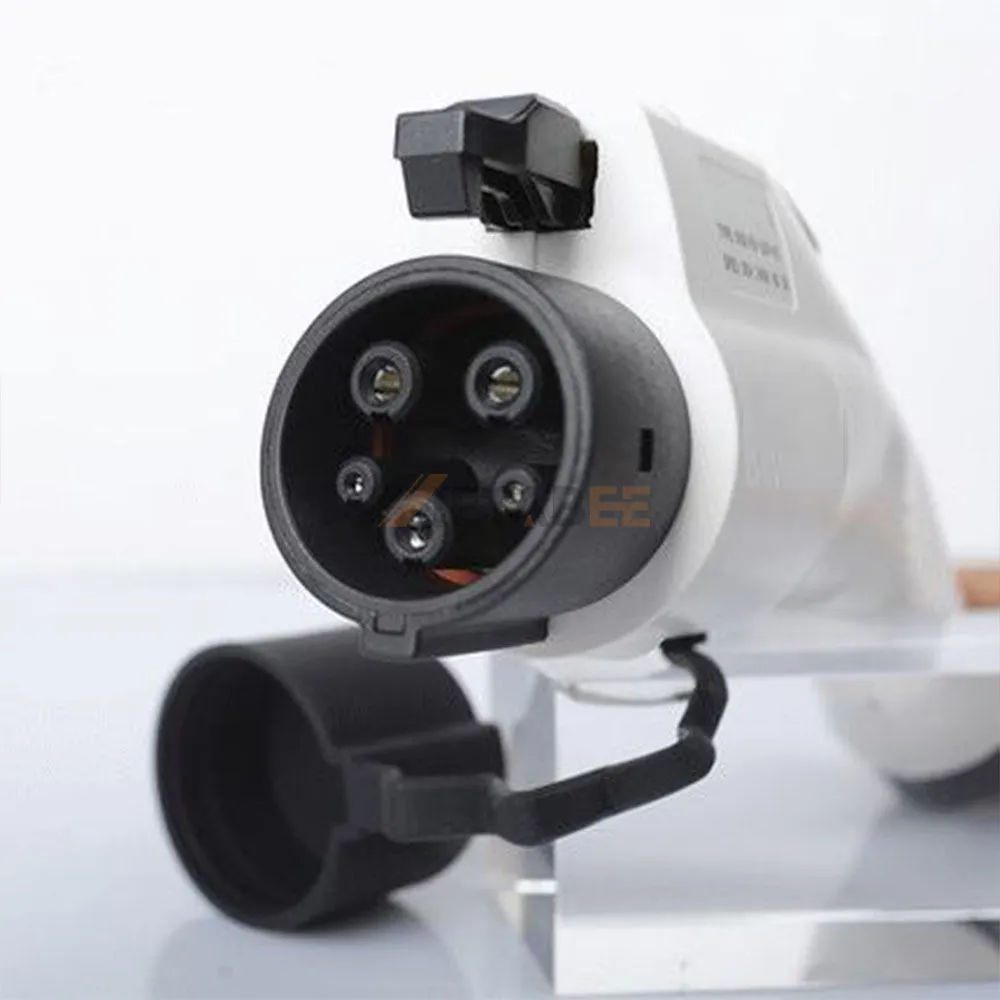

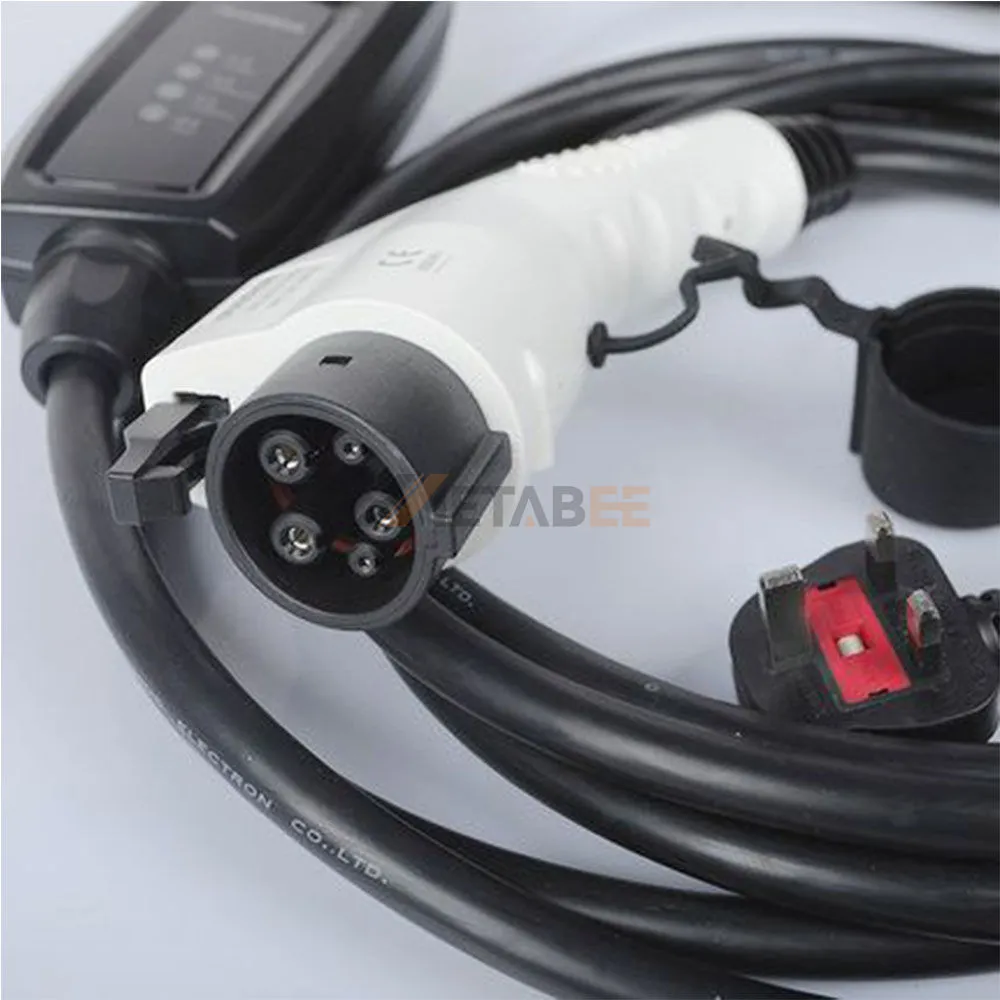

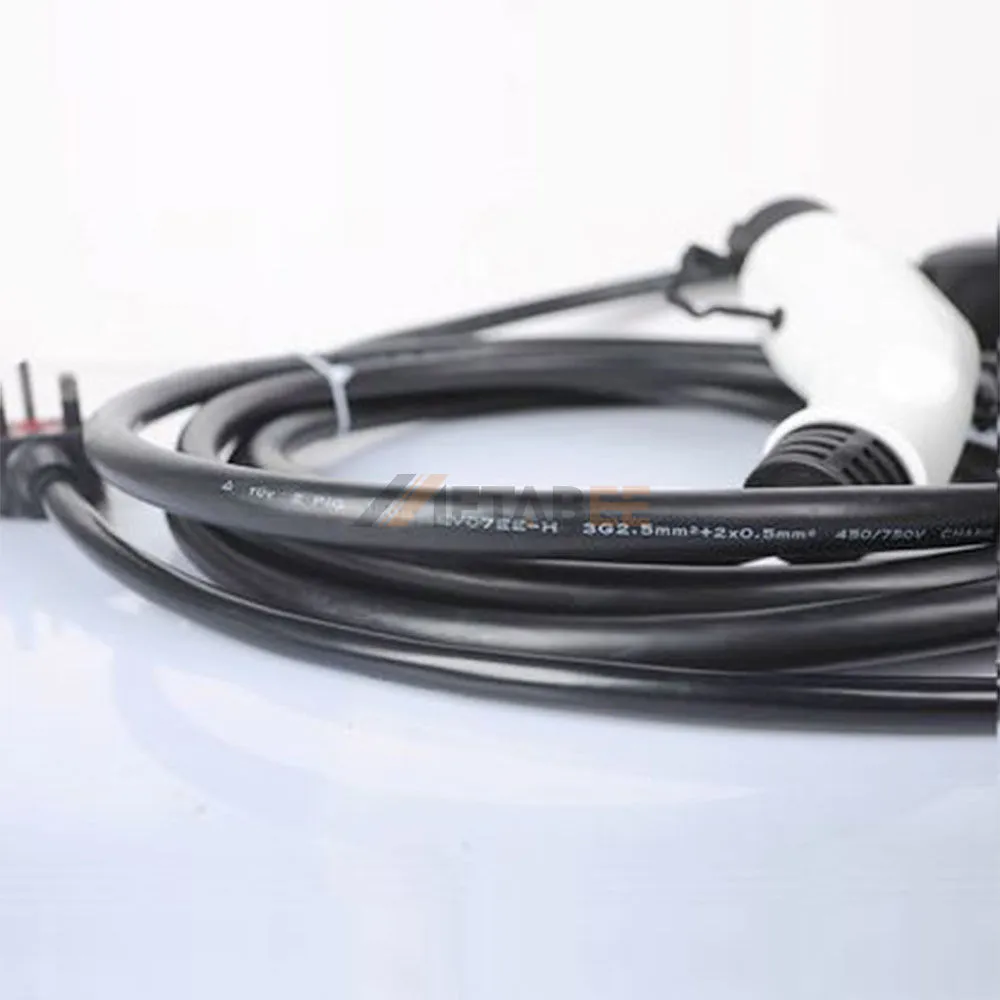

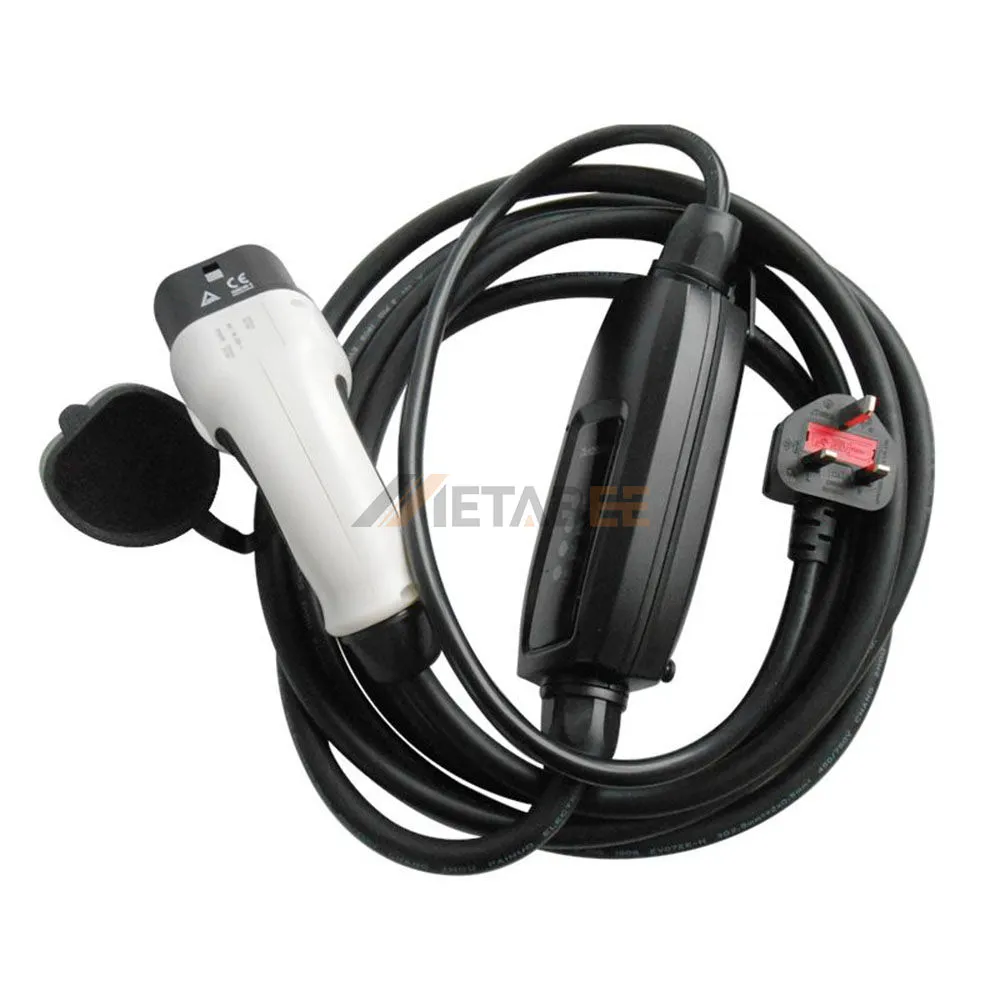

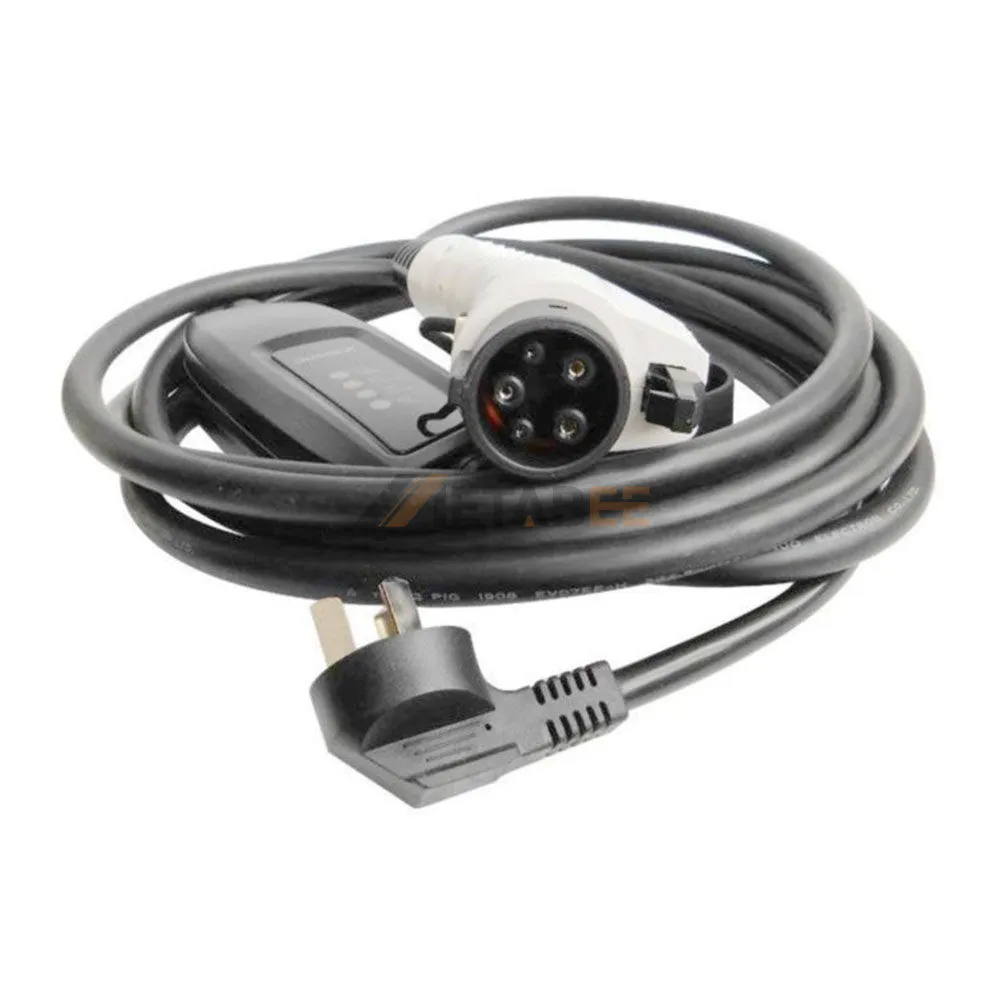

SAE J1772 AC EV Charging Cable, Plug, Single Phase, 16A, 110V
Introduction
This SAE J1772 AC EV charging cable is engineered for reliable and efficient electric vehicle charging, specifically designed for single-phase AC power delivery. It provides a consistent 16A current at 110V, achieving a maximum charging power of 2kW, ensuring dependable energy transfer for your EV. The plug connector conforms to the SAE J1772 standard, guaranteeing extensive compatibility with North American EV inlets.
Constructed for both durability and optimal conductivity, the connector features a resilient thermoplastic housing and silver-plated copper alloy contacts, enhancing performance and longevity. With an IP65 protection rating and UL94V-0 flame retardancy, this cable offers superior safety and resilience against environmental factors. It operates reliably within a wide temperature range of -30°C to 50°C, ensuring consistent performance.
Key Features:
- SAE J1772 Standard: Ensures broad compatibility for North American EVs.
- Single-Phase AC Charging: Provides consistent and reliable power delivery.
- Optimal Power Output: Delivers 16A at 110V, supporting up to 2kW charging.
- Premium Materials: Features durable thermoplastic and silver-plated copper contacts.
- Robust Protection (IP65): Offers excellent dust and water resistance.
- Enhanced Safety (UL94V-0): Provides superior flame retardancy for secure operation.
Main Specifications:
General Information:
| Part No.: | YC-3050-PSE-16-5C-AS | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 110V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 2kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this SAE J1772 AC EV Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
