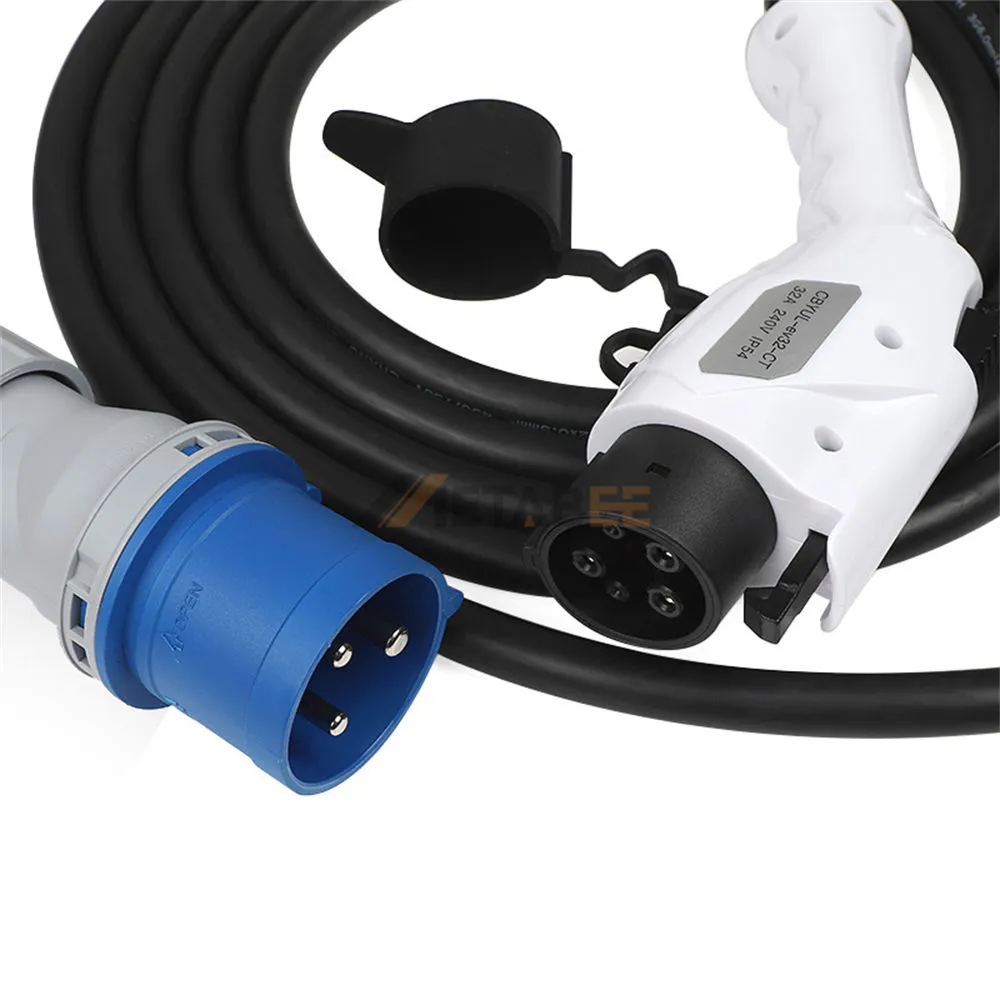

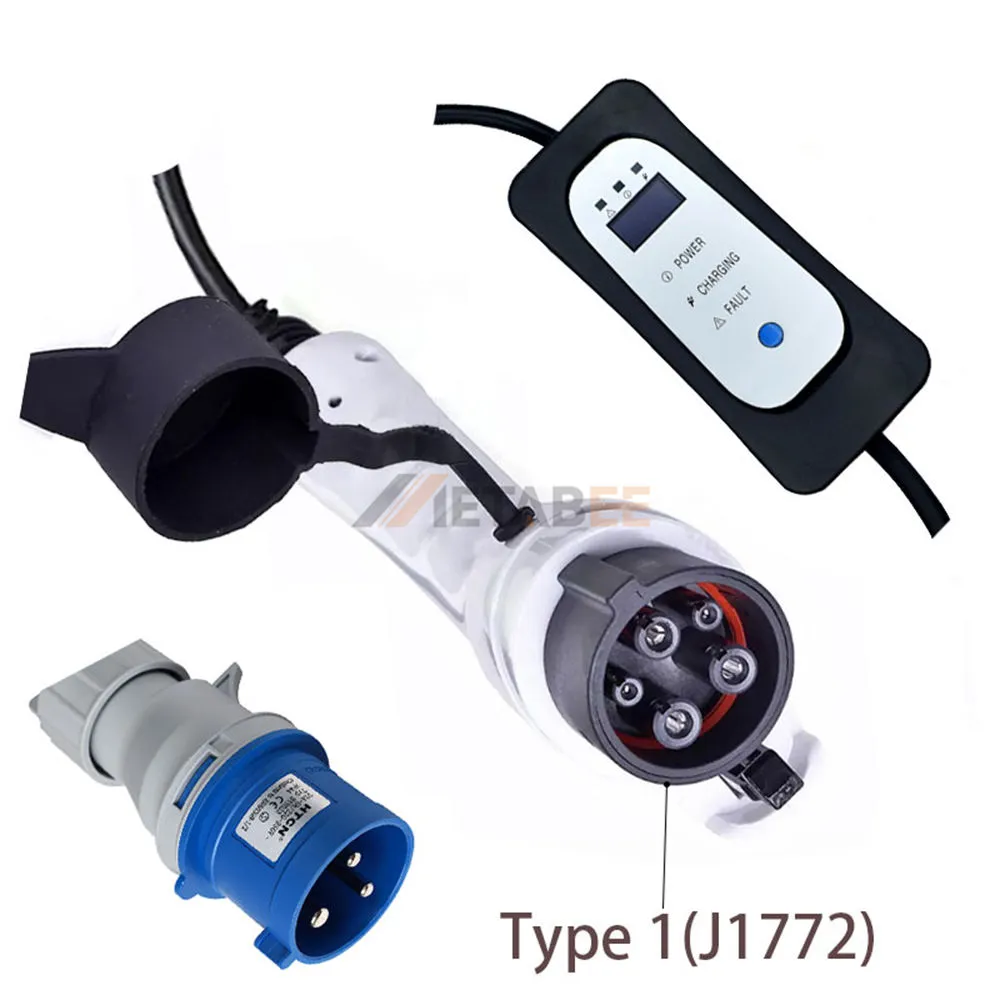

SAE J1772 AC Charging Cable for EV, Plug, Single Phase, 32A, 250V
Introduction
This SAE J1772 AC charging cable is meticulously engineered for high-performance electric vehicle charging, specifically designed for robust single-phase AC power delivery. It provides a substantial 32A current at 250V, achieving a maximum charging power of 8kW, ensuring rapid and dependable energy transfer for your EV. The plug connector adheres to the SAE J1772 standard, guaranteeing extensive compatibility with North American EV inlets.
Constructed for both durability and optimal conductivity, the connector features a resilient thermoplastic housing and silver-plated copper alloy contacts, enhancing performance and longevity. With an IP65 protection rating and UL94V-0 flame retardancy, this cable offers superior safety and resilience against environmental factors. It operates reliably within a wide temperature range of -30°C to 50°C, ensuring consistent performance in diverse conditions.
Key Features:
- SAE J1772 Standard: Ensures broad compatibility for North American EVs.
- High-Current Single-Phase: Delivers 32A at 250V for accelerated charging.
- Optimal Power Output: Supports up to 8kW maximum charging power.
- Premium Materials: Features durable thermoplastic and silver-plated copper contacts.
- Robust Protection (IP65): Offers excellent dust and water resistance.
- Enhanced Safety (UL94V-0): Provides superior flame retardancy for secure operation.
Main Specifications:
General Information:
| Part No.: | YC-3050-PSE-32-5C-CEE | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 8kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this SAE J1772 AC Charging Cable for EV:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
