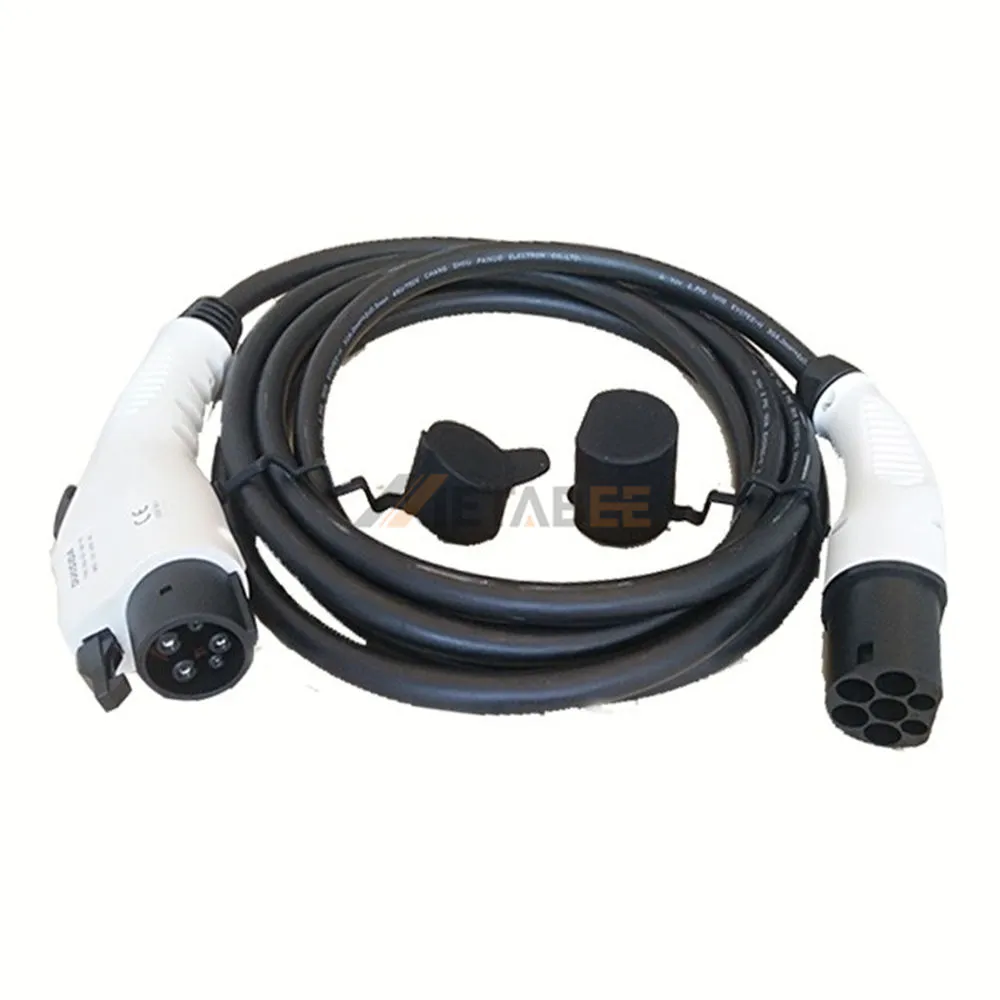

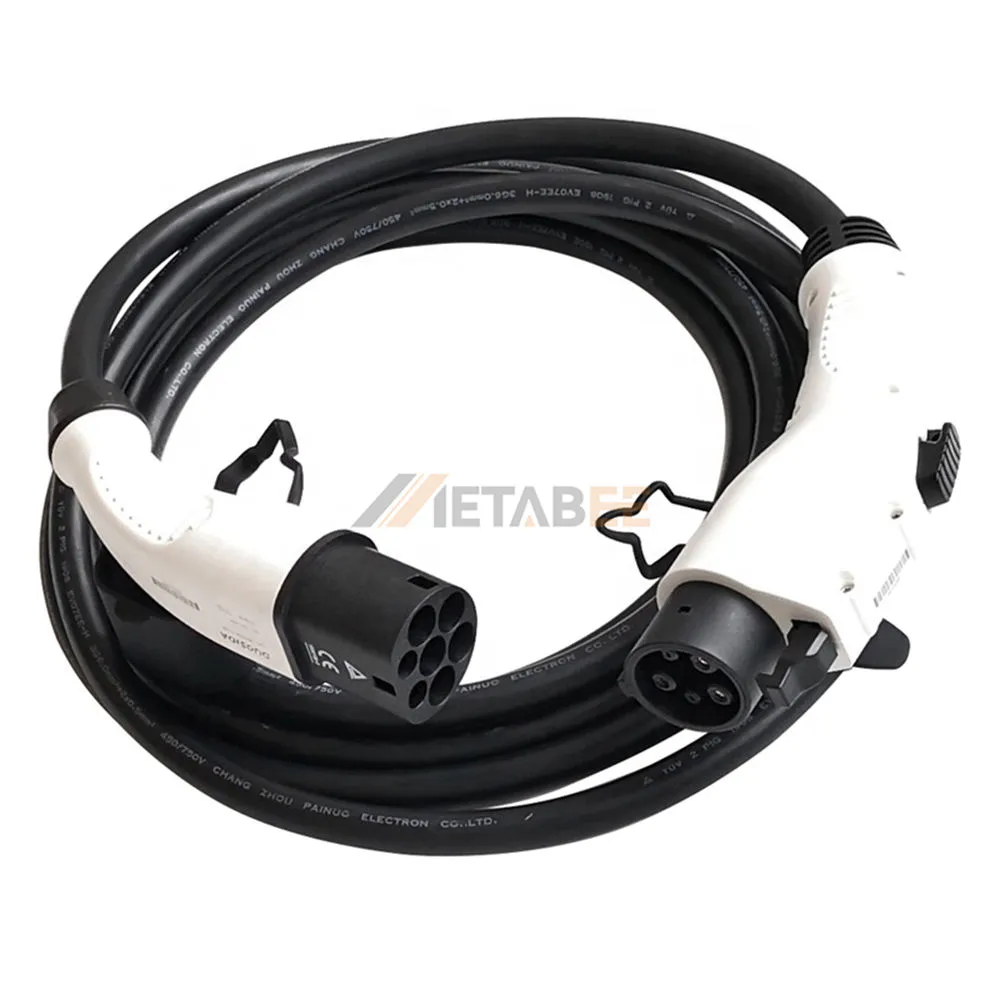

SAE J1772 AC Charger Cable, EV Plug, Single Phase, 16A, 250V
Introduction
This SAE J1772 AC charger cable is designed for reliable single-phase EV charging, delivering stable power up to 4 kW. Compliant with the SAE J1772 standard, it ensures broad compatibility with electric vehicles in North America and other J1772-supported markets.
The EV plug features a robust thermoplastic housing and silver-plated copper alloy contacts, providing low contact resistance, high conductivity, and long service life. With an IP65 protection rating and UL94V-0 flame retardancy, it is suitable for both indoor and outdoor charging environments.
Engineered to operate in temperatures from -30°C to 50°C, this AC charging cable offers dependable performance under demanding conditions, making it ideal for residential and commercial EV charging applications.
Key Features:
- AE J1772 standard compliance
- Single-phase AC charging, EV plug
- Rated 16A current, 250V voltage
- Up to 4 kW charging power
- IP65 protection, UL94V-0 flame retardant
- -30°C to 50°C operating temperature range
Main Specifications:
General Information:
| Part No.: | YC-2090-3050-16-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this SAE J1772 AC Charger Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
