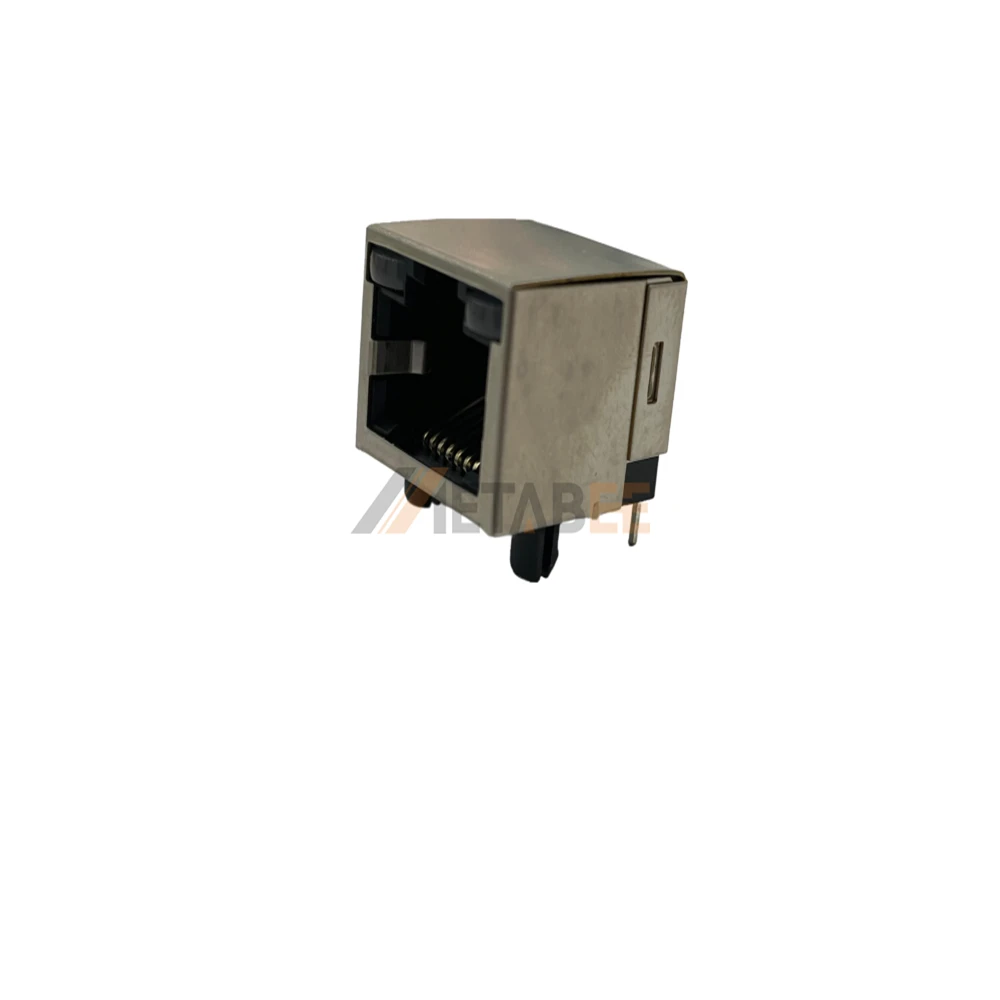

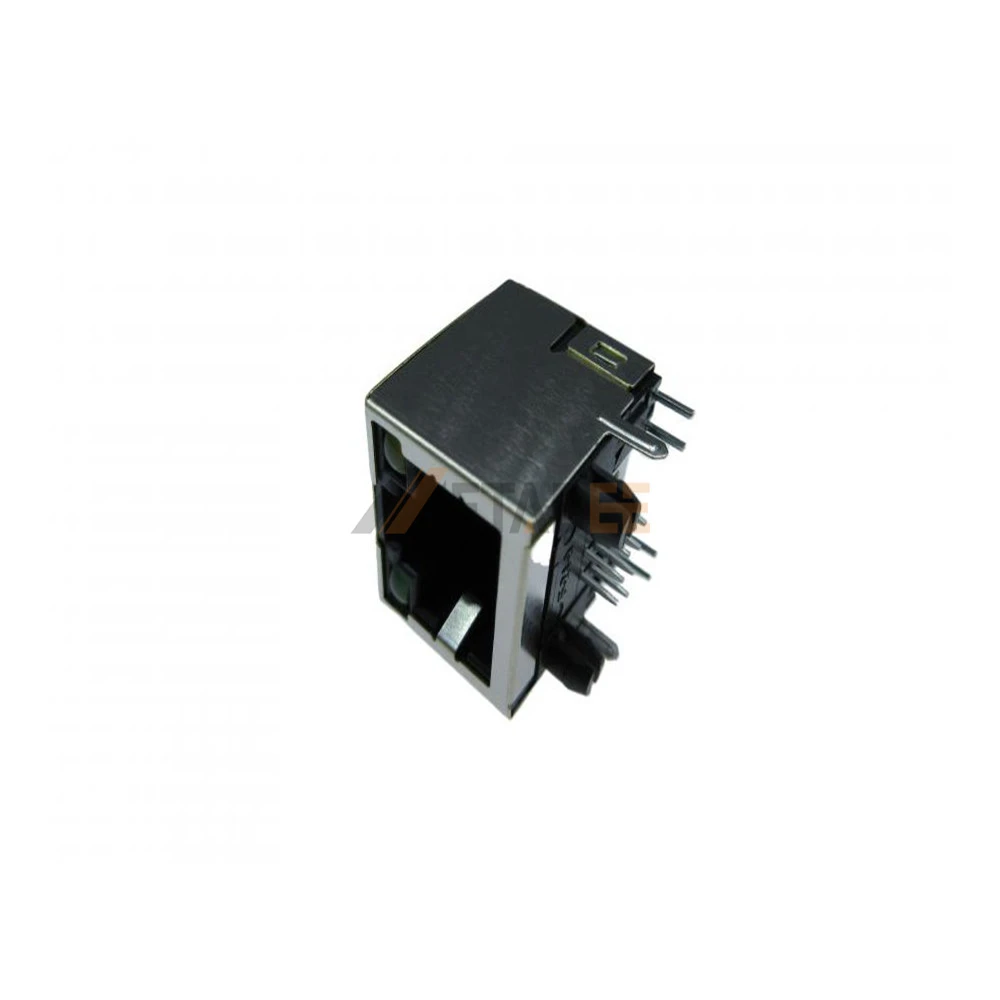

RJ45 Connector Female PCB Jack 8P8C DIP Type, 1 Port, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port RJ45 connector female designed for stable through hole DIP mounting on high-speed circuit boards. A robust nickel-plated metal shell provides full EMI shielding to protect signal integrity from external noise in busy networking environments. To support clear link diagnostics, this series offers multiple integrated LED color options, including green and yellow combinations, allowing users to monitor activity at a glance. Depending on your model choice, the internal housing utilizes glass-reinforced PBT or Nylon46 to survive intense industrial wave soldering without warping. We provide flexible customization for various temperature ranges up to +125°C and specific contact finishes to meet unique project requirements. Technicians utilize this reliable modular interface for secure data links in industrial automation and telecommunication hardware.
Key Features

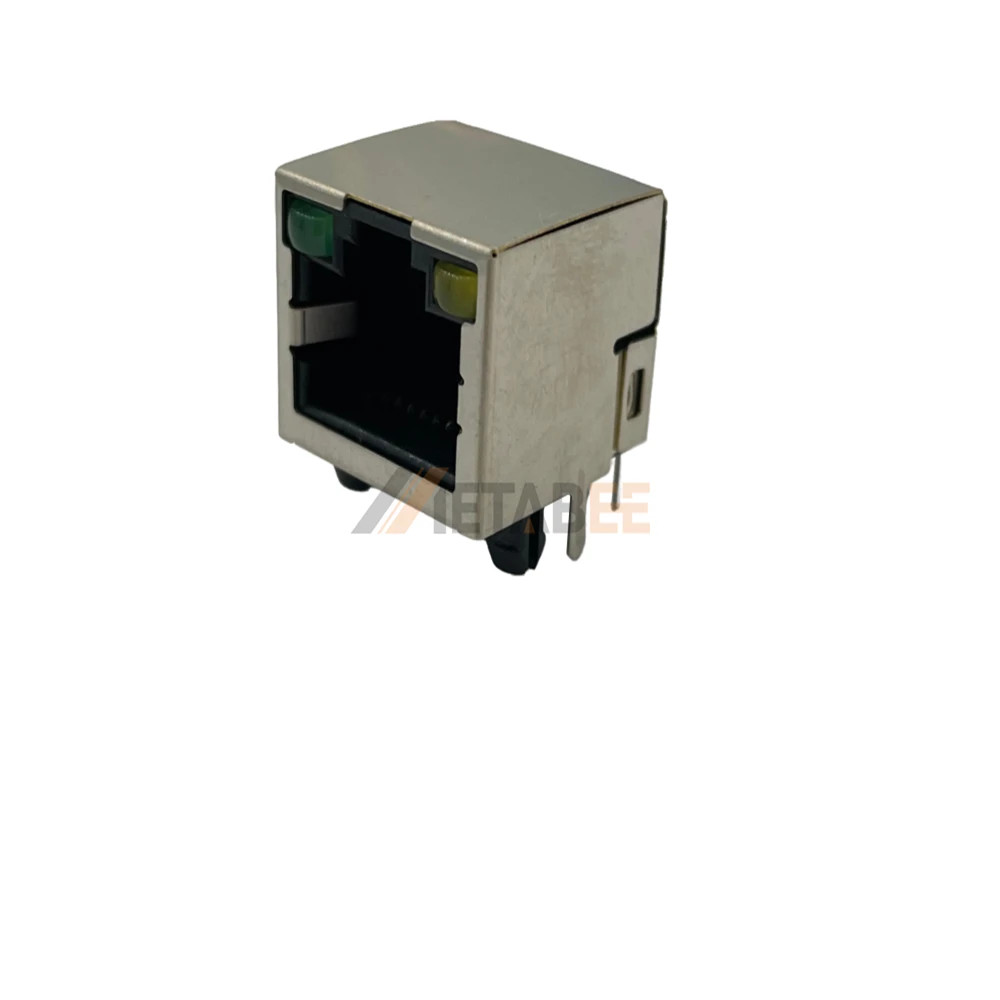

- Diverse LED Options: Offers various color combinations for link diagnostics.
- Full EMI Shielding: Metallic shell blocks external interference for signal integrity.
- Durable Material Choice: Glass-reinforced PBT or Nylon46 survives intense heat.
- Flexible Customization: Supports specific temperature ranges and finish requirements.
- Tab-Up Configuration: Optimizes vertical board space for specialized layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSM | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Multiple combinations |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min/1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | Nylon46 / PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated / Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

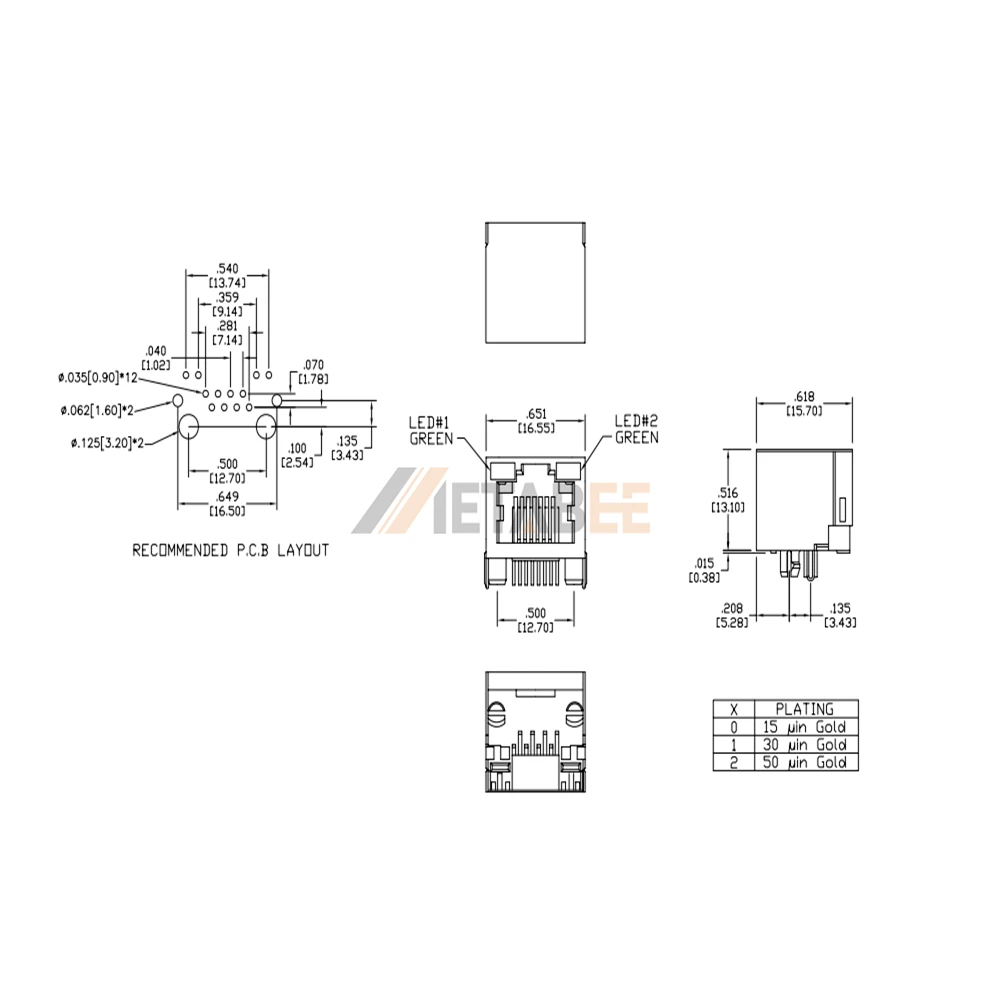

Structure of Modular Jack

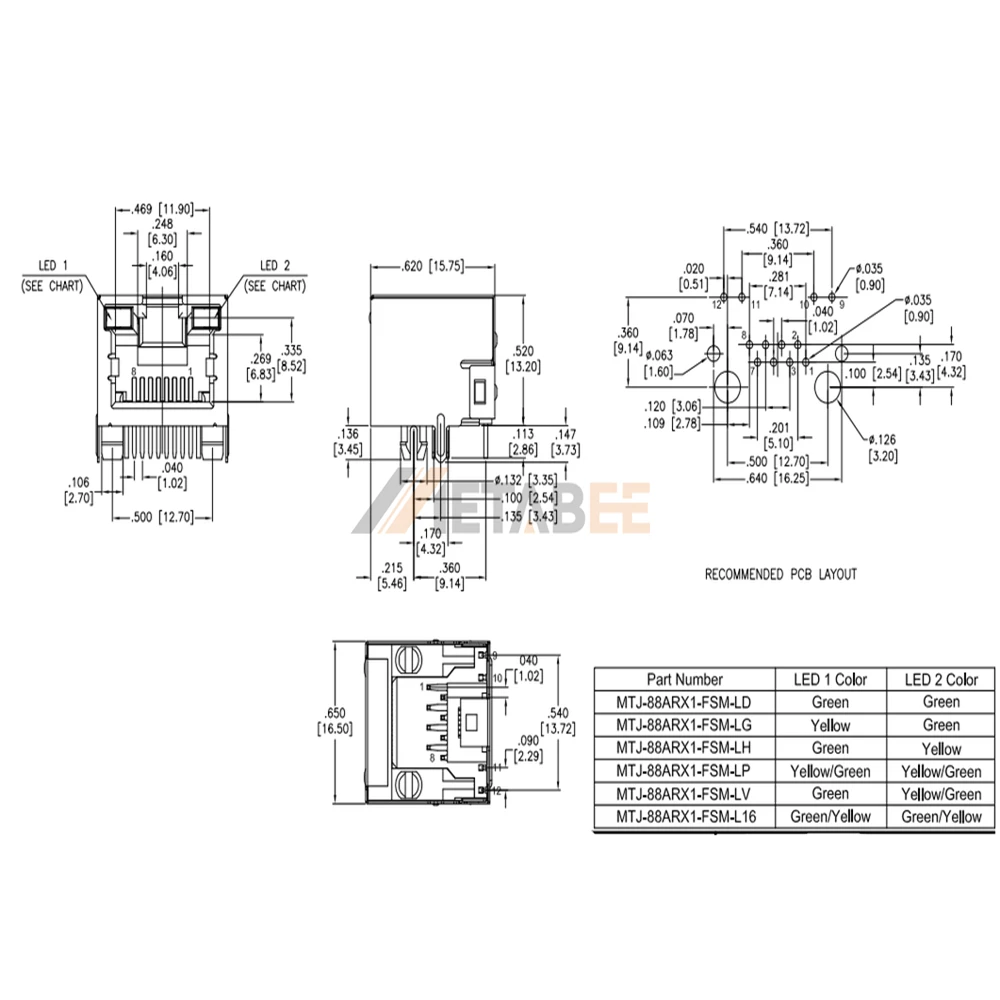

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
