Introduction:

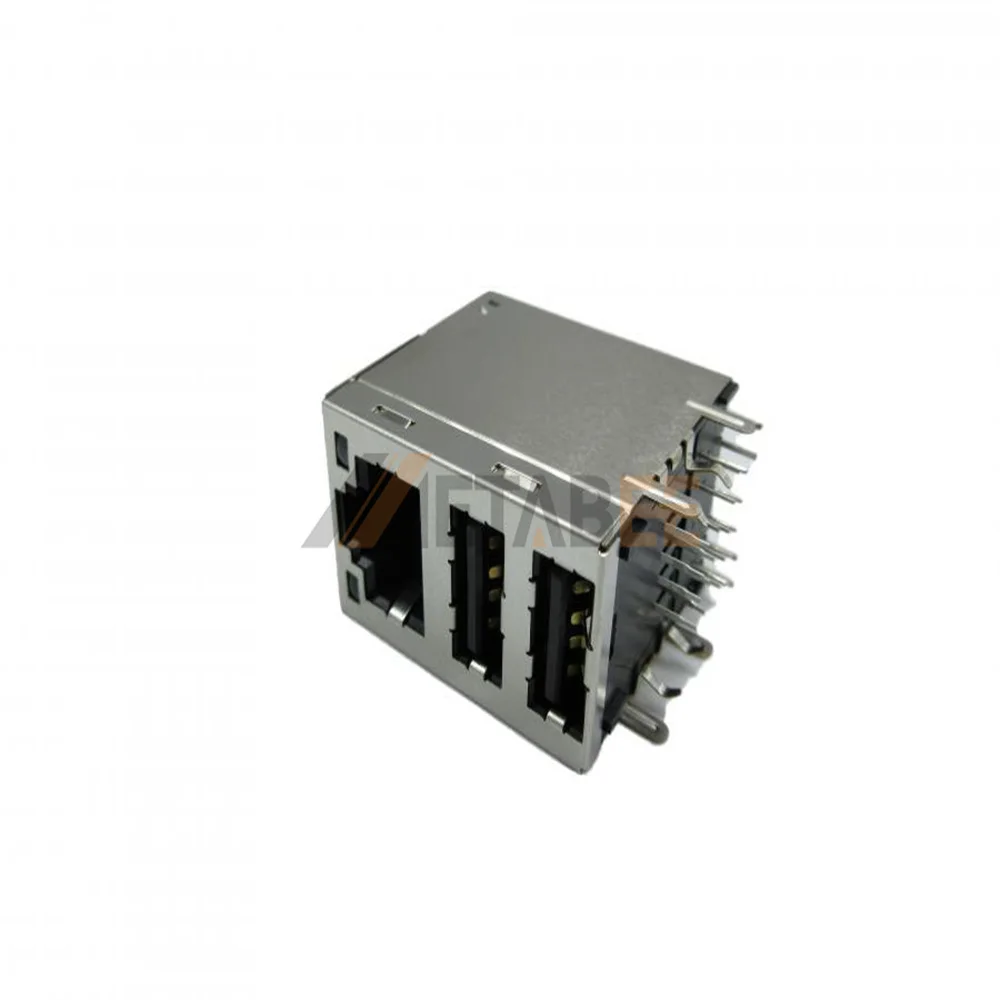

The RJ45 USB Combo Connector is a hybrid networking interface that integrates one Gigabit Ethernet port and two USB 2.0 Type A ports into a single compact module. High-performance 1G Base-T data transmission remains stable across the 0C ~ 70C operating temperature range for consistent connectivity. A robust pre-soldered stainless steel shield encloses the black thermoplastic housing to reject electromagnetic interference effectively. Precise visual link tracking depends on multi-color green/orange and yellow LED indicators integrated into the right-angle profile. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20 miliohms in this rj45 usb combo connector. This component is widely utilized in server motherboards, industrial pc systems, network routers, and high-density communication peripherals.
Key Features
- Gigabit Connectivity: Supports high-speed 1G Base-T Ethernet data transmission.
- Dual USB 2.0 Ports: Combines network and peripheral interfaces into one module.
- Full Stainless Shielding: Pre-soldered housing blocks severe electromagnetic interference.
- Multi-color Status LEDs: Integrated visual indicators track precise link activity.
- Gold-plated Contacts: Ensure low resistance and long-term signal integrity.
Main Specifications:
General Information:
| Product No.: | MTJ-DUSB-88JX1-FS-L29-M339Y | |
| Series: | MTJ | |
| Category: | RJ45 and USB-A Combo Jacks | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 3×1 Port | |
| Number of USB Ports: | Dual USB Port | |
| USB Type: | Type A (USB 2.0) | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green/Orange, Right: Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
