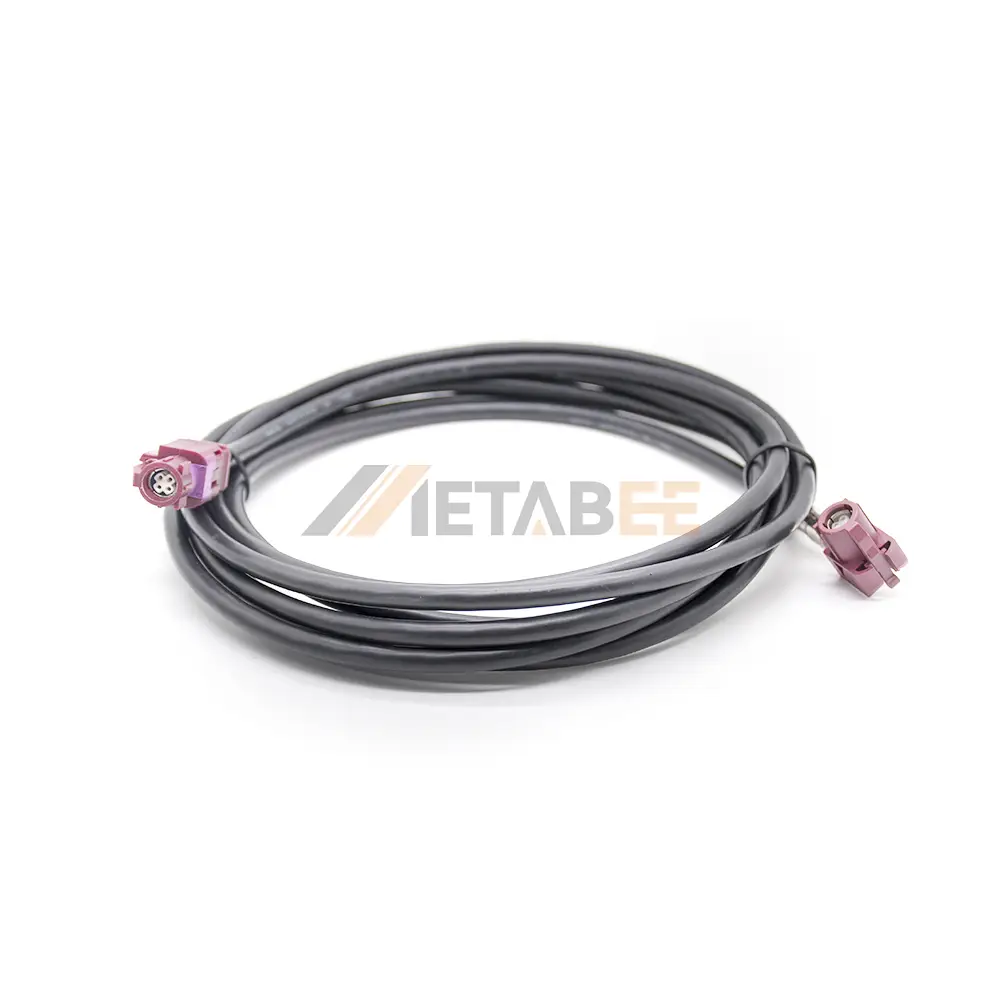

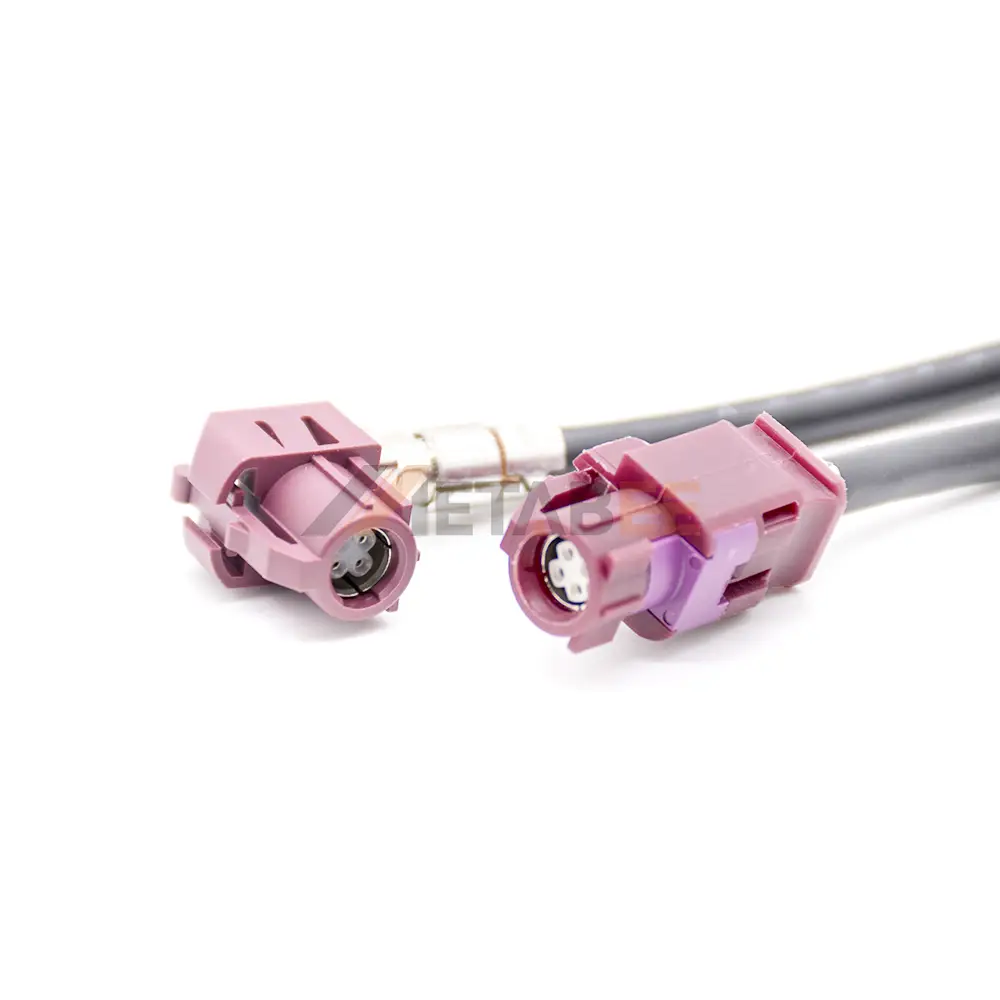

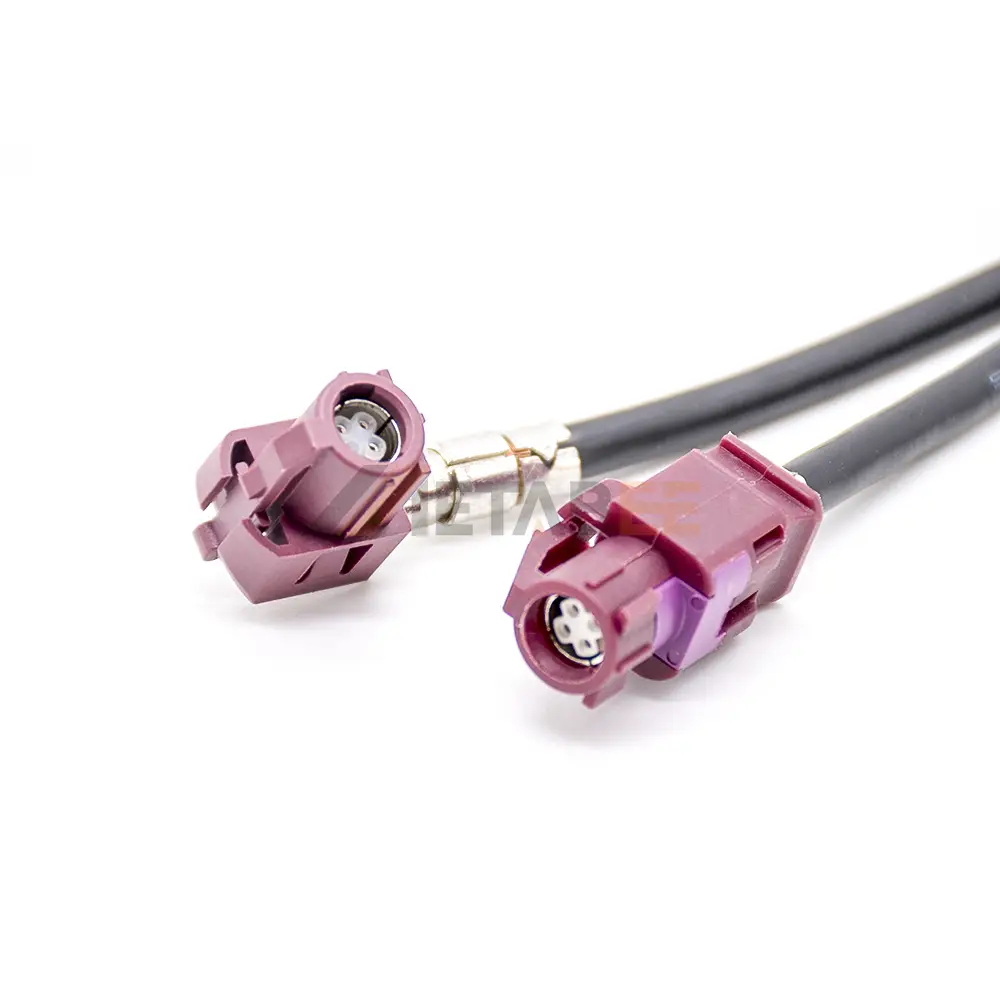

Right Angle HSD D-Coded 4 Pin Jack to Jack Cable Assembly
Introduction
The HSD cable assembly is a high-performance solution designed for secure and reliable data transmission in automotive and industrial applications. Featuring a robust HSD-to-HSD construction, this cable ensures stable signal integrity and durability even in demanding environments. With its right-angle and straight connector configuration, it provides flexibility in tight installation spaces while maintaining consistent performance.
Engineered with 4-pin D-coded HSD connectors, both jacks deliver a 50-ohm impedance that guarantees optimal high-speed data transfer. The assembly is built to operate in harsh conditions, supporting a wide temperature range from -40°C to +105°C. This makes it highly suitable for advanced driver assistance systems (ADAS), infotainment, camera connections, and other data-driven automotive electronics.
Key Features:
- HSD to HSD D-coded 4-pin jack-to-jack cable assembly
- Right angle to straight connector design for flexible installation
- Impedance: 50 ohms for stable high-speed performance
- Wide operating temperature: -40°C to +105°C
- Reliable data transmission for automotive and industrial use
Main Specifications:
| Part No.: | 102-11-100014 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | D-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Right Angle | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | D-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this Right Angle HSD D-Coded 4 Pin Jack to Jack Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
