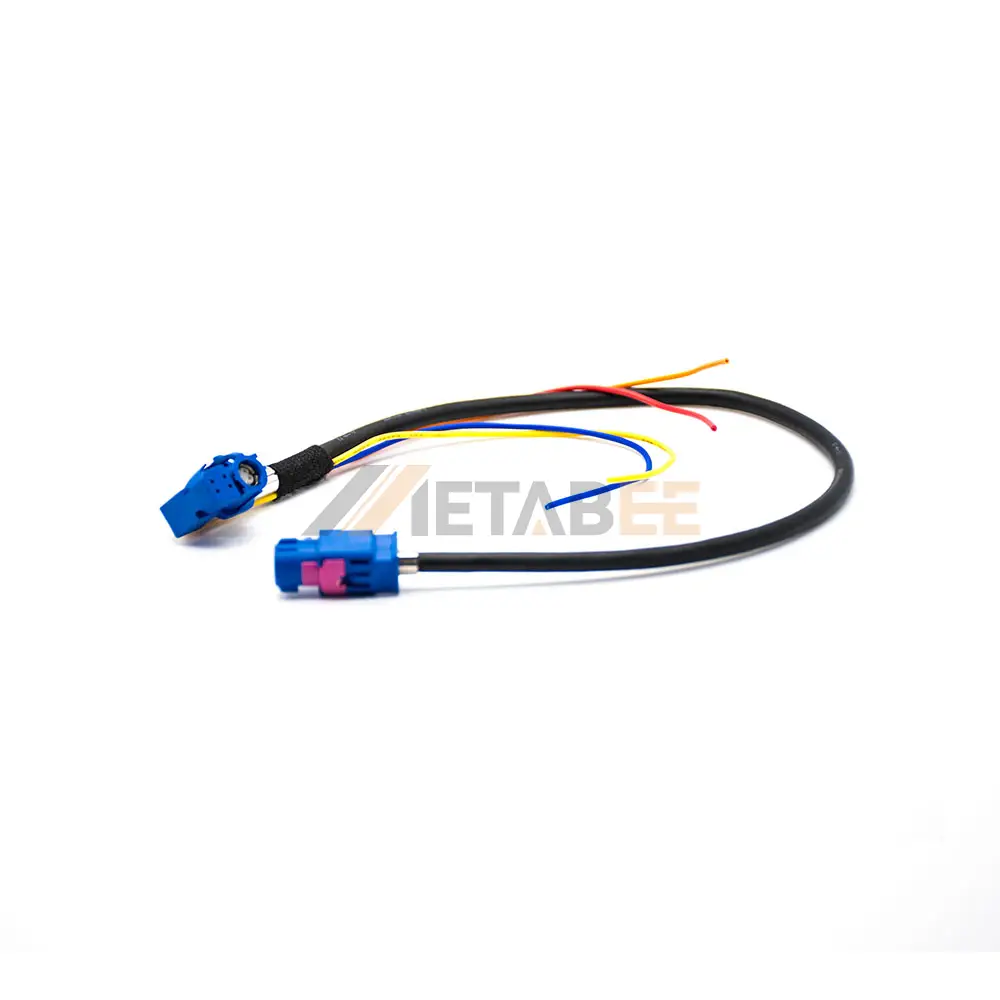

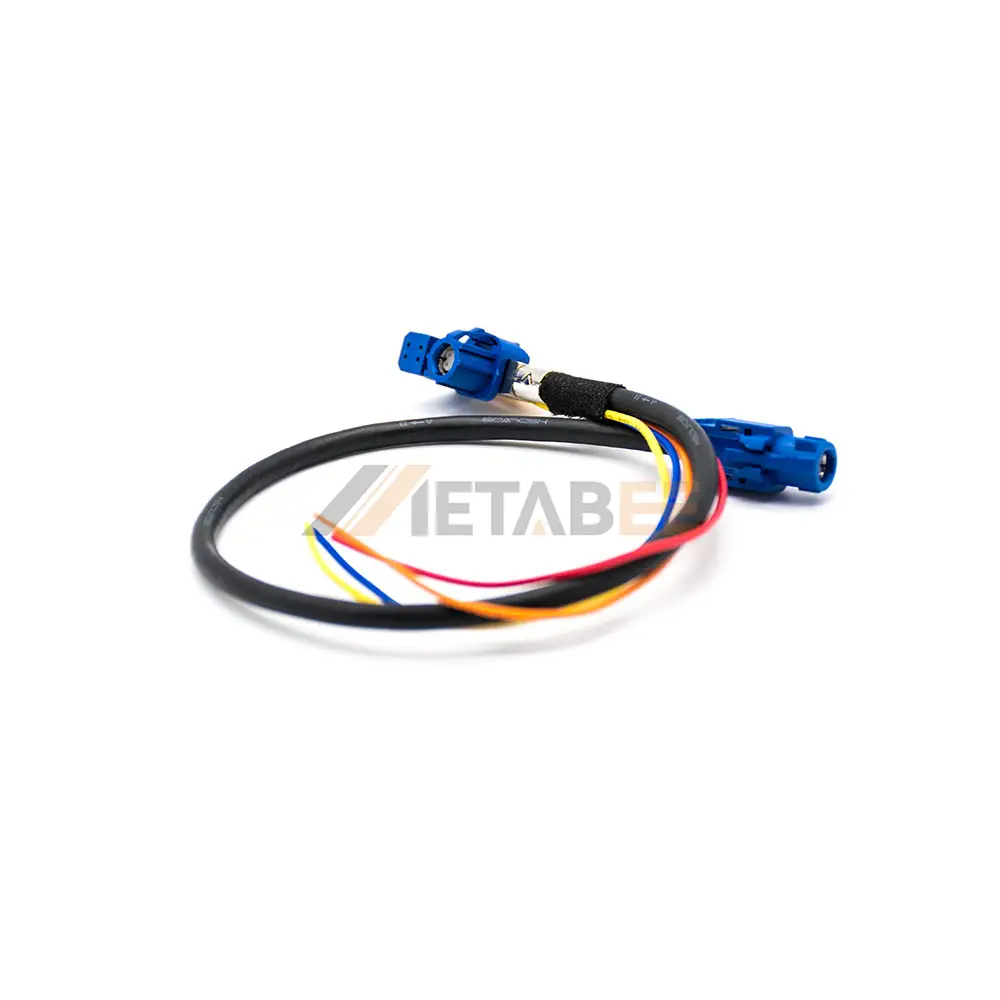

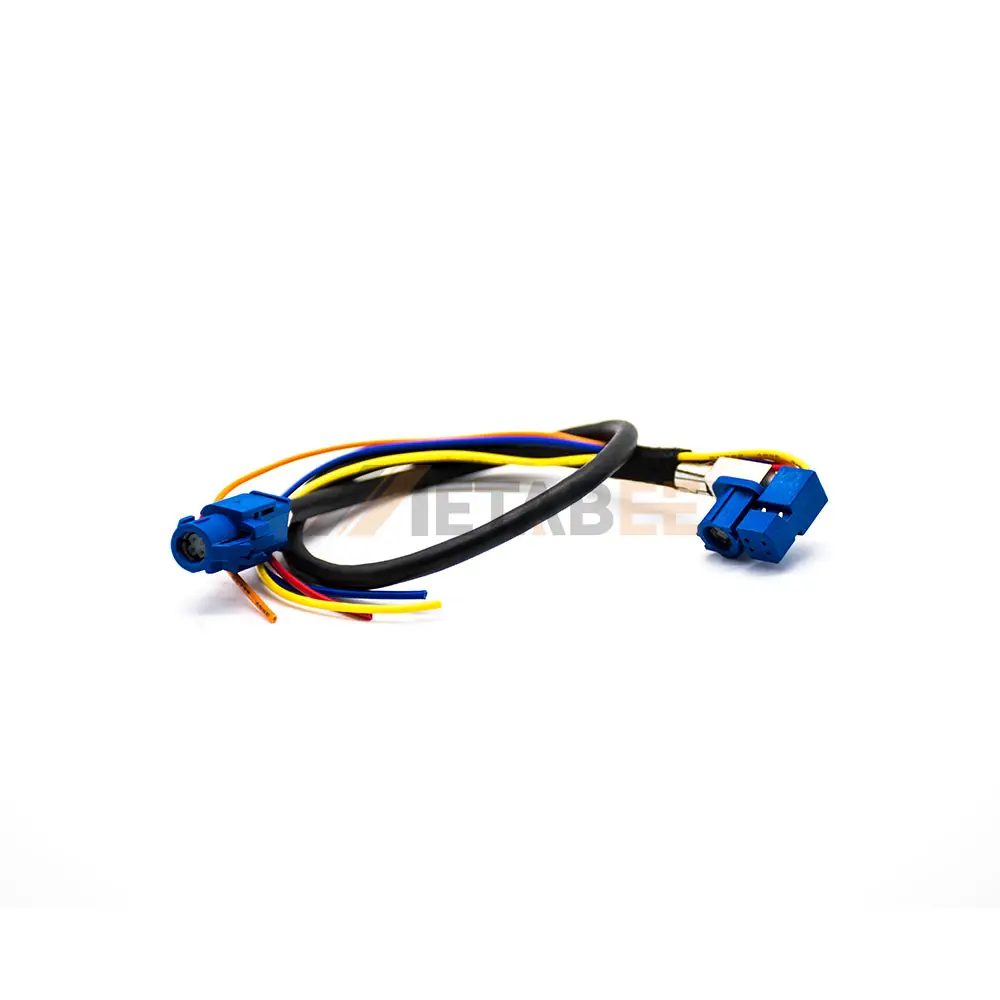

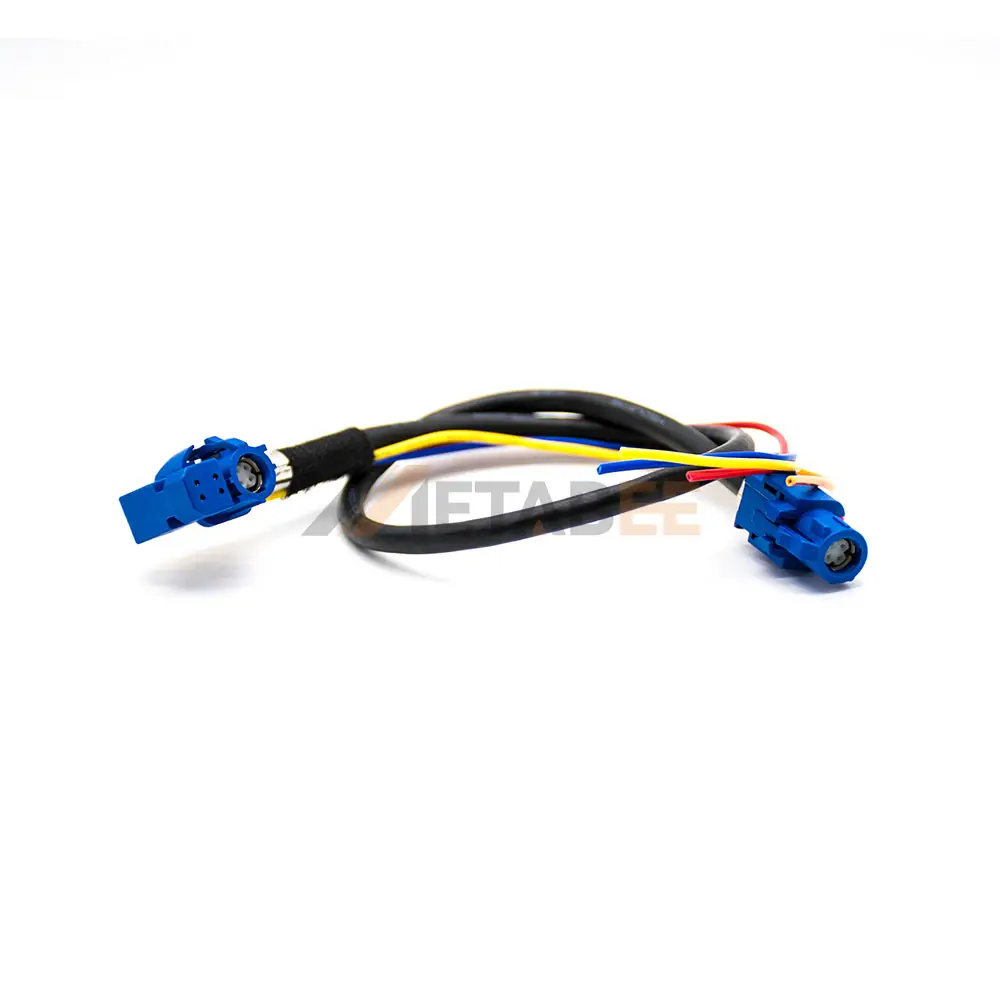

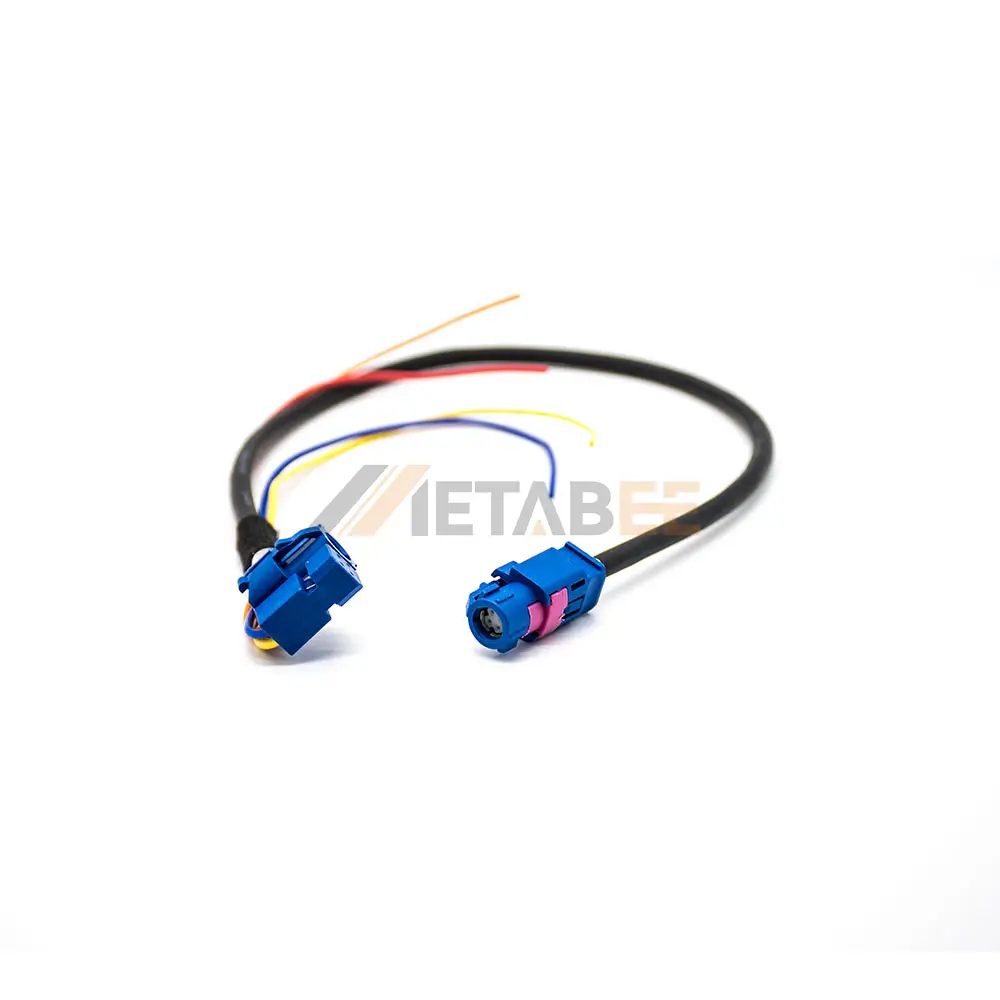

R/A HSD C-Coded 4+4 Pin Jack to 4 Pin Jack Cable Assembly
Introduction
Engineered for high-speed data transmission in the automotive industry, this HSD cable assembly is the ideal solution for modern vehicle applications. It’s designed to support a wide range of infotainment and driver assistance systems, including cameras, displays, and navigation units. The HSD to HSD connection ensures a reliable, secure, and compact interface, crucial for the demanding environments found within vehicles.
This cable assembly features a right-angle HSD C-coded 4+4 pin jack on one end and a straight HSD C-coded 4-pin jack on the other. This configuration offers exceptional flexibility for installations where space is a premium, allowing for neat and efficient cable routing. With a 50-ohm impedance, it guarantees optimal signal integrity and minimal data loss, while its robust construction is built to withstand extreme conditions, operating flawlessly in temperatures ranging from -40°C to 105°C.
Key Features:
- Right-Angle Design: Provides flexible installation in confined spaces.
- High-Speed Data Transmission: Optimized for demanding automotive and industrial applications.
- Secure & Reliable Connection: HSD connectors ensure a stable, locked fit.
- 50-Ohm Impedance: Guarantees signal integrity and consistent performance.
- Wide Temperature Range: Withstands extreme temperatures from -40°C to 105°C.
Main Specifications:
| Part No.: | 102-11-10004 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | C-Coded | |
| Connector 1-Number of Positions: | 4+4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Right Angle | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | C-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this R/A HSD C-Coded 4+4 Pin Jack to 4 Pin Jack Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
