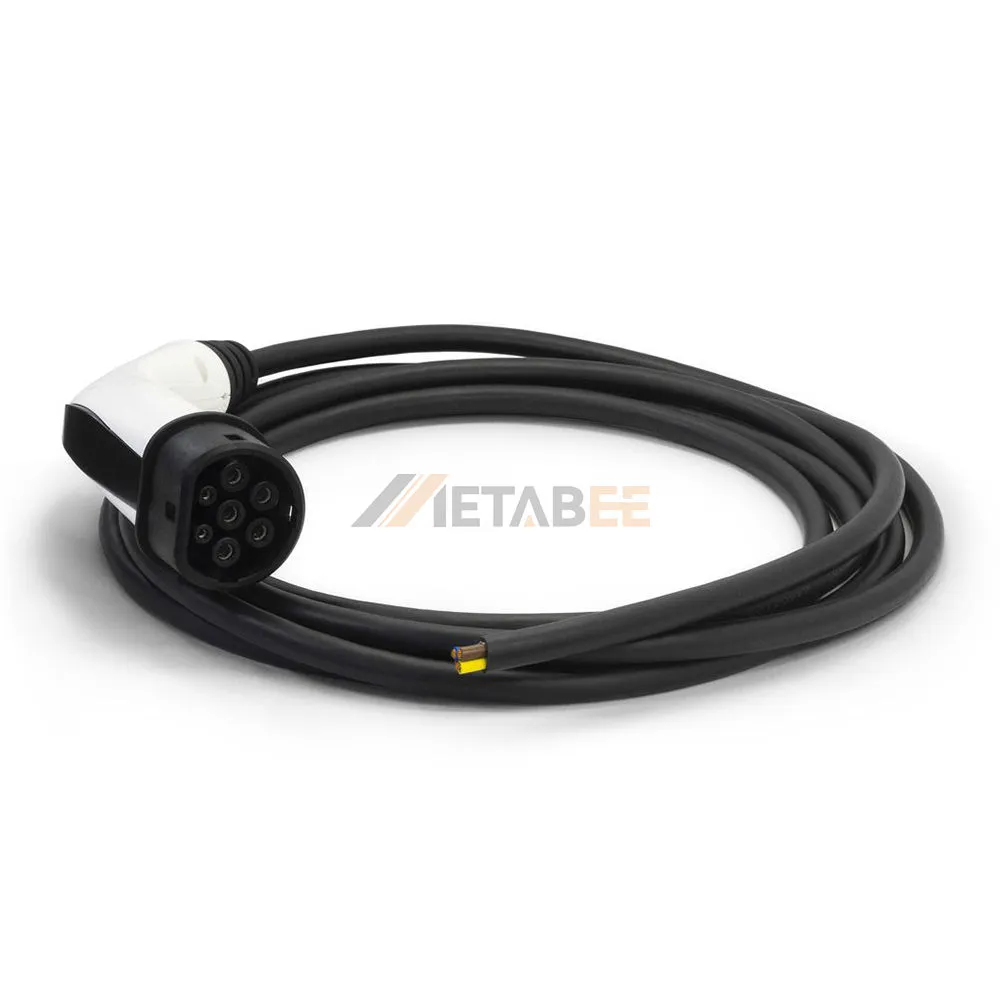

IEC Type 2 AC Charging Cable for Electric Vehicle, Plug, 3 Phase, 32A, 415V
Introduction
This IEC Type 2 (GB/T 20234.2-2015) AC charging cable is designed for reliable three-phase charging at public stations or compatible home units. Engineered for durability, it features a robust thermoplastic plug housing and silver-plated copper alloy contacts for optimal conductivity and corrosion resistance. With an IP65 rating for weather resistance, a UL94V-0 flame-retardant casing, and a wide operating temperature range, it ensures safe, year-round performance in diverse environments.
Key Features:
- Compliant with IEC Type 2 & GB/T 20234.2-2015 standards.
- Three-phase 32A/415V AC charging with up to 13kW power.
- Durable thermoplastic housing with silver-plated copper alloy contacts.
- IP65-rated for dust and water jet protection.
- UL94V-0 flame-retardant material for enhanced safety.
- Wide operating temperature range from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | V4-YC-IEC2e-EV32P-5C-3 | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Power Phase: | Three Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 415V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 13kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC Type 2 AC Charging Cable for Electric Vehicle:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
