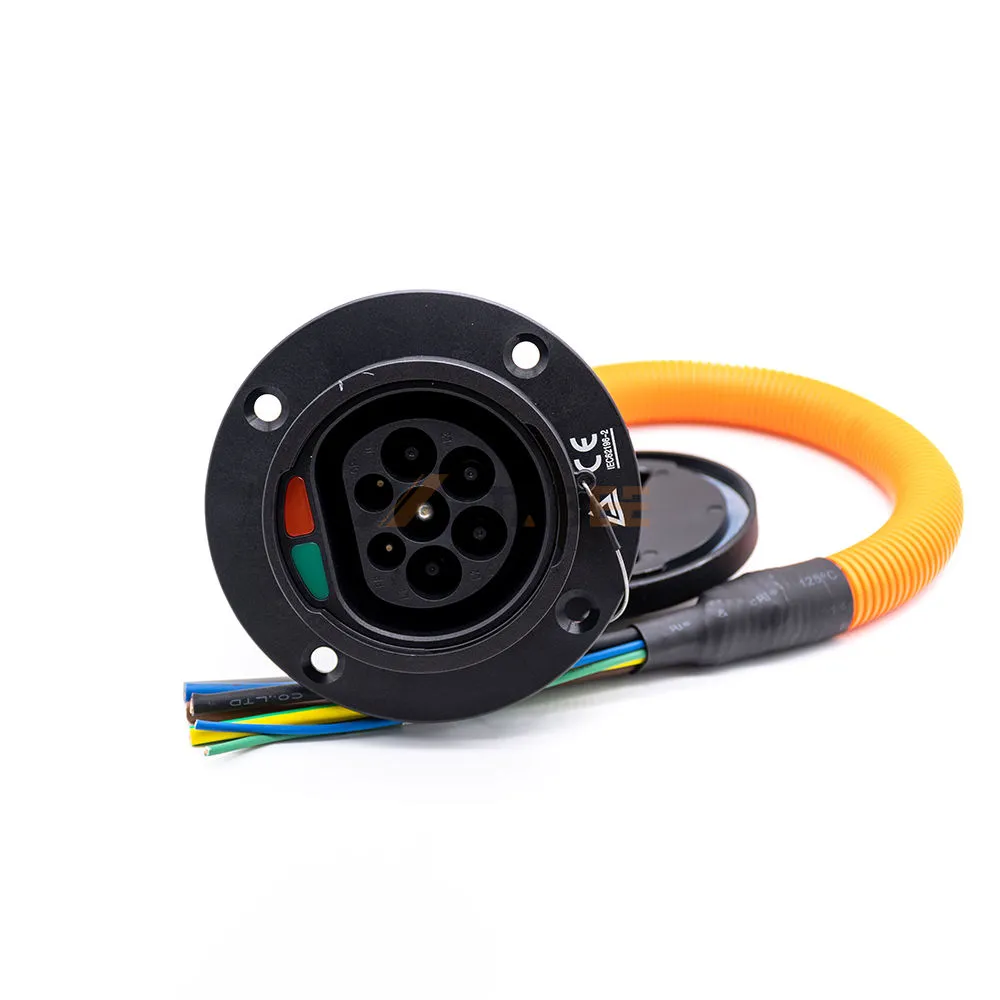

IEC 62196-2 Type 2 AC Plug Charging Cable for EV, 3 Phase, 16A, 250V
Introduction
This IEC 62196-2 Type 2 AC Plug Charging Cable is engineered for efficient and safe electric vehicle charging. Designed for single-phase AC charging, it fully complies with the GB/T 20234.2-2015 charging standard, ensuring broad compatibility and seamless power delivery for your EV.
Crafted with a durable thermoplastic housing and premium silver-plated copper alloy contacts, this cable guarantees excellent conductivity and longevity. With a robust rating of 250V and 16A, it delivers a maximum charging power of 4kW, providing a steady and reliable charge. The IP65 protection level, coupled with a UL94V-0 flame retardant rating, ensures superior safety and durability in diverse environments, from -30°C to 50°C.
Key Features:
- IEC 62196-2 Type 2: Universal compatibility for European standard EVs.
- GB/T 20234.2-2015 Compliant: Adheres to Chinese EV charging standards.
- Single-Phase 16A, 4kW: Efficient AC charging for daily needs.
- Durable Construction: Thermoplastic housing with silver-plated copper contacts.
- IP65 Rated: Excellent protection against dust and water ingress.
- Wide Temperature Range: Operates reliably over a temperature range of -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC2f-EV-16S-0.5C-3 | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Power Phase: | Three Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC Plug Charging Cable for EV:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
