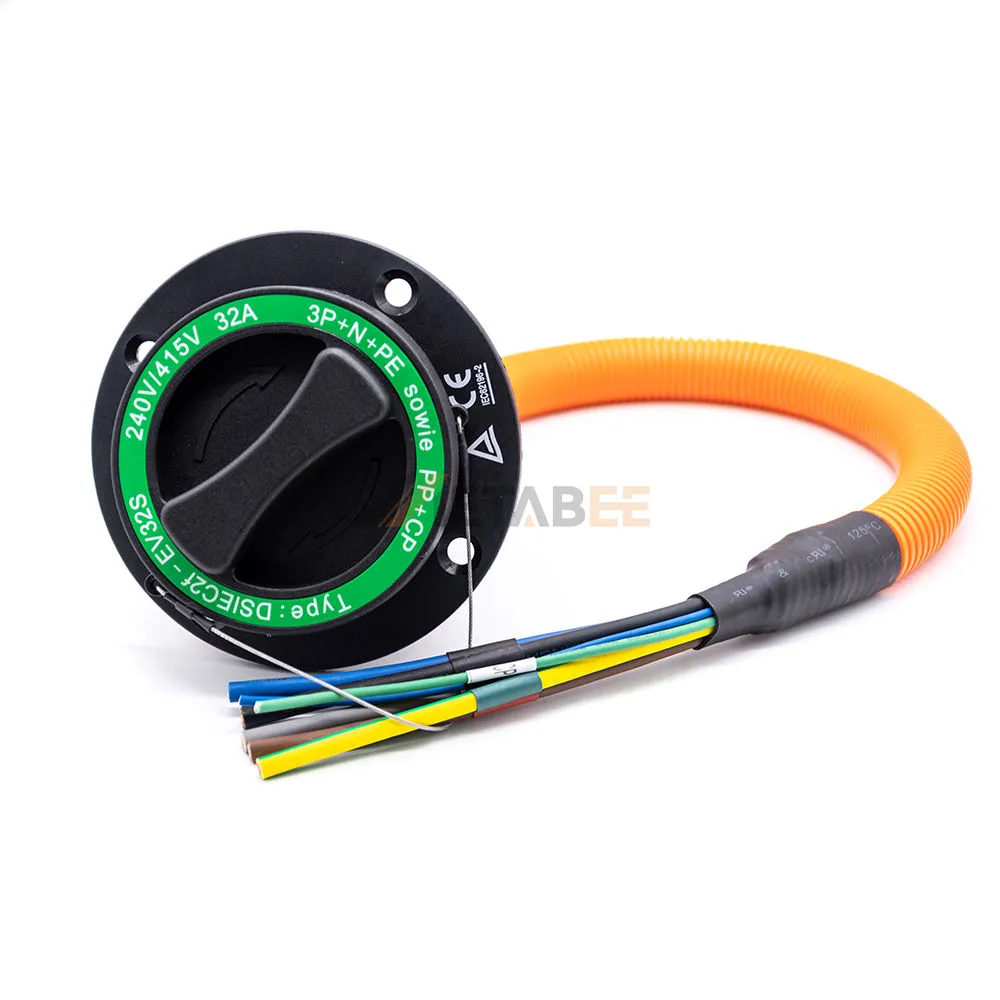

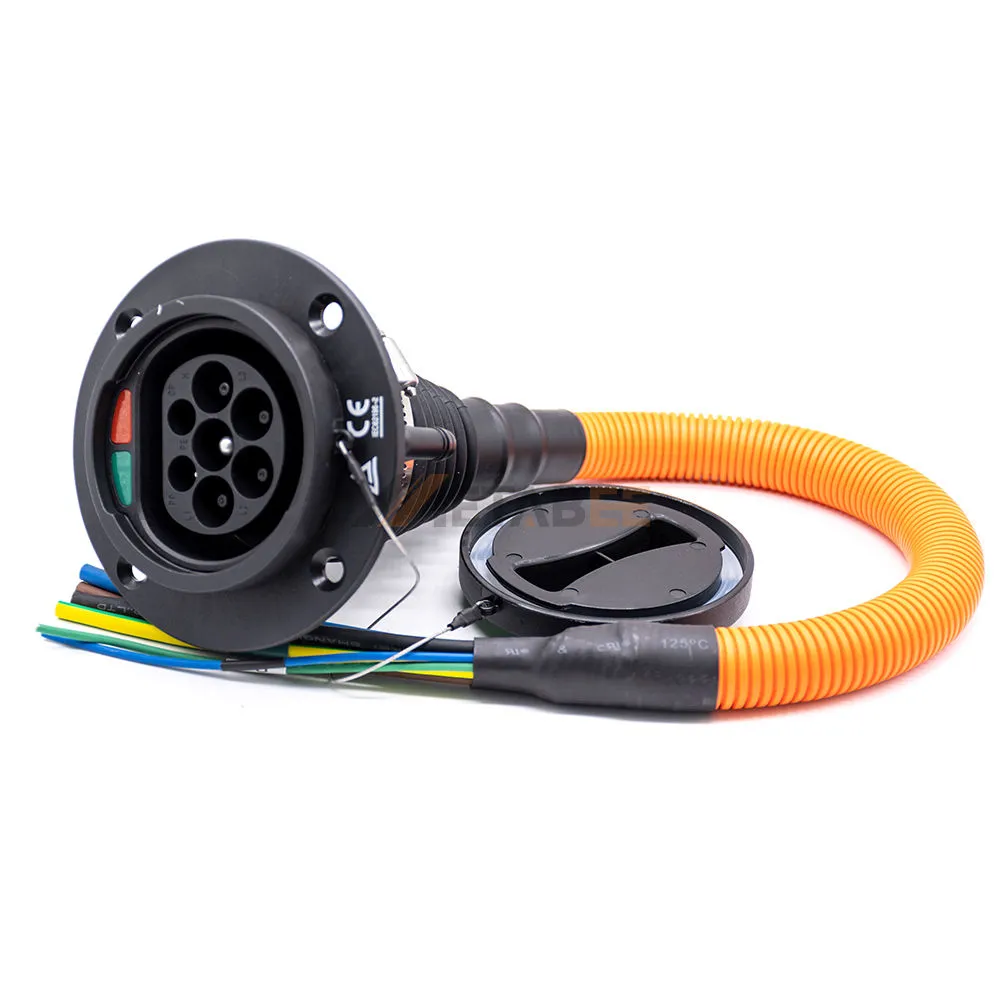

IEC 62196-2 Type 2 AC Plug Cable for EV Charger, 3 Phase, 32A, 415V
Introduction
Accelerate your EV charging with our premium IEC 62196-2 Type 2 AC Plug Cable, designed for efficiency and durability. This single-phase AC charging solution adheres to GB/T 20234.2-2015 standards, ensuring a reliable and safe connection for your electric vehicle.
Constructed with a robust thermoplastic housing and silver-plated copper alloy contacts, this cable is engineered for longevity. It supports 415V and 32A, delivering a maximum charging power of 13kW. Boasting an IP65 protection level and UL94V-0 flame retardancy, it performs flawlessly in temperatures ranging from -30°C to 50°C, offering superior safety and consistent performance.
Key Features:
- Connector Type: IEC 62196-2 Type 2 AC Plug
- Charging Standard: GB/T 20234.2-2015 Compliant
- Power Rating: Single-Phase 415V, 32A, 13kW Max
- Durability: IP65 Rated Protection
- Safety: UL94V-0 Flame Retardant
- Temperature Range: -30°C to 50°C Operation
Main Specifications:
General Information:
| Part No.: | YC-IEC2f-EV-32S-0.5C-3 | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Power Phase: | Three Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 415V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 13kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC Plug Cable for EV Charger:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
