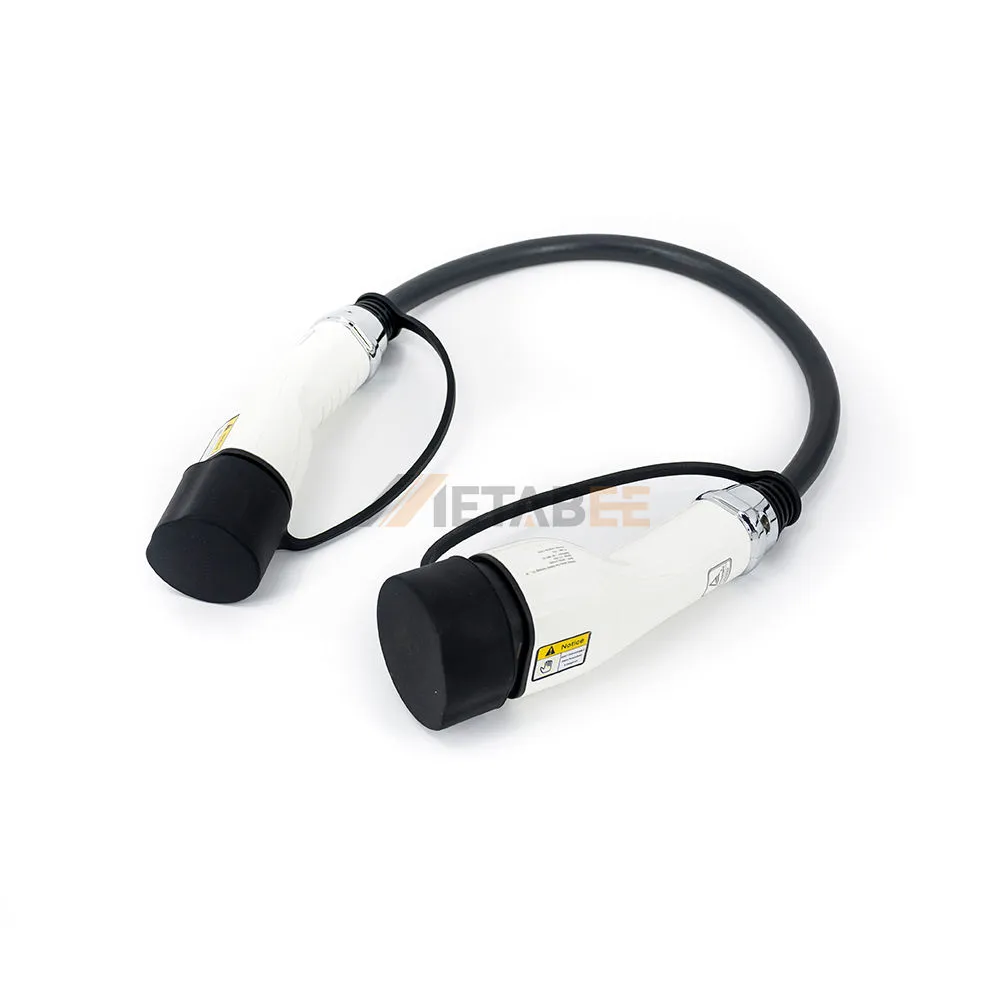

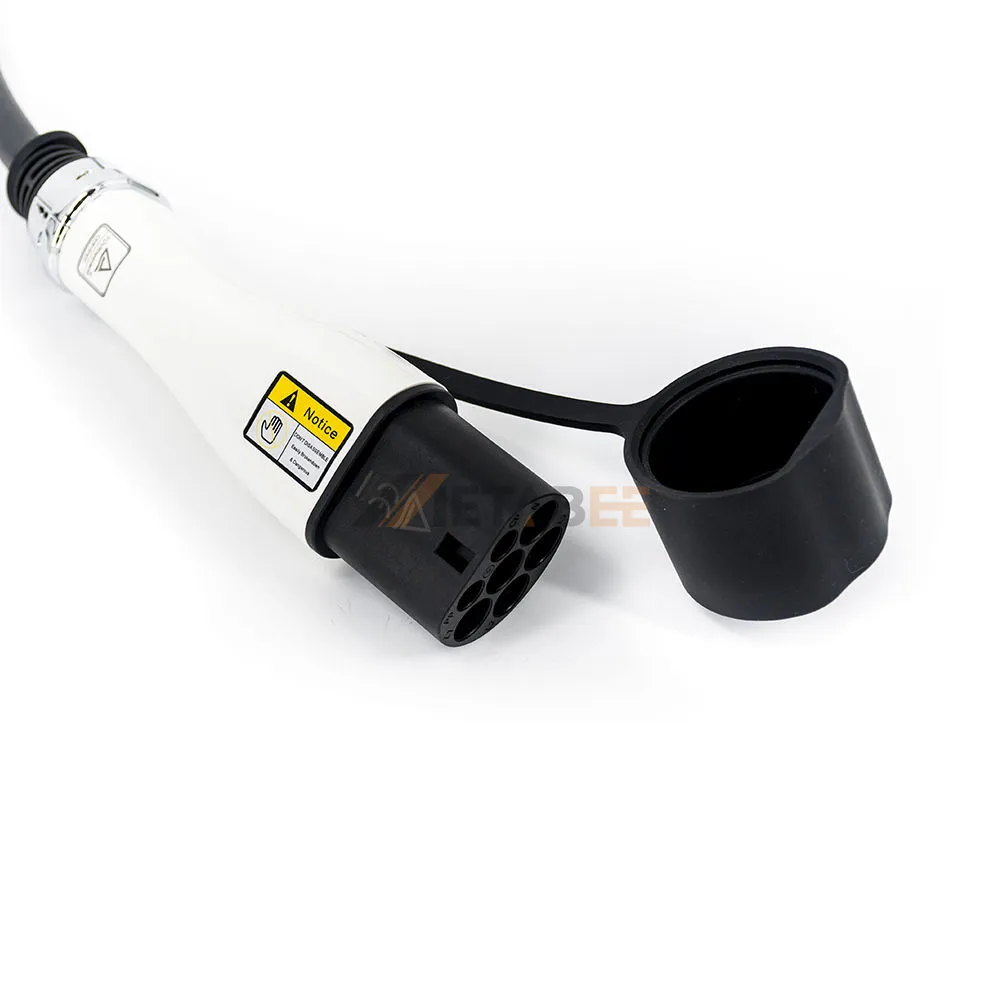

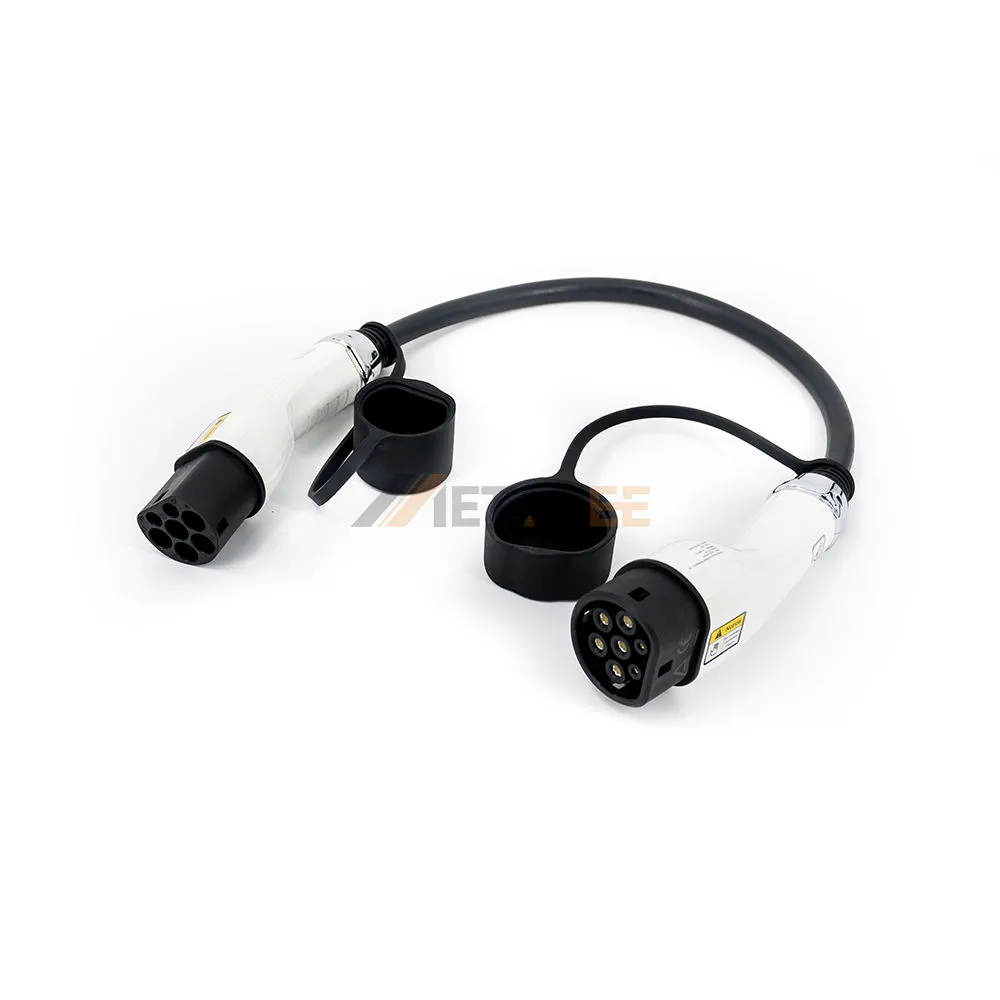

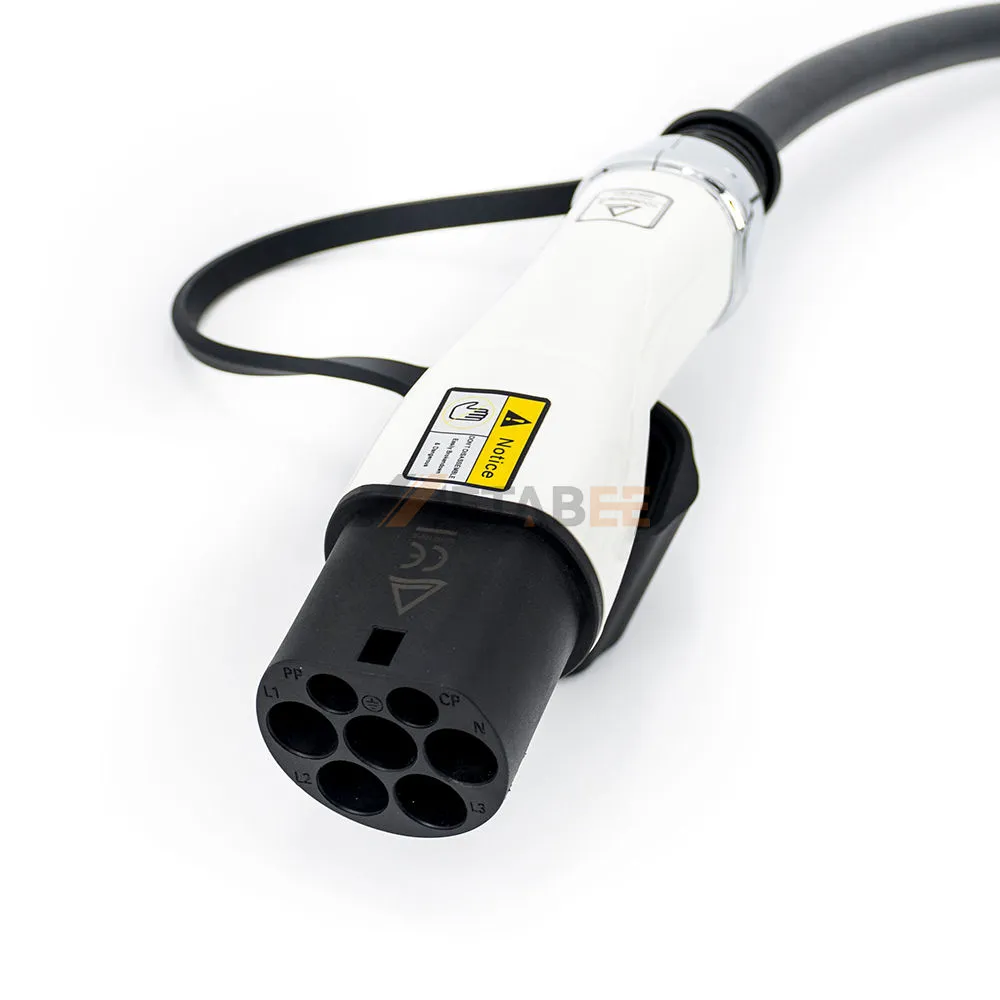

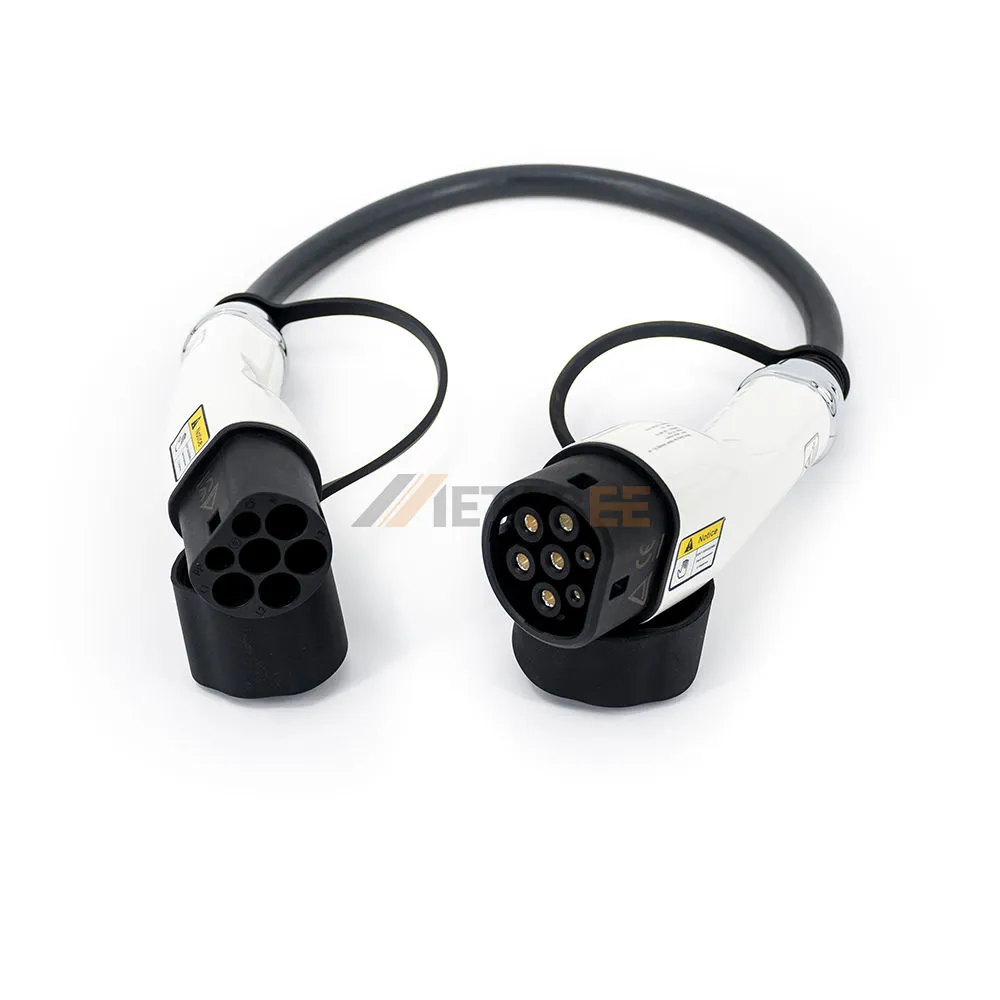

IEC 62196-2 Type 2 AC EV Charging Plug Cable, Single Phase, 16A, 250V
Introduction
This IEC 62196-2 Type 2 AC EV charging plug cable is designed for reliable single-phase AC charging in residential and commercial applications. Rated at 250V and 16A, it delivers up to 4 kW of stable charging power, ensuring safe and efficient energy transfer for electric vehicles compliant with the Type 2 standard.
The connector features a durable thermoplastic housing combined with copper alloy contacts and silver-plated terminals, providing excellent conductivity, corrosion resistance, and long service life. With IP65 protection and UL94 V-0 flame-retardant rating, the cable performs reliably in harsh environments. Its wide operating temperature range from -30°C to +50°C ensures consistent performance across diverse climates.
Key Features:
- IEC 62196-2 Type 2 standard compliant
- Single-phase AC charging, plug connector
- Rated 250V / 16A, up to 4 kW output
- Silver-plated copper alloy contacts
- IP65 protection, UL94 V-0 flame retardant
- Operating temperature: -30°C to +50°C
Main Specifications:
General Information:
| Part No.: | YC-2010-2050-16-0.5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC EV Charging Plug Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
