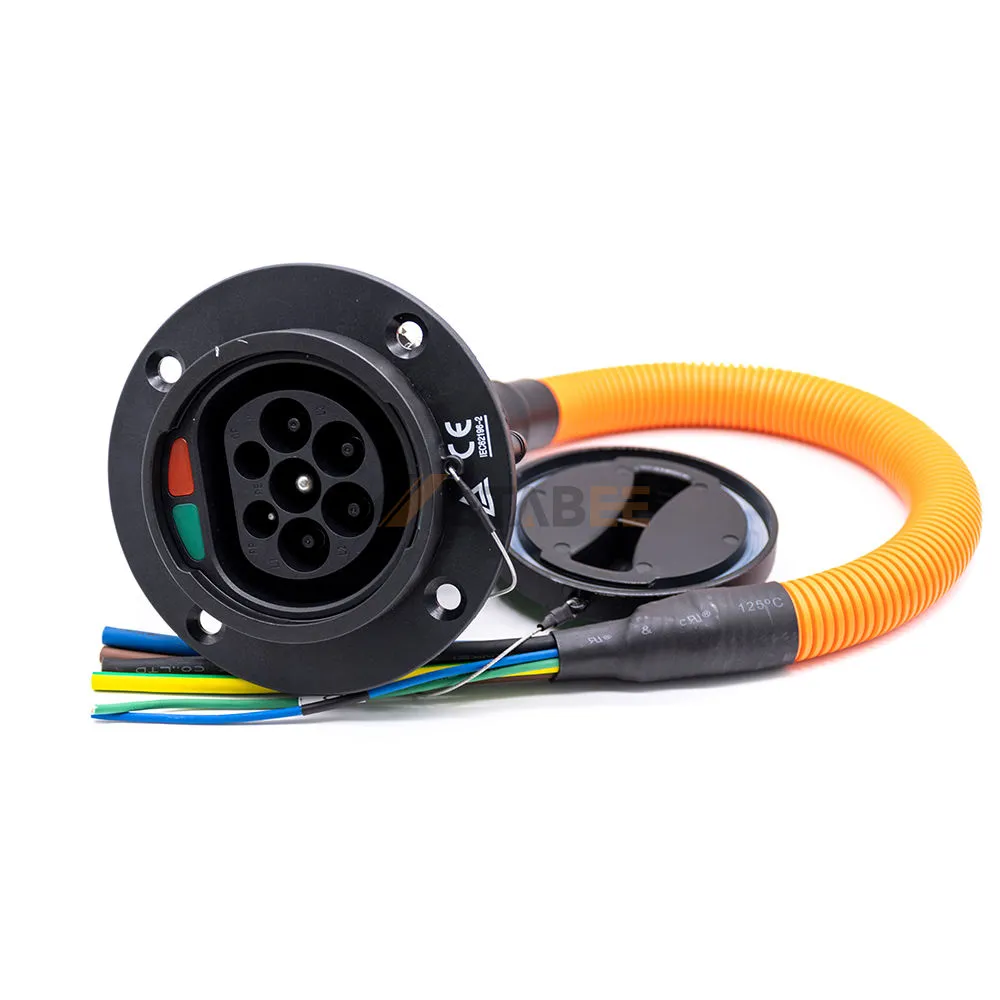

IEC 62196-2 Type 2 AC EV Charging Cable, Plug, Single Phase, 32A, 415V
Introduction
This IEC 62196-2 Type 2 AC EV Charging Cable features a plug connector for reliable single-phase charging. Fully compliant with GB/T 20234.2-2015, it delivers a rated power of 13kW (32A, 415V), ensuring efficient and safe power transfer for your electric vehicle.
Constructed with a durable thermoplastic housing and silver-plated copper alloy contacts, it offers superior conductivity and longevity. Built to withstand harsh conditions, it boasts an IP65 rating for dust and water resistance, a UL94V-0 flame-retardant grade, and an operational temperature range of -30°C to 50°C.
Key Features:
- IEC 62196-2 Type 2 & GB/T 20234.2-2015 Compliant
- 13kW Single-Phase AC (32A, 415V)
- Silver-Plated Copper Alloy Contacts
- IP65 Rated Dust/Water Resistant
- UL94V-0 Flame-Retardant Housing
- Wide -30°C to 50°C Operating Range
Main Specifications:
General Information:
| Part No.: | YC-IEC2f-EV-32S-0.5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 415V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 13kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC EV Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
