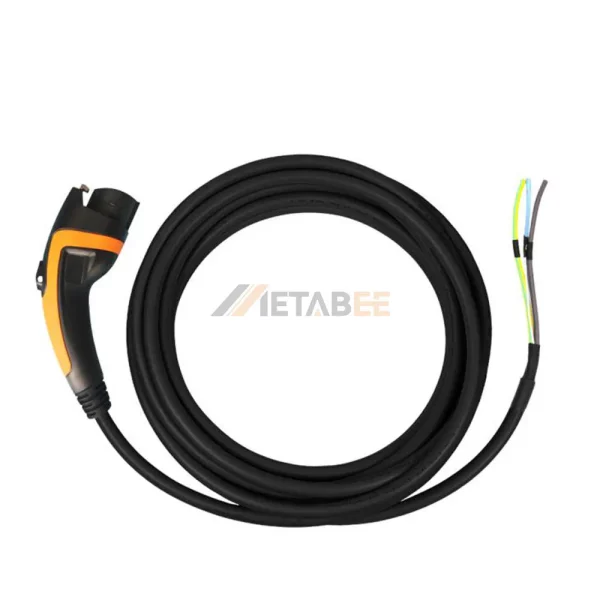

IEC 62196-2 Type 2 AC EV Charging Cable, Plug, 3 Phase, 16A, 250V
Introduction
This IEC 62196-2 Type 2 AC EV Charging Cable offers dependable and convenient single-phase AC charging for your electric vehicle. Designed to meet the globally recognized IEC 62196-2 Type 2 standard, this EV plug ensures a secure and efficient connection, making it ideal for daily charging needs.
Crafted for durability and safety, the cable features a robust thermoplastic housing, coupled with silver-plated copper alloy contacts for superior conductivity. It supports a 250V rated voltage and 16A current, delivering up to 4kW of reliable charging power. With an IP65 protection rating, UL94V-0 flame retardancy, and an operating temperature range of -30°C to 50°C, this cable is engineered for consistent performance across diverse environmental conditions.
Key Features:
- IEC 62196-2 Type 2 Standard: Ensures broad compatibility for AC charging.
- Single-Phase AC Charging: Perfect for standard home or public charging.
- Reliable 4kW Power: Delivers efficient charging at 250V and 16A.
- Durable Build: Features robust thermoplastic housing and IP65 protection.
- Optimal Conductivity: Silver-plated copper alloy contacts for efficient power flow.
- All-Weather Safe: UL94V-0 flame retardant, operating from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | V4-YC-IEC2e-EV16P-5C-3 | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Power Phase: | Three Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC EV Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
