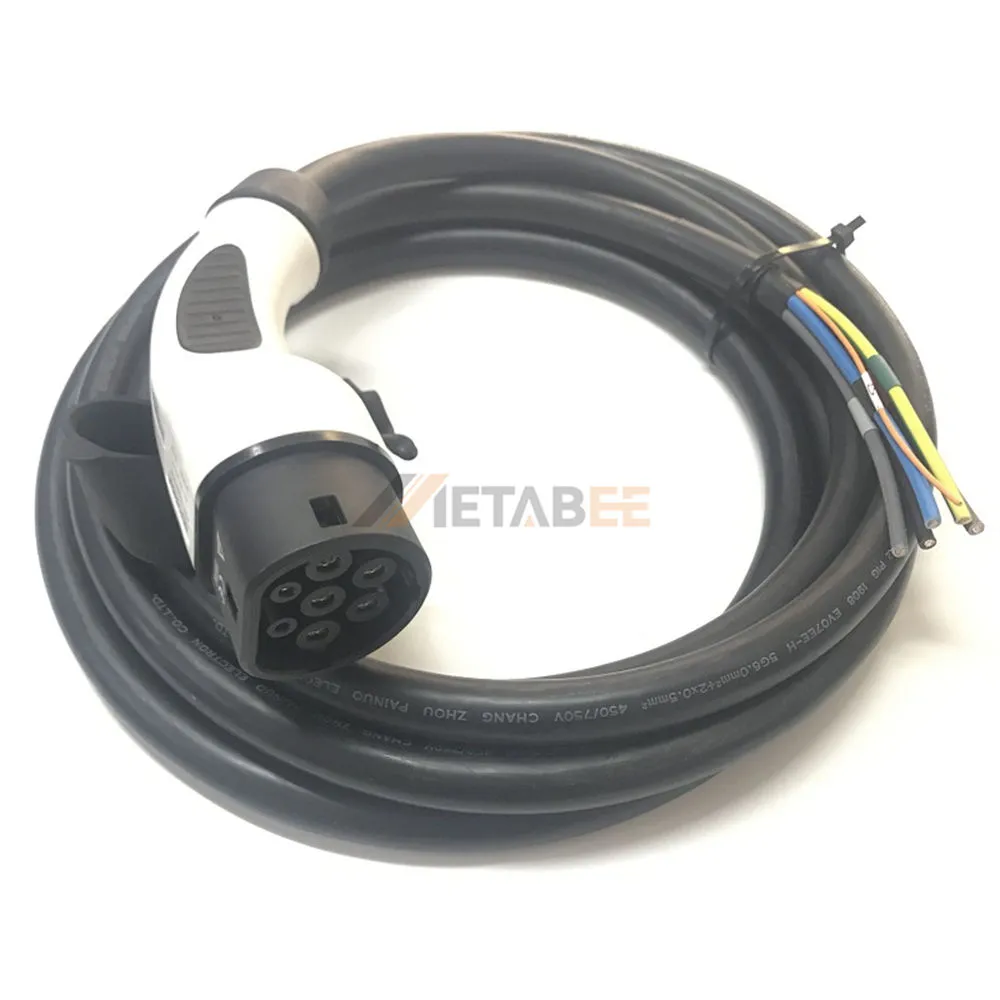

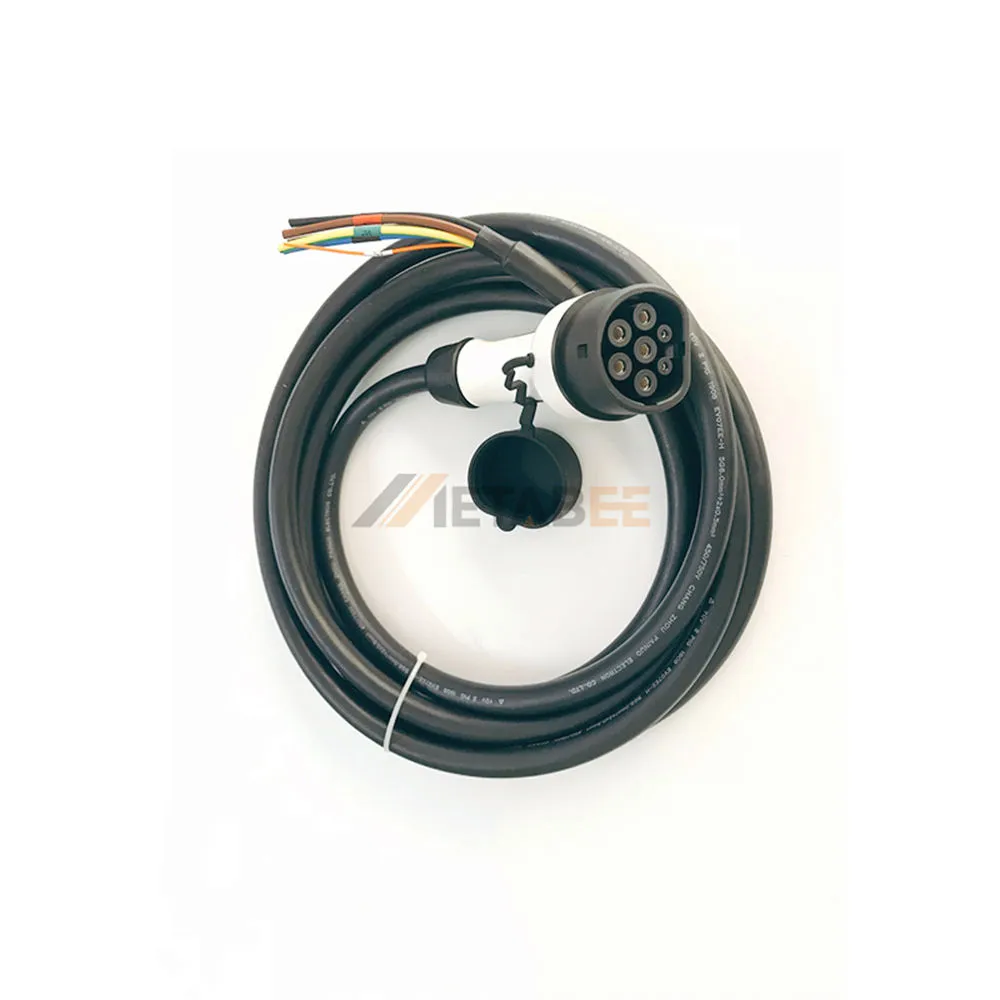

IEC 62196-2 Type 2 AC EV Charger Cable, EV Plug, Single Phase, 16A, 250V
Introduction
This IEC 62196-2 Type 2 AC EV charge cable ensures reliable and convenient single-phase AC charging for your electric vehicle. Designed to the IEC 62196-2 Type 2 standard, this EV plug guarantees a safe and efficient connection for everyday use. Featuring a durable thermoplastic housing and silver-plated copper alloy contacts, this cable offers superior conductivity and longevity. It operates at 250V and 16A, providing up to 4kW of charging power. With an IP65 protection rating, UL94V-0 flame retardancy, and a working temperature range of -30°C to 50°C, it’s built for safety and performance in various conditions.
Key Features:
- IEC 62196-2 Type 2: Compliant with the common standard for AC charging.
- Single-Phase AC: Ideal for standard home or public charging applications.
- Reliable Performance: Delivers up to 4kW charging with 250V, 16A ratings.
- Durable Construction: Features robust thermoplastic housing and IP65 protection.
- High Conductivity: Utilizes silver-plated copper alloy contacts for efficient power transfer.
- Safe Operation: UL94V-0 flame retardant and effective from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | V4-YC-IEC2e-EV16P-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC EV Charger Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
