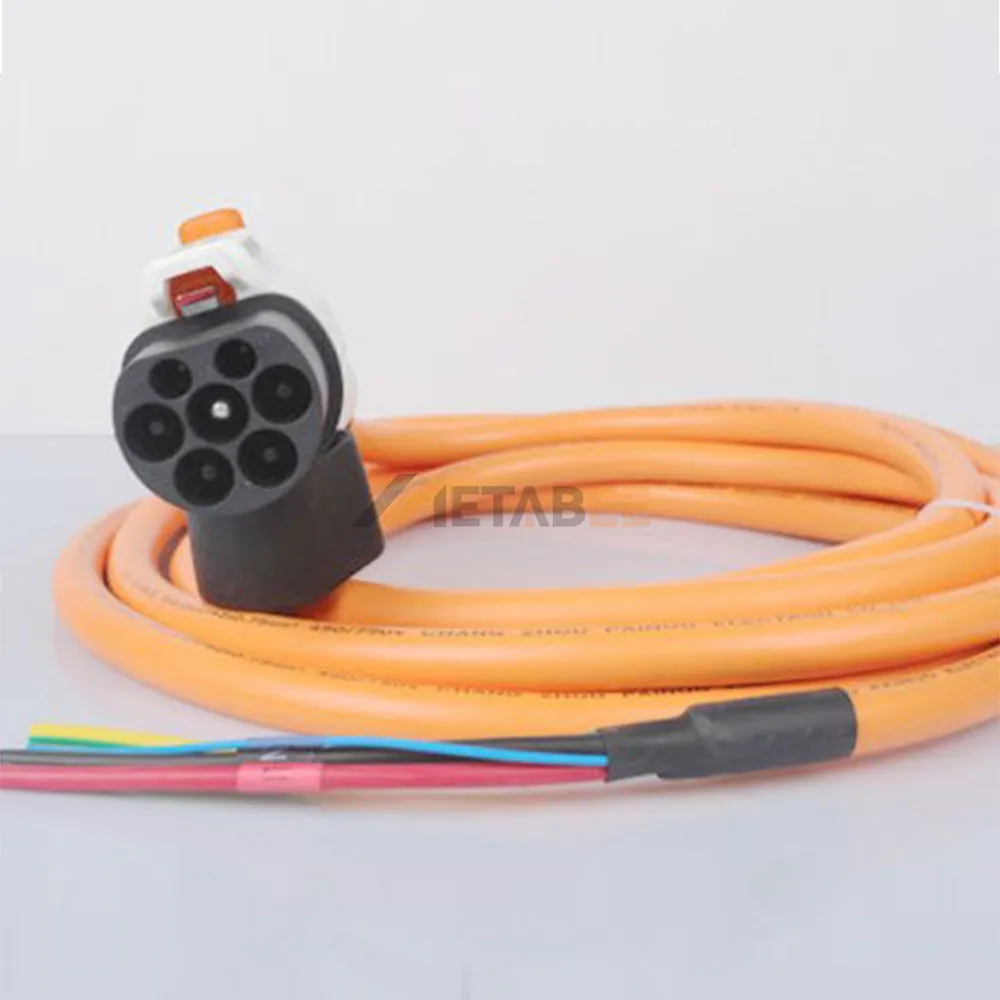

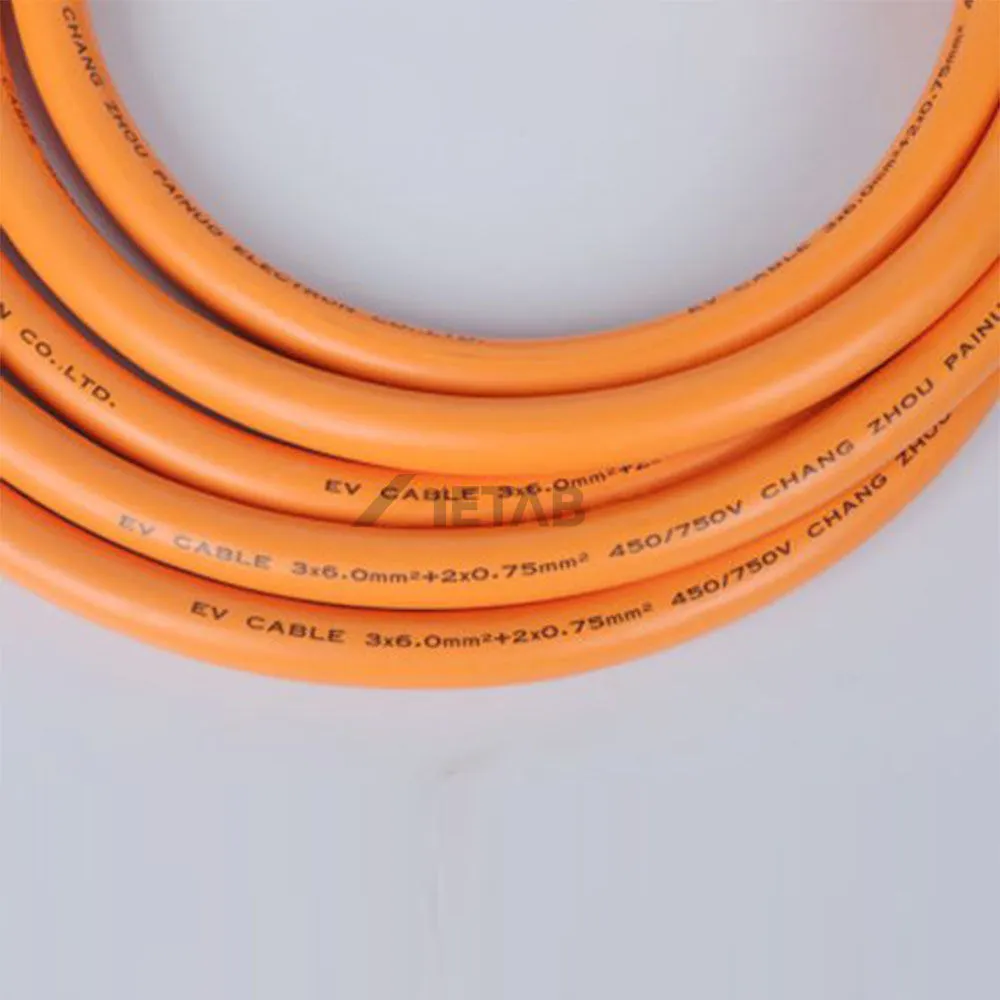

IEC 62196-2 Type 2 AC connector Cable for EV, Plug, Single Phase, 32A, 415V
Introduction
The IEC 62196-2 Type 2 AC Connector Cable is engineered for reliable single-phase EV charging applications. Designed with a Plug configuration, it complies with GB/T 20234.2-2015 and supports stable AC power delivery for residential and commercial charging environments.
Rated at 415V and 32A, this cable delivers up to 13 kW of charging power. The connector housing is made from high-strength thermoplastic, while silver-plated copper alloy contacts ensure low resistance, high conductivity, and long service life. With IP65 protection and UL94 V-0 flame-retardant performance, it operates safely in demanding outdoor conditions from -30 °C to 50 °C.
Key Features:
- GB/T 20234.2-2015 compliant AC charging

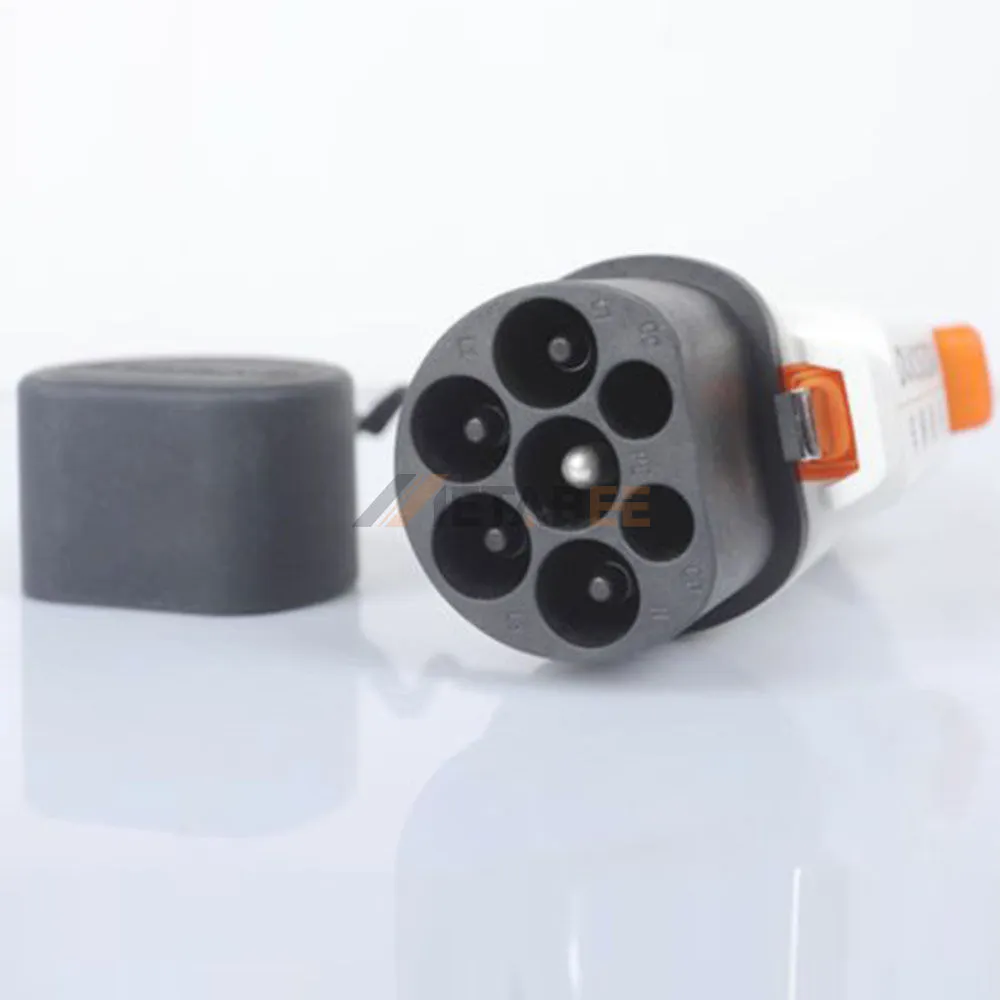

- Single-phase Type 2 Plug connector
- Rated 32A, 415V, up to 13 kW output
- Silver-plated copper alloy contacts
- IP65 protection, UL94 V-0 flame retardant
- Wide operating temperature: -30 °C to +50 °C
Main Specifications:
General Information:
| Part No.: | V4-YC-IEC2e-EV32P-5C | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 415V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 13kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC connector Cable for EV:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
