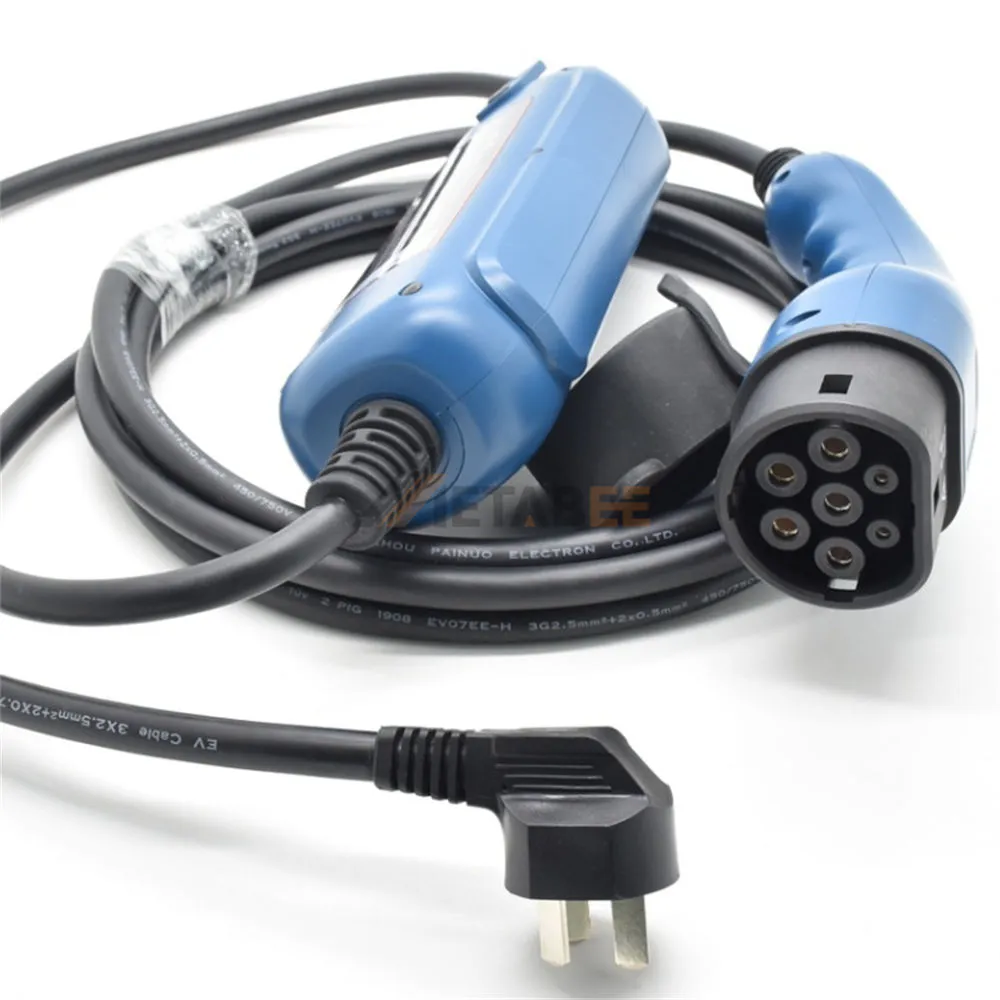

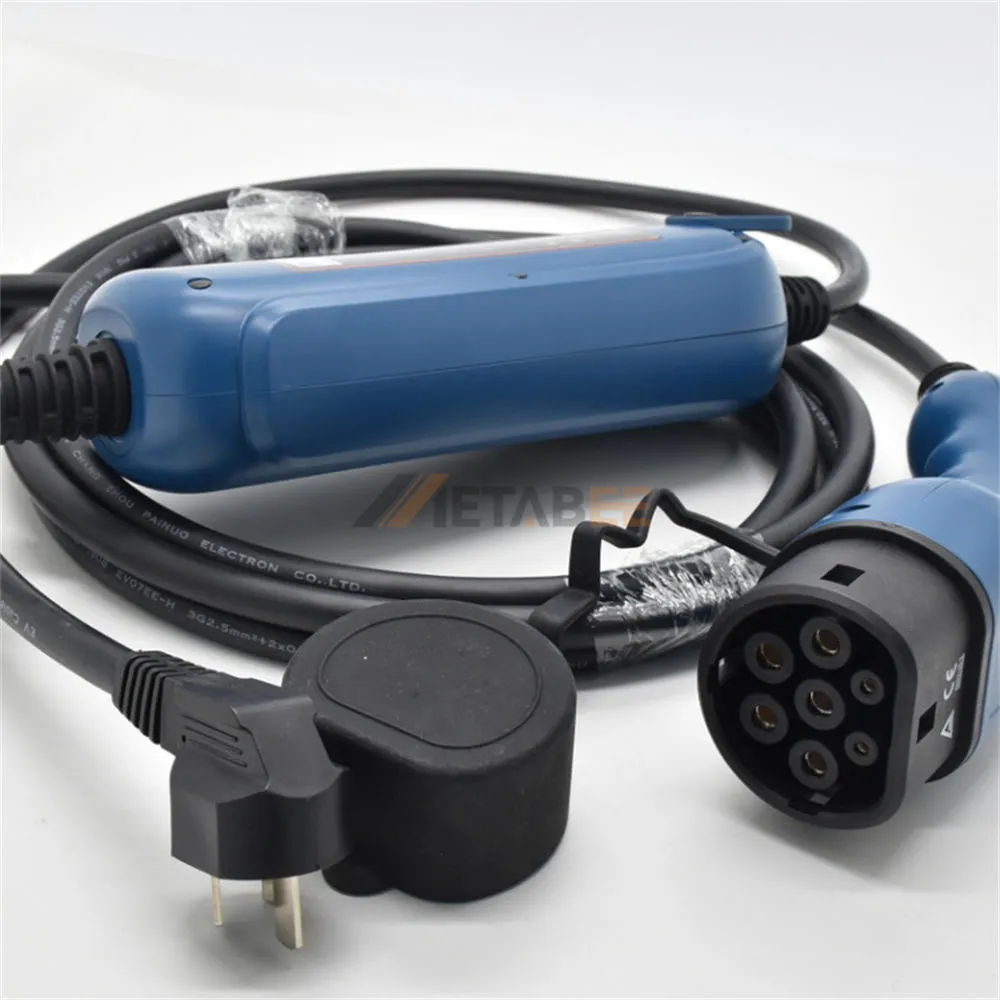

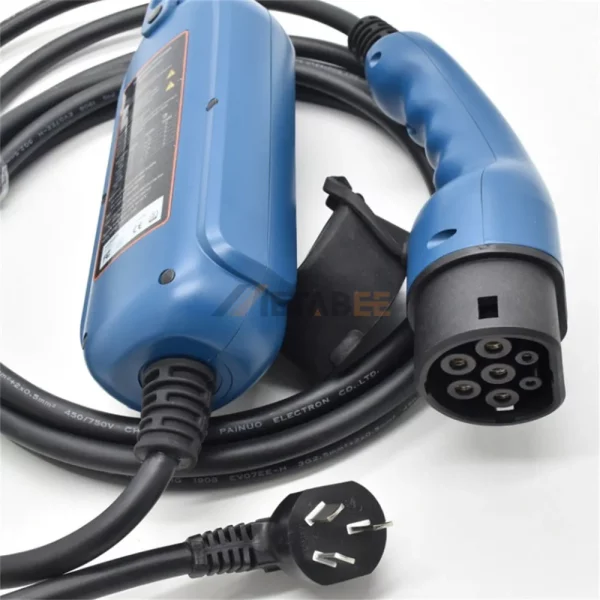

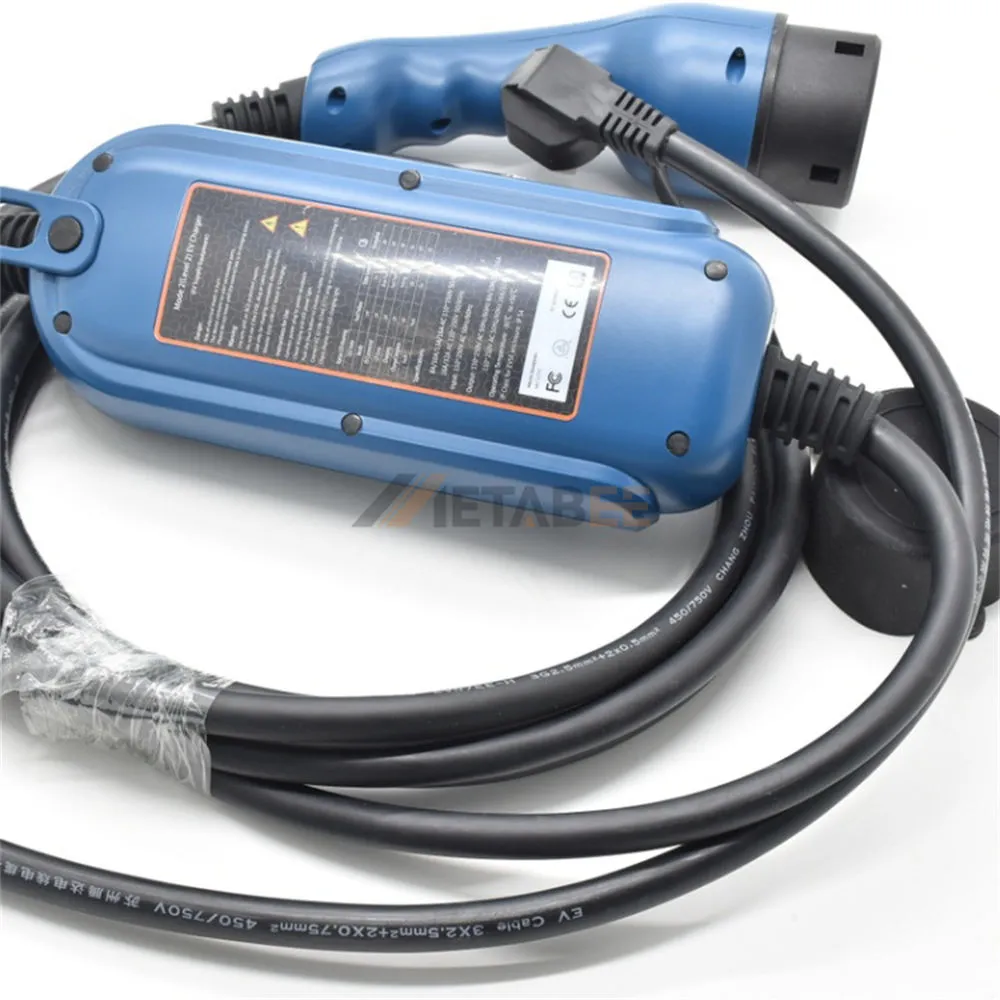

IEC 62196-2 Type 2 AC Charging Plug Cable for EV, Three Phase, 16A, 250V
Introduction
This IEC 62196-2 Type 2 AC charging cable is engineered for superior electric vehicle charging, specifically designed for robust three-phase AC power delivery. It consistently provides 16A current at 250V, achieving a maximum charging power of 4kW, ensuring efficient and rapid energy transfer for your EV. The plug connector adheres to the IEC 62196-2 standard, ensuring wide compatibility.
Constructed for durability and optimal performance, the connector features a resilient thermoplastic housing and silver-plated copper alloy contacts, which enhance conductivity and extend product lifespan. With an IP65 protection rating and UL94V-0 flame retardancy, this cable offers exceptional safety and resilience against environmental factors, operating reliably within a broad temperature range of -30°C to 50°C.
Key Features:
- IEC 62196-2 Standard: Ensures universal compatibility and safety compliance.
- Three-Phase AC Charging: Facilitates faster, more efficient power delivery.
- Robust Power Output: Provides 16A, 250V, and up to 4kW charging capacity.
- Premium Construction: Features durable thermoplastic and silver-plated copper contacts.
- Advanced Protection (IP65/UL94V-0): Offers superior resistance to elements and fire.
- Wide Operating Temperature: Reliably functions from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-2080-PSE-16-5C-ES-3 | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Three Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC Charging Plug Cable for EV:
The IEC standards AC charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
