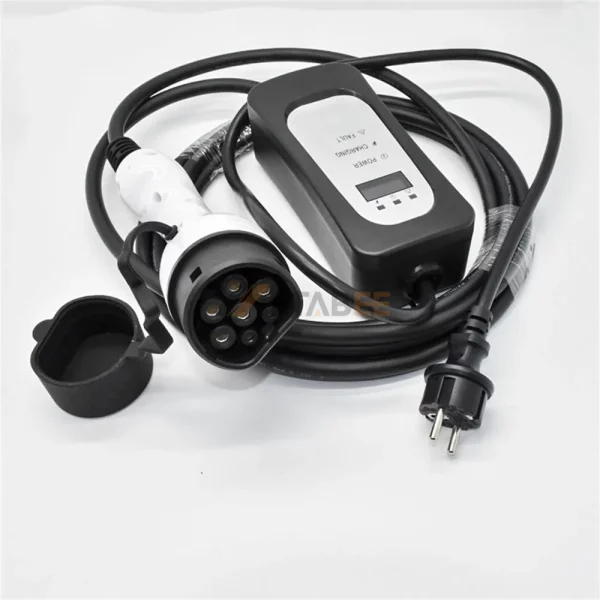

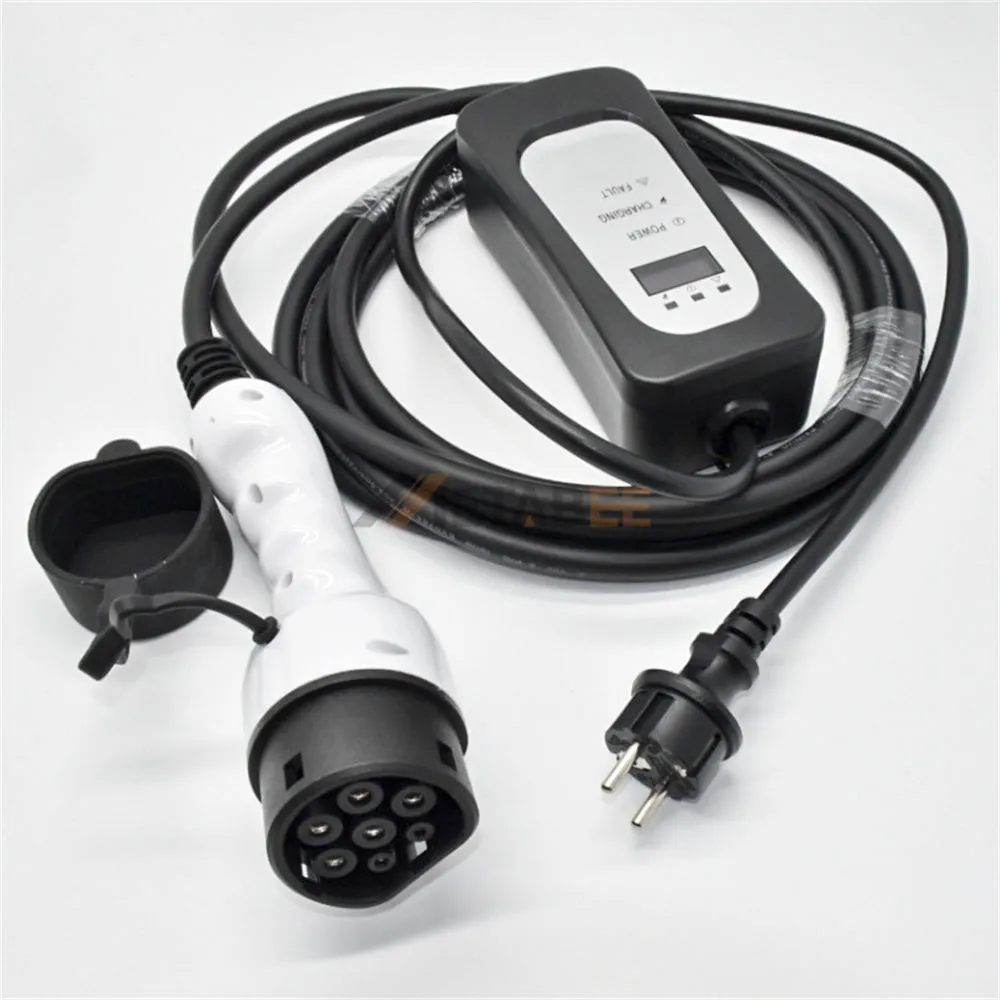

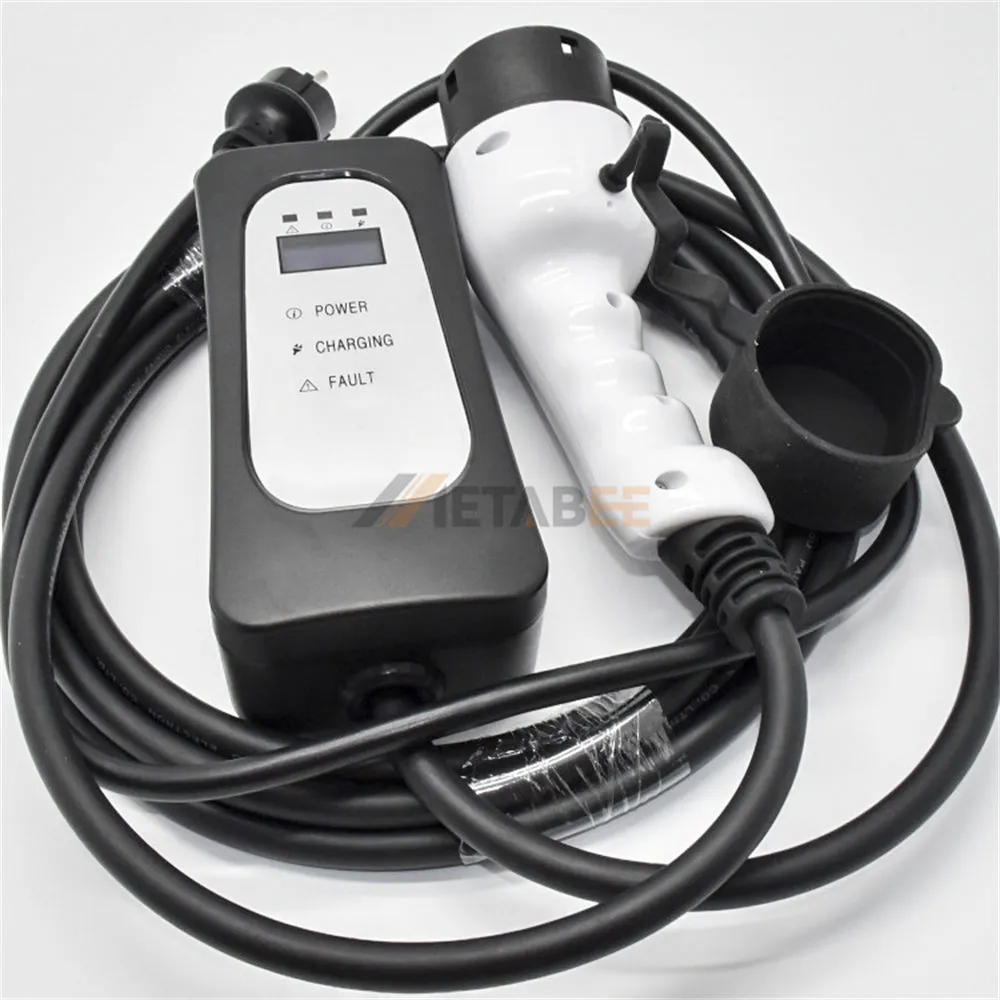

IEC 62196-2 Type 2 AC Charging Cable, Plug for EV, Single Phase, 16A, 250V
Introduction
The IEC 62196-2 type 2 AC charging cable is engineered for efficient and secure electric vehicle charging. This single-phase cable, compliant with the IEC 62196-2 standard, delivers a reliable 16A current at 250V, enabling a maximum charging power of 4kW. Its plug connector design ensures broad compatibility with Type 2 inlets.
Designed for durability and performance, the connector boasts a robust thermoplastic housing and silver-plated copper alloy contacts, which optimize conductivity and longevity. With an IP65 protection rating and UL94V-0 flame retardancy, this cable offers superior safety and resilience against environmental factors. It operates effectively across a wide temperature range of -30°C to 50°C.
Key Features:
- IEC 62196-2 Standard: Guarantees universal compatibility and regulatory compliance.
- Optimized Power Delivery: Supports 16A, 250V, and up to 4kW charging.
- Premium Construction: Features thermoplastic housing and silver-plated copper contacts.
- High Durability (IP65): Provides excellent protection against dust and water ingress.
- Enhanced Safety (UL94V-0): Offers superior flame retardancy for secure operation.
- Broad Temperature Range: Operates reliably from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-2080-PSE-16-5C-ES | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC Charging Cable:
The IEC standards AC charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
