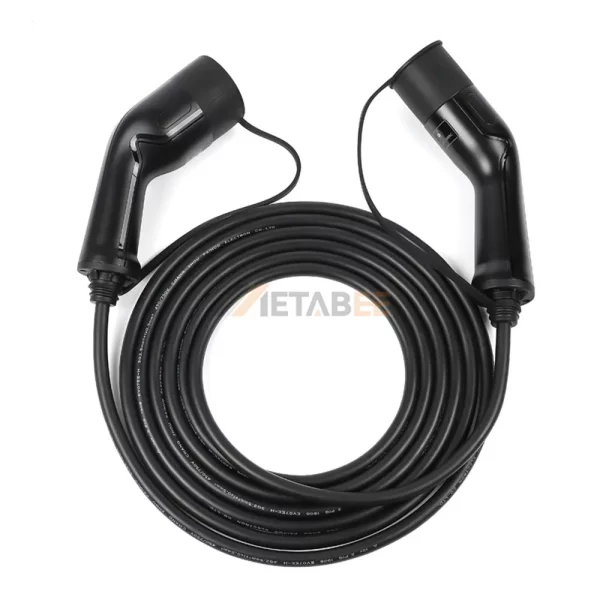

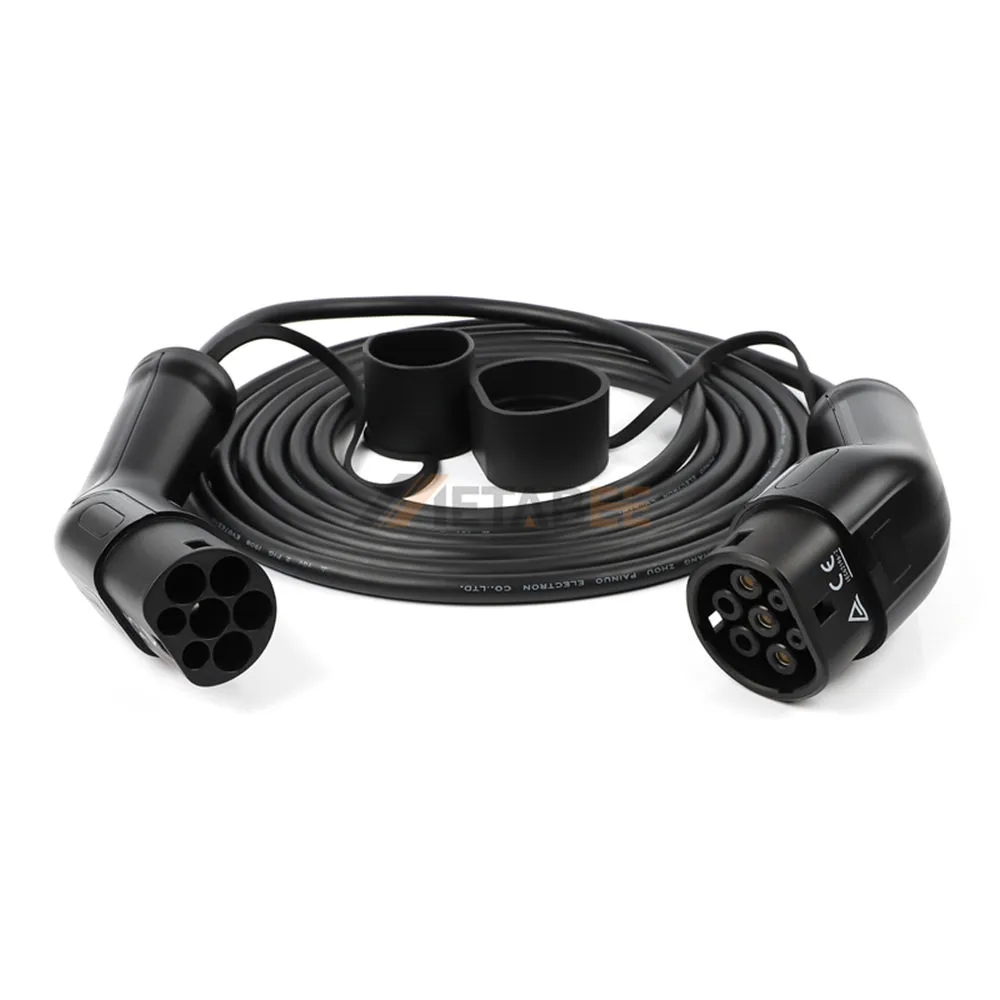

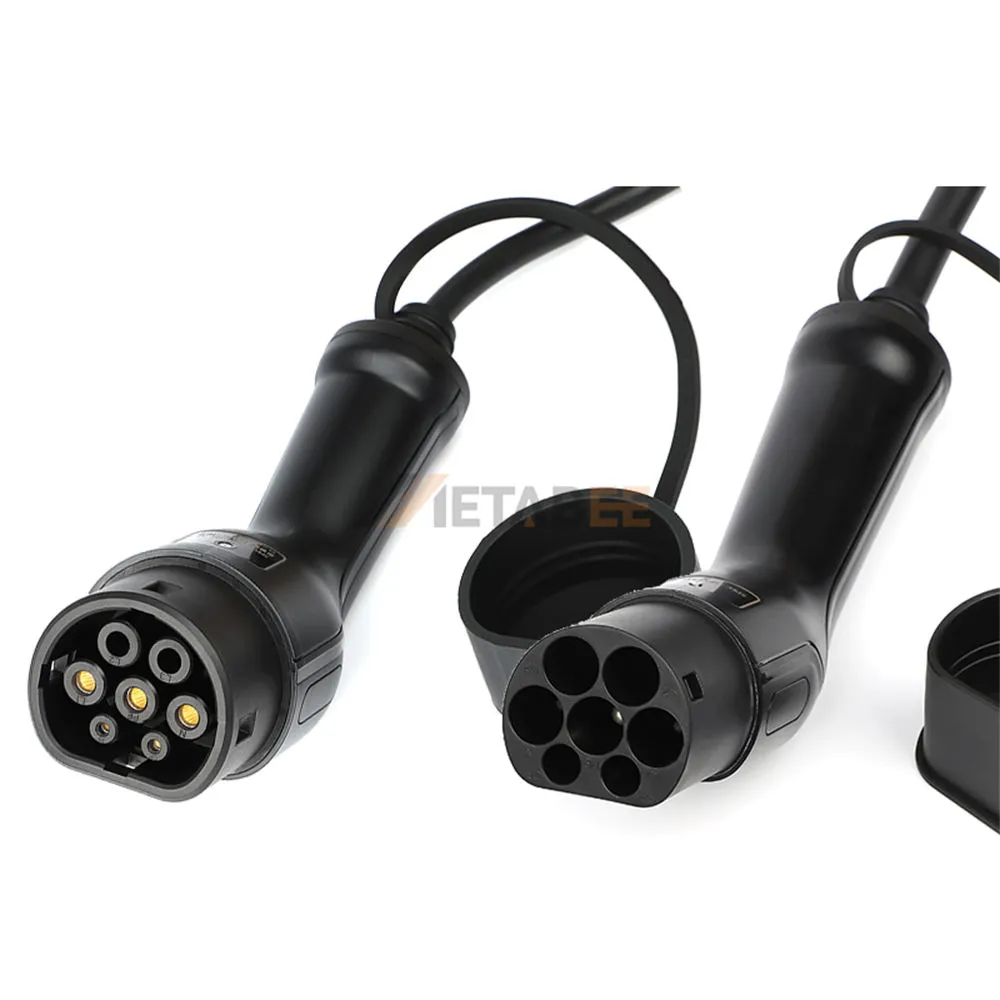

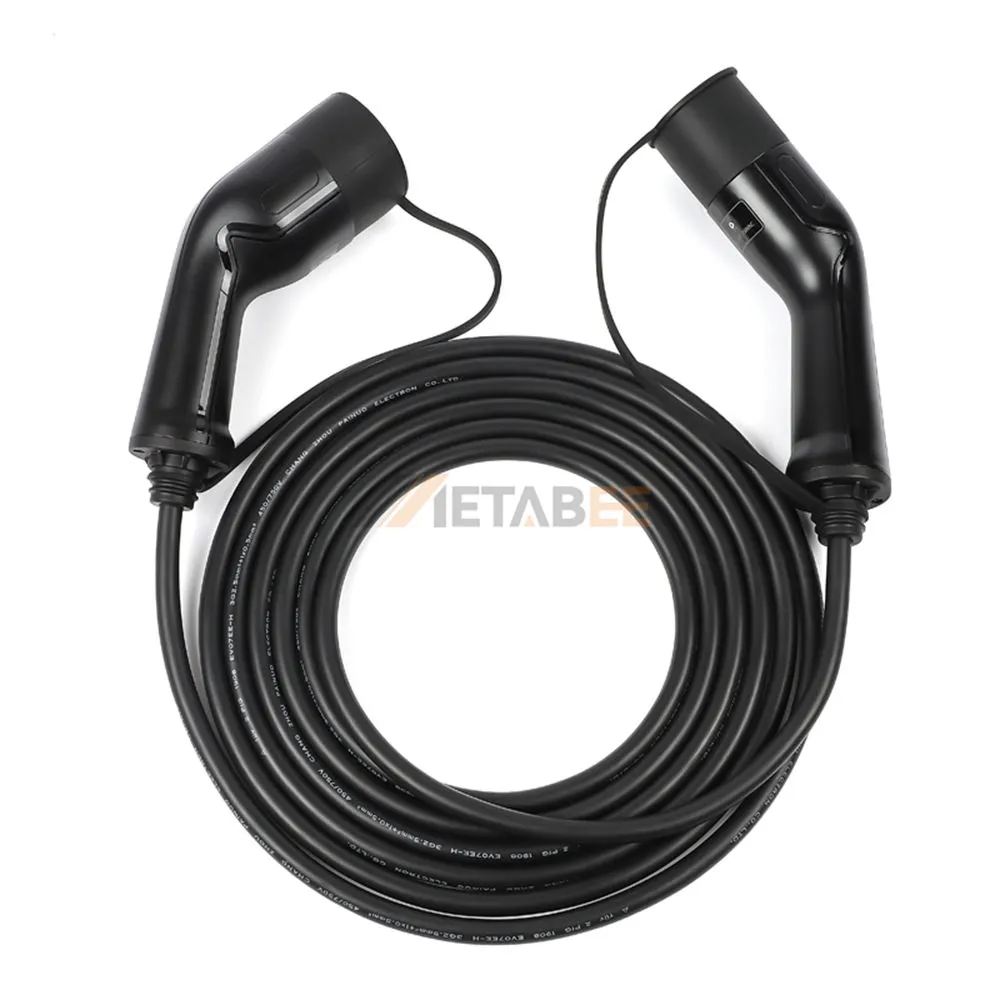

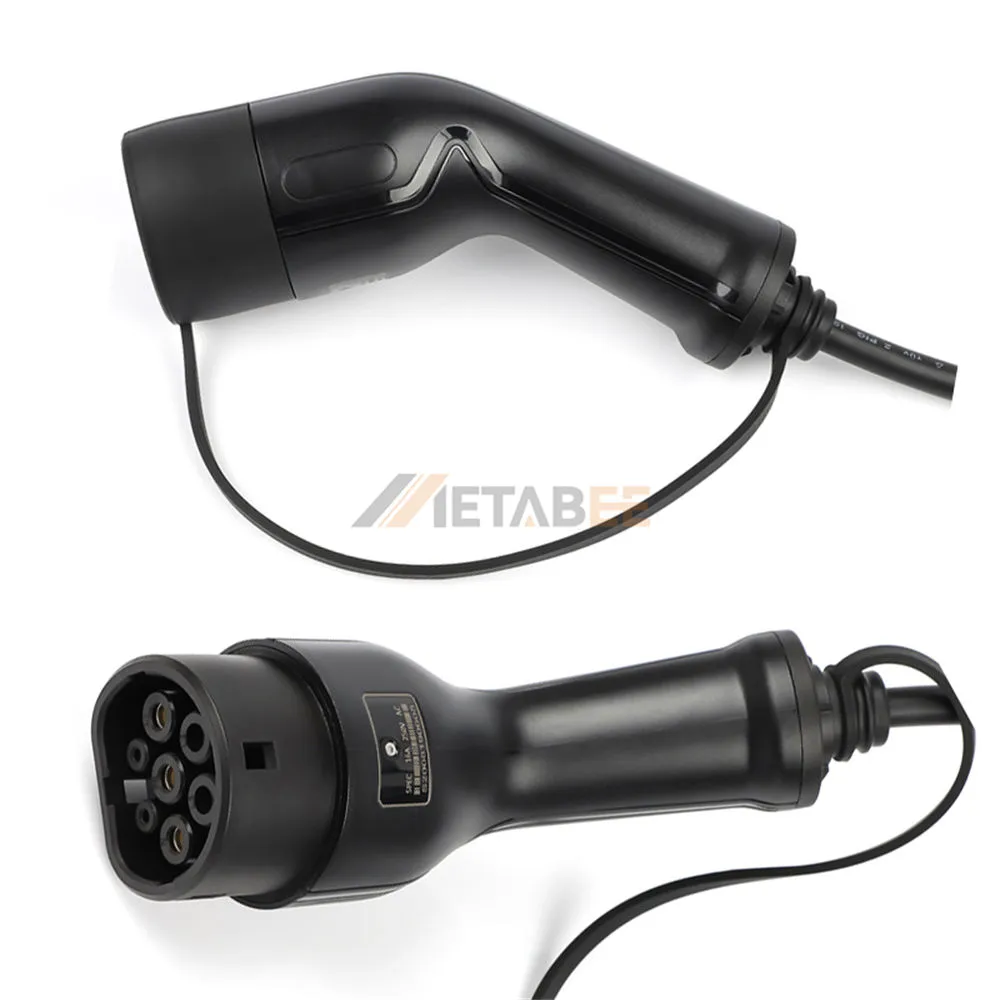

IEC 62196-2 Type 2 AC Charging Cable for EV, Plug, Three Phase, 32A, 415V
Introduction
This IEC 62196-2 Type 2 AC charging cable is engineered for reliable, high-power electric vehicle charging. Featuring a durable thermoplastic plug and silver-plated copper alloy contacts, it ensures optimal conductivity and longevity. Rated at 32A/415V with three-phase power, it delivers a maximum charging power of 13kW for significantly reduced charging times.
Built to withstand demanding environments, the cable boasts an IP65 rating for dust and water resistance and a UL94V-0 flame-retardant rating. Its robust design operates flawlessly in a wide temperature range from -30°C to 50°C, making it a dependable charging solution for various climates and conditions.
Key Features:
- IEC 62196-2 Type 2 Standard
- 32A/415V Three-Phase AC
- Max 13kW Charging Power
- IP65 & UL94V-0 Rated
- Wide Operating Temp: -30°C to 50°C
- Silver-Plated Copper Contacts
Main Specifications:
General Information:
| Part No.: | YC-2010-2050-32-5C-3 | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Three Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 32V | |
| Rated Current: | 415A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 13kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC Charging Cable for EV:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
