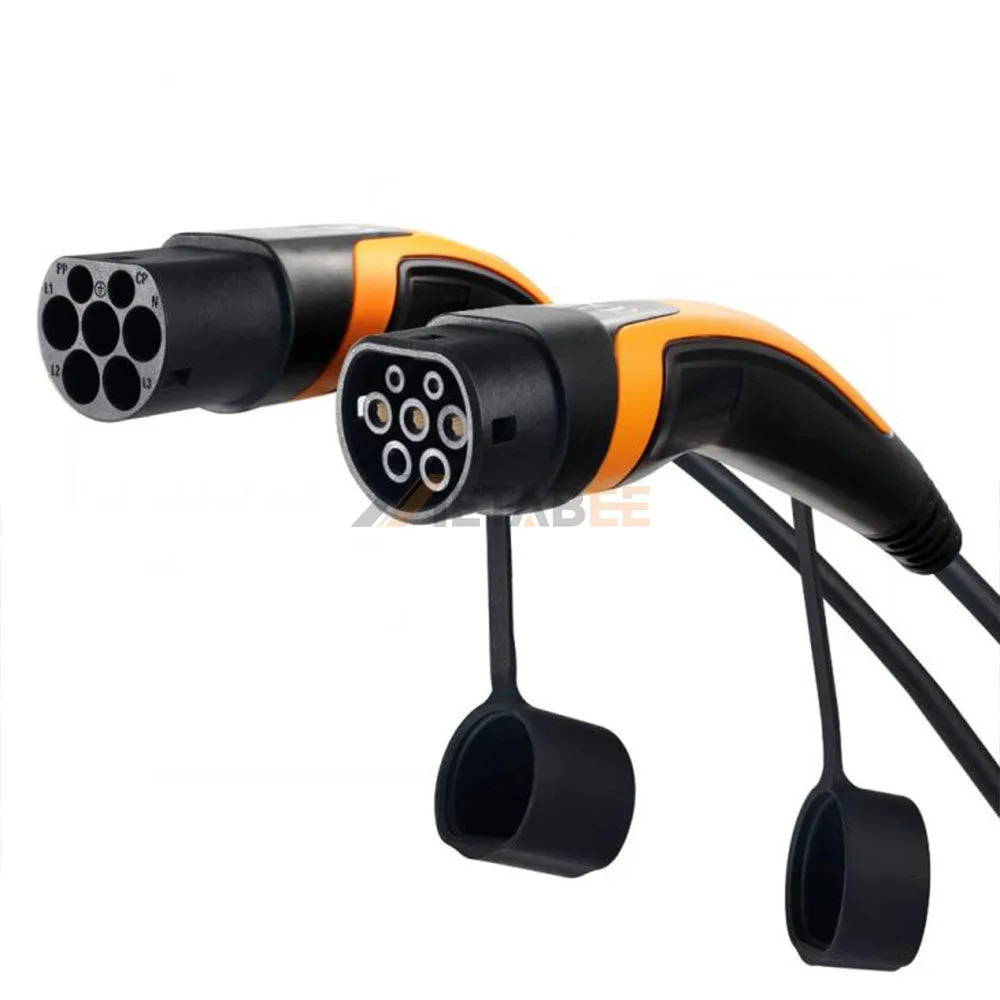

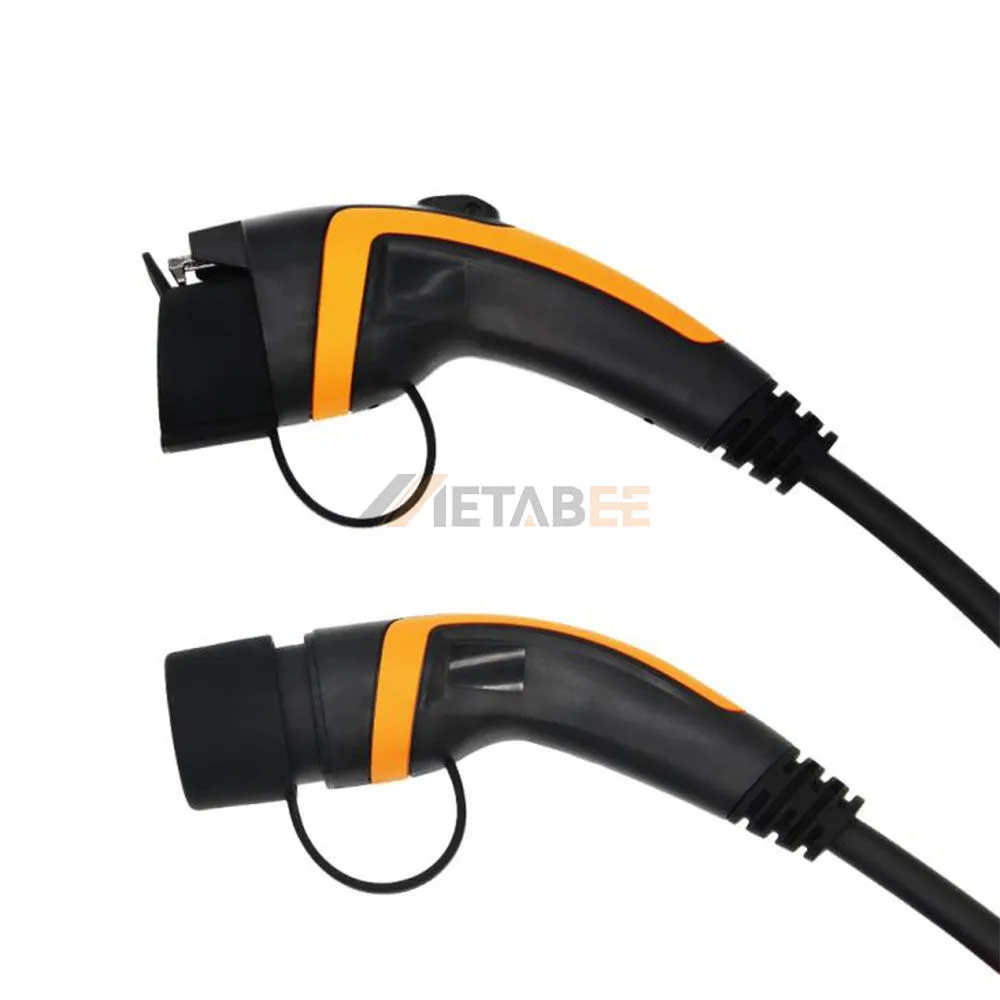

IEC 62196-2 Type 2 AC Charging Cable, EV Plug, Three Phase, 16A, 250V
Introduction
IEC 62196-2 Type 2 AC charging cable is engineered for reliable three-phase AC charging in commercial and residential EV applications. Fully compliant with IEC 62196-2, it supports stable power transmission at 16A and 250V, delivering up to 4 kW of charging capacity for efficient daily use.
The EV plug features a high-strength thermoplastic housing and silver-plated copper alloy contacts to ensure low resistance, excellent conductivity, and long service life. With IP65 protection and UL94 V-0 flame-retardant performance, the cable is designed to operate safely in demanding outdoor environments.
Built for durability and performance, it maintains stable operation across a wide temperature range from -30 °C to 50 °C, making it suitable for global EV charging infrastructure.
Key Features:
- IEC 62196-2 Type 2 standard
- Three-phase AC charging
- Rated 16A, 250V, up to 4 kW
- IP65 waterproof protection
- UL94 V-0 flame-retardant housing
- -30 °C to 50 °C operating range
Main Specifications:
General Information:
| Part No.: | YC-2010-2050-16-5C-3 | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Three Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 16V | |
| Rated Current: | 250A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
