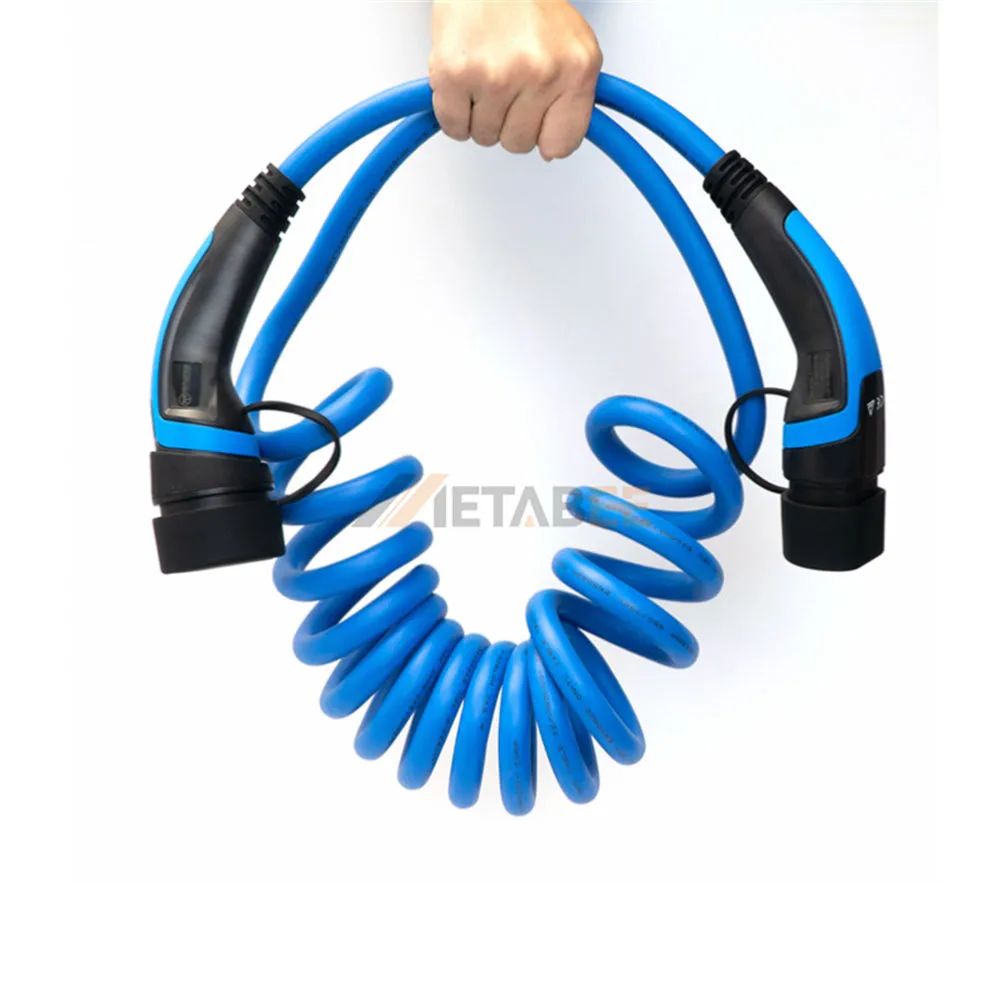

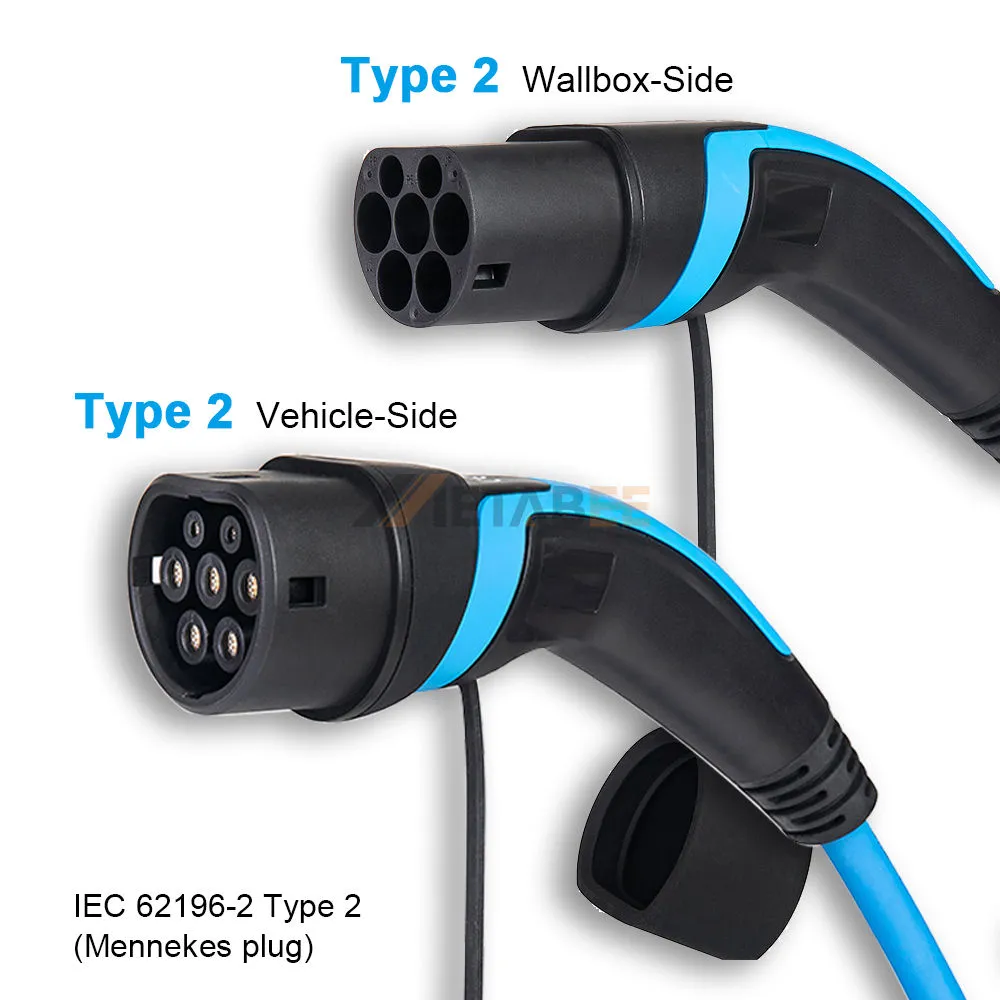

IEC 62196-2 Type 2 AC Charging Cable, EV Plug, Single Phase, 32A, 415V
Introduction
The IEC 62196-2 Type 2 AC charging cable is engineered for reliable and efficient EV charging in European and global markets. Designed for single-phase AC charging, this Type 2 EV plug supports a rated voltage of 415V and a current of 32A, delivering up to 13kW of charging power. It fully complies with IEC 62196-2 standards, ensuring broad compatibility with Type 2 AC charging infrastructure.
Built with a durable thermoplastic housing, the connector features silver-plated copper alloy contacts for low resistance, stable conductivity, and long service life. With an IP65 protection rating and UL94 V-0 flame-retardant classification, the cable performs safely in demanding outdoor environments, operating reliably from -30°C to 50°C.
Key Features:
- IEC 62196-2 Type 2 standard compliant
- Single-phase AC charging, up to 13kW
- Rated 32A current, 415V voltage
- Silver-plated copper alloy contacts
- IP65 protection, UL94 V-0 flame retardant
- Wide operating temperature: -30°C to 50°C
Main Specifications:
General Information:
| Part No.: | YC-2080-2090-32-5CSP | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 415V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 13kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC Charging Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
