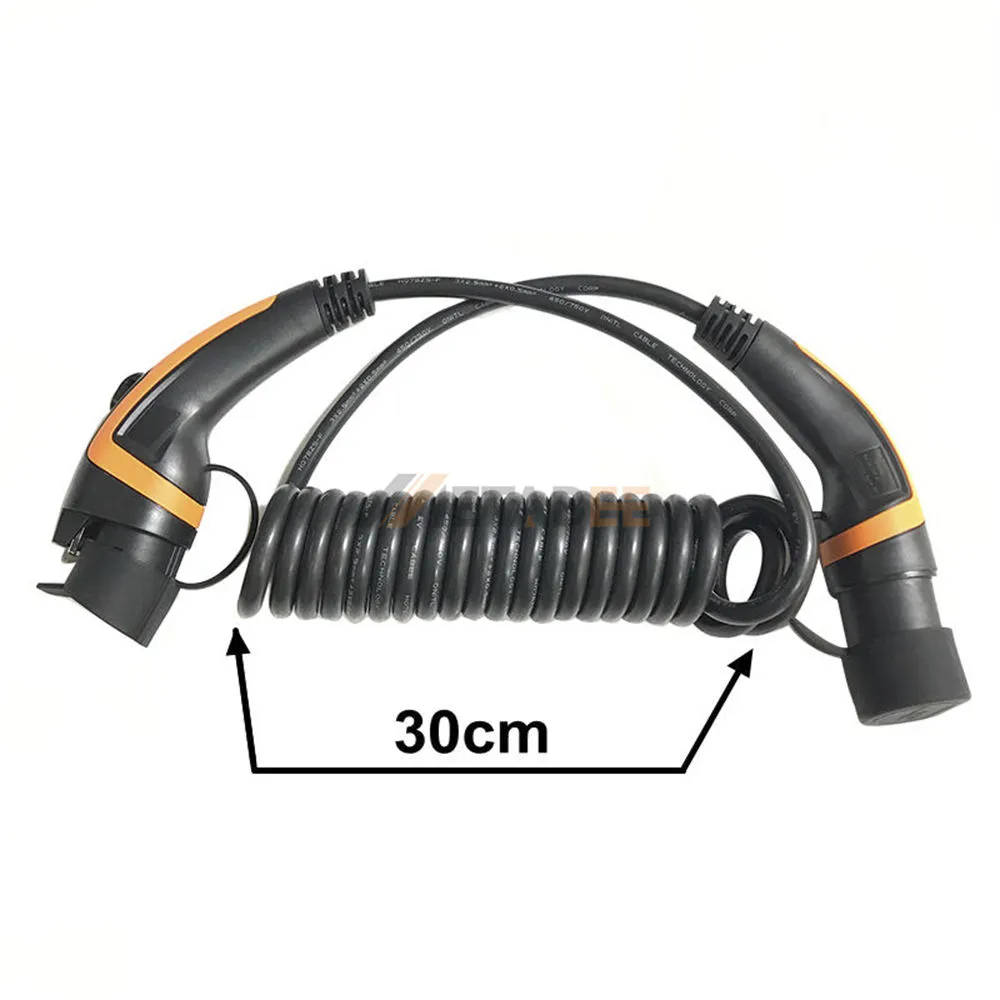

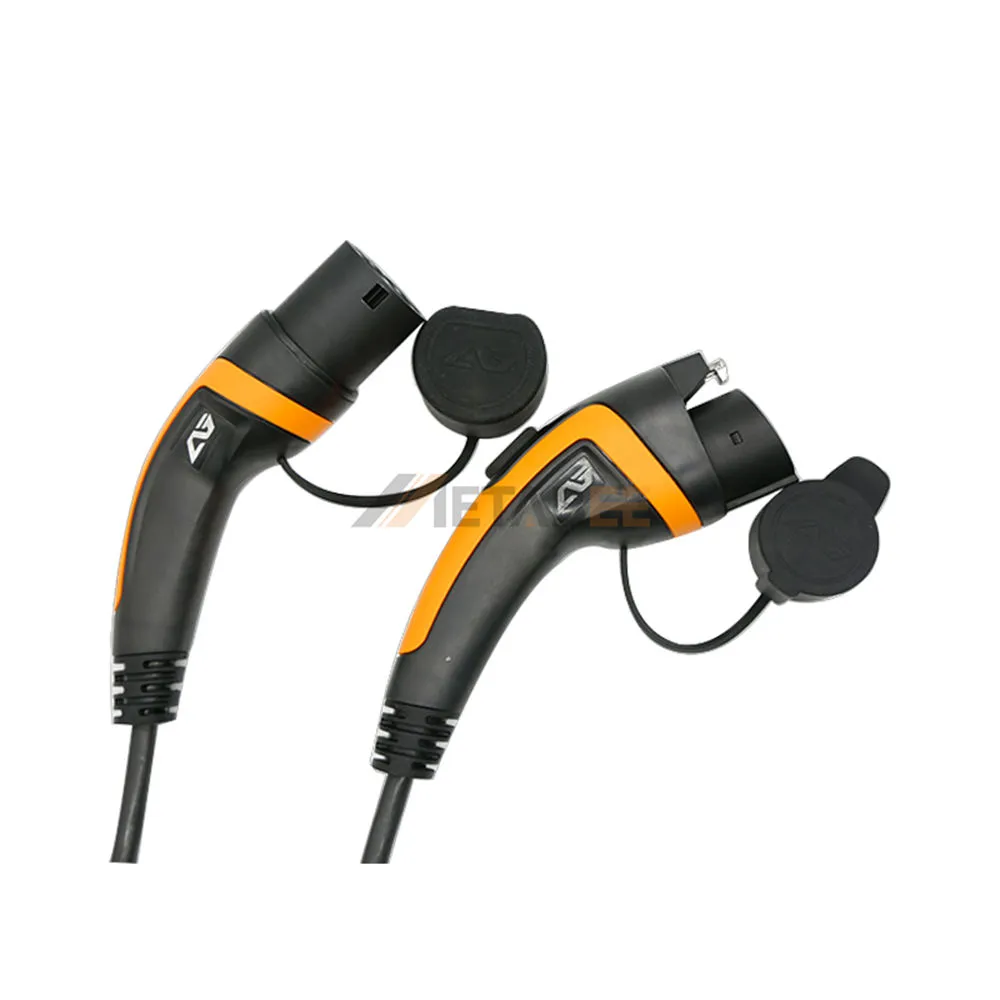

IEC 62196-2 Type 2 AC Cable, EV Charging Plug, Single Phase, 16A, 250V
Introduction
Upgrade your electric vehicle setup with our IEC 62196-2 Type 2 AC charging plug. Engineered for efficiency and safety, this single-phase connector delivers a reliable 16A current at 250V, providing a steady 4kW charging output. It is the perfect solution for daily AC charging, ensuring compatibility with most European standard EVs.
Built for extreme environments, the plug features a durable thermoplastic shell and silver-plated copper alloy contacts for superior conductivity. With an IP65 waterproof rating and UL94V-0 flame retardancy, it operates safely between -30°C and 50°C, offering peace of mind in any weather condition.
Key Features:
- Standard Compliance: Fully meets IEC 62196-2 (Type 2) European standards.
- High Conductivity: Silver-plated copper alloy contacts minimize heat and resistance.
- Weatherproof: IP65 rated for excellent protection against dust and water.
- Fire Safety: UL94V-0 flame-retardant thermoplastic housing.
- Powerful Output: Supports 16A Single Phase charging up to 4kW.
- Extreme Durability: Reliable performance from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-2080-2090-16-5CSP | |
| Product Series: | EV Charging Cables | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Cables
Applications of this IEC 62196-2 Type 2 AC Cable:
The EV charging cables are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
