HSD Z-coded 4 Pin Plug to R/A Jack Cable Assembly
Introduction

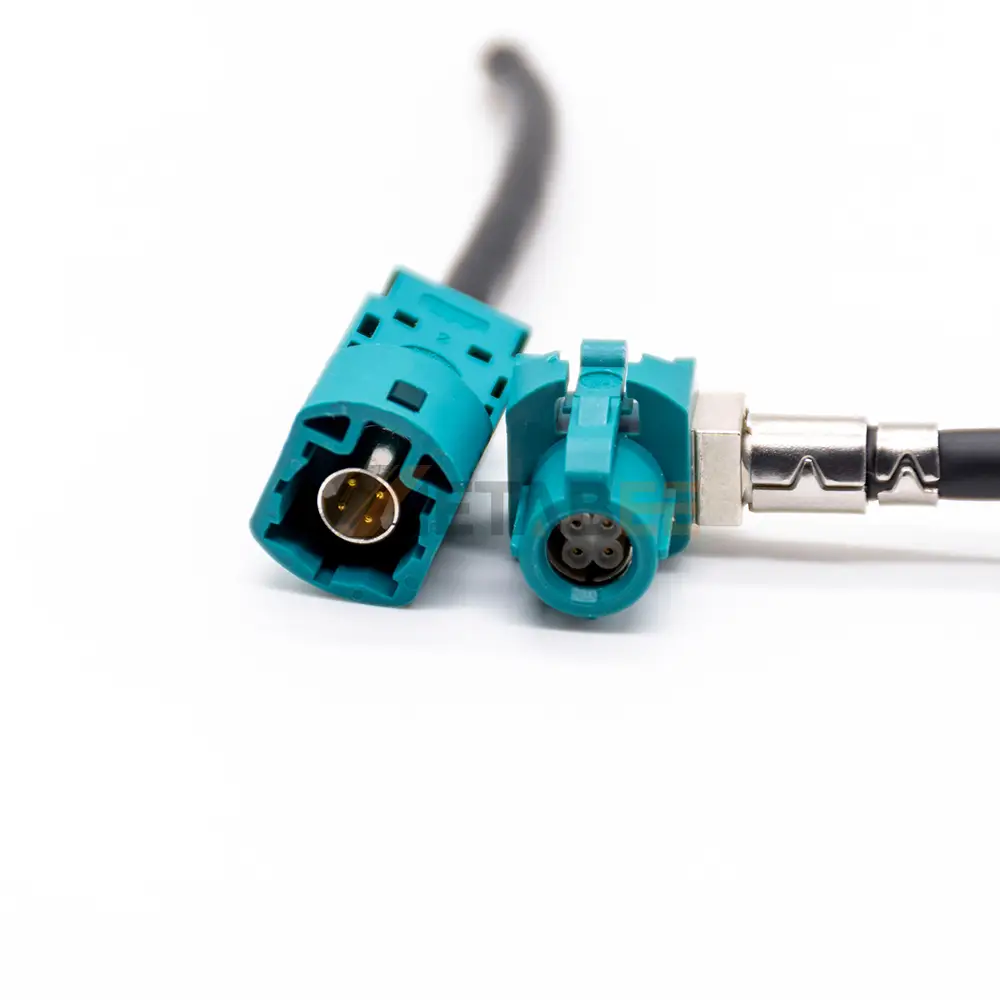

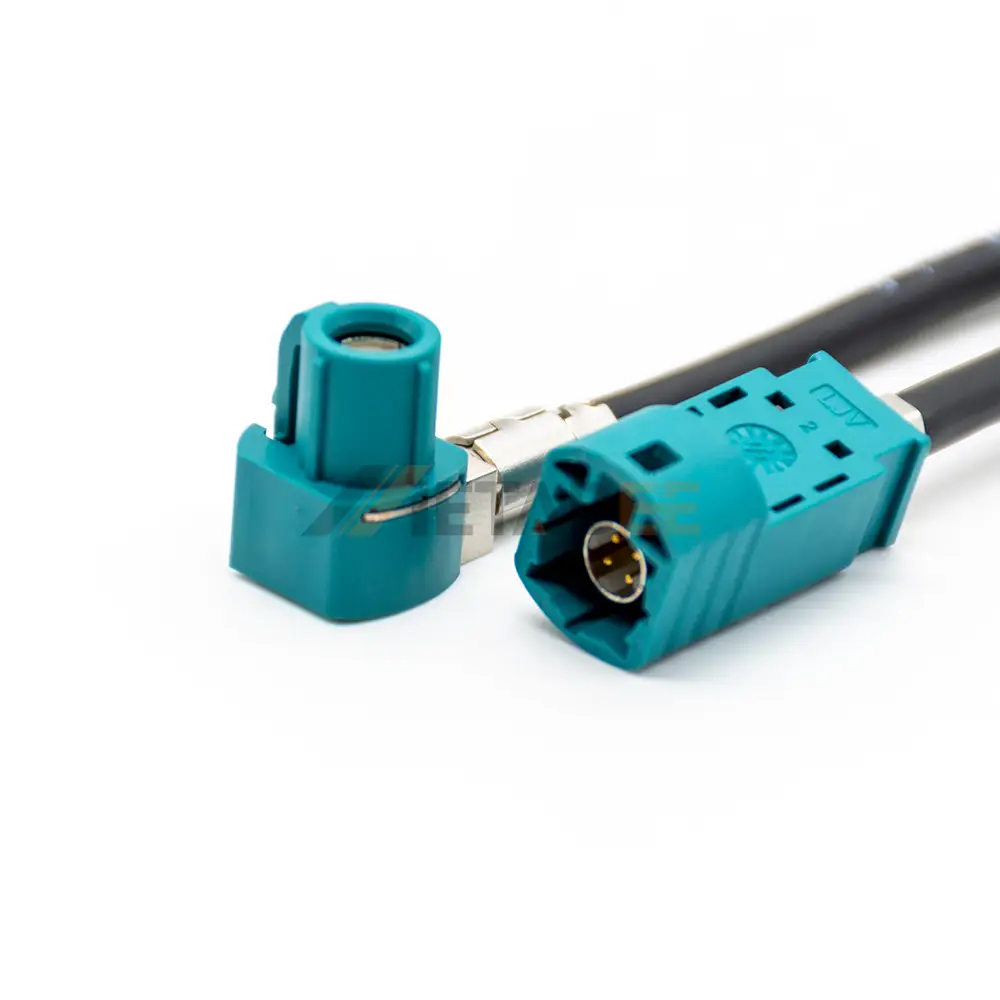

This HSD cable assembly is engineered for robust and reliable signal transmission in demanding environments. It features a straight Plug connector (Z-coded, 4-pin) on one end, which mates seamlessly with a right-angle Jack connector (Z-coded, 4-pin) on the other.
Built to perform under pressure, the assembly maintains a consistent 50-ohm contact impedance, ensuring signal integrity and minimizing data loss. Its operational temperature range of -40°C to +105°C guarantees stable performance in both extreme cold and high-heat conditions, offering reliability for both indoor and outdoor use. This high-quality cable is constructed for durability and long-term use in a wide array of electronic systems.
Key Features:
- Z-coded Keying: Prevents mismating and ensures secure, correct connections.
- 4-Pin Configuration: Designed for high-speed data transmission applications.
- Right-Angle Jack: Offers space-saving benefits and easier cable routing.
- Wide Temperature Range: Reliable operation from -40°C to +105°C.
- 50-ohm Impedance: Ensures signal integrity and minimizes reflection.
Main Specifications:
| Part No.: | 102-11-10008 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | Z-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Plug | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | Z-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Right Angle | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD Z-coded 4 Pin Plug to R/A Jack Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
