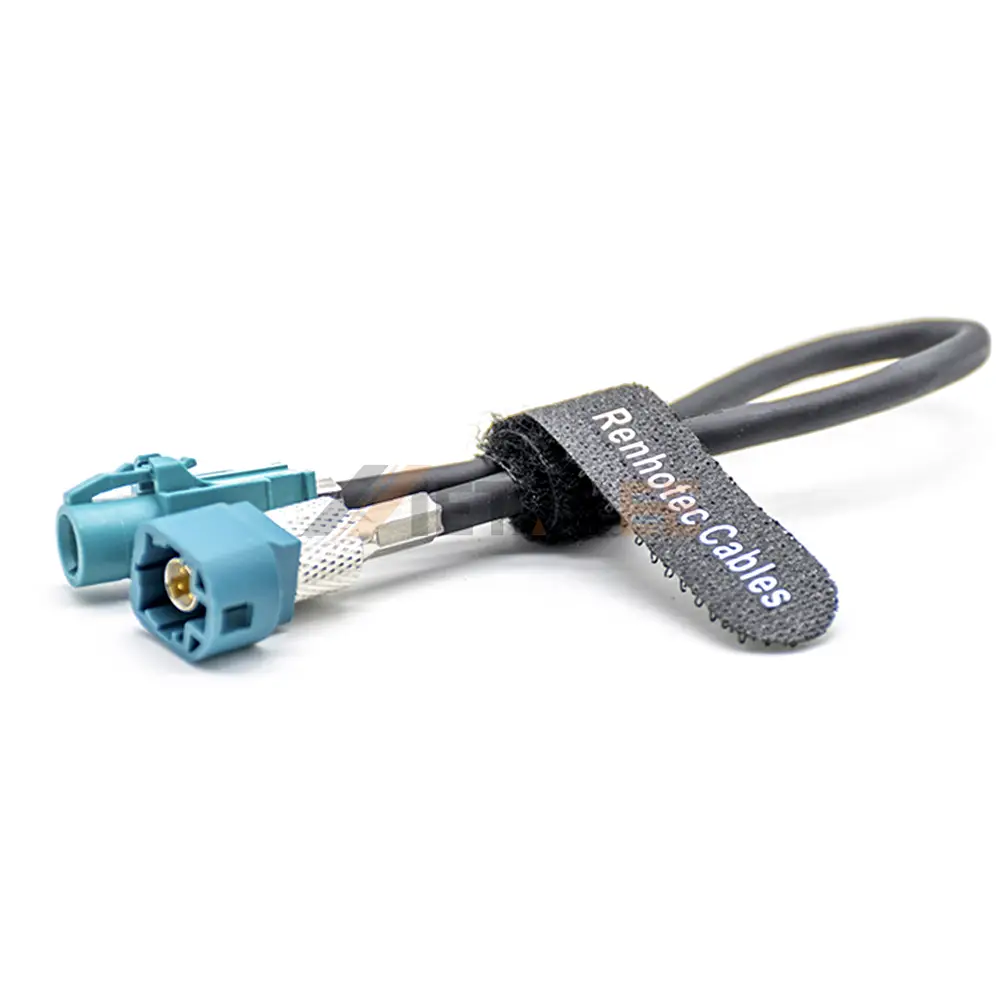

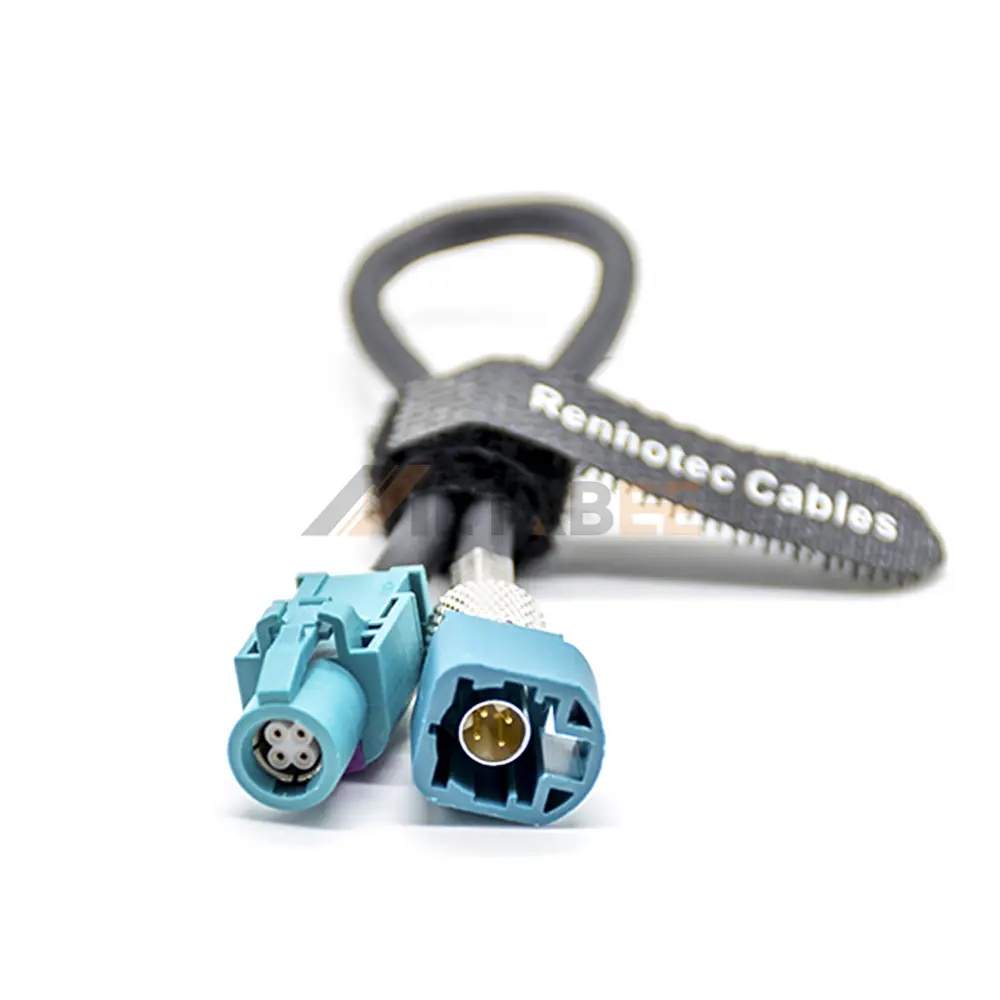

HSD Z-Coded 4 Pin Plug to Jack Cable Assembly
Introduction
This HSD cable assembly is designed for reliable high-speed data transmission in demanding environments. It features HSD to HSD connectivity with Z-coded keying to ensure proper mating and prevent misconnection. The straight orientation connectors offer easy installation in tight spaces. With a consistent impedance of 50 ohms, this assembly minimizes signal reflection and loss, making it ideal for high-frequency applications.
Engineered for durability, the cable operates effectively in temperatures ranging from -40°C to 105°C, suitable for industrial, automotive, and outdoor uses. The robust construction ensures stable performance even under harsh conditions. The 4-pin configuration supports essential data channels, providing a balanced combination of signal integrity and physical resilience.
Key Features:
- HSD Z-Coded 4 Pin Plug to Jack Connectors
- 50 Ohm Impedance for Signal Integrity
- Operating Temperature: -40°C to 105°C
- Straight Orientation for Easy Installation
- Z-Coded Keying to Prevent Incorrect Mating
Main Specifications:
| Part No.: | 102-11-100022 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | Z-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Plug | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | Z-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD Z-Coded 4 Pin Plug to Jack Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
