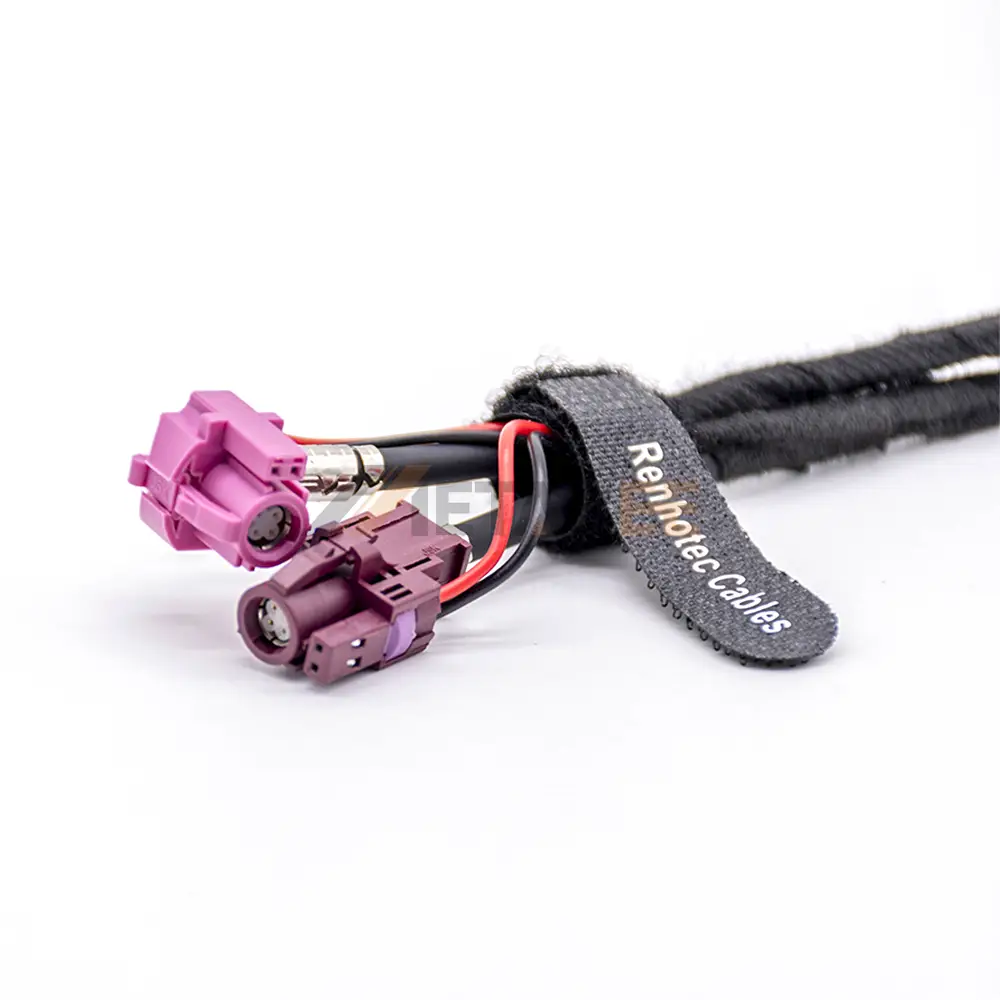

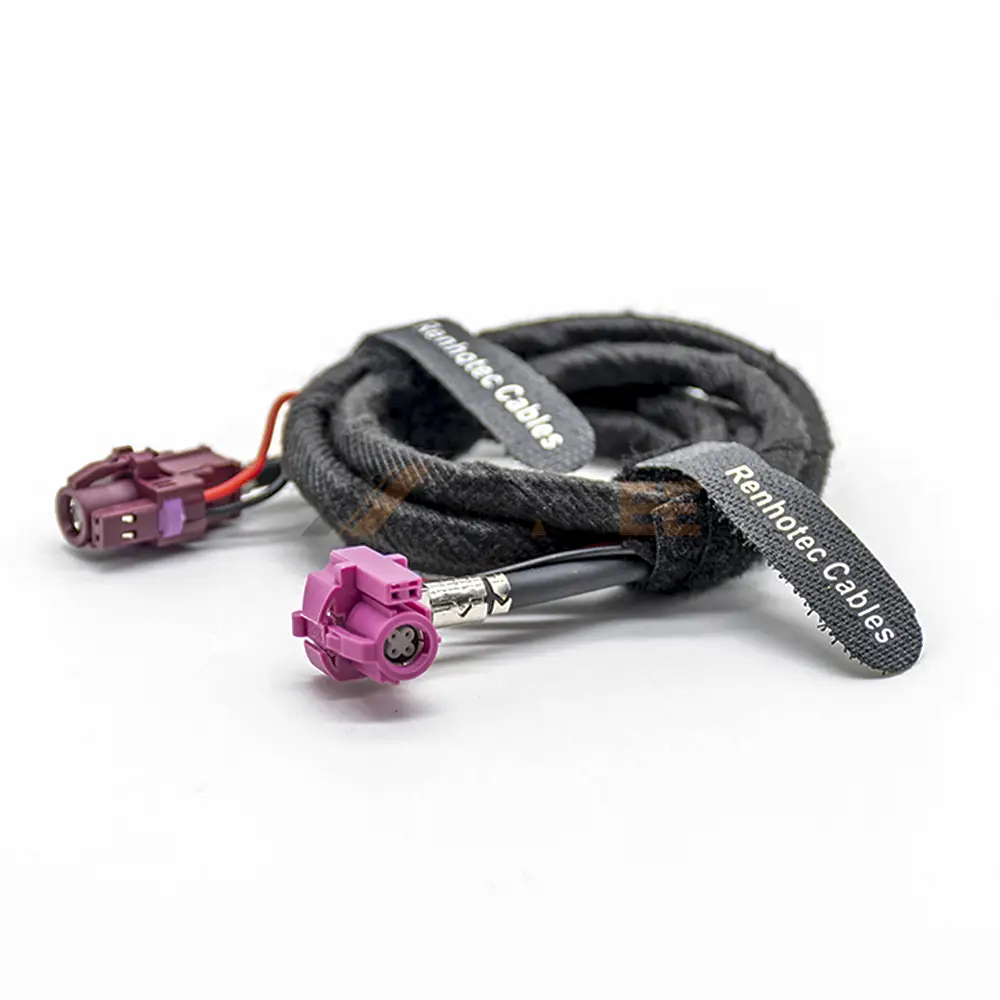

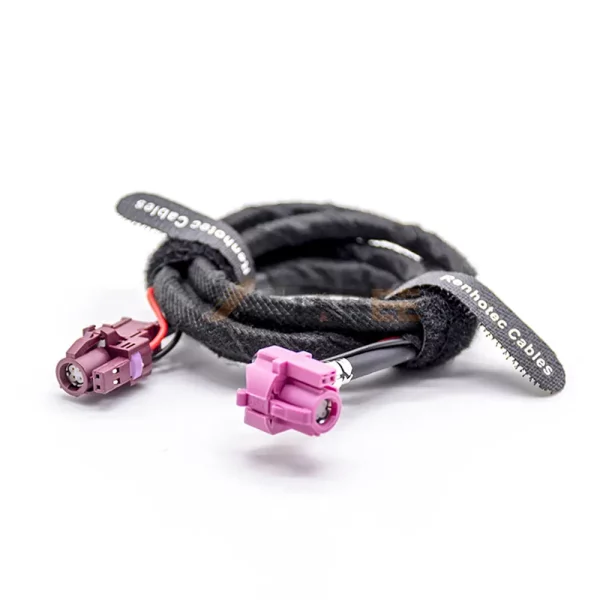

HSD D-Coded 4+2 Pin Jack to R/A HSD H-Coded 4+2 Pin Jack LVDS Cable
Introduction
The HSD cable is engineered for high-speed data transmission in advanced automotive and industrial applications. Featuring a straight D-coded jack on one end and a right-angle H-coded jack on the other, this assembly ensures reliable connectivity while supporting space-saving installations in tight environments.
With a 50-ohm controlled impedance design, this HSD to HSD cable delivers stable signal integrity for LVDS, Ethernet, and multimedia interfaces. Built to withstand harsh conditions, it operates in temperatures ranging from -40°C to +105°C, making it suitable for both interior and under-hood environments. The 4+2 pin configuration further enhances compatibility with modern infotainment and ADAS systems.
Key Features:
- HSD to HSD cable with D-coded straight jack to H-coded right-angle jack
- 4+2 pin design for high-speed data and additional signal support
- 50-ohm impedance for superior signal performance
- Wide operating temperature range: -40°C to +105°C
- Reliable solution for automotive LVDS, Ethernet, and multimedia systems
Main Specifications:
| Part No.: | 102-11-100019 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | D-Coded | |
| Connector 1-Number of Positions: | 4+2 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | H-Coded | |
| Connector 2-Number of Positions: | 4+2 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Right Angle | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD D-Coded Jack to R/A HSD H-Coded Jack LVDS Cable:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
