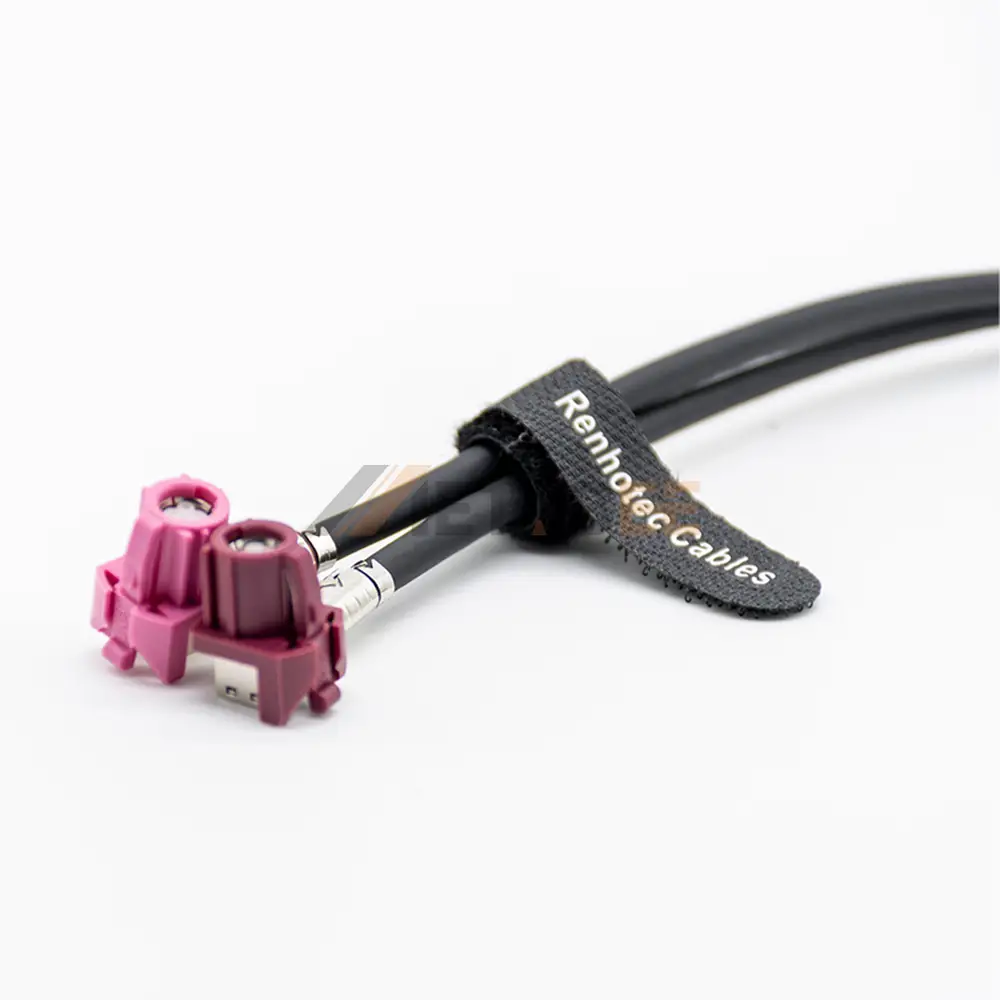

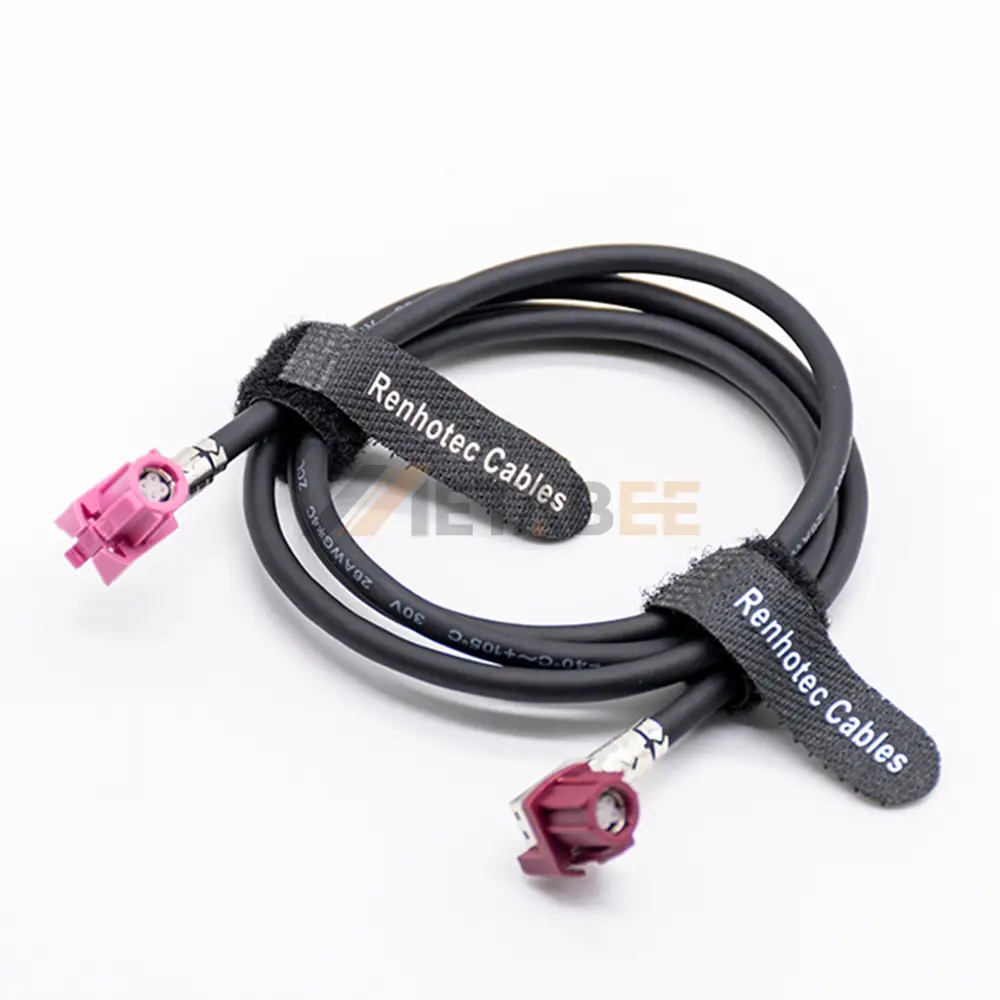

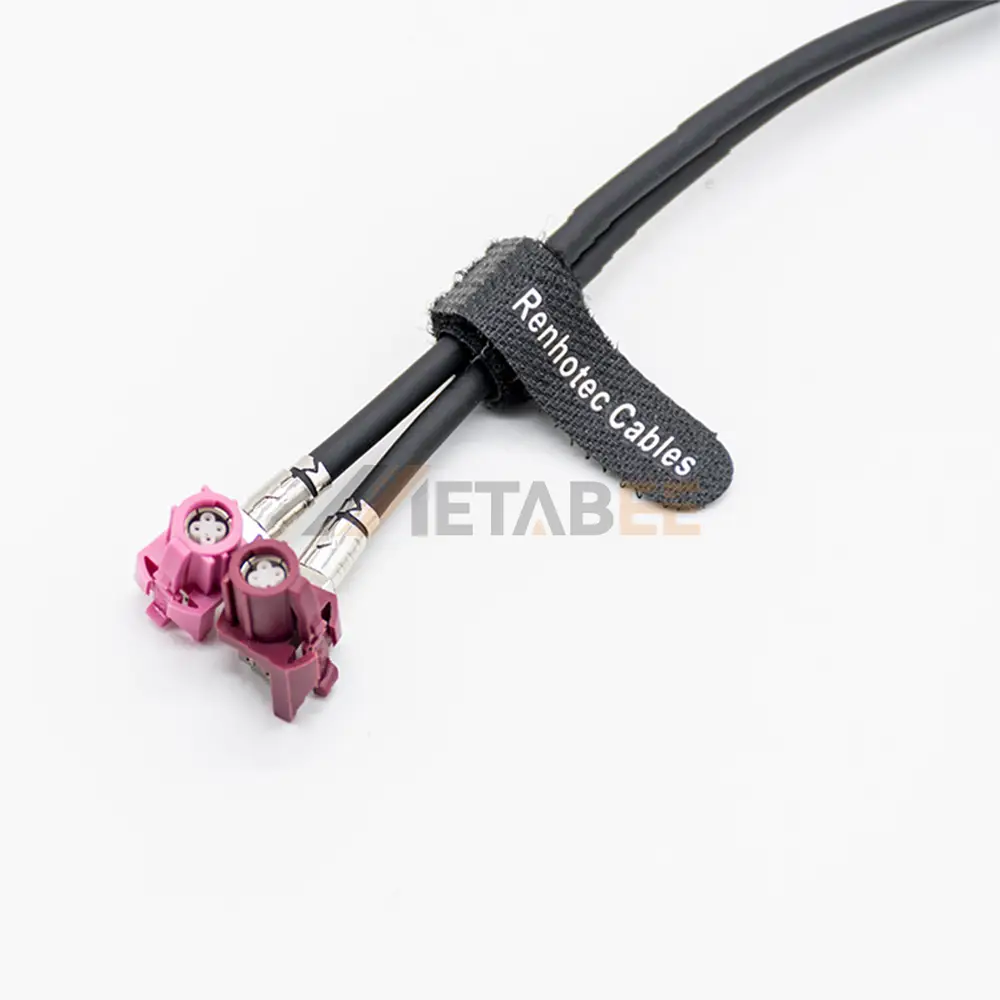

R/A HSD D-Coded 4 Pin Jack to R/A HSD H-Coded 4 Pin Jack Cable
Introduction
This high-performance HSD cable assembly is expertly engineered to deliver secure and reliable data connections in demanding automotive and industrial environments. The cable features a right-angle HSD D-coded 4-pin jack on one end and a right-angle HSD H-coded 4-pin jack on the other. This configuration is perfect for installations with limited space, allowing for clean and organized routing without straining the cable. The distinct D and H key-codings ensure a fool-proof connection, preventing mismating and protecting your equipment.
Designed for superior signal integrity, this HSD to HSD cable maintains a constant impedance of 50 Ohms, minimizing signal loss and ensuring flawless high-speed data transmission for applications like infotainment systems, cameras, and driver-assistance technologies (ADAS). Its robust construction guarantees dependable performance across a wide operational temperature range of -40°C to +105°C.
Key Features:
- Dual Right-Angle Design: Enables easy installation and cable management in tight spaces.
- Secure Key-Coded Connectors: D-coded and H-coded jacks prevent incorrect mating.
- High-Speed Data Ready: Optimized for reliable performance in automotive data applications.
- Stable 50 Ohm Impedance: Ensures excellent signal clarity and integrity.
- Extreme Temperature Resistance: Reliably operates in temperatures from -40°C to +105°C.
Main Specifications:
| Part No.: | 102-11-100021 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | D-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Right Angle | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | H-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Right Angle | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this R/A HSD D-Coded 4 Pin Jack to R/A HSD H-Coded 4 Pin Jack Cable:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
