R/A HSD B-Coded 4 Pin Jack to R/A HSD J-Coded 4 Pin Jack Cable
Introduction

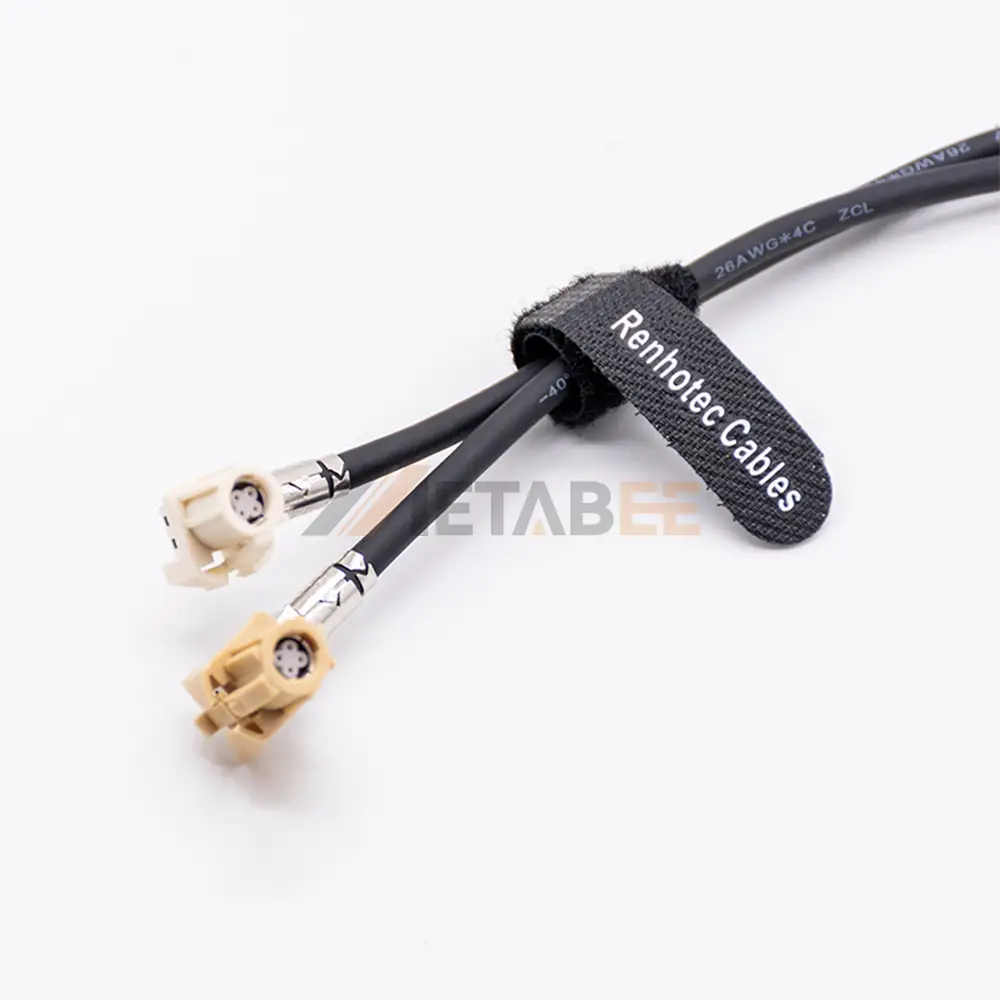

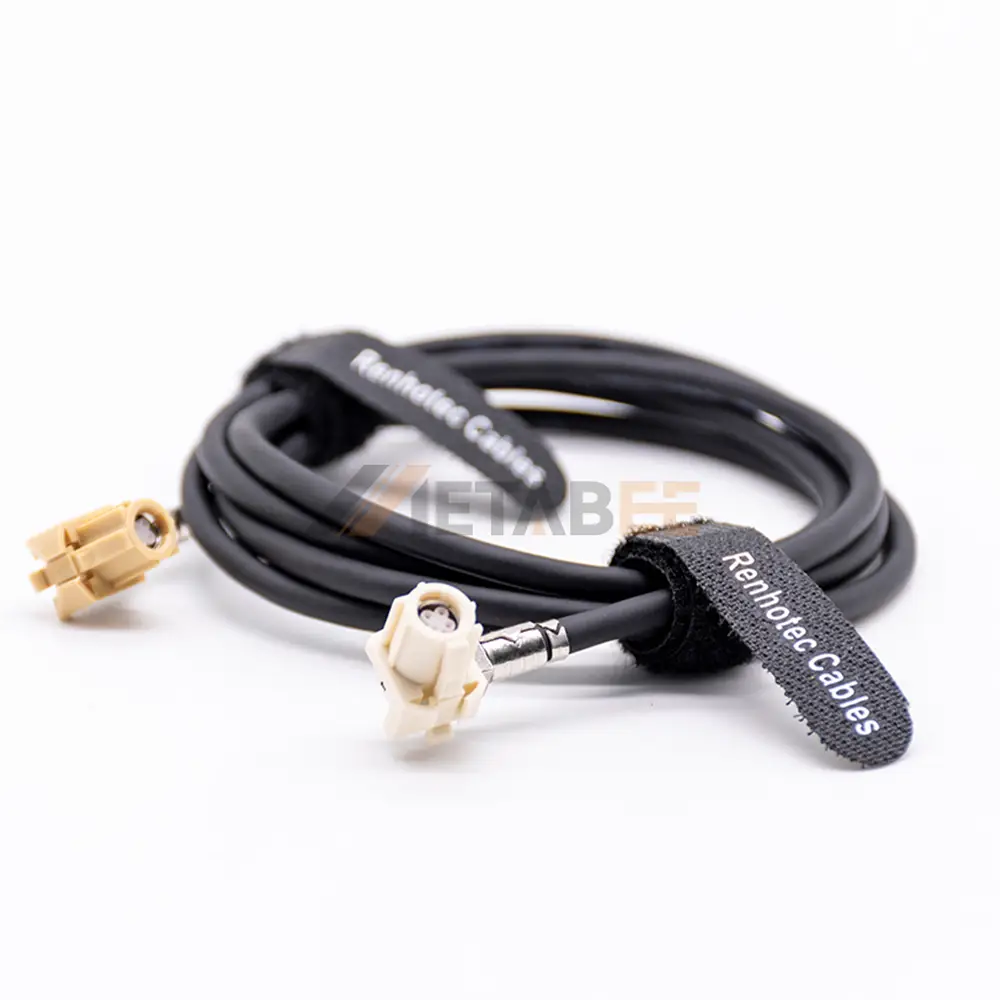

This high-performance HSD cable assembly is engineered to provide a reliable, high-speed connection for automotive applications and other demanding data transmission environments. Featuring a right-angle HSD B-coded 4-pin jack on one end and a right-angle HSD J-coded 4-pin jack on the other, this cable is specifically designed for complex routing and space-constrained installations. The different keying (B-coded and J-coded) prevents mismating, ensuring a secure and correct connection between your devices every time.
Built for durability and optimal signal integrity, this HSD to HSD cable maintains a consistent 50 Ohm impedance, which is critical for preventing signal reflection and ensuring clear data transfer for systems like infotainment, driver-assistance (ADAS), and onboard diagnostics. The robust construction allows it to operate flawlessly in extreme conditions, with a wide operating temperature range from -40°C to +105°C. This ensures stable and dependable performance whether in freezing winter conditions or high-heat engine compartments.
Key Features:
- Dual Right-Angle Connectors: Ideal for tight spaces and organized cable management.
- High-Speed Data Transmission: HSD interface ensures reliable performance for automotive data applications.
- Secure Coded Keying: B-coded to J-coded connectors prevent incorrect installation.
- Stable 50 Ohm Impedance: Guarantees excellent signal integrity and clarity.
- Wide Temperature Range: Built to withstand extreme environments from -40°C to +105°C.
Main Specifications:
| Part No.: | 102-11-100020 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | B-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Jack | |
| Connector 1 – Orientation: | Right Angle | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | J-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Right Angle | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this R/A HSD B-Coded 4 Pin Jack to R/A HSD J-Coded 4 Pin Jack Cable:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
