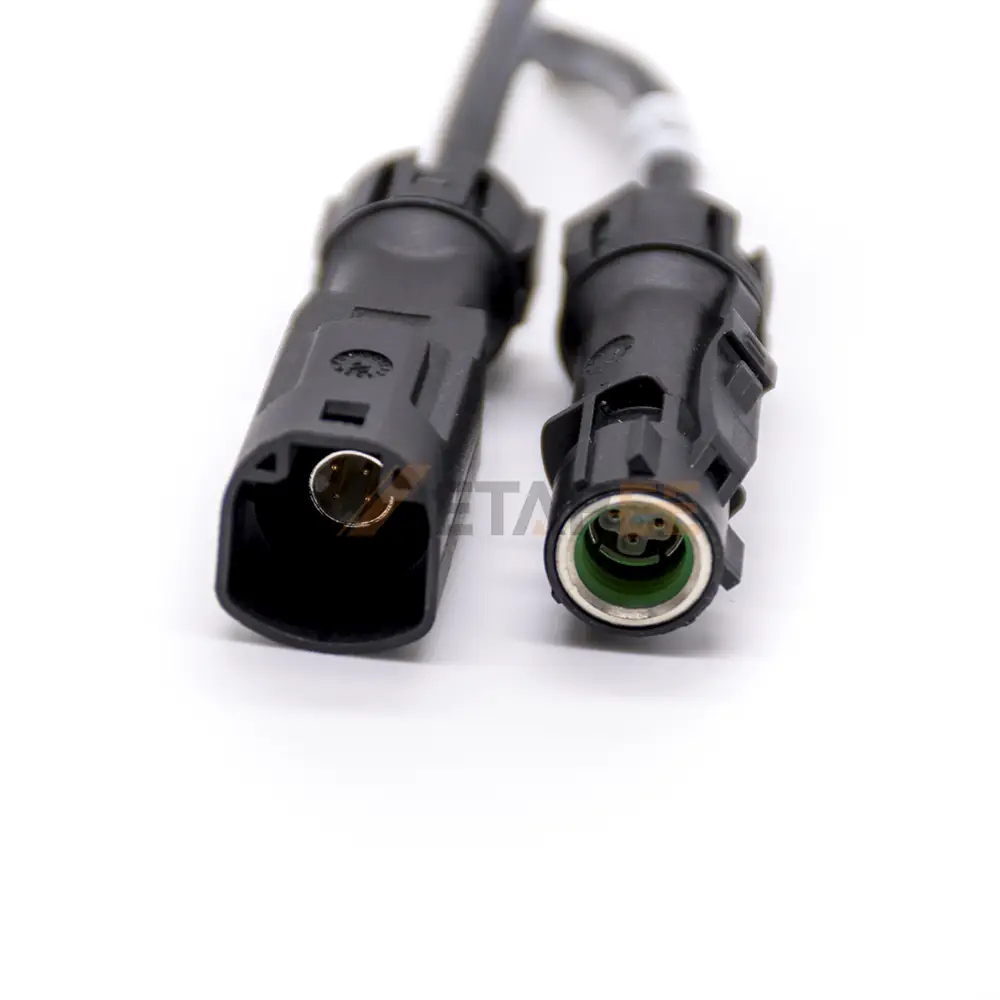

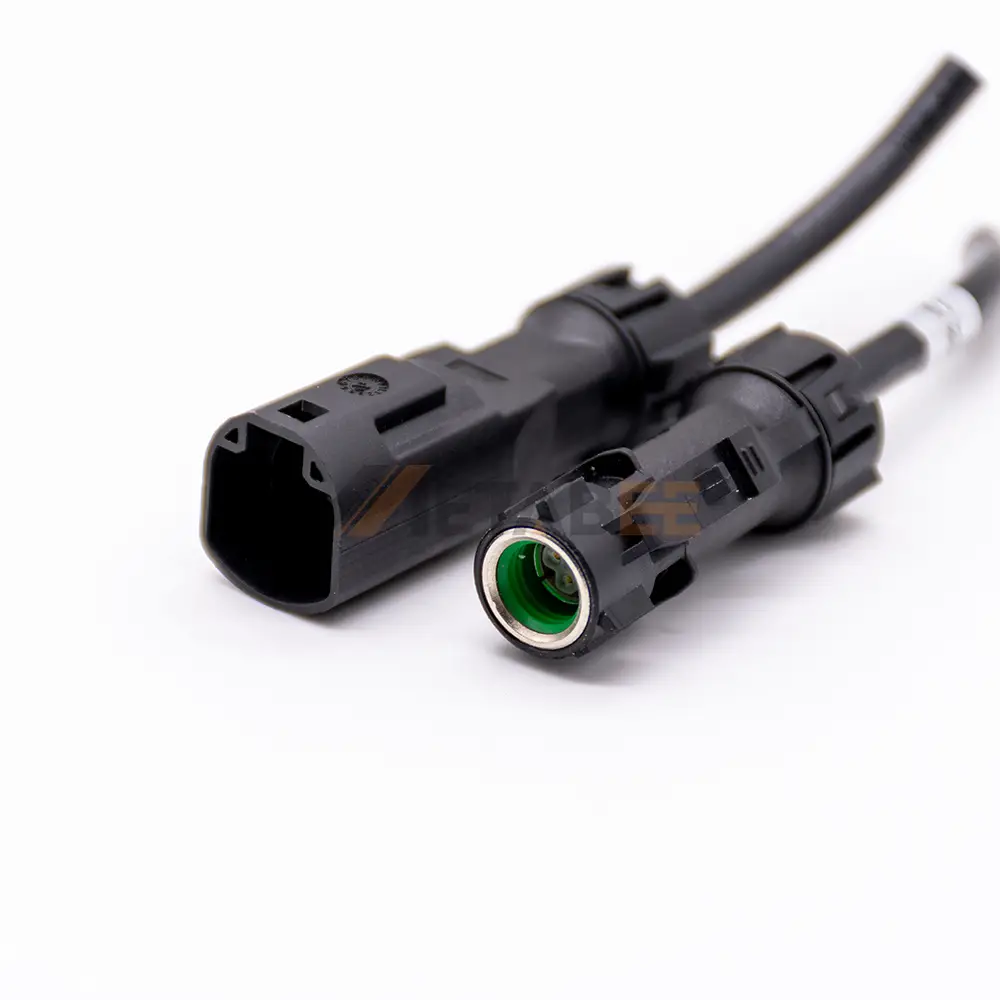

HSD A-Coded 4 Pin Plug to Jack Cable Assembly
Introduction
The HSD cable assembly is a high-performance solution designed for reliable data and signal transmission in demanding environments. This specialized cable features an HSD to HSD cable type, ensuring secure and efficient connectivity. Both connectors are HSD connectors with an A-coded keyway and 4 pins, configured as a straight plug on one end and a straight jack on the other. This design ensures a precise fit and secure connection, making it ideal for applications in the automotive, industrial, and telecommunications sectors where integrity and performance are crucial.
Engineered to deliver exceptional performance, this cable assembly features a 50-ohm characteristic impedance, optimized for high-frequency signal transmission. The robust design allows it to operate reliably across a wide temperature range, from -40°C to 105°C. This makes it suitable for use in harsh conditions. Its durable construction and technical specifications ensure minimal signal loss and maximum data throughput, providing a dependable and long-lasting solution for your connectivity needs.
Key Features:
- HSD to HSD cable assembly with A-coded 4-pin design.
- Plug to jack straight orientation for secure connections.
- 50-ohm impedance for optimal signal integrity.
- Wide operating temperature: -40°C to +105°C.
- Durable Construction: Built for use in demanding environments.
Main Specifications:
| Part No.: | 102-11-10006 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | A-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Plug | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | A-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this HSD A-Coded 4 Pin Plug to Jack Cable Assembly:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
