High Speed Data HSD Z-Coded 4 Pin Plug to Jack Cable
Introduction

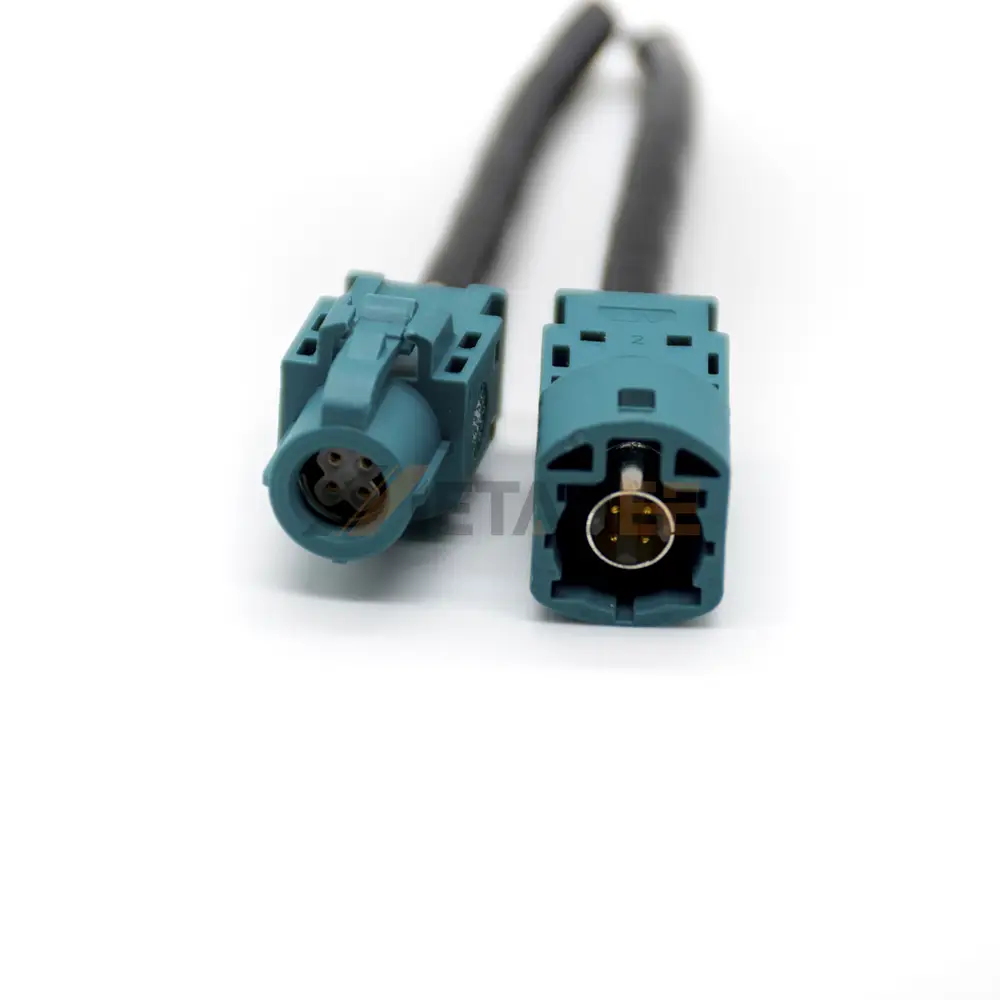

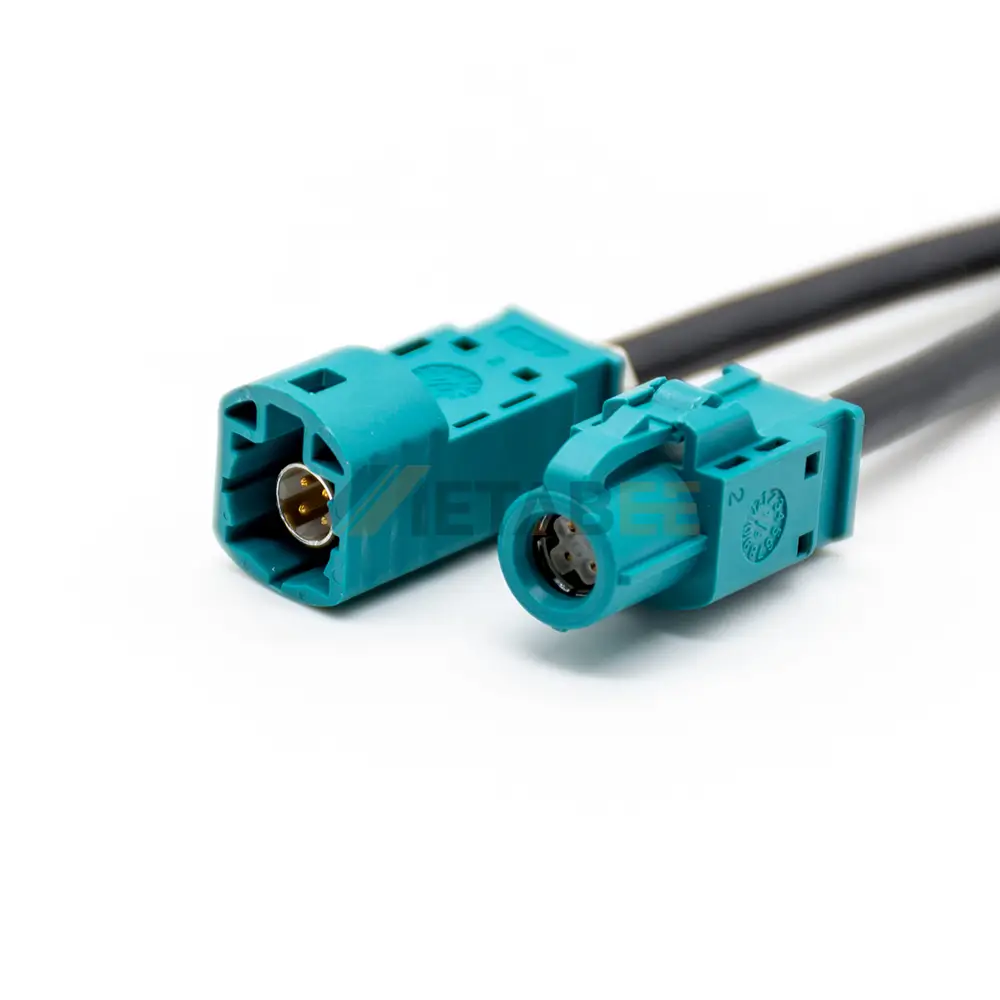

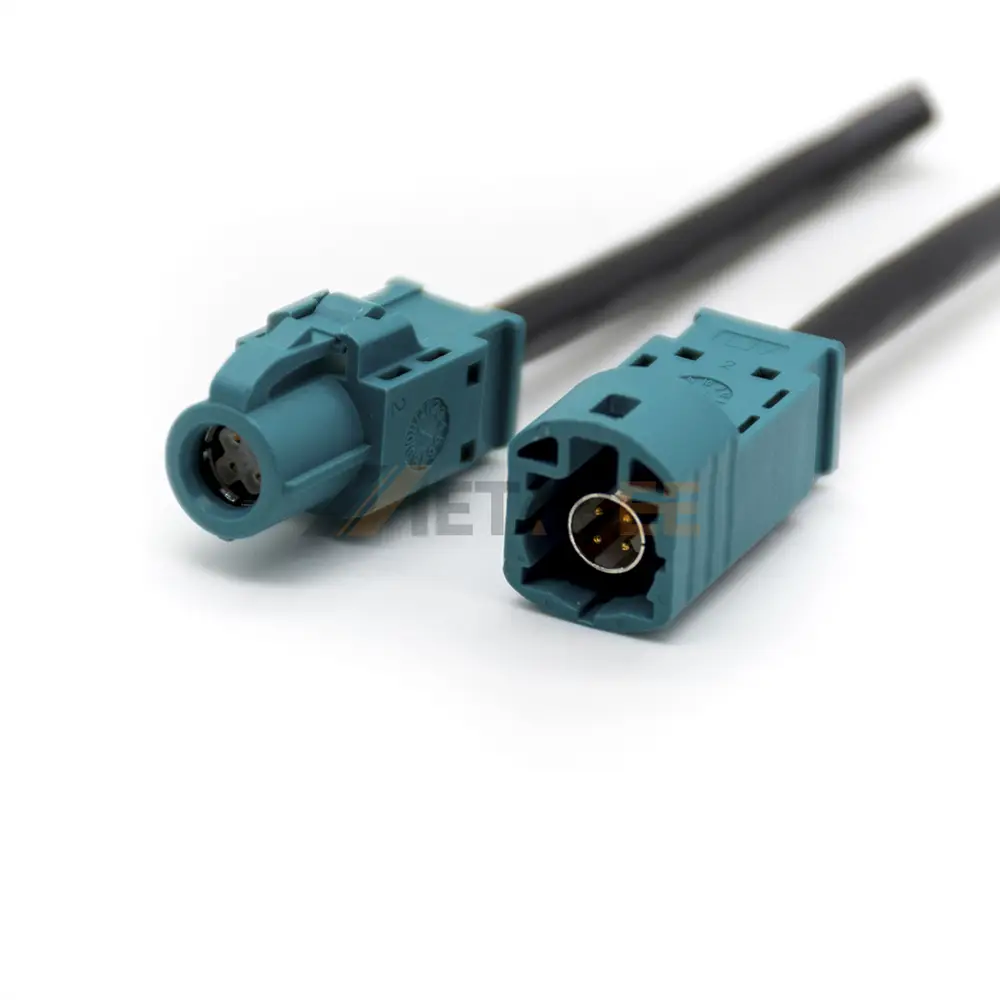

This HSD cable is engineered for superior performance in demanding applications, providing reliable data transmission up to 6 Gbps. It features a straight 4-pin HSD plug on one end and a straight 4-pin HSD jack on the other, both with Z-coded keying to prevent mismating and ensure a secure connection. The 50-ohm impedance is meticulously controlled to guarantee signal integrity, making this cable ideal for automotive, infotainment, and industrial systems where high-quality, high-speed data transfer is critical. Constructed to withstand harsh conditions, this cable operates efficiently within a wide temperature range of -40°C to 105°C.
Key Features:
- HSD Z-coded 4-pin plug to jack cable.
- Straight mounting design for both connectors.
- Impedance: 50 ohms for stable signal integrity.
- Wide operating temperature: -40°C to +105°C.
- Reliable high-speed data transmission.
Main Specifications:
| Part No.: | 102-11-10007 | |
| Product Series: | HSD Cables | |
| Product Type: | HSD to HSD | |
| Brand: | Metabee | |
| Connector 1: | HSD Connector | |
| Connector 1 Coding: | Z-Coded | |
| Connector 1-Number of Positions: | 4 Pin | |
| Connector 1 – Gender: | Plug | |
| Connector 1 – Orientation: | Straight | |
| Connector 1 – Mount Method: | Not Applicable | |
| Connector 2: | HSD Connector | |
| Connector 2 Coding: | Z-Coded | |
| Connector 2-Number of Positions: | 4 Pin | |
| Connector 2 – Gender: | Jack | |
| Connector 2 – Orientation: | Straight | |
| Connector 2 – Mount Method: | Not Applicable | |
| Cable Length: | Customized | |
| Impedance: | 50 Ohms | |
| Temperature Range: | -40℃ to +105℃ | |
| Other Feature: | None |
HSD plug and jack in schematic view with pin assignment:
14 codes and colors of HSD male and female:
Applications of this High Speed Data HSD Z-Coded 4 Pin Plug to Jack Cable:
HSD (High-Speed Data) cables are a specialized type of cable designed to meet the growing need for high-speed, reliable data transmission.
Here are some main applications:
- In-Vehicle Infotainment Systems;
- Advanced Driver-Assistance Systems (ADAS);
- Automotive Camera Systems;
- GPS and Telematics;
- Robotics and Industrial Automation;
- Medical Equipment;
- Test and Measurement Systems;
- Consumer Electronics.
We can customize this HSD cable assembly according to your special requirements. Get a free quotation now!
